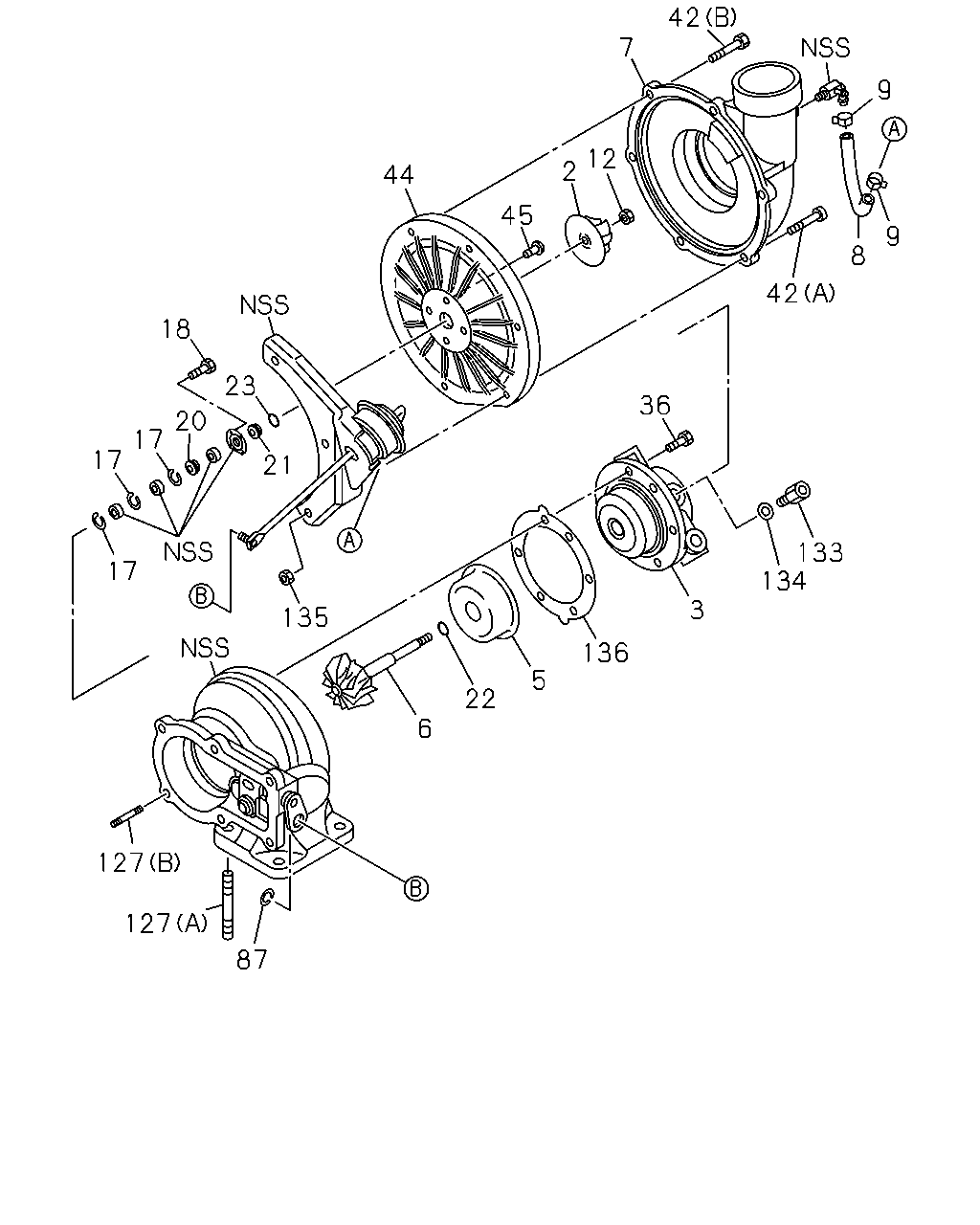

2 |
IMPELLER; TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
8-98083-881-0 |
01 |
1 |
- |
| |
3 |
HOUSING; BRG,TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
1-14411-054-0 |
01 |
1 |
- |
| |
5 |
PROTECTOR; HEAT,TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
1-14425-023-0 |
01 |
1 |
- |
| |
6 |
SHAFT; TURBINE,TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
1-14450-048-0 |
01 |
1 |
- |
| |
7 |
HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
8-98083-057-0 |
01 |
1 |
- |
| |
8 |
HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-98063-641-0
|
8-98083-050-0 |
01 |
1 |
- |
| |
9 |
CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
1-14469-035-0 |
02 |
1 |
- |
| |
12 |
NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: A = 8-98063-641-0
|
1-09400-041-0 |
01 |
1 |
- |
| |
17 |
RING; JOURNAL BRG,TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
1-14455-038-0 |
03 |
1 |
- |
| |
18 |
SCREW; THRUST BRG,TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
1-09100-027-0 |
03 |
1 |
- |
| |
20 |
BUSHING; THRUST,TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
1-14453-078-0 |
01 |
1 |
- |
| |
21 |
THROWER; OIL,TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
1-14455-039-0 |
01 |
1 |
- |
| |
22 |
RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
1-14453-076-0 |
01 |
1 |
- |
| |
23 |
RING; SEAL,BLOWER SIDE,TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
1-14453-077-0 |
01 |
1 |
- |
| |
36 |
BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: A = 8-98063-641-0
|
1-09100-029-0 |
06 |
1 |
- |
| |
42 |
BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
(A) ASM PART: A = 8-98063-641-0
|
1-09100-030-0 |
03 |
1 |
- |
| |
42 |
BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
(B) ASM PART: A = 8-98063-641-0
|
1-09100-031-0 |
03 |
1 |
- |
| |
44 |
PLATE; SEAL,TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
1-14425-024-0 |
01 |
1 |
- |
| |
45 |
SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
1-09100-028-0 |
04 |
1 |
- |
| |
87 |
RING; ACTUATOR,TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
1-14469-037-0 |
01 |
1 |
- |
| |
127 |
STUD; TURBOCHARGER
(B), M8X25
ASM PART: A = 8-98063-641-0
|
9-04130-825-0 |
01 |
1 |
- |
| |
127 |
STUD; TURBOCHARGER
(A), M10X80
ASM PART: A = 8-98063-641-0
|
9-04731-080-0 |
02 |
1 |
- |
| |
133 |
ADAPTER; OIL PIPE
ASM PART: A = 8-98063-641-0
|
1-14469-034-0 |
01 |
1 |
- |
| |
134 |
GASKET; ADAPTER
ID=12.2
ASM PART: A = 8-98063-641-0
|
1-09630-084-0 |
01 |
1 |
- |
| |
135 |
NUT; BLOWER HOUSING
ASM PART: A = 8-98063-641-0
|
1-09400-127-0 |
03 |
1 |
- |
| |
136 |
GASKET; TURBINE HSG,TURBOCHARGER
ASM PART: A = 8-98063-641-0
|
8-97600-289-0 |
01 |
1 |
- |
