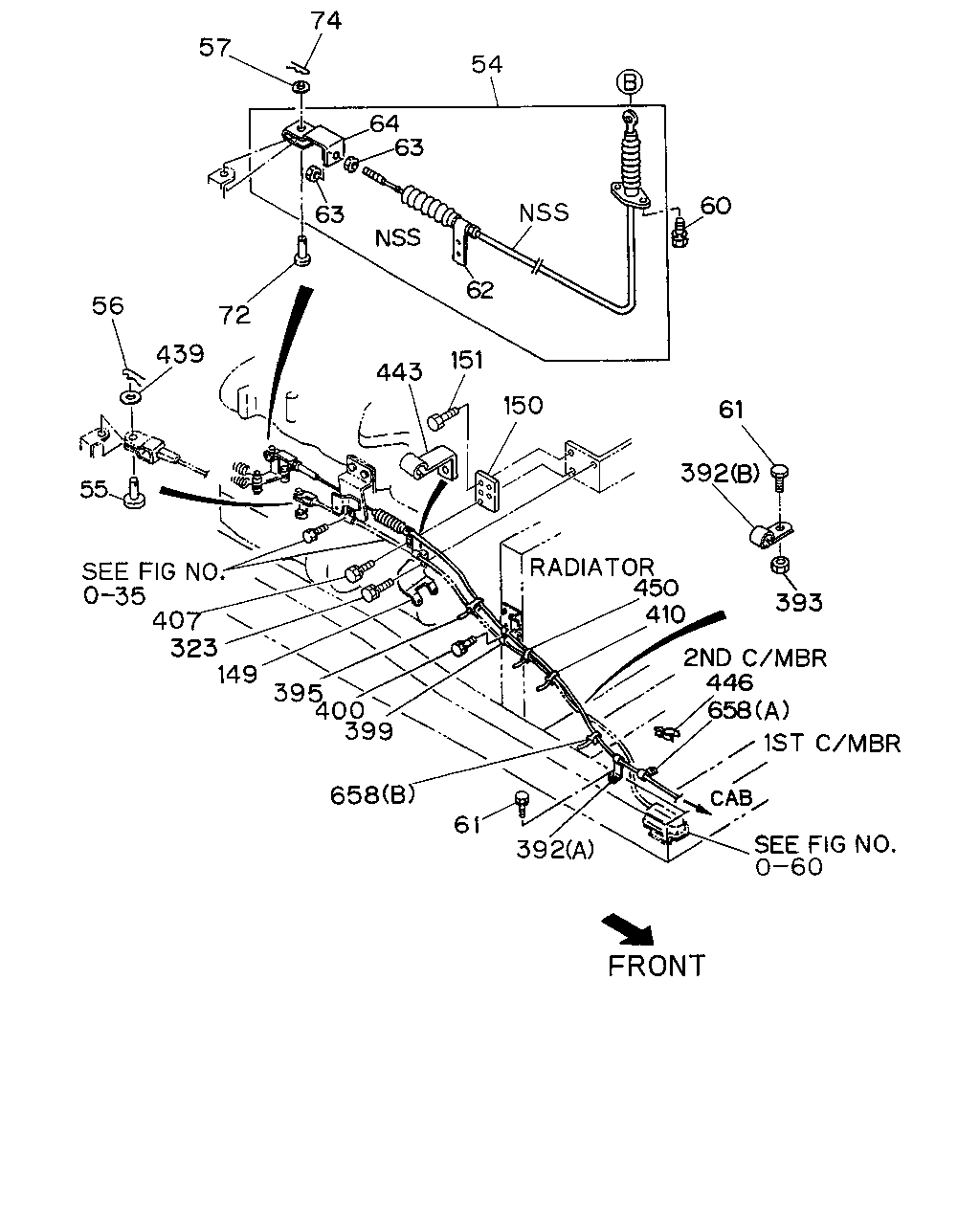

1-01 — ACCELERATOR PEDAL AND CONTROL (#1563) — 70 parça

392 61 658 400 399 395 149 323 407 658 393 446 410 450 392 61 150 151 443 72 55 56 439 63 62 60 54 64 63 74 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CABLE; ENG CONT L=1490	1-23210-954-1	01	1	9207-
55	PIN; JAW JOINT	1-09744-096-1	01	1	9207-
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9207-
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9207-
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9207-
60	BOLT; CABLE M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9207-
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9207-
61	BOLT; BRKT TO FRAME ENG CONT CABLE M5X14 W/LK WASHER	1-09980-023-0	01	1	9207-
61	BOLT; BRKT TO FRAME ENG CONT CABLE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M8X20 FLANGE	0-28080-820-0	01	1	9207-
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9207-
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9207-
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9207-
72	PIN; JAW JOINT,CABLE END	1-09744-083-0	01	1	9207-
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9207-
149	BRACKET; ENG CONT AIR COMPRESSOR HEAVY DUTY(E1Q)	1-23335-370-0	01	1	9207-
149	BRACKET; ENG CONT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-23335-273-1	01	1	9207-
150	ADAPTER; ENG CONT WIRE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-23335-439-0	01	1	9207-
151	BOLT; ADAPTER AIR COMPRESSOR HEAVY DUTY(E1Q) M6X30 W/LK WASHER	0-50040-630-0	02	1	9207-
323	BOLT; CLIP M6X14 W/LK WASHER	0-50040-614-0	01	1	9207-
392	CLIP; ACCEL CONT CABLE (A) ID=9 L=25 H=45	1-09700-867-0	01	1	9207-
392	CLIP; ACCEL CONT CABLE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) (B) ID=13 L=28	9-09525-256-0	01	1	9207-
393	NUT; CLIP TO FRAME FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M8	9-09110-408-0	01	1	9207-
395	CLIP; BAND,ACCEL CONT CABLE L=140	5-09707-031-1	02	1	9207-
399	CLIP; CABLE,RAD SIDE ID=9 & 7 L=15 & 15	1-09700-060-0	01	1	9207-
400	BOLT; CLIP,RAD SIDE M6X12 FLANGE	0-28080-612-0	01	1	9207-
407	BOLT; CLIP TO ENG EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M6X16 W/LK WASHER	0-50040-616-0	02	1	9207-
410	CLIP; BAND L=140	5-09707-031-1	01	1	9207-
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9207-
443	CLIP; CABLE AIR COMPRESSOR HEAVY DUTY(E1Q) L=34	1-09700-758-0	01	1	9207-
443	CLIP; CABLE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) L=20	9-09527-008-0	01	1	9207-
446	CLIP; ENG CONT ID=6.8X11.8	1-09709-127-0	01	1	9207-
450	CLIP; BAND L=140	5-09707-031-1	01	1	9207-
658	CLIP; ENG CONT CABLE (B) L=140	5-09707-031-1	01	1	9207-
658	CLIP; ENG CONT CABLE (A) ID=11	9-09525-032-0	01	1	9207-

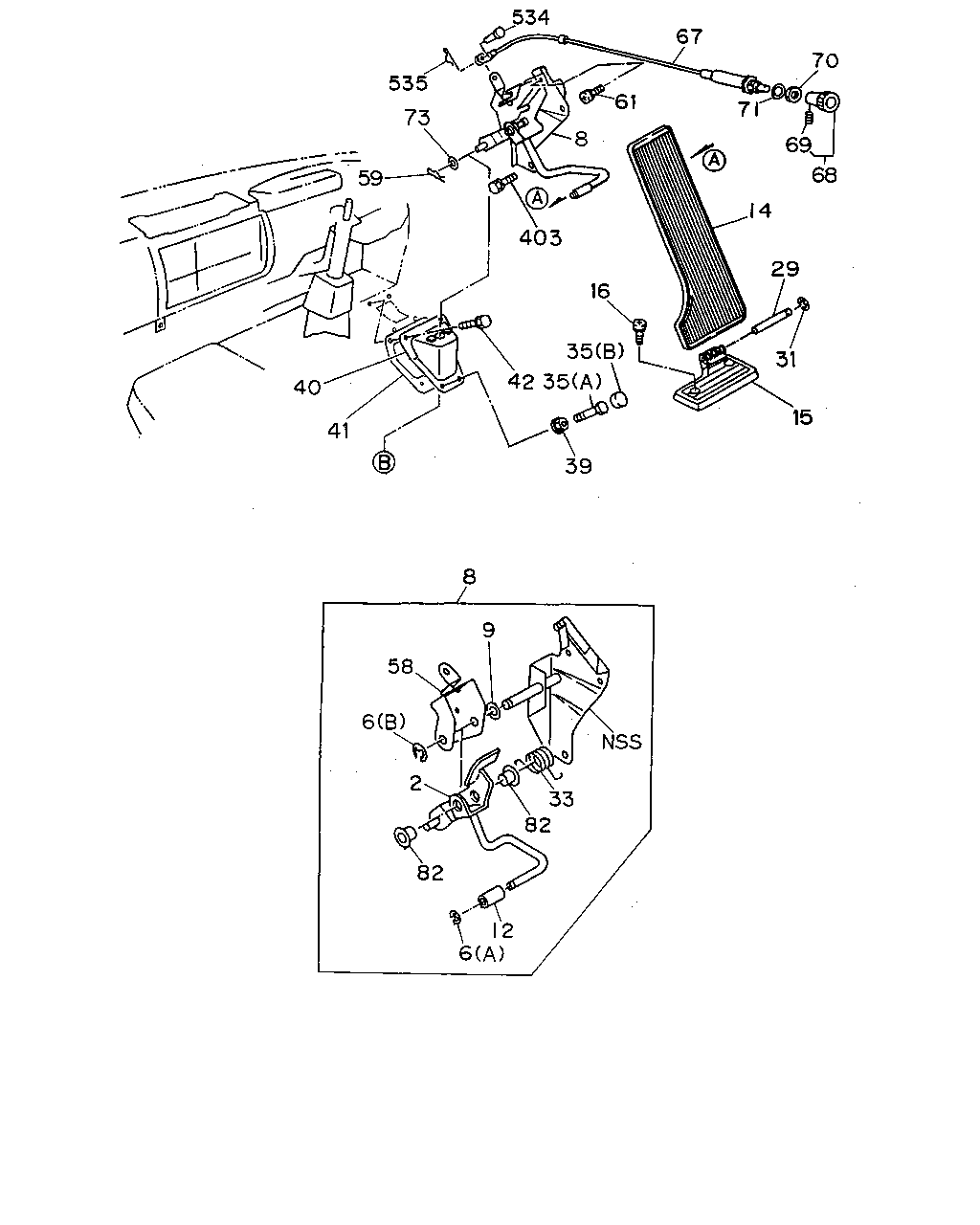

6 12 82 33 82 2 6 9 8 58 41 40 39 42 35 35 15 31 29 14 16 403 8 59 73 535 534 67 61 71 70 69 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LEVER; ENG CONT	1-73997-904-1	01	1	9207-
6	RING; SNAP,LINK TO LINK (A) ID=6	9-09185-406-0	01	1	9207-
6	RING; SNAP,LINK TO LINK (B) ID=9	9-09185-409-0	01	1	9207-9306
6	RING; SNAP,LINK TO LINK (B) ID=8	9-09185-408-0	01	1	9307-
8	LINK ASM; ENG CONT	1-23240-067-2	01	1	9207-
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	9207-
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9207-
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9207-
15	STAND; HEEL,ACCEL PEDAL	1-73997-675-3	01	1	9207-9305
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9306-
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24 W/PL WASHER	1-09981-504-0	02	1	9207-
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	9207-
31	RING; SNAP,ACCEL PEDAL ID=6	9-09185-406-0	01	1	9207-
33	SPRING; IDLING CONT LEVER	1-73997-906-0	01	1	9207-
35	STOPPER; ACCEL PEDAL (A)	1-09980-412-0	01	1	9207-9307
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9308-
35	STOPPER; ACCEL PEDAL (B)	1-23249-009-0	01	1	9207-
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	8-94279-060-0	01	1	9207-
40	BRACKET; ENG CONT CABLE	1-73997-632-1	01	1	9207-
41	SEAL; BRKT,ENG CONT CABLE	1-73998-451-0	01	1	9207-
42	BOLT; BRKT,ENG CONT CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9207-
58	LEVER; IDLING CONT	1-73997-905-1	01	1	9207-
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9207-
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9207-
61	BOLT; BRKT TO FRAME ENG CONT CABLE M5X14 W/LK WASHER	1-09980-023-0	01	1	9207-
61	BOLT; BRKT TO FRAME ENG CONT CABLE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M8X20 FLANGE	0-28080-820-0	01	1	9207-
67	CABLE ASM; IDLE CONT L=387	1-73998-538-1	01	1	9207-
68	KNOB; IDLE CONT W/SCREW	8-94134-716-0	01	1	9207-
69	SCREW; KNOB,IDLE CONT	5-09120-004-0	01	1	9207-
70	NUT; CONT CABLE M18 RING NUT	5-09409-004-1	01	1	9207-
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	9207-
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9207-
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	9207-
403	BOLT; BRKT,ACCEL PEDAL M6X20 W/LK&PL WASHER	1-09980-493-0	03	1	9207-
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	9207-
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	9207-
