Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
9 - Tools
▶
9-01 - TOOLS
▶

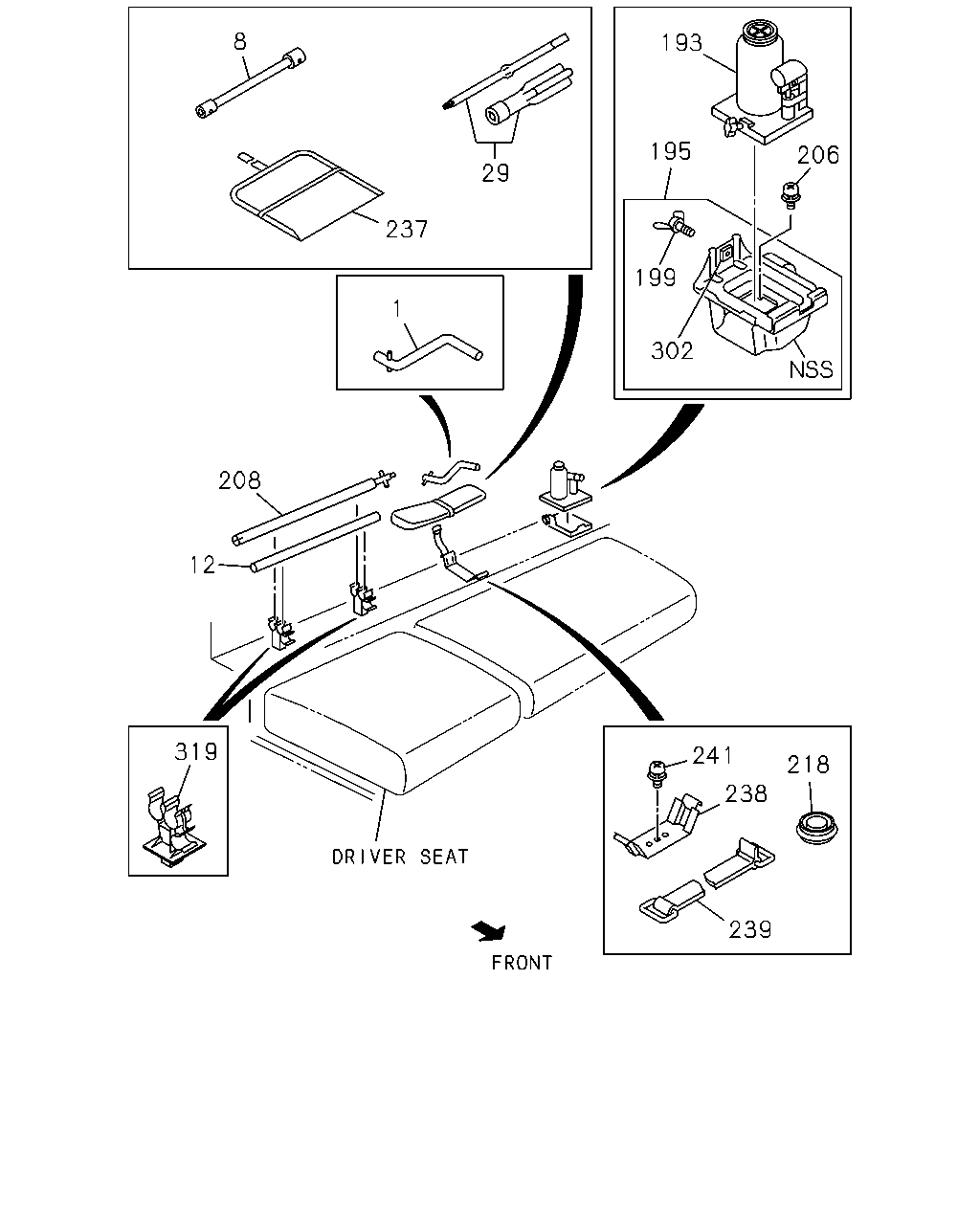

9-01 — TOOLS
(#156296) — 16 parça
239
218
238
241
319
12
208
1
302
199
206
195
193
29
237
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.629 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER<P10>
8-97218-985-0
01
1
1412-
8
08.821 WRENCH; WHEEL
B=41X19 L=330
8-94386-490-1
01
1
1412-
12
08.821 HANDLE; WRENCH,WHEEL PIN
SPARE WHEEL CARRIER<P10> OD=25 L=480
8-98257-407-0
01
1
1412-
29
08.821 DRIVER; SCREW
<+>,<-> L=160
8-94242-798-1
01
1
1412-
193
08.820 JACK ASM
4TON
8-98239-828-0
01
1
1412-
195
08.820 BRACKET; JACK
8-94273-287-7
01
1
1412-
199
08.820 BOLT; JACK
M8X30 WING
8-94279-018-1
01
1
1412-
206
08.820 SCREW; OIL JACK BRKT
16.570 M6X16
0-38050-616-0
01
1
1412-
208
08.820 HANDLE; JACK
SPARE WHEEL CARRIER<P10> L=642
8-98181-477-0
01
1
1412-
218
08.821 PLUG
08.131 OD=53.5
8-94356-253-0
02
1
1412-
237
08.821 BAG; TOOL
8-97130-903-1
01
1
1412-
238
08.820 SUPPORT; TOOL BAG
8-97994-977-0
01
1
1412-
239
08.820 BAND; TOOL BAG
L=100
5-73997-026-1
01
1
1412-
241
08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16
0-38050-616-0
01
1
1412-
302
08.820 NUT; JACK BRKT
8-94279-522-0
01
1
1412-
319
08.821 CLIP; TOOL BAR
8-97853-077-2
02
1
1412-
