◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NJR ▶ 51610 - NJR RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#156293) — 16 parça

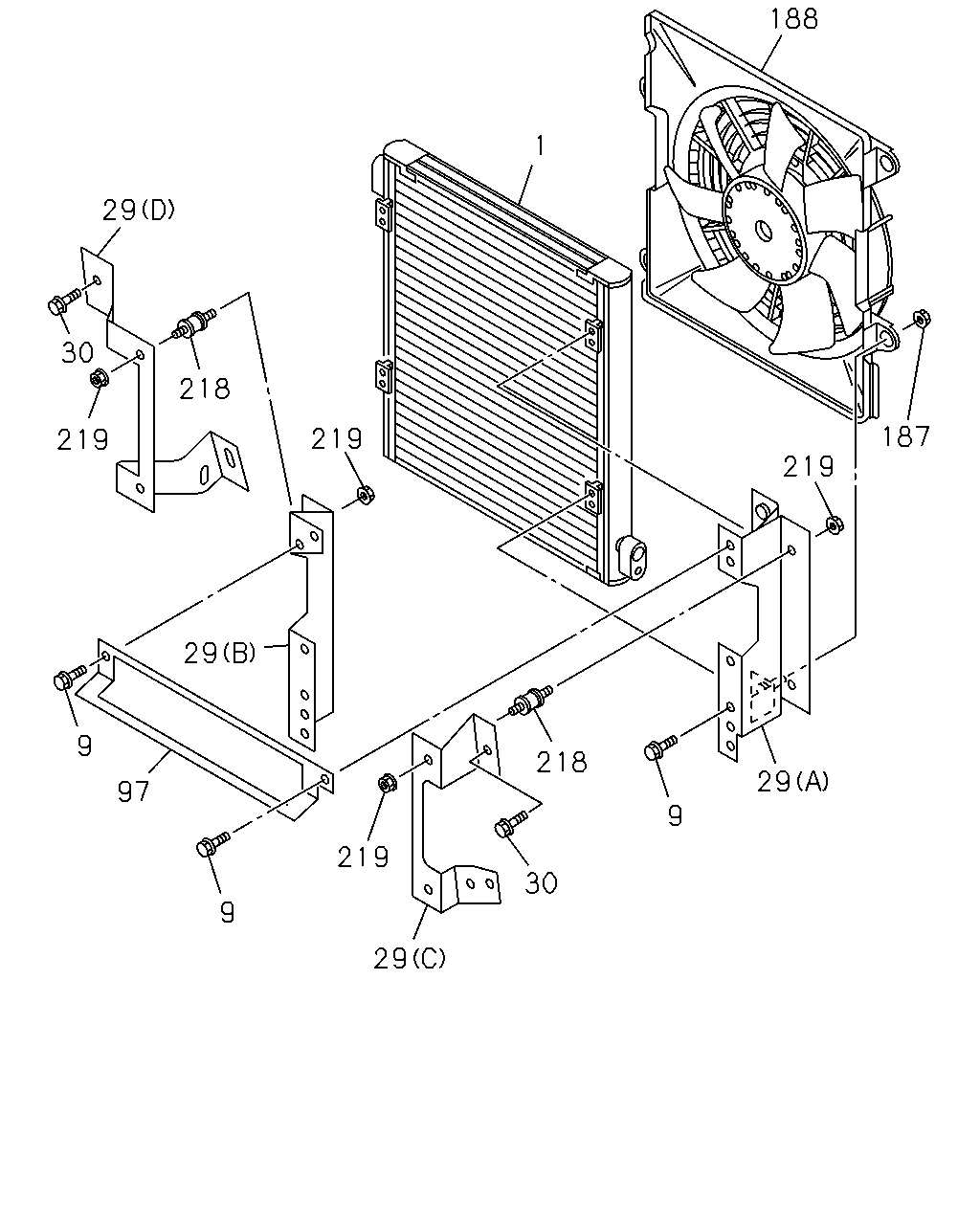

çizim 467268
1 188 187 219 29 9 218 30 29 219 9 97 9 29 219 218 219 30 29
BalonParca AdiParca NoAdetTipApplied Date
1 09.190 CONDENSER; A/C 8-98041-884-0 01 1 1412-
9 09.190 BOLT; BRKT
M6X14 		1-83539-382-0 08 1 1412-
29 09.190 BRACKET; SIDE
(A) 		8-98041-893-0 01 1 1412-
29 09.190 BRACKET; SIDE
(B) 		8-98041-895-0 01 1 1412-
29 09.190 BRACKET; SIDE
(C) 		8-98269-808-0 01 1 1412-
29 09.190 BRACKET; SIDE
(D) 		8-98276-116-0 01 1 1412-
30 09.190 BOLT; CONDENSER,A/C
01.060 M8X35 FLANGE 		0-28650-835-0 04 1 1412-
97 09.190 NET; CONDENSER UNIT 8-98041-900-0 01 1 1412-
187 09.190 NUT; SHROUD
M6 		1-83539-354-0 04 1 1412-
188 09.215 BLOWER ASM; SHROUD 8-98152-857-0 01 1 1412-
218 09.215 CUSHION; CONDENSER 8-98041-898-0 04 1 1412-
219 09.190 NUT; CUSHION
M8 		1-83539-319-0 08 1 1412-

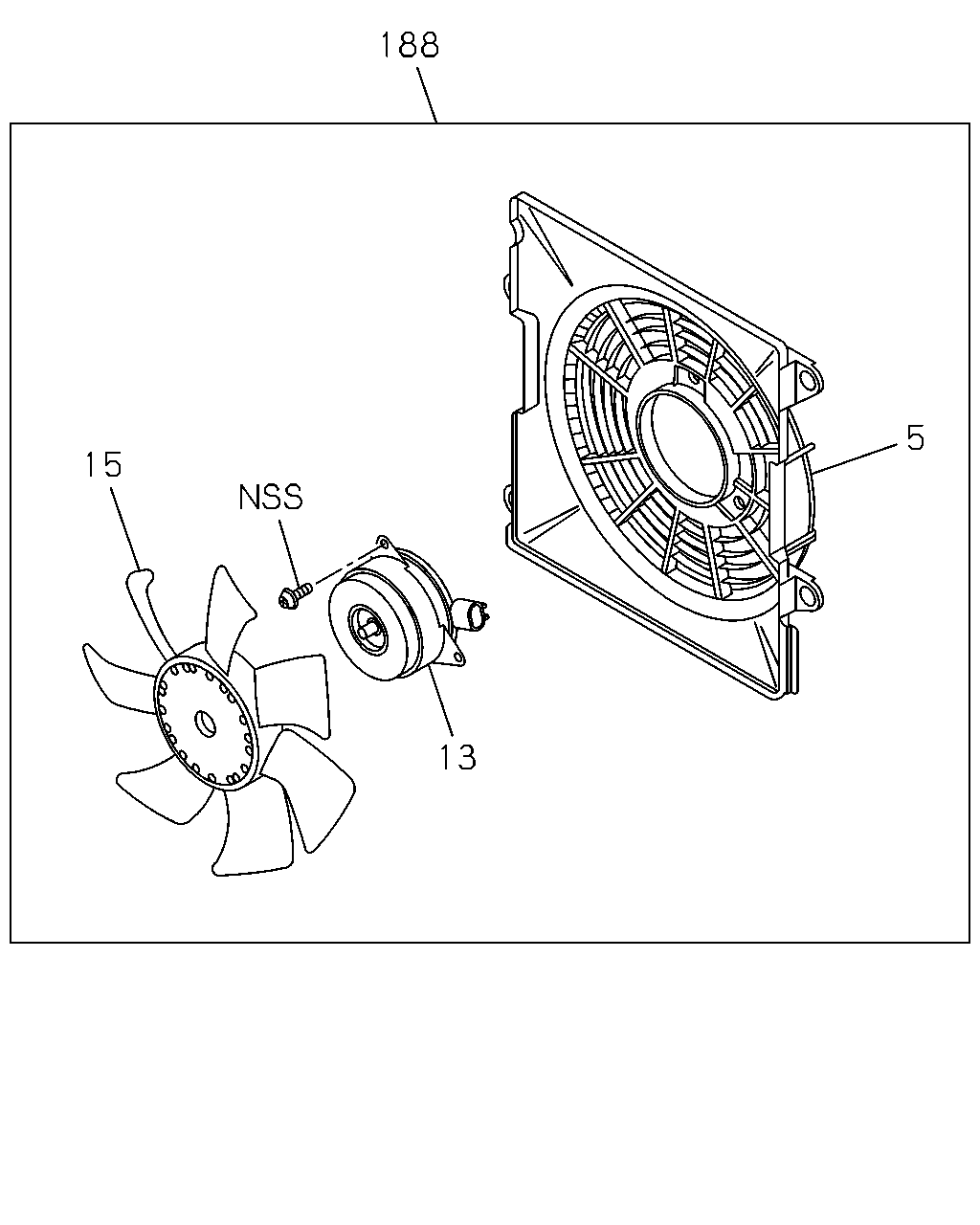

çizim 467572
188 15 13 5
BalonParca AdiParca NoAdetTipApplied Date
5 09.216 SHROUD; FAN MOTOR 8-98152-865-0 01 1 1412-
13 09.215 MOTOR; FAN 8-98152-863-0 01 1 1412-
15 09.216 FAN; MOTOR 8-98152-860-0 01 1 1412-
188 09.215 BLOWER ASM; SHROUD 8-98152-857-0 01 1 1412-
