Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶

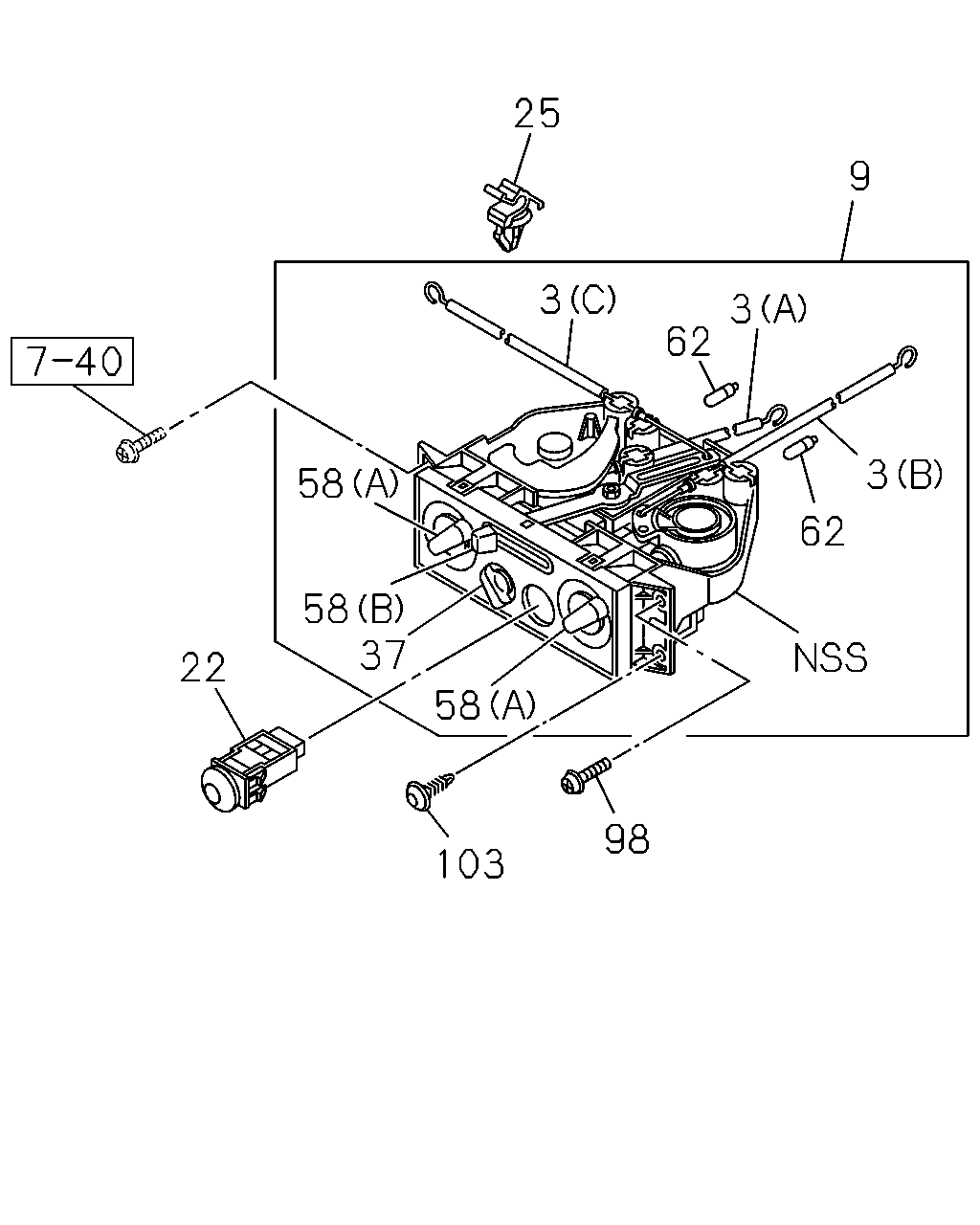

8-65 — CONTROL LEVER; HEATER AND AIR CON
(#156290) — 12 parça
9
25
3
3
62
62
3
98
103
58
37
58
58
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
09.787 CABLE; HTR CONT LVR
(A) MODE
8-98039-249-1
01
1
1412-
3
09.787 CABLE; HTR CONT LVR
(C) FRESH
8-98039-252-0
01
1
1412-
3
09.787 CABLE; HTR CONT LVR
(B) MIX
8-98054-196-0
01
1
1412-
9
08.852 LEVER ASM; HTR & A/C CONT
8-98037-362-1
01
1
1412-
22
08.852 SWITCH; A/C,MAIN
8-98021-982-0
01
1
1412-
25
08.854 CLIP; CABLE,CONT LEVER
09.647 ID=4.8
8-94128-483-0
01
1
1412-
37
08.852 KNOB; SW,HTR CONT LVR
8-98037-368-0
01
1
1412-
58
09.787 KNOB; LVR,HTR CONT LVR
(A)
8-98037-369-0
02
1
1412-
58
09.787 KNOB; LVR,HTR CONT LVR
(B)
8-98037-370-0
01
1
1412-
62
08.991 BULB; HTR CONT LVR
24V 1.1W
8-98037-371-0
02
1
1412-
98
08.852 SCREW; CONT PANEL
09.647 M5X20 TAPPING HEXALOBULAR
0-72180-520-0
01
1
1412-
103
08.854 CLIP
16.742 DARK GRAY
8-97098-326-0
01
1
1412-
