8-50 — AIR CONDITIONING SYSTEM; FRONT (#156287) — 13 parça
çizim 467294
224 8 227 206 378 211
BalonParca AdiParca NoAdetTipApplied Date
8 09.171 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1412-
206 09.242 BOLT; CLIP BRKT
M6X16 		8-97096-525-0 01 1 1412-
211 09.190 CLIP; HOSE
01.540 ID=30 		8-94315-423-0 01 1 1412-
224 09.195 TANK ASM; RECEIVER 8-97096-593-0 01 1 1412-
227 09.196 BRACKET; RECEIVER TANK 8-98042-566-0 01 1 1412-
378 09.211 HOSE; DRAIN,EVAPORATOR 8-98001-242-2 01 1 1412-

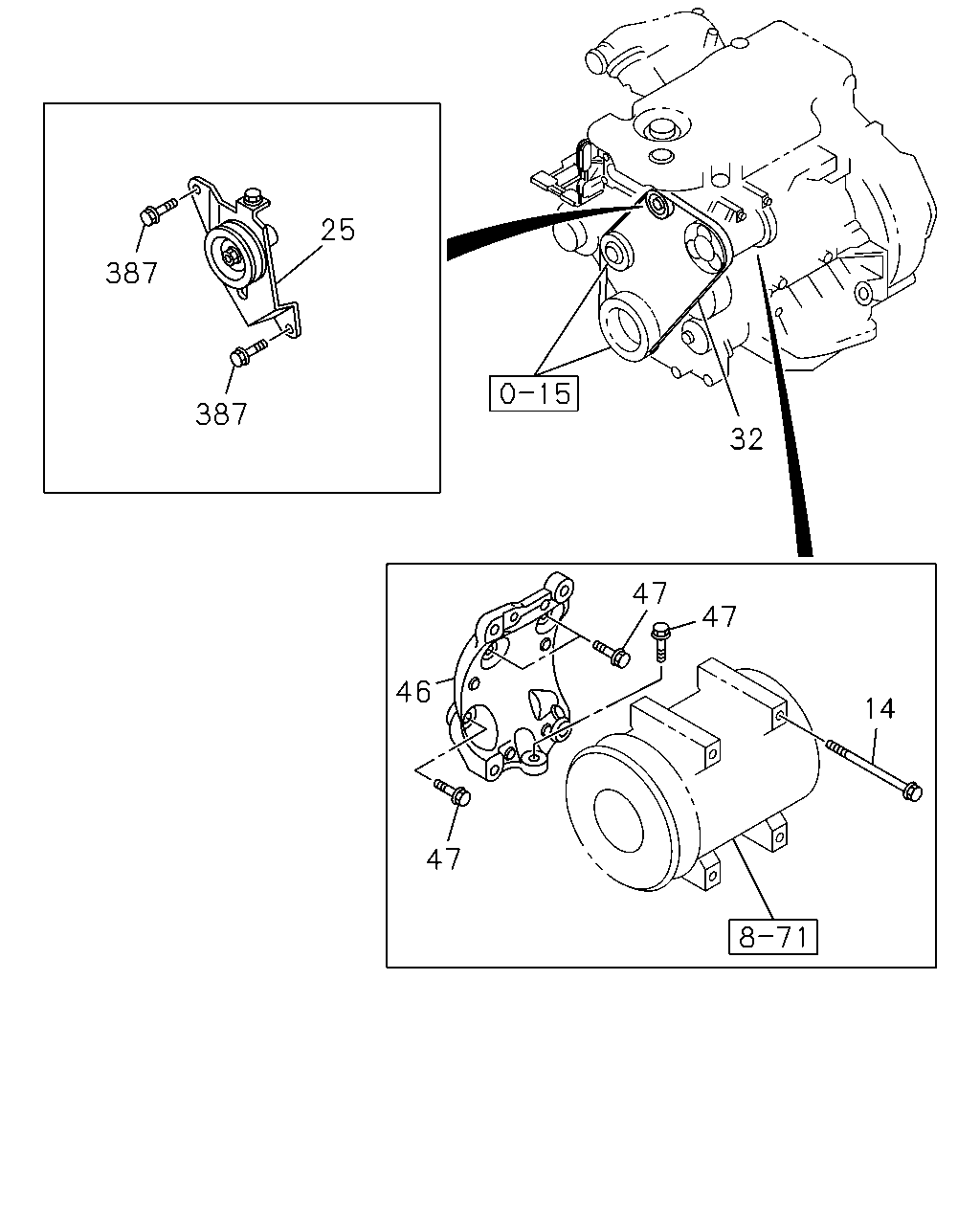

çizim 467567
387 25 387 32 47 47 14 47 46
BalonParca AdiParca NoAdetTipApplied Date
14 09.171 BOLT; CMPR
00.386 M8X100 FLANGE 		0-28050-800-0 04 1 1412-
25 09.180 PULLEY ASM; IDLER,CMPR
1-GROOVE 		8-98114-437-0 01 1 1412-
32 01.066 BELT; A/C CMPR
L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1412-
32 01.066 BELT; A/C CMPR
BEST VALUE PARTS 		5-87610-103-0 01 1 1412-
46 09.171 BRACKET; CMPR 8-98211-424-1 01 1 1412-
47 09.173 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1412-
387 09.190 BOLT; TENSIONER FIX
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1412-
