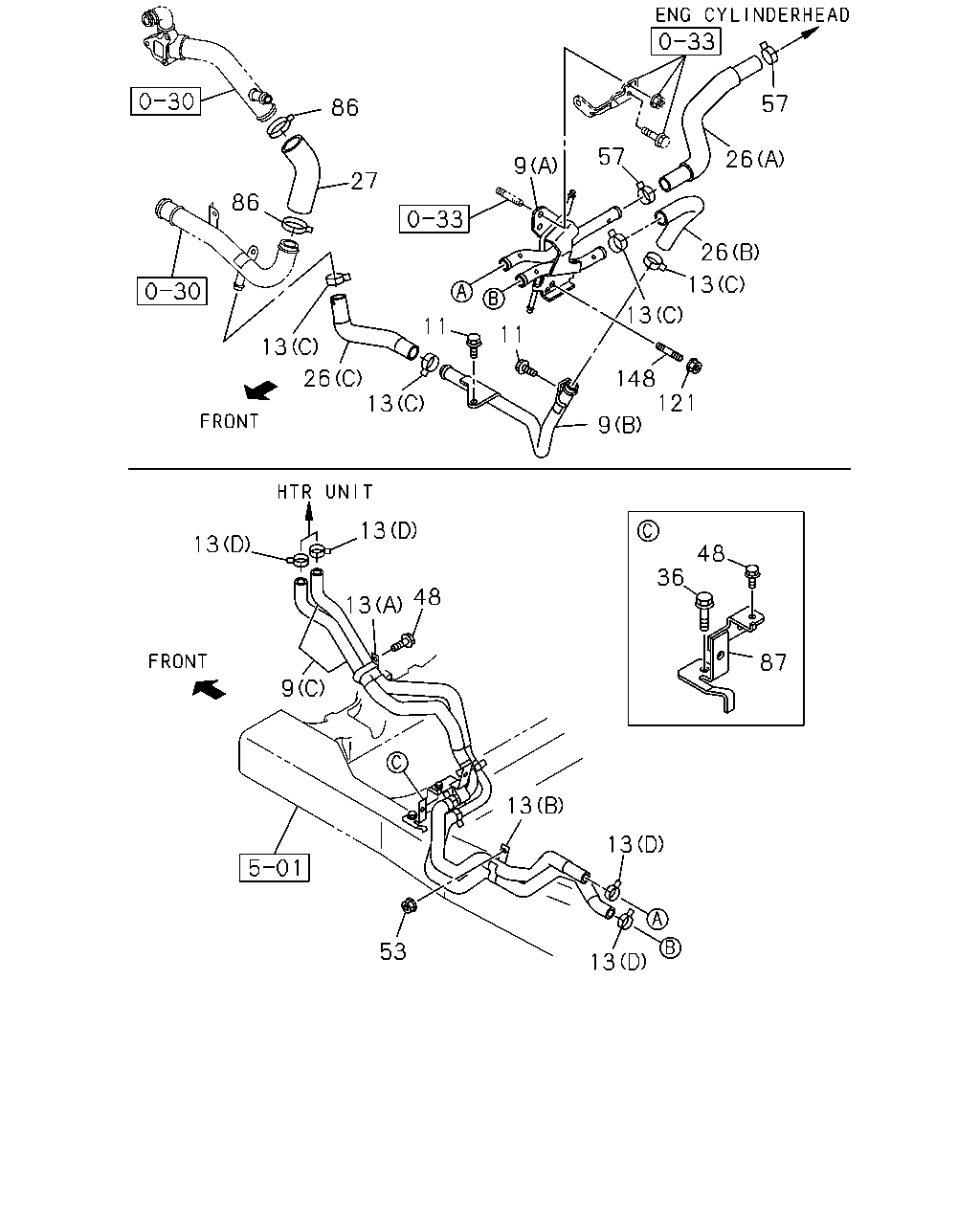

8-45 — HEATER PIPING (#156286) — 41 parça

57 26 26 13 13 148 121 9 57 9 11 11 13 26 13 27 86 86 13 13 13 48 48 36 87 9 13 13 13 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	08.846 PIPE; HTR (A)	8-98074-590-2	01	1	1412-
9	08.846 PIPE; HTR (B)	8-98209-291-2	01	1	1412-
9	08.846 PIPE; HTR (C)	8-98256-043-0	01	1	1412-
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1412-
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	04	1	1412-
13	08.846 CLIP; HTR HOSE (A) B=14	8-98029-678-0	01	1	1412-
13	08.846 CLIP; HTR HOSE (B)	8-98040-023-0	01	1	1412-
13	08.846 CLIP; HTR HOSE 03.278 (D) ID=22	8-97359-141-0	04	1	1412-
13	08.846 CLIP; HTR HOSE 03.278 (D) ID=22	8-97359-141-0	04	1	1412-
26	08.846 HOSE; HTR (D)	8-98290-016-0	01	1	1412-
26	08.846 HOSE; HTR (E)	8-98290-017-0	01	1	1412-
26	08.846 HOSE; HTR (F)	8-98290-018-0	01	1	1412-
26	08.846 HOSE; HTR (G)	8-98290-019-0	01	1	1412-
26	08.846 HOSE; HTR (C)	8-98000-101-2	01	1	1412-
26	08.846 HOSE; HTR (B)	8-98114-718-0	01	1	1412-
26	08.846 HOSE; HTR (A)	8-98209-510-1	01	1	1412-
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI	8-98106-016-0	01	1	1412-
36	08.846 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1412-
48	09.262 BOLT; CLIP FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1412-
53	08.845 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1412-
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	1412-
86	08.846 CLIP; HTR HOSE	8-98110-004-0	02	1	1412-
87	08.846 BRACKET; HTR HOSE CLIP	8-98256-034-1	01	1	1412-
121	08.845 NUT; PIPE 06.164 M8 FLANGE	5-09440-010-0	01	1	1412-
148	08.846 STUD; PIPE 01.428 M8X18 L=30	0-41010-818-0	01	1	1412-

26 103 13 26 13 26 13 9 26 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	08.846 PIPE; HTR (A)	8-98074-590-2	01	1	1412-
9	08.846 PIPE; HTR (B)	8-98209-291-2	01	1	1412-
9	08.846 PIPE; HTR (C)	8-98256-043-0	01	1	1412-
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	04	1	1412-
13	08.846 CLIP; HTR HOSE (A) B=14	8-98029-678-0	01	1	1412-
13	08.846 CLIP; HTR HOSE (B)	8-98040-023-0	01	1	1412-
13	08.846 CLIP; HTR HOSE 03.278 (D) ID=22	8-97359-141-0	04	1	1412-
13	08.846 CLIP; HTR HOSE 03.278 (D) ID=22	8-97359-141-0	04	1	1412-
26	08.846 HOSE; HTR (D)	8-98290-016-0	01	1	1412-
26	08.846 HOSE; HTR (E)	8-98290-017-0	01	1	1412-
26	08.846 HOSE; HTR (F)	8-98290-018-0	01	1	1412-
26	08.846 HOSE; HTR (G)	8-98290-019-0	01	1	1412-
26	08.846 HOSE; HTR (C)	8-98000-101-2	01	1	1412-
26	08.846 HOSE; HTR (B)	8-98114-718-0	01	1	1412-
26	08.846 HOSE; HTR (A)	8-98209-510-1	01	1	1412-
103	08.866 CONNECTOR; HOSE	8-98290-026-0	01	1	1412-
