Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#156282) — 14 parça
◀

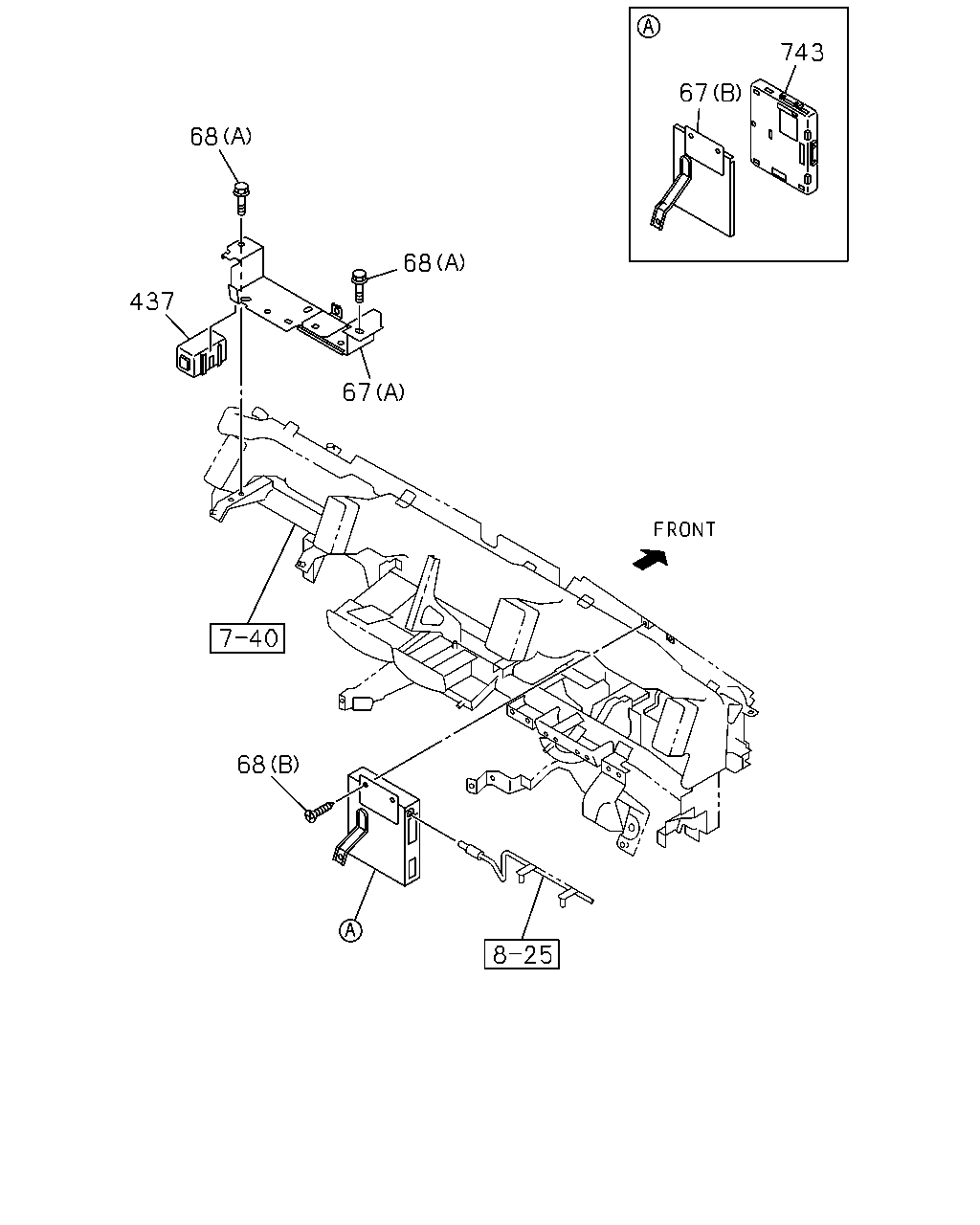

[826A] NO.2 (8 parça)

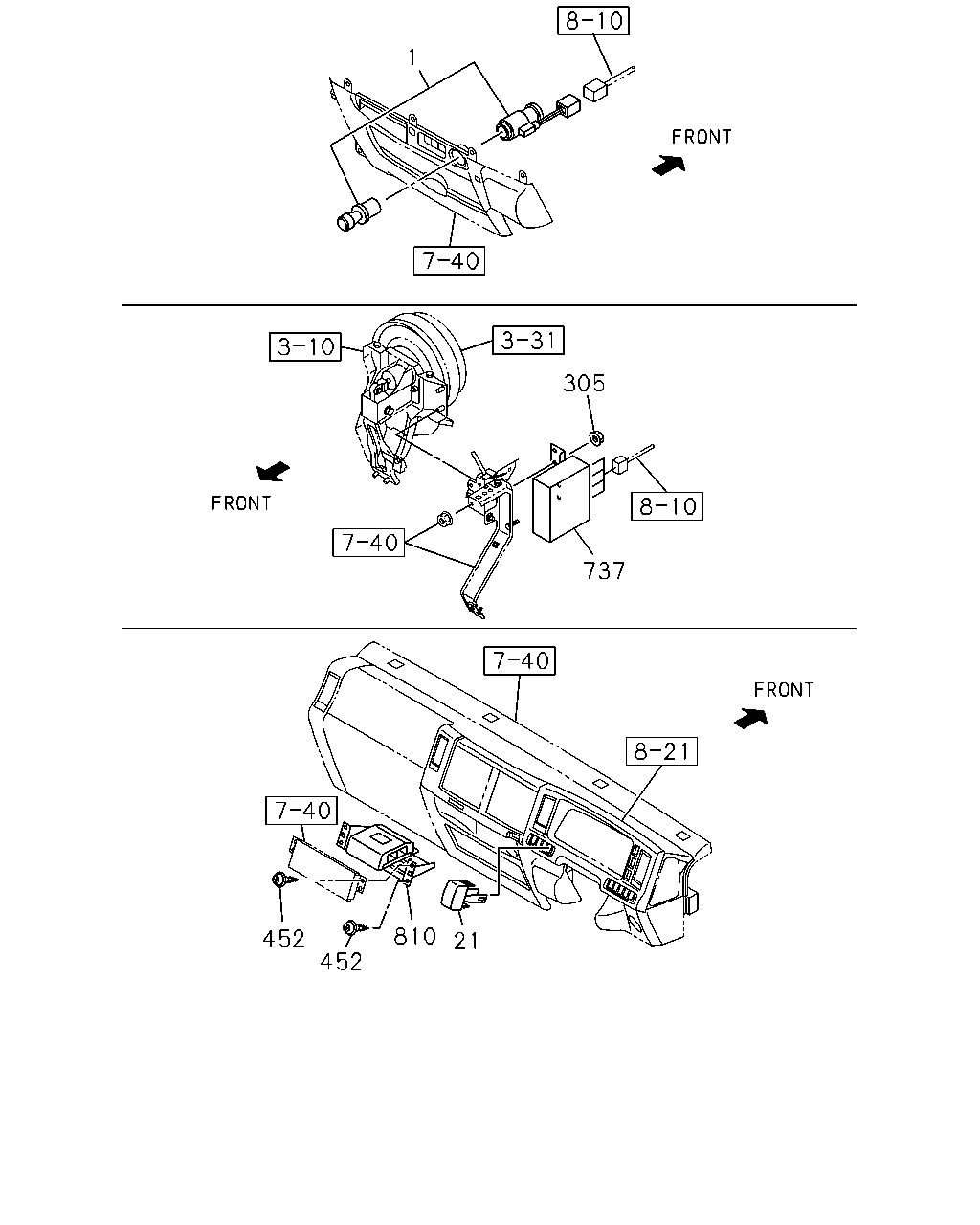

[826A] NO.1 (6 parça)
▶
1
305
737
452
452
810
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.709 LIGHTER; CIGAR
8-98142-962-0
01
1
1412-
21
09.744 COVER; HOLE
16.081
8-98025-954-1
01
1
1412-
305
08.915 NUT; CONT UNIT
00.777 M8 W/LK WASHER
8-94279-050-0
02
1
1412-
452
08.900 BOLT; BRKT
09.647 M5X20 TAPPING HEXALOBULAR
0-72180-520-0
04
1
1412-
737
04.115 CONTROL UNIT; TRANSMISSION
8-98276-968-0
01
1
1412-
810
16.341 CONTROL UNIT; ISS
03.883
8-98246-790-5
01
1
1412-1502
810
16.341 CONTROL UNIT; ISS
8-98305-042-0
01
1
1503-1505
810
16.341 CONTROL UNIT; ISS
8-98322-710-0
01
1
1506-
68
67
68
68
437
67
743
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
67
03.887 BRACKET; CONT UNIT
(B)
8-98111-835-0
01
1
1412-
67
03.887 BRACKET; CONT UNIT
(A)
8-98247-213-2
01
1
1412-
68
02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE
0-28450-612-0
02
1
1412-
68
02.500 BOLT; BRKT
16.090 (B) M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1412-
437
10.485 CONVERTER; DC
KOITO
8-97359-129-0
01
1
1412-
743
02.510 CONTROL UNIT; BCM
8-98286-349-0
01
1
1412-
