◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NJR ▶ 51610 - NJR RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#156281) — 31 parça

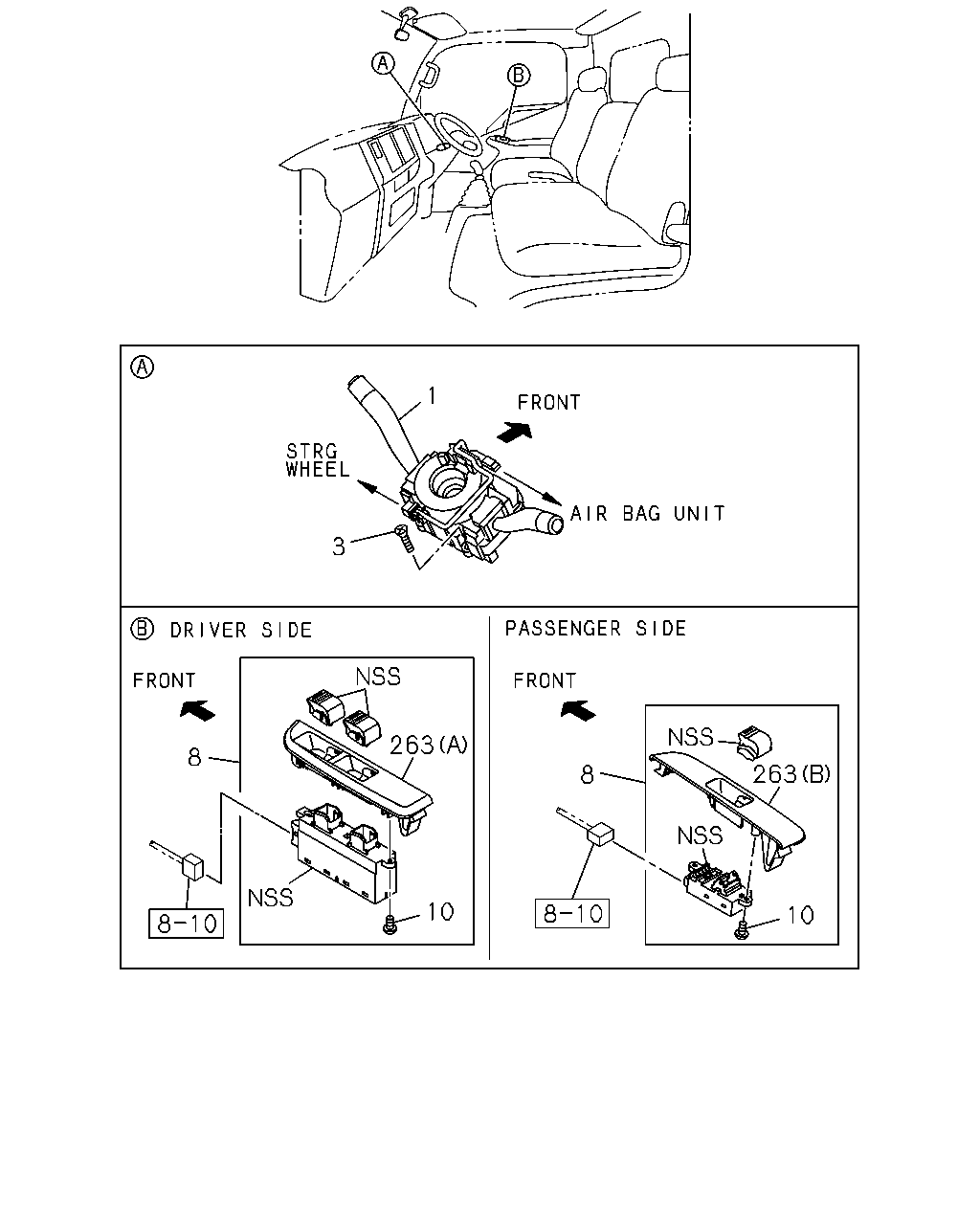

çizim 467309
1 3 8 8 10 263 10 263
BalonParca AdiParca NoAdetTipApplied Date
1 02.895 SWITCH; COMB 8-98243-724-0 01 1 1412-
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1412-
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-98159-547-0 01 1 1412-1509
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-98298-757-0 01 1 1510-
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98001-739-1 01 1 1412-1509
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98316-426-0 01 1 1510-
10 03.885 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 1412-
263 16.081 COVER; SW
(A) 		8-98153-834-0 01 1 1412-
263 16.081 COVER; SW
(B) 		8-98153-839-0 01 1 1412-

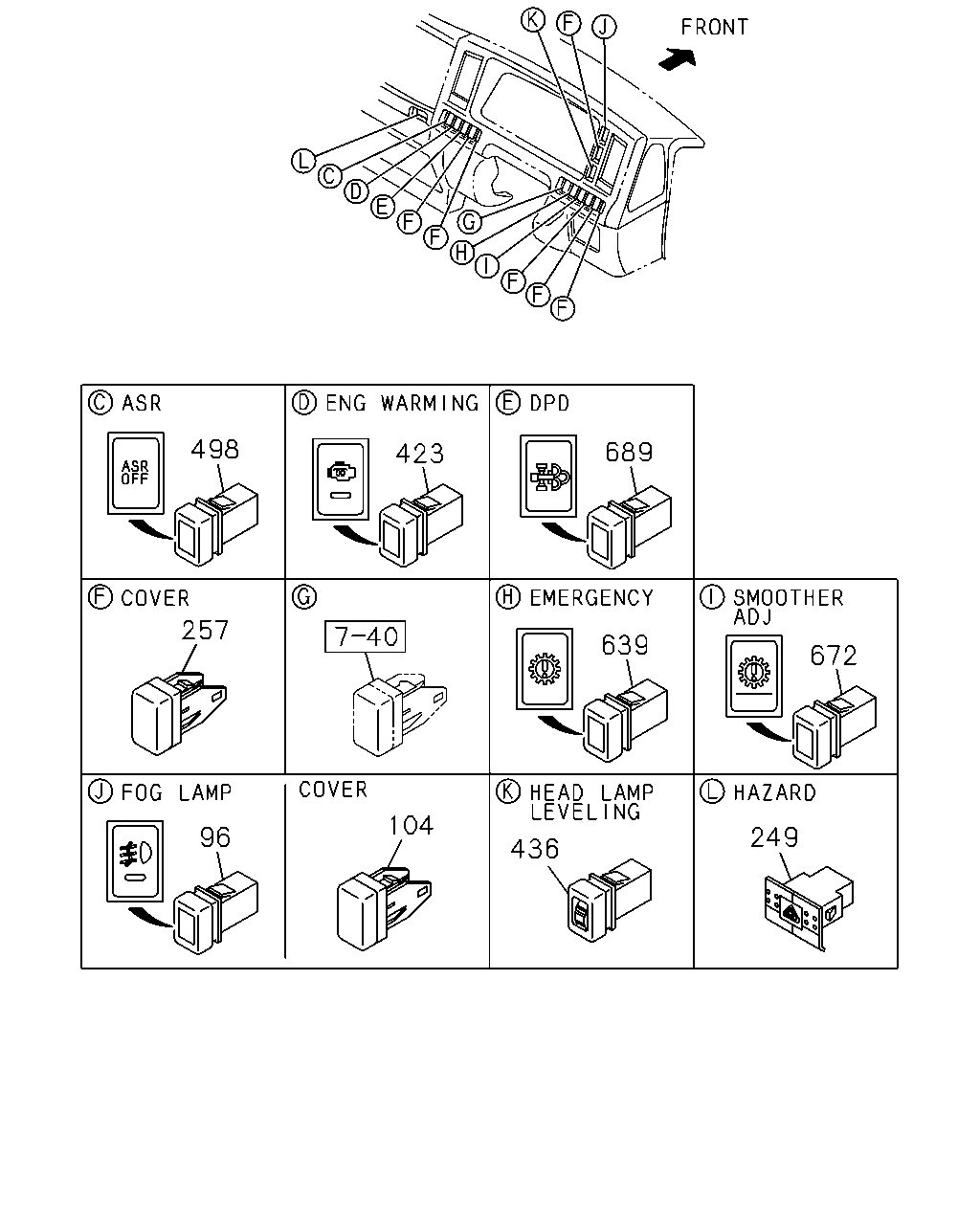

çizim 467323
498 423 689 672 639 257 96 104 436 249
BalonParca AdiParca NoAdetTipApplied Date
96 02.485 SWITCH; FOG LAMP
FOG LAMP FRONT VAR2<X99> 		8-97387-031-4 01 1 1412-
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP FRONT VAR2<X99> 16.081 		8-98025-954-1 01 1 1412-
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1412-
257 16.081 COVER; HOLE,SW 8-98025-954-1 01 1 1412-
257 16.081 COVER; HOLE,SW 8-98025-954-1 04 1 1412-
423 03.883 SWITCH; ENG WARMING 8-97387-010-2 01 1 1412-
436 02.485 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1412-
498 03.883 SWITCH; ASR 8-97386-920-2 01 1 1412-
639 16.263 SWITCH; EMERGENCY 8-98119-948-0 01 1 1412-
672 16.263 SWITCH; SMOOTHER,ADJUST 8-98119-949-1 01 1 1412-
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 1412-
çizim 467325
608 737 151 154
BalonParca AdiParca NoAdetTipApplied Date
151 09.277 RELAY; HTR & A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1412-
154 09.277 RELAY; CONDENSER FAN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1412-
608 02.485 RELAY; SHIFT
24V 30A MITSUBA 		8-98259-779-0 01 1 1412-
737 09.277 RELAY; FAN,COOLING
02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1412-
çizim 467498
29 30
BalonParca AdiParca NoAdetTipApplied Date
29 16.263 SWITCH; DOOR 8-97855-032-3 04 1 1412-
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 04 1 1412-

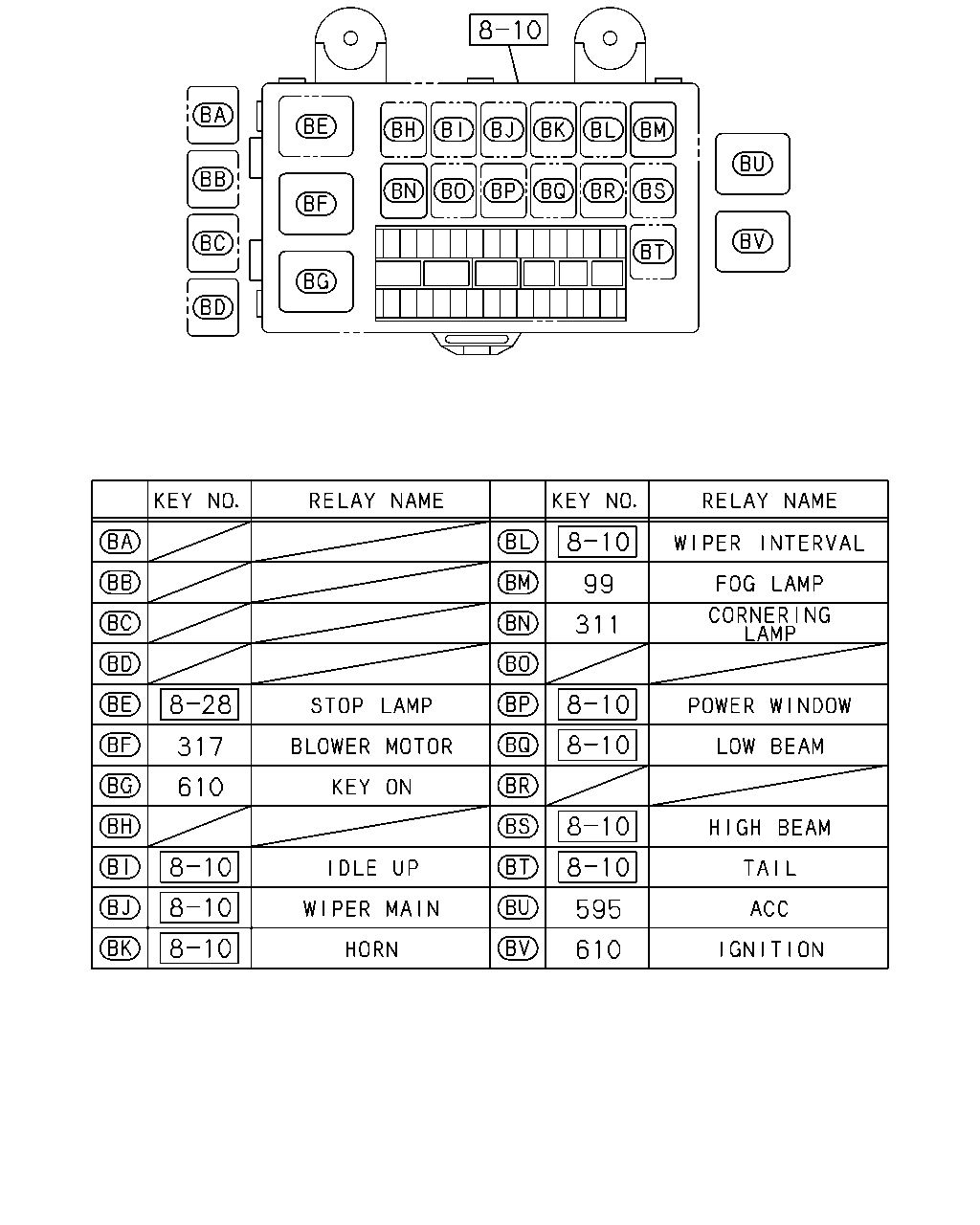

çizim 467619
317 610 99 311 595 610
BalonParca AdiParca NoAdetTipApplied Date
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1412-
311 02.596 RELAY; CORNERING LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1412-
317 02.510 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1412-
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1412-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1412-
