Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-16 - WIRING HARNESS CONNECTOR
▶

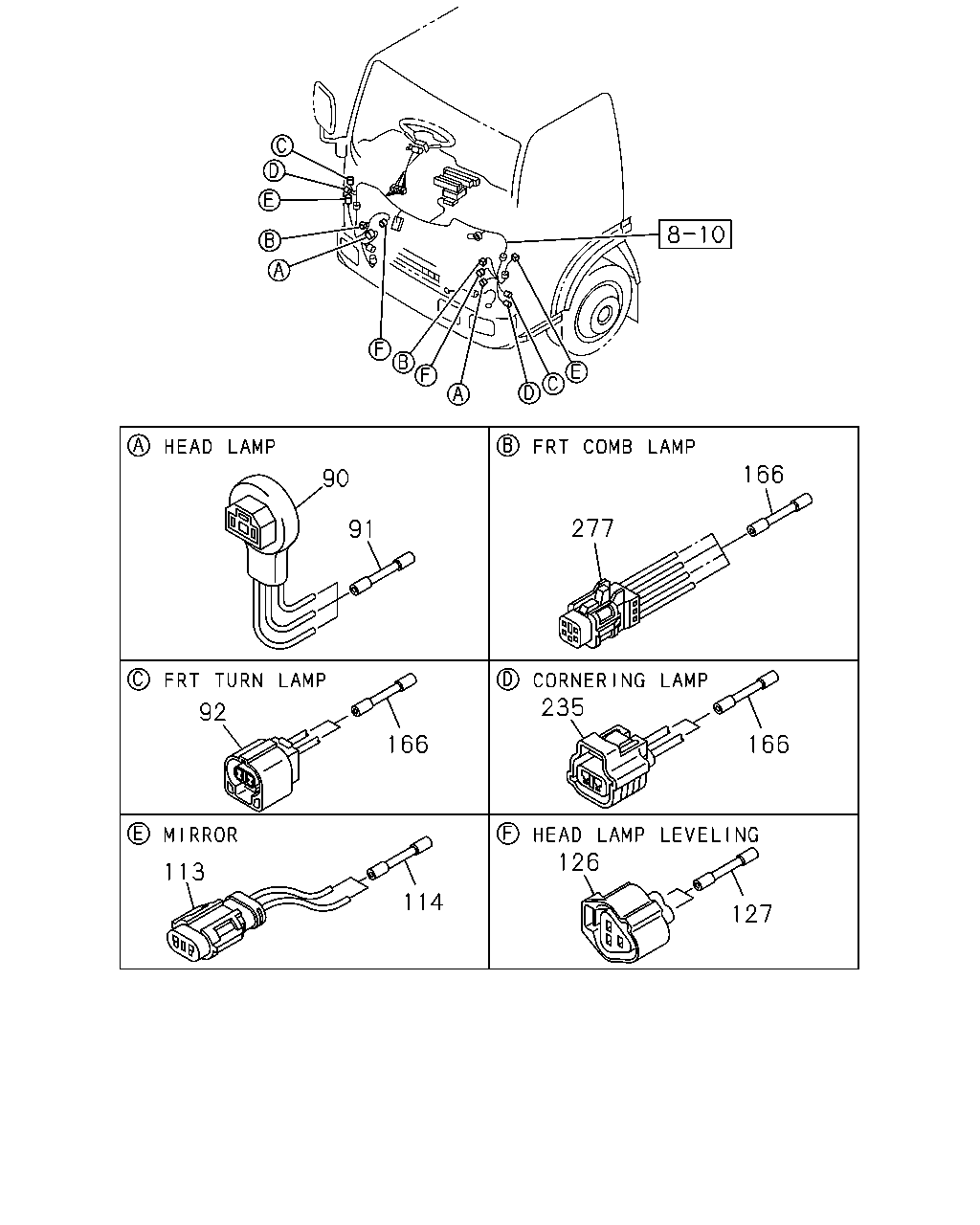

8-16 — WIRING HARNESS CONNECTOR
(#156279) — 12 parça
127
126
166
235
277
166
90
91
166
92
114
113
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
90
02.483 CONNECTOR; HEAD LAMP
3P FEMALE BLACK
8-97169-945-0
02
1
1412-
91
02.483 TERMINAL; JOINT,HEAD LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
06
1
1412-
91
02.483 TERMINAL; JOINT,HEAD LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE
8-97169-474-0
08
1
1412-
92
02.483 CONNECTOR; FRT TURN LAMP
2P FEMALE
8-98075-130-0
02
1
1412-
113
02.483 CONNECTOR; MIRROR
2P FEMALE BLACK
8-97169-948-0
02
1
1412-
113
02.483 CONNECTOR; MIRROR
6P MALE
8-98062-627-0
02
1
1412-
114
02.483 TERMINAL; JOINT,MIRROR
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
14
1
1412-
126
02.483 CONNECTOR; HEAD LAMP LEVELING
3P FEMALE GRAY
8-98062-624-0
02
1
1412-
127
02.483 TERMINAL; JOINT,HEAD LAMP LEVELI
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
06
1
1412-
166
02.483 TERMINAL; JOINT
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
14
1
1412-
235
02.483 CONNECTOR; CORNERING LAMP
2P FEMALE
8-98075-131-0
02
1
1412-
277
02.483 CONNECTOR; FRONT LAMP
4P MALE
8-98062-625-0
02
1
1412-
