8-15 — FIXING PARTS; WIRING HARNESS (#156278) — 83 parça

459 552 242 459 242 459 242 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
183	02.559 CLIP; CONNECTOR L=15	8-94315-436-1	02	1	1412-
242	02.483 BOLT; BRKT,HARNESS 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1412-
242	02.483 BOLT; BRKT,HARNESS 01.060 (A) M8X35 FLANGE	0-28650-835-0	02	1	1412-

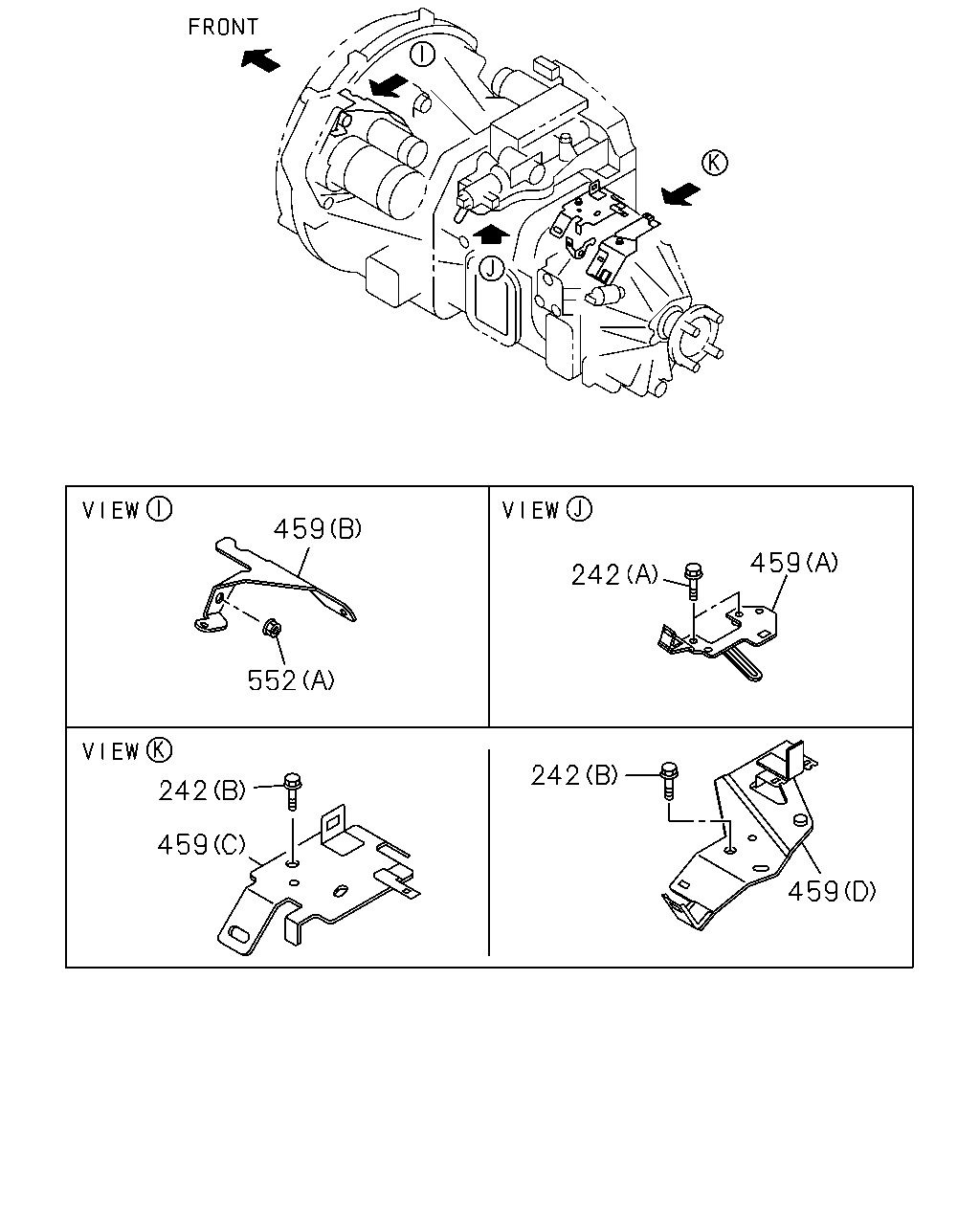

459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98018-899-1	01	1	1412-
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98030-988-2	01	1	1412-
459	02.483 BRACKET; SUPPORT,HARNESS (C)	8-98219-814-1	01	1	1412-
459	02.483 BRACKET; SUPPORT,HARNESS (D)	8-98255-649-3	01	1	1412-
552	02.483 NUT; BRKT,HARNESS 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1412-
552	02.483 NUT; BRKT,HARNESS 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1412-

515 53 480 53 53 480 516 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

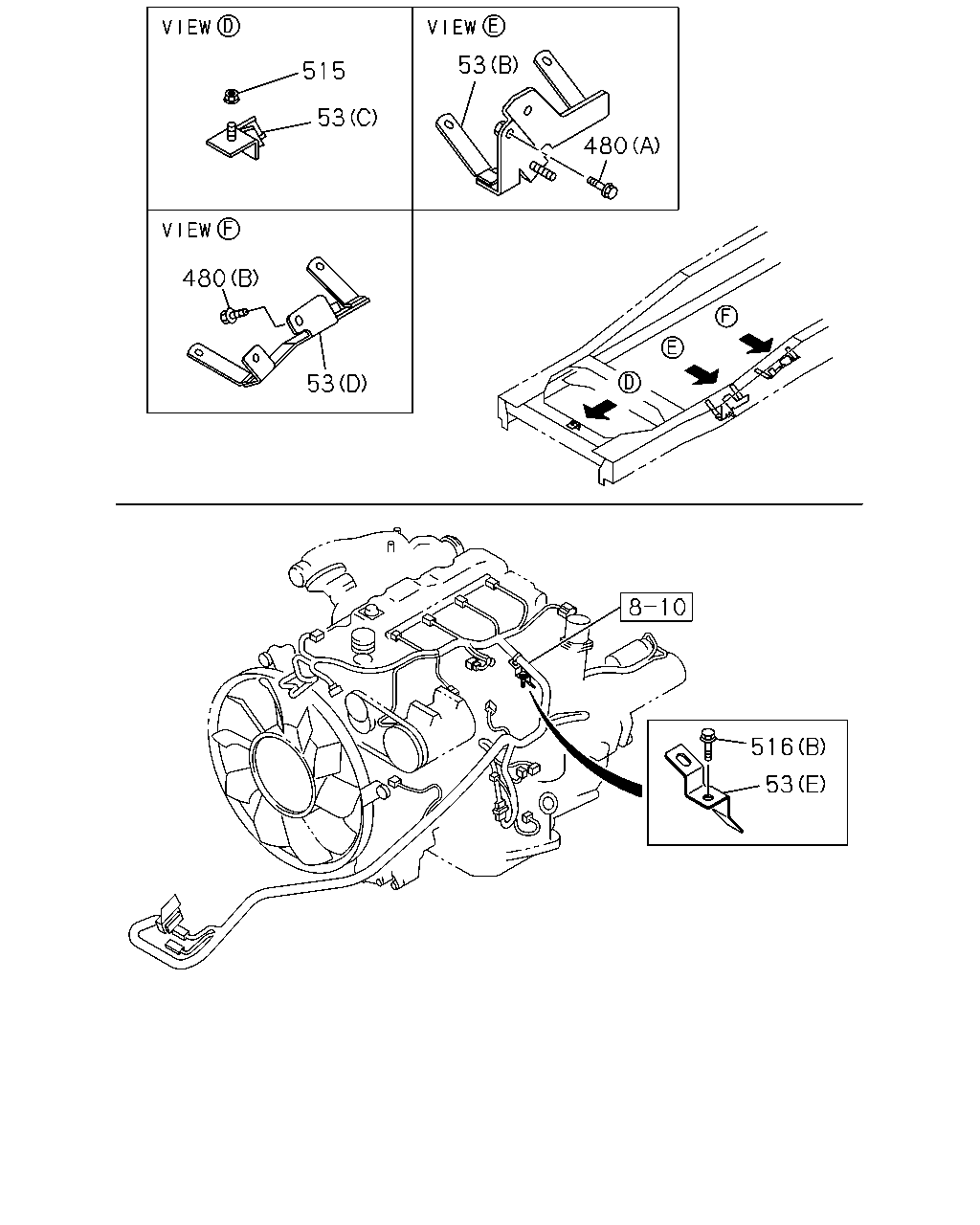

53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1412-
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	1412-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1412-
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	1412-
53	02.483 BRACKET; HARNESS (E)	8-98282-934-0	01	1	1412-
183	02.559 CLIP; CONNECTOR L=15	8-94315-436-1	02	1	1412-
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1412-
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1412-
480	02.483 BOLT; BRKT 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1412-
515	02.559 NUT; BRKT M8 FLANGE	8-98040-024-0	01	1	1412-
516	02.559 BOLT; HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1412-
516	02.559 BOLT; HARNESS 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-

38 139 242 516 313 38 516 365 480 460 480 480 481 38 242 529 377 386 386 460 469 552 577 294 469 515 524 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	02.559 BOLT; CLIP,HARNESS 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1412-
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-
38	02.559 BOLT; CLIP,HARNESS 00.206 (C) M8X30 FLANGE	0-28050-830-0	01	1	1412-
139	02.559 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1412-
183	02.559 CLIP; CONNECTOR L=15	8-94315-436-1	02	1	1412-
242	02.483 BOLT; BRKT,HARNESS 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1412-
242	02.483 BOLT; BRKT,HARNESS 01.060 (A) M8X35 FLANGE	0-28650-835-0	02	1	1412-
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1412-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1412-
365	02.559 BOLT; CLAMP,HARNESS CONNECTOR 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1412-
377	02.559 BOLT; CAB EARTH 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1412-
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1412-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1412-
460	02.559 BOLT; HARNESS PROTECTOR 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1412-
460	02.559 BOLT; HARNESS PROTECTOR 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1412-
469	02.559 NUT; PROTECTOR 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1412-
469	02.559 NUT; PROTECTOR 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1412-
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1412-
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1412-
480	02.483 BOLT; BRKT 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1412-
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1412-
515	02.559 NUT; BRKT M8 FLANGE	8-98040-024-0	01	1	1412-
516	02.559 BOLT; HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1412-
516	02.559 BOLT; HARNESS 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1412-
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1412-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1412-
552	02.483 NUT; BRKT,HARNESS 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1412-
552	02.483 NUT; BRKT,HARNESS 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1412-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1412-

511 180 510 510 512 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

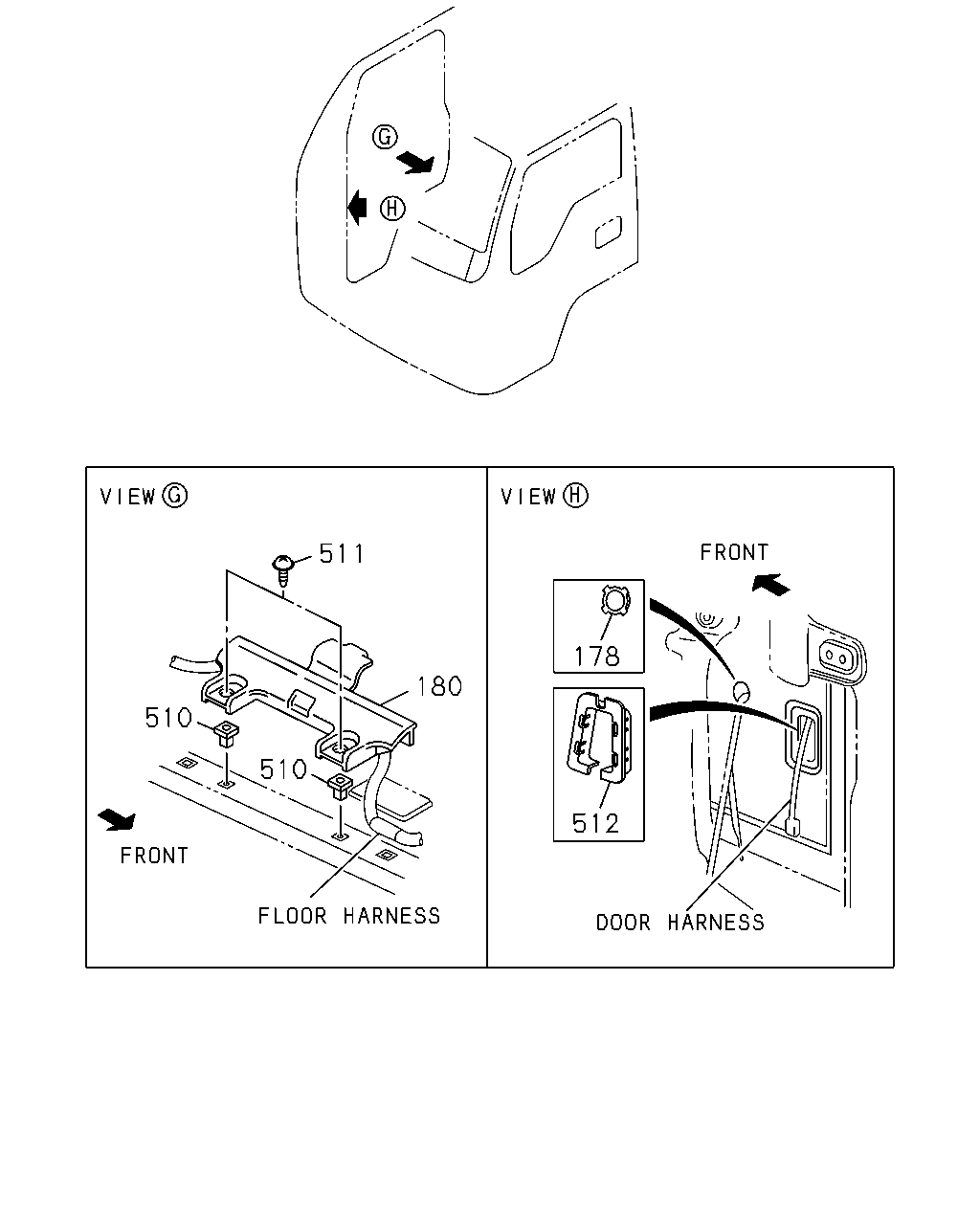

178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	1412-
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	1412-
183	02.559 CLIP; CONNECTOR L=15	8-94315-436-1	02	1	1412-
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	1412-
511	02.559 SCREW; HARNESS COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	1412-
512	02.559 PROTECTOR; HARNESS	8-97072-950-0	02	1	1412-

16 16 16 397 16 408 16 507 48 16 48 16 22 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS (H) L=100	8-94442-388-0	02	1	1501-
16	02.559 CLIP; HARNESS (I) L=60	8-94457-053-0	04	1	1501-
16	02.559 CLIP; HARNESS 16.065 (E) 1 SET=5 PIECE	1-09987-214-0	02	1	1412-
16	02.559 CLIP; HARNESS (A) L=250	5-09707-030-1	01	1	1412-
16	02.559 CLIP; HARNESS (G) ID=20	8-94241-972-0	01	1	1412-
16	02.559 CLIP; HARNESS (D) L=15	8-94315-436-1	03	1	1412-
16	02.559 CLIP; HARNESS (F) L=36.5	8-97019-892-0	02	1	1412-
16	02.559 CLIP; HARNESS 02.694 (C) ID=6 & 10-13	8-97069-515-0	01	1	1412-
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	10	1	1412-
22	02.559 CLIP; ENG HARNESS 02.343 L=119.5	1-09707-197-0	01	1	1412-
48	02.559 CLIP; FRAME HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	1412-
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	08	1	1412-
183	02.559 CLIP; CONNECTOR L=15	8-94315-436-1	02	1	1412-
397	02.559 CLIP; RR DOOR HARNESS 10.154 ID=7	8-97014-713-0	02	1	1501-
408	02.559 CLIP; TRANS HARNESS ID=10	8-94450-392-0	01	1	1412-
507	02.559 FINISHER 03.885 L=50	8-94270-377-1	01	1	1412-

7 575 7 313 53 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

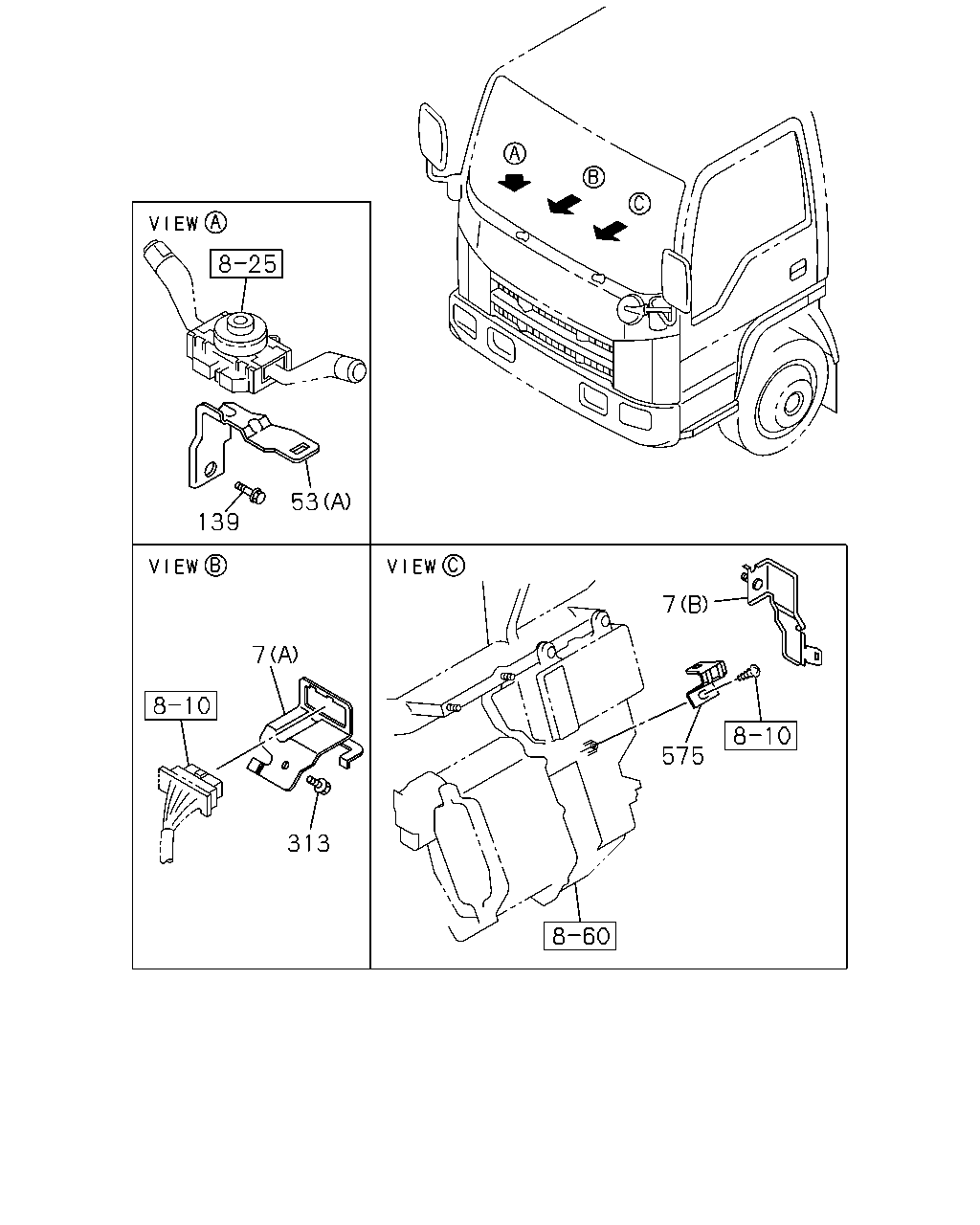

7	02.559 BRACKET; CONNECTOR (B)	8-98063-331-2	01	1	1412-
7	02.559 BRACKET; CONNECTOR (A)	8-98114-514-0	01	1	1412-
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1412-
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	1412-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1412-
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	1412-
53	02.483 BRACKET; HARNESS (E)	8-98282-934-0	01	1	1412-
139	02.559 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1412-
183	02.559 CLIP; CONNECTOR L=15	8-94315-436-1	02	1	1412-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1412-
575	02.559 BRACKET; FUSE BOX	8-98052-866-2	01	1	1412-
