Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#156277) — 52 parça
◀
[810A] FRAME HARNESS (16 parça)
[810A] OTHER HARNESS(NO.1) (8 parça)
[810A] RELAY;CAB SIDE (2 parça)
[810A] CAB HARNESS (12 parça)
[810A] ENG HARNESS (4 parça)
[810A] OTHER HARNESS(NO.2) (7 parça)
[810A] OTHER PARTS (3 parça)
▶

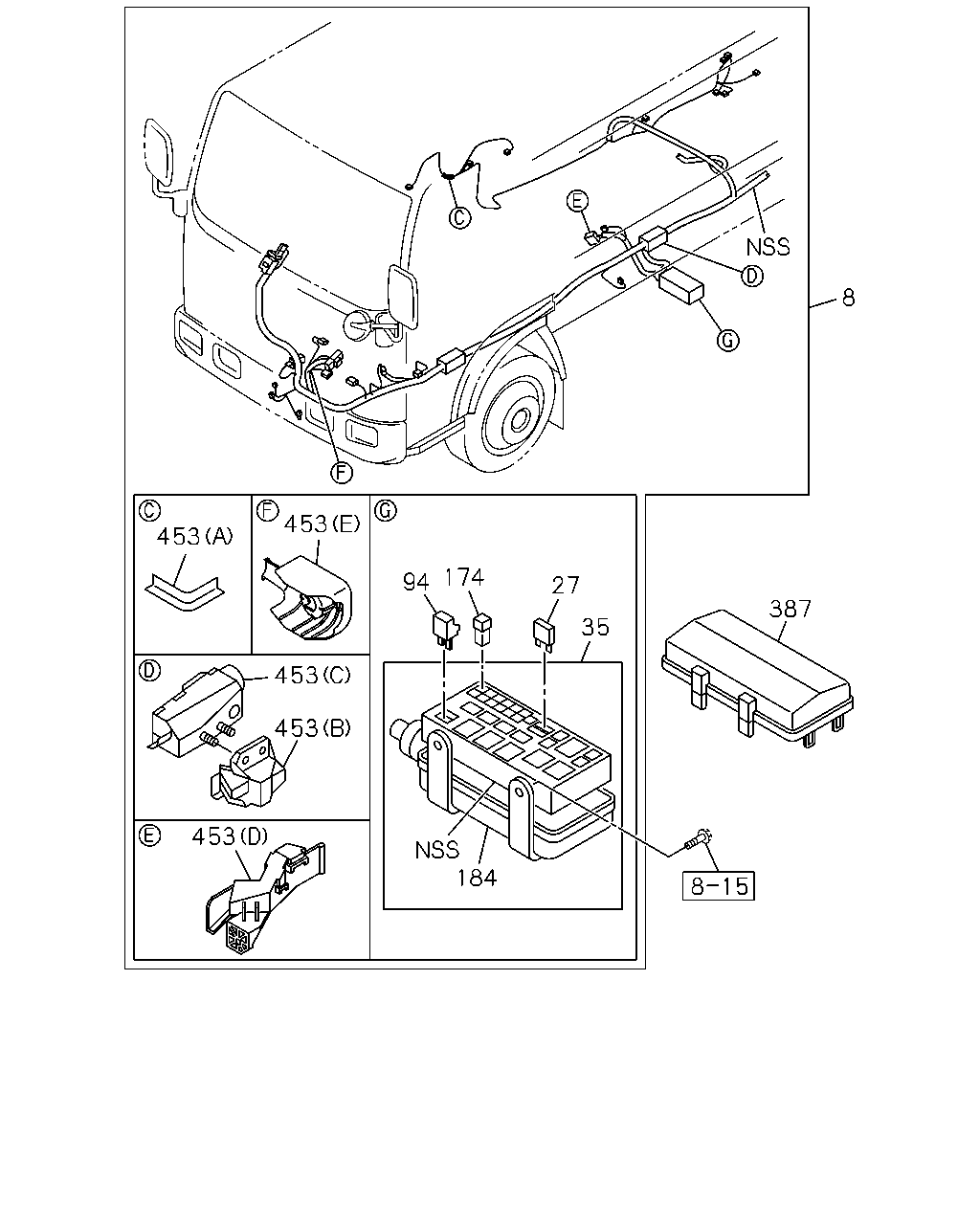

8
27
35
174
94
453
453
453
453
453
184
387
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
8-98257-888-0
01
1
1412-
27
08.965 FUSE UNIT
02.485 10A RED
8-98054-257-0
03
1
1412-
27
08.965 FUSE UNIT
02.485 15A BLUE
8-98054-258-0
02
1
1412-
35
02.530 BOX; RELAY & FUSE
8-98030-763-0
01
1
1412-
94
02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A
8-94422-639-1
01
1
1412-
174
08.965 FUSE; SLOW BLOW
30A PINK
8-98079-191-0
AR
1
1412-
174
08.965 FUSE; SLOW BLOW
40A GREEN
8-98079-192-0
AR
1
1412-
174
08.965 FUSE; SLOW BLOW
50A RED
8-98079-193-0
AR
1
1412-
174
08.965 FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
AR
1
1412-
184
02.559 COVER; RELAY & FUSE BOX
8-98030-766-0
01
1
1412-
387
02.483 COVER; RELAY BOX
8-98081-367-0
01
1
1412-
453
02.483 PROTECTOR; HARNESS
(A)
8-94417-716-0
04
1
1412-
453
02.483 PROTECTOR; HARNESS
(E)
8-97062-169-0
01
1
1412-
453
02.483 PROTECTOR; HARNESS
(B)
8-98031-850-1
01
1
1412-
453
02.483 PROTECTOR; HARNESS
(C)
8-98031-851-2
01
1
1412-
453
02.483 PROTECTOR; HARNESS
(D)
8-98036-785-0
01
1
1412-

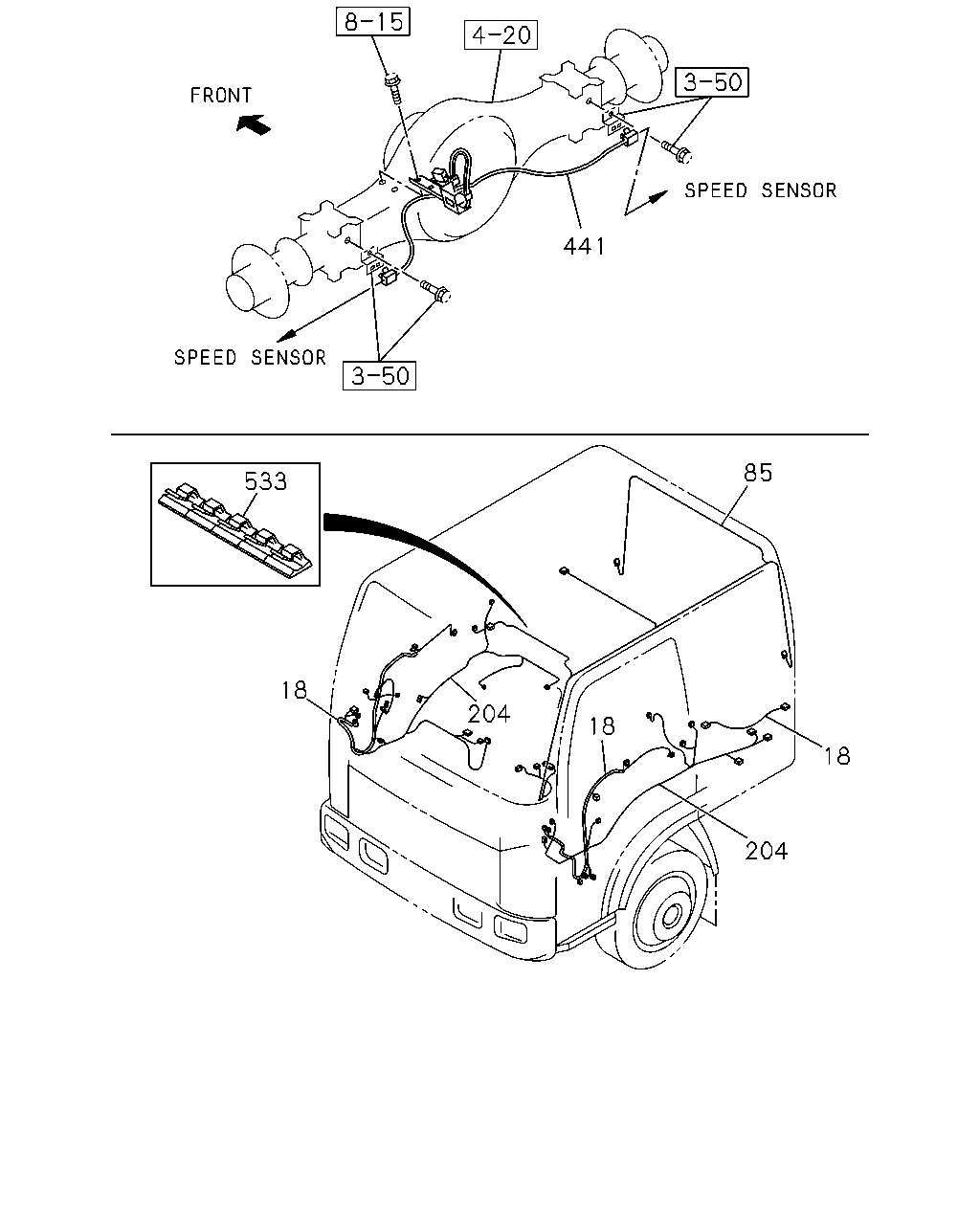

204
18
18
204
18
533
85
441
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
02.480 HARNESS; DOOR
REAR DOOR
8-97075-738-2
02
1
1501-
18
02.480 HARNESS; DOOR
FRONT DOOR
8-98119-257-1
01
1
1412-
18
02.480 HARNESS; DOOR
FRONT DOOR
8-98119-260-1
01
1
1412-
85
06.495 HARNESS; ROOM LAMP
8-98055-204-2
01
1
1412-
204
02.559 HARNESS; CABLE,FLOOR
8-98220-717-1
01
1
1412-
204
02.559 HARNESS; CABLE,FLOOR
8-98261-005-0
01
1
1412-
441
02.480 HARNESS; CABLE,SPEED SENSOR
8-97308-213-3
01
1
1412-
533
02.559 CLIP
16.065 1 SET=5 PIECE
1-09987-214-0
01
1
1412-

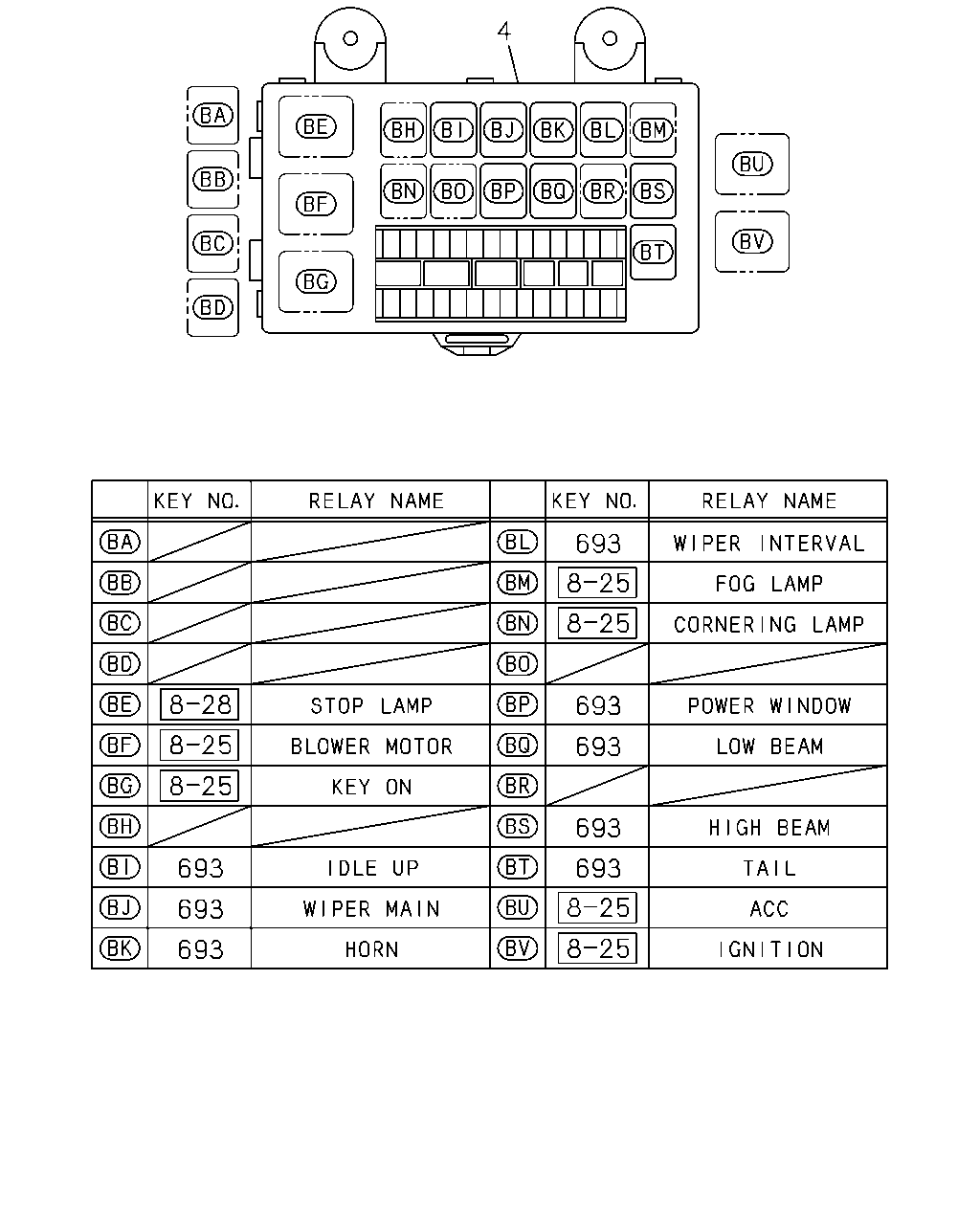

4
693
693
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
02.483 BOX ASM; FUSE,HARNESS
8-98257-591-0
01
1
1412-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
1412-

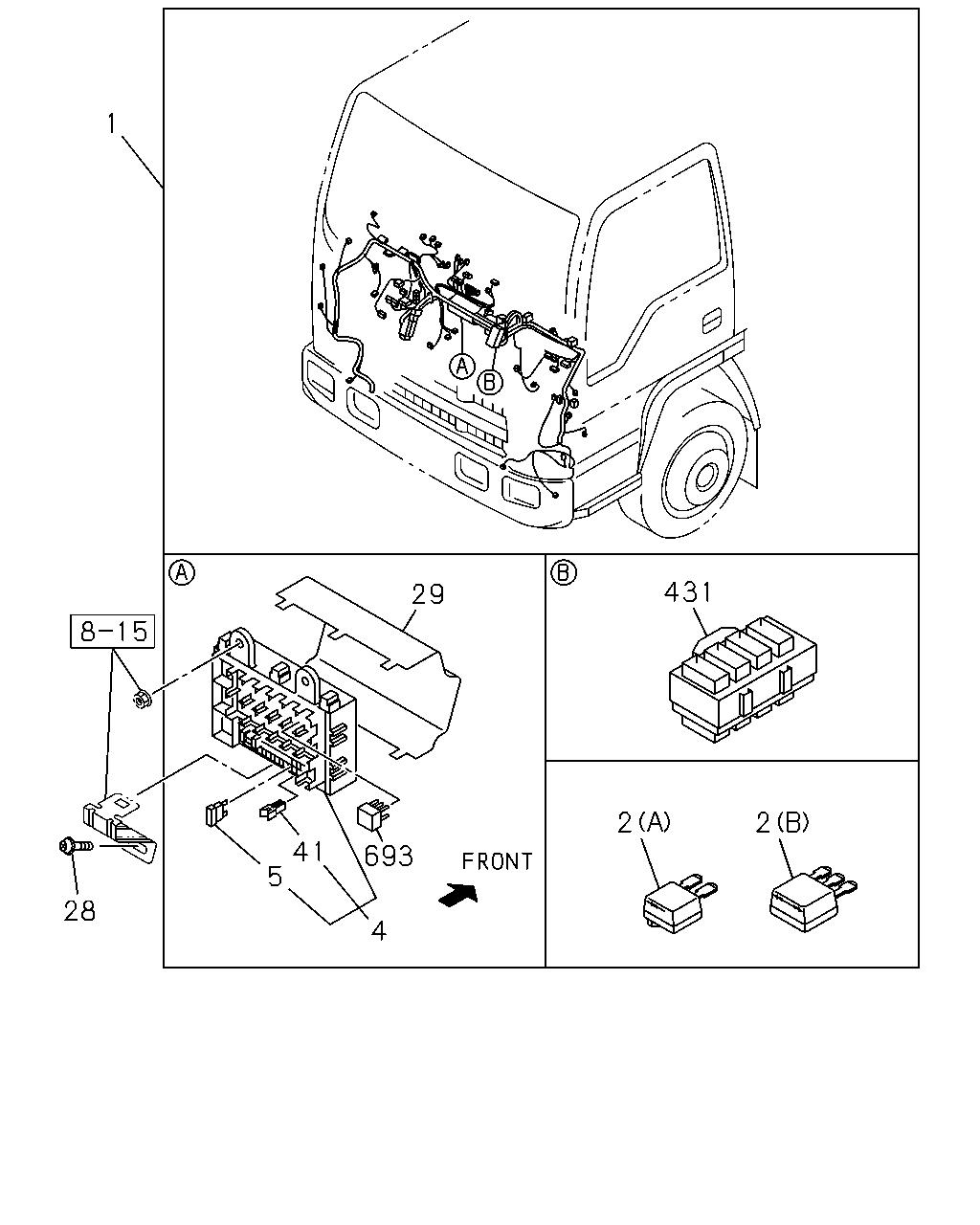

1
431
2
2
693
4
41
5
28
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.480 HARNESS; CAB
8-98282-767-1
01
1
1412-
2
02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A
8-94422-639-1
AR
1
1412-
2
02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A
8-94422-640-1
AR
1
1412-
4
02.483 BOX ASM; FUSE,HARNESS
8-98257-591-0
01
1
1412-
5
02.485 FUSE; FACIA HARNESS
10A RED
8-98054-257-0
AR
1
1412-
5
02.485 FUSE; FACIA HARNESS
15A BLUE
8-98054-258-0
AR
1
1412-
5
02.485 FUSE; FACIA HARNESS
20A YELLOW
8-98054-259-0
AR
1
1412-
28
02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1412-
29
02.483 COVER; FUSE BOX
8-98041-308-0
01
1
1412-
41
08.821 PULLER; FUSE
8-98054-260-0
01
1
1412-
431
02.530 CONNECTOR; JOINT
8-98046-205-0
01
1
1412-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
1412-

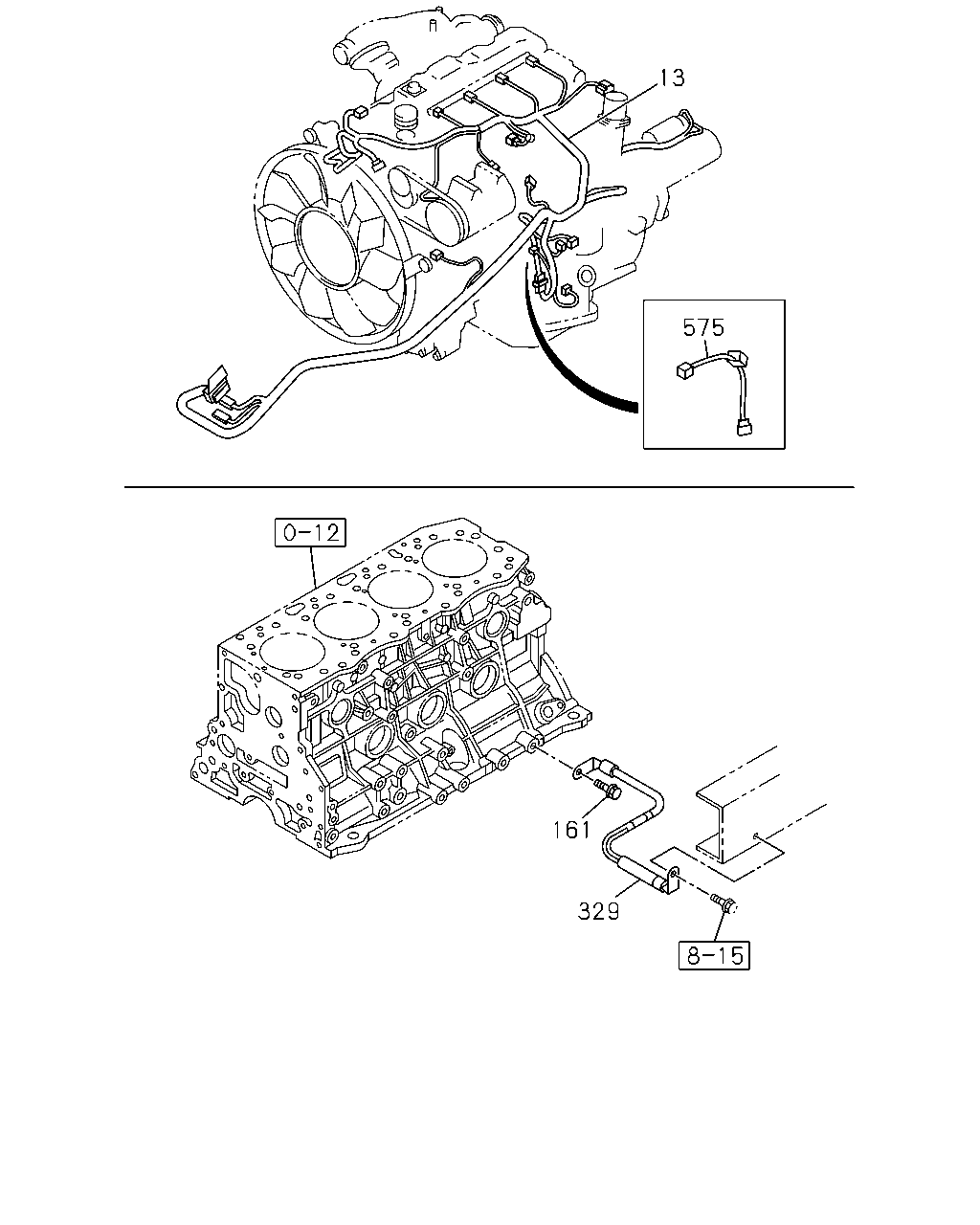

329
161
575
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
02.525 HARNESS; ENG
8-98228-034-4
01
1
1412-
161
02.559 BOLT; GROUND,HARNESS
02.483 M10X16 FLANGE
0-28051-016-0
01
1
1412-
329
02.480 CABLE; ENG TO FRAME
8-98276-594-0
01
1
1412-
575
02.525 HARNESS; GLOW PLUG
8-98253-174-1
01
1
1412-

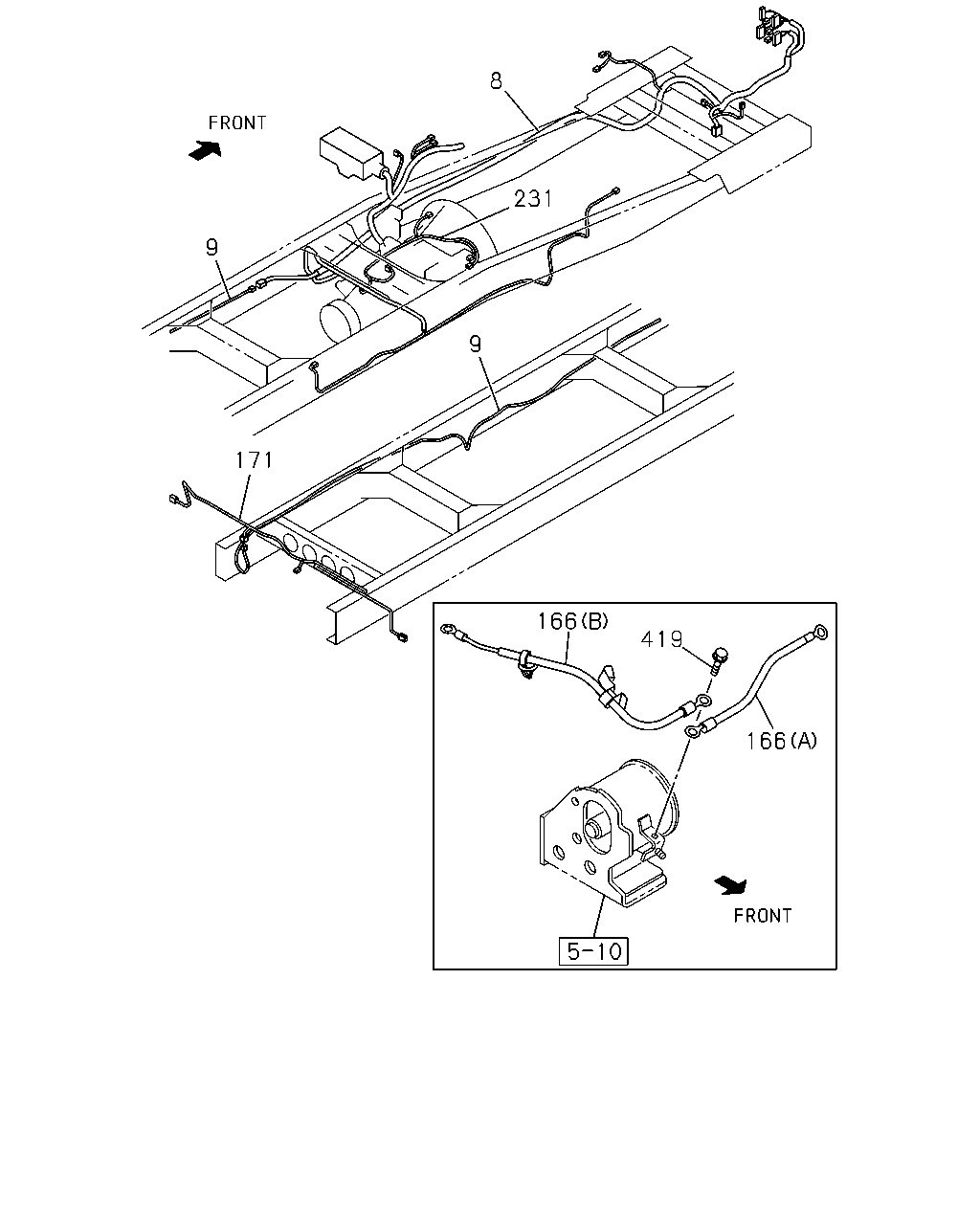

166
419
166
171
9
9
231
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
8-98257-888-0
01
1
1412-
9
02.480 HARNESS; FRAME,RR
8-98129-424-1
01
1
1412-
166
02.480 HARNESS; CABLE,EARTH
(A)
8-98289-325-1
01
1
1412-
166
02.480 HARNESS; CABLE,EARTH
(B)
8-98291-278-2
01
1
1412-
171
02.596 HARNESS; CABLE,TAIL LAMP
8-98246-394-0
01
1
1412-
231
02.480 HARNESS; TRANS
8-98274-571-1
01
1
1412-
419
02.559 BOLT; CAB EARTH
02.343 M8X18.5 W/PL WASHER
8-98141-255-0
02
1
1412-

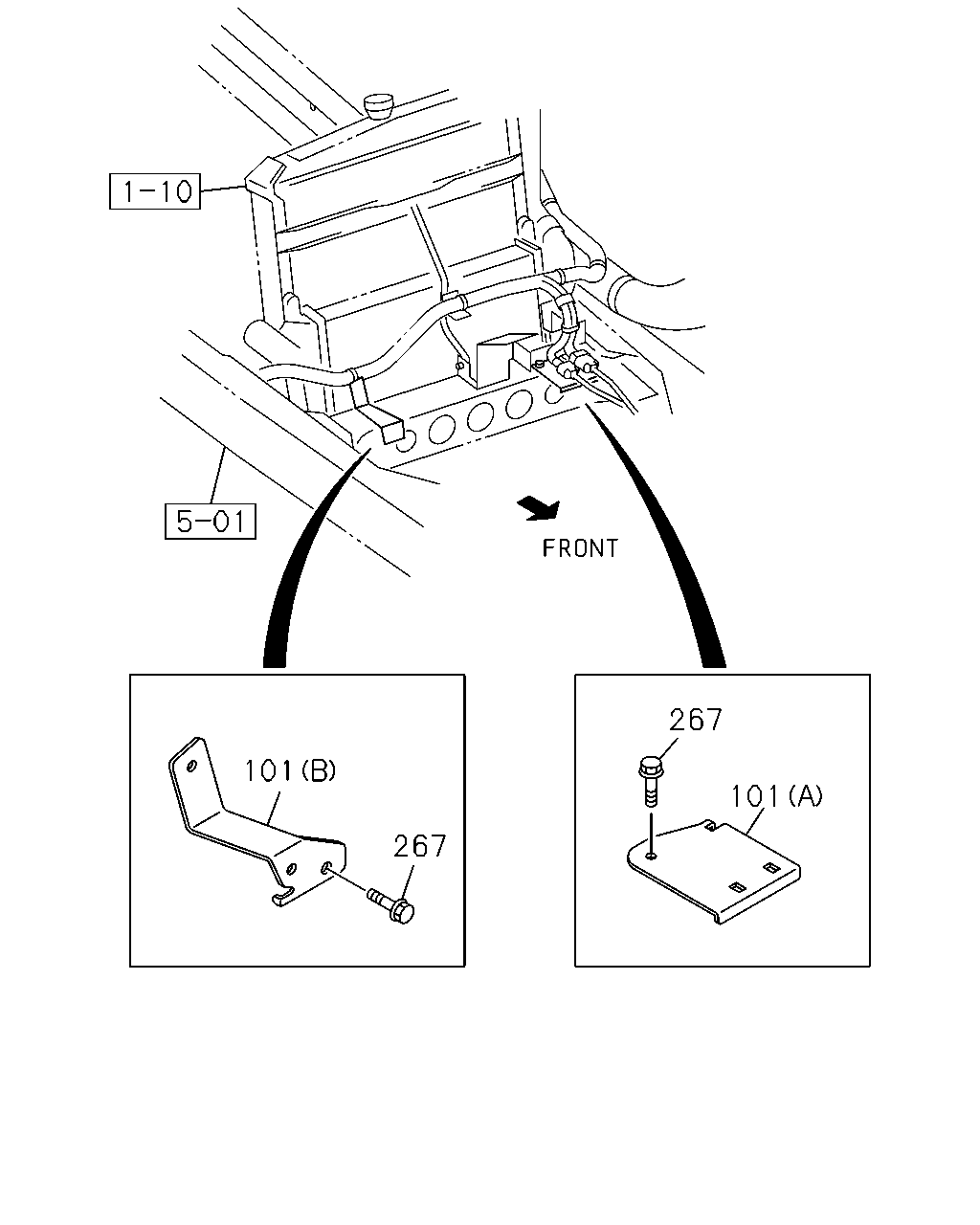

101
267
267
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
02.483 BRACKET; HARNESS CONNECTOR
(A)
8-98039-957-0
01
1
1412-
101
02.483 BRACKET; HARNESS CONNECTOR
(B)
8-98243-659-0
01
1
1412-
267
02.483 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1412-
