◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NJR ▶ 51610 - NJR RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#156268) — 100 parça

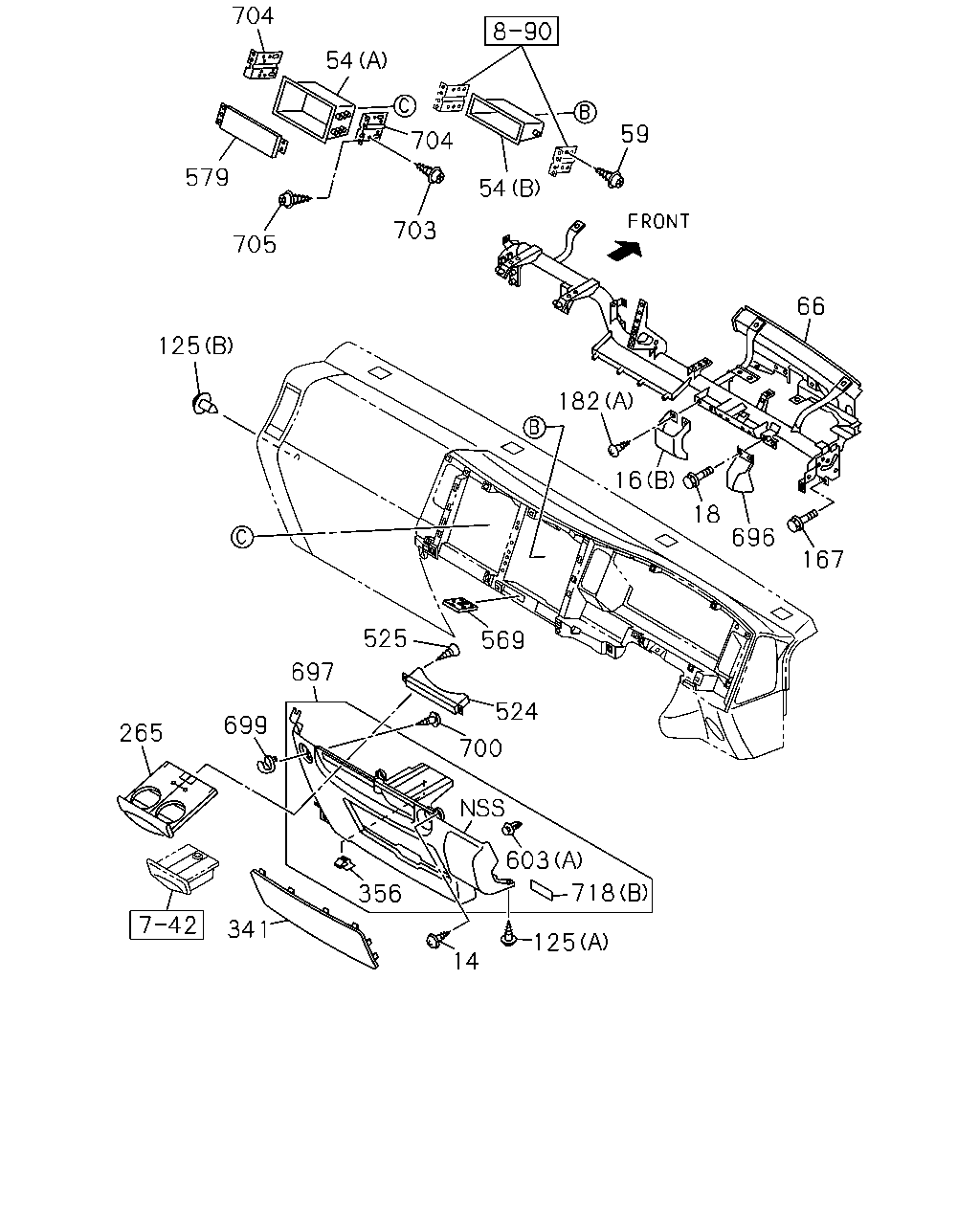

çizim 467348
704 579 705 54 704 703 125 54 59 182 16 696 167 66 18 569 524 700 525 697 699 265 341 356 14 125 718 603
BalonParca AdiParca NoAdetTipApplied Date
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1412-
16 16.085 BRACKET; INST PNL
(A) 		8-97410-806-2 01 1 1412-
16 16.085 BRACKET; INST PNL
(B) 		8-97410-807-0 01 1 1412-
16 16.085 BRACKET; INST PNL
(C) 		8-97585-611-0 01 1 1412-
16 16.085 BRACKET; INST PNL
(D) 		8-98030-421-5 01 1 1412-
16 16.085 BRACKET; INST PNL
(E) 		8-98033-528-1 01 1 1412-
18 16.085 BOLT; BRKT
16.650 SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1412-
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1412-
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1412-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1412-
66 16.085 REINFORCEMENT; INST PANEL 8-98261-307-0 01 1 1412-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1412-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1412-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1412-
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1412-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A)SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1412-
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B)SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1412-
182 16.085 BOLT; BRKT,INST PANEL
00.833 (C) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1412-
265 16.100 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1412-
341 16.110 LID; FUSE BOX
GRAY 		8-97406-266-4 01 1 1412-
356 16.085 NUT; COVER 8-98038-562-0 01 1 1412-
524 16.100 STAND ASM; CUP,INST 8-98054-414-0 01 1 1412-
525 16.100 SCREW; CUP STAND
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1412-
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1412-
579 16.080 COVER; INST PNL
BLACK 		8-97408-909-2 01 1 1412-
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1412-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 06 1 1412-
603 16.090 CLIP; COVER
(C) 		8-98034-329-0 02 1 1412-
696 16.085 BRACKET; KNEE 8-98115-226-0 01 1 1412-
697 16.080 PANEL; INST CENTER
GRAY 		8-97406-257-5 01 1 1412-
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1412-
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1412-
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1412-
704 16.085 BRACKET; CENTER POCKET 8-97585-618-2 02 1 1412-
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1412-
718 16.100 SEAL; COVER
(A) 		8-98071-934-0 01 1 1412-
718 16.100 SEAL; COVER
(B) 		8-98085-197-0 01 1 1412-

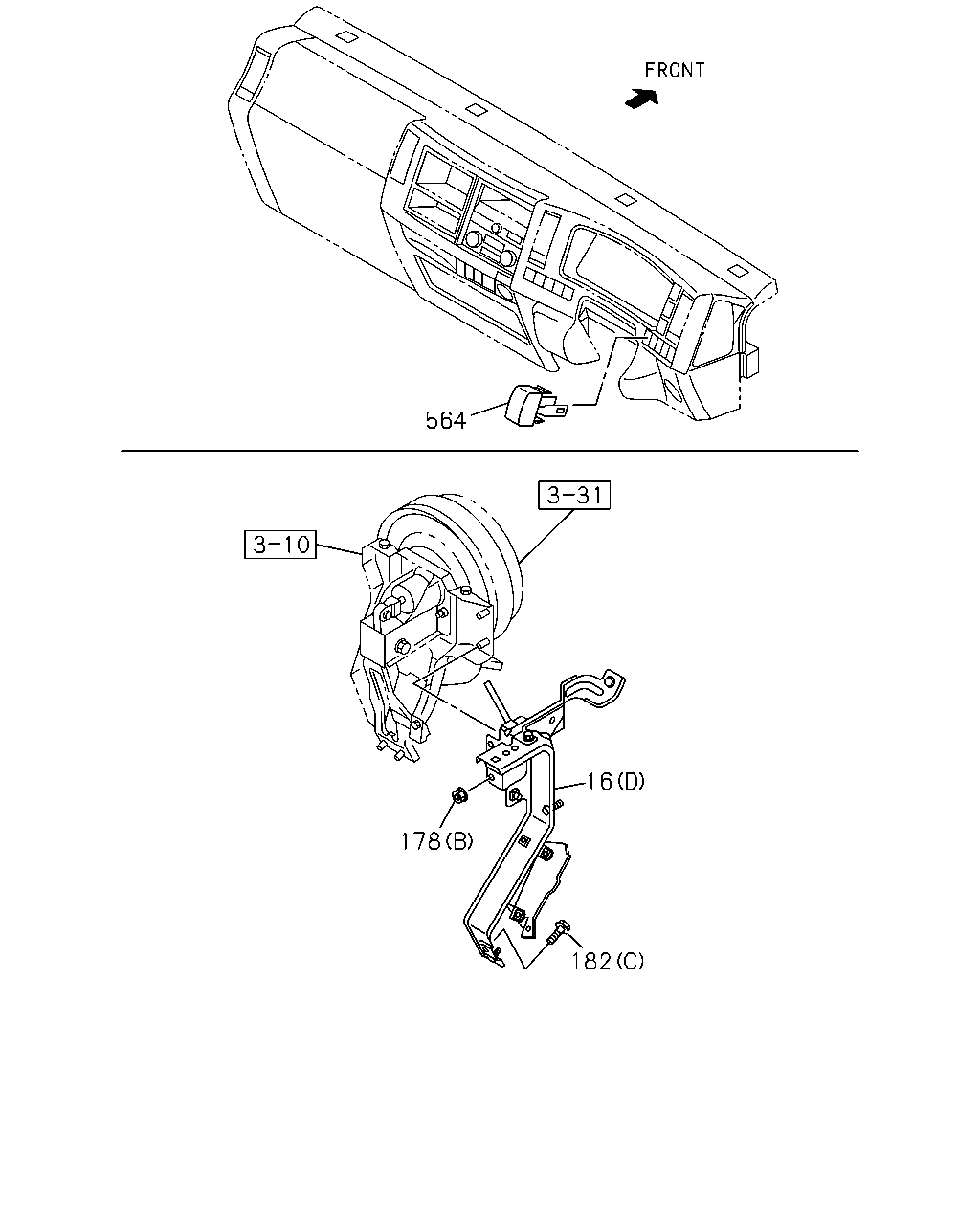

çizim 467350
564 16 178 182
BalonParca AdiParca NoAdetTipApplied Date
16 16.085 BRACKET; INST PNL
(A) 		8-97410-806-2 01 1 1412-
16 16.085 BRACKET; INST PNL
(B) 		8-97410-807-0 01 1 1412-
16 16.085 BRACKET; INST PNL
(C) 		8-97585-611-0 01 1 1412-
16 16.085 BRACKET; INST PNL
(D) 		8-98030-421-5 01 1 1412-
16 16.085 BRACKET; INST PNL
(E) 		8-98033-528-1 01 1 1412-
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1412-
178 16.085 NUT; INST PANEL
00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1412-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A)SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1412-
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B)SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1412-
182 16.085 BOLT; BRKT,INST PANEL
00.833 (C) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1412-
564 16.081 COVER; SW 8-98025-954-1 01 1 1412-

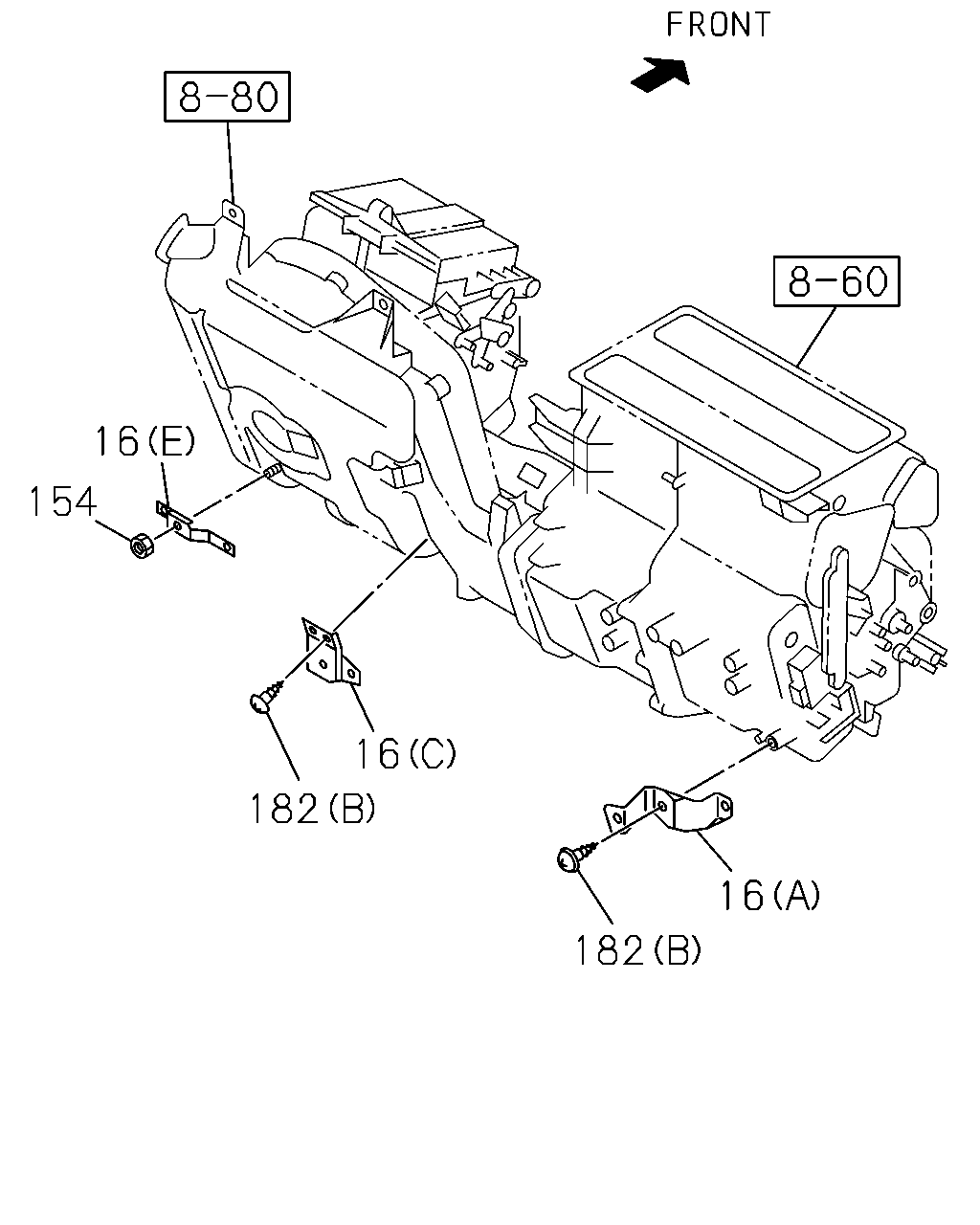

çizim 467365
16 154 182 182 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 16.085 BRACKET; INST PNL
(A) 		8-97410-806-2 01 1 1412-
16 16.085 BRACKET; INST PNL
(B) 		8-97410-807-0 01 1 1412-
16 16.085 BRACKET; INST PNL
(C) 		8-97585-611-0 01 1 1412-
16 16.085 BRACKET; INST PNL
(D) 		8-98030-421-5 01 1 1412-
16 16.085 BRACKET; INST PNL
(E) 		8-98033-528-1 01 1 1412-
154 16.085 NUT
02.343 M5 		0-91110-505-0 02 1 1412-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A)SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1412-
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B)SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1412-
182 16.085 BOLT; BRKT,INST PANEL
00.833 (C) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1412-

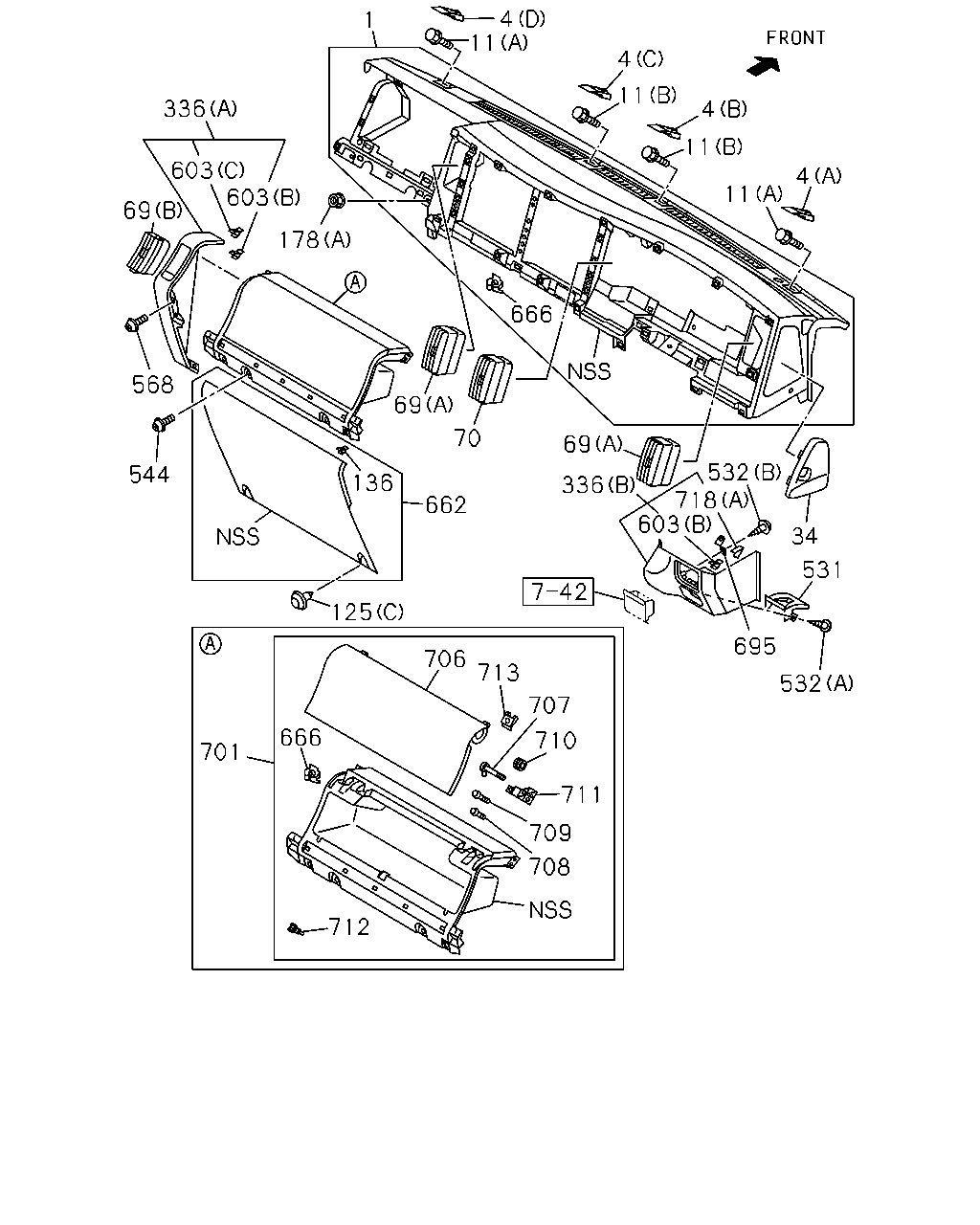

çizim 467625
708 711 710 709 707 713 706 666 701 712 125 662 136 70 69 544 568 69 603 336 603 178 69 336 532 718 603 34 531 695 532 11 4 11 4 11 4 4 11 1 666
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
GRAY 		8-97418-085-0 01 1 1412-
4 16.080 COVER; INST PNL
(B) GRAY 		8-97407-087-0 01 1 1412-
4 16.080 COVER; INST PNL
(A) GRAY 		8-97407-088-0 01 1 1412-
4 16.080 COVER; INST PNL
(C) GRAY 		8-97407-089-0 01 1 1412-
4 16.080 COVER; INST PNL
(D) GRAY 		8-97407-090-0 01 1 1412-
11 16.090 BOLT; INST PNL
03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 1412-
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 02 1 1412-
34 16.085 LID; OIL TANK
GRAY 		8-97406-263-1 01 1 1412-
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1412-
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1412-
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1412-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1412-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1412-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1412-
136 16.085 CLIP; INST COVER 8-98021-271-0 07 1 1412-
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1412-
178 16.085 NUT; INST PANEL
00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1412-
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97418-987-0 01 1 1412-
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97419-994-0 01 1 1412-
531 16.100 CASE; ASH TRAY 8-97853-130-0 01 1 1412-
532 16.100 SCREW; ASH TRAY
16.090 (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1412-
532 16.100 SCREW; ASH TRAY
(A) M5X8 		8-98058-631-0 02 1 1412-
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1412-
568 09.744 BOLT; COVER
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1412-
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1412-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 06 1 1412-
603 16.090 CLIP; COVER
(C) 		8-98034-329-0 02 1 1412-
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97406-259-1 01 1 1412-
666 16.085 INSERT; INST PANEL 8-98037-629-0 20 1 1412-
695 16.085 BRACKET; ASH TRAY 8-98009-037-0 02 1 1412-
701 16.100 TRAY; INST
GRAY 		8-97421-003-0 01 1 1412-
706 16.081 LID; TRAY INST
GRAY 		8-97406-856-1 01 1 1412-
707 09.744 SHAFT; TRAY INST LID 8-98034-369-1 02 1 1412-
708 16.100 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1412-
709 16.085 SCREW; TRAY INST
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 1412-
710 09.744 SPRING; TRAY INST LID 8-98034-365-1 01 1 1412-
710 09.744 SPRING; TRAY INST LID 8-98034-370-1 01 1 1412-
711 16.100 HOLDER ASM; LID 8-98034-367-1 01 1 1412-
711 16.100 HOLDER ASM; LID 8-98034-368-1 01 1 1412-
712 16.110 LOCK; TRAY INST LID 8-98031-846-0 01 1 1412-
713 16.069 NUT; TRAY INST LID
16.085 		8-98038-450-0 04 1 1412-
718 16.100 SEAL; COVER
(A) 		8-98071-934-0 01 1 1412-
718 16.100 SEAL; COVER
(B) 		8-98085-197-0 01 1 1412-
