◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NJR ▶ 51610 - NJR RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#156265) — 10 parça

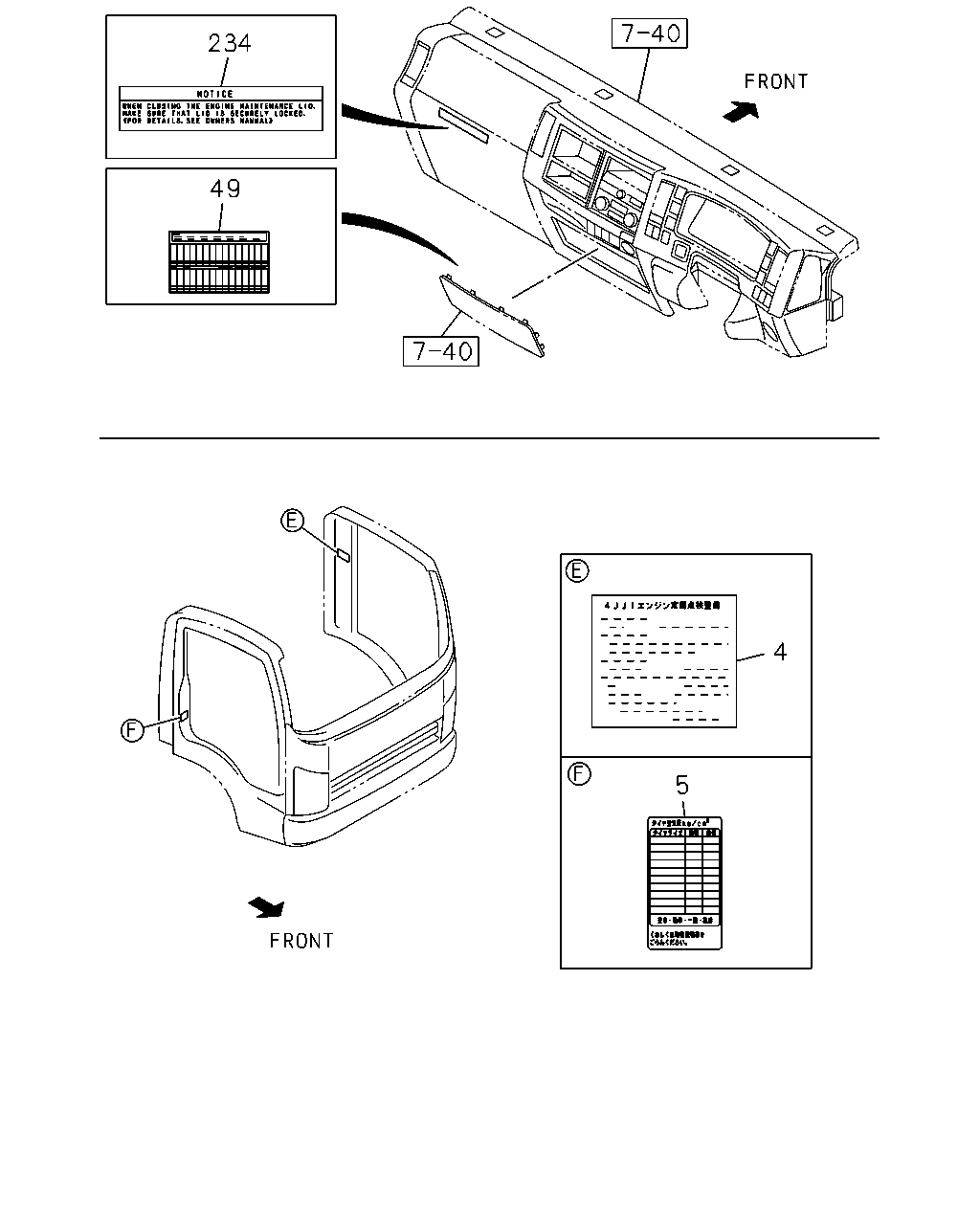

çizim 467262
4 49 234 5
BalonParca AdiParca NoAdetTipApplied Date
4 00.004 LABEL; ENG MAINTENANCE 8-98183-257-0 01 1 1412-
5 05.880 LABEL; TIRE AIR PRESSURE 8-98035-943-0 01 1 1412-
49 08.808 PLATE; CAUTION,FUSE BOX 8-98283-177-0 01 1 1412-
234 08.808 PLATE; CAUTION,ENG COVER 8-97994-545-0 01 1 1412-

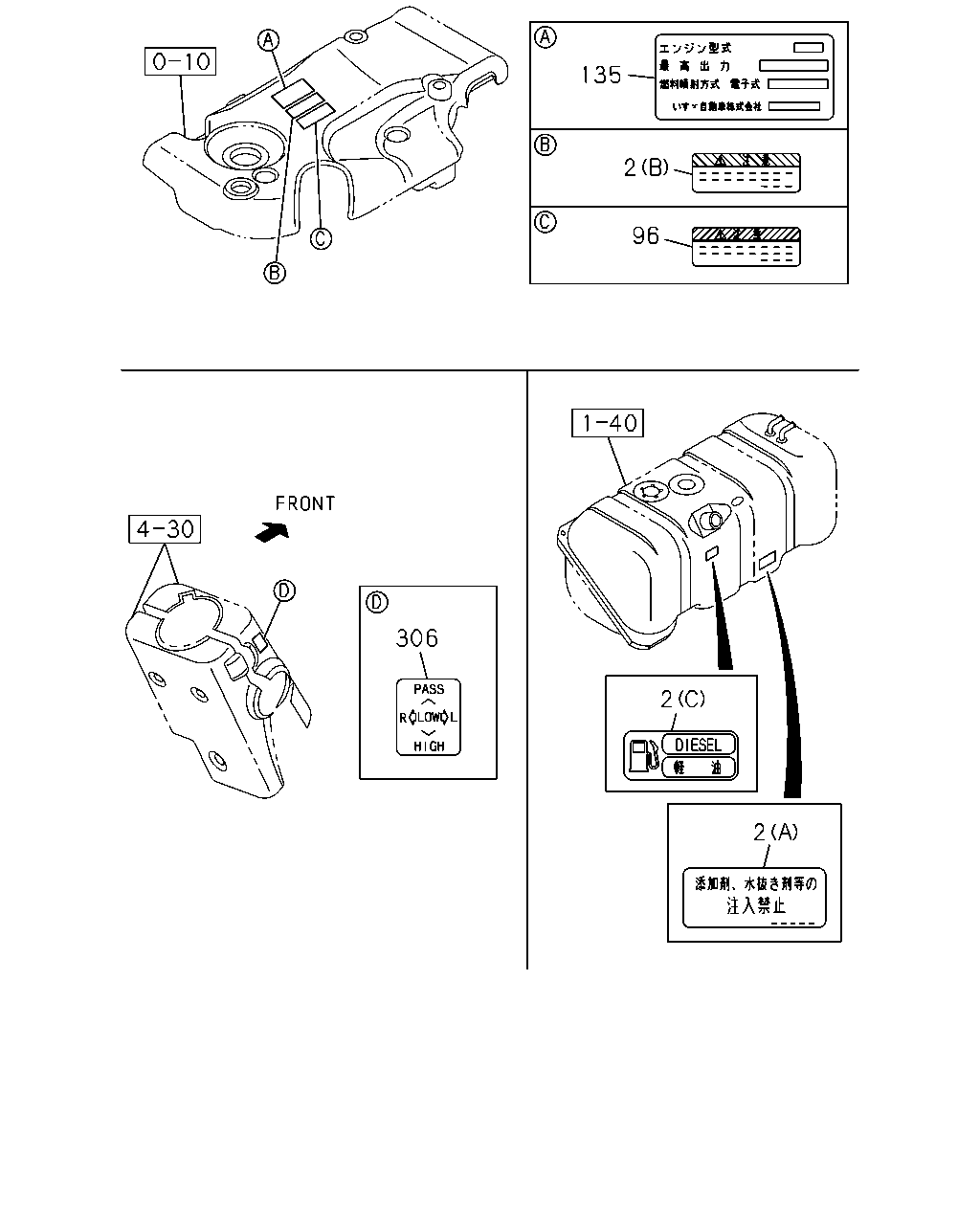

çizim 467589
96 2 135 306 2 2
BalonParca AdiParca NoAdetTipApplied Date
2 03.680 LABEL; FUEL CAUTION
(C) 		8-97203-837-0 01 1 1412-
2 03.680 LABEL; FUEL CAUTION
(A) 		8-97223-995-0 01 1 1412-
2 03.680 LABEL; FUEL CAUTION
(B) 		8-98036-536-0 01 1 1412-
96 08.808 PLATE; CAUTION,ENGINE OIL 8-98046-171-0 01 1 1412-
135 08.808 PLATE; CAUTION,ENGINE 8-98257-274-0 01 1 1412-
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
