6-80 — BACK PANEL (#156261) — 12 parça

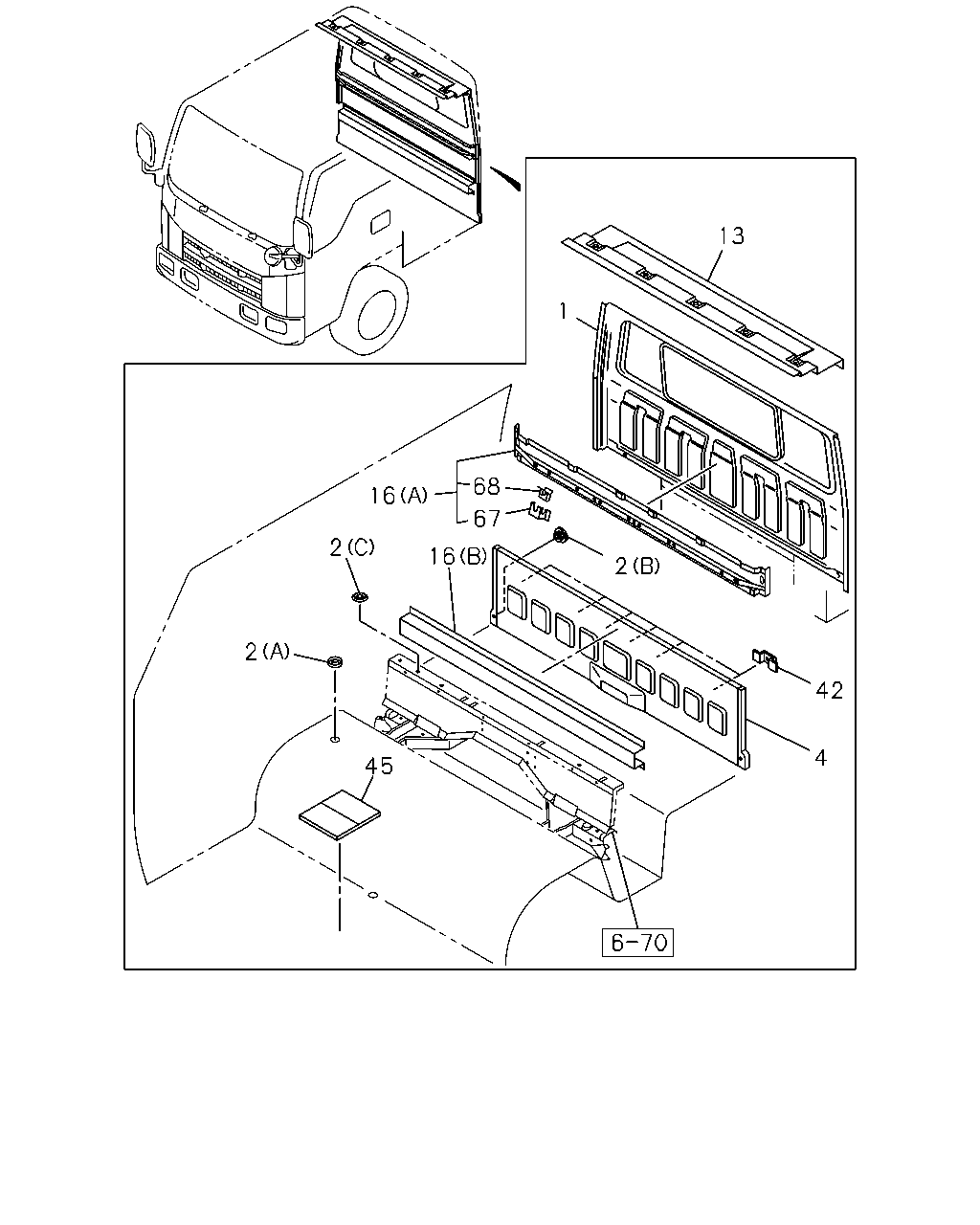

çizim 467209
2 45 4 42 2 16 2 16 68 67 1 13
BalonParca AdiParca NoAdetTipApplied Date
1 16.587 PANEL; BACK OUTER 8-98182-755-0 01 1 1412-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.549 (C) OD=30 		8-94107-655-0 01 1 1412-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (B) OD=35 		8-94122-971-0 04 1 1412-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (A) OD=15.0 		8-94279-040-0 02 1 1412-
4 16.575 PANEL; CAB BACK LWR 8-97851-145-6 01 1 1412-
13 16.575 CANTRAIL; BACK PANEL 8-97851-140-2 01 1 1412-
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 1412-
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97869-023-0 01 1 1412-
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 03 1 1412-
45 16.587 SHEET; MELTING,BACK PANEL
16.850 NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 02 1 1412-
67 16.587 BRACKET; RR SEAT 8-97869-025-0 02 1 1412-
68 16.587 SPACER; RR SEAT 8-97869-027-0 02 1 1412-
