◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NJR ▶ 51610 - NJR RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#156259) — 63 parça

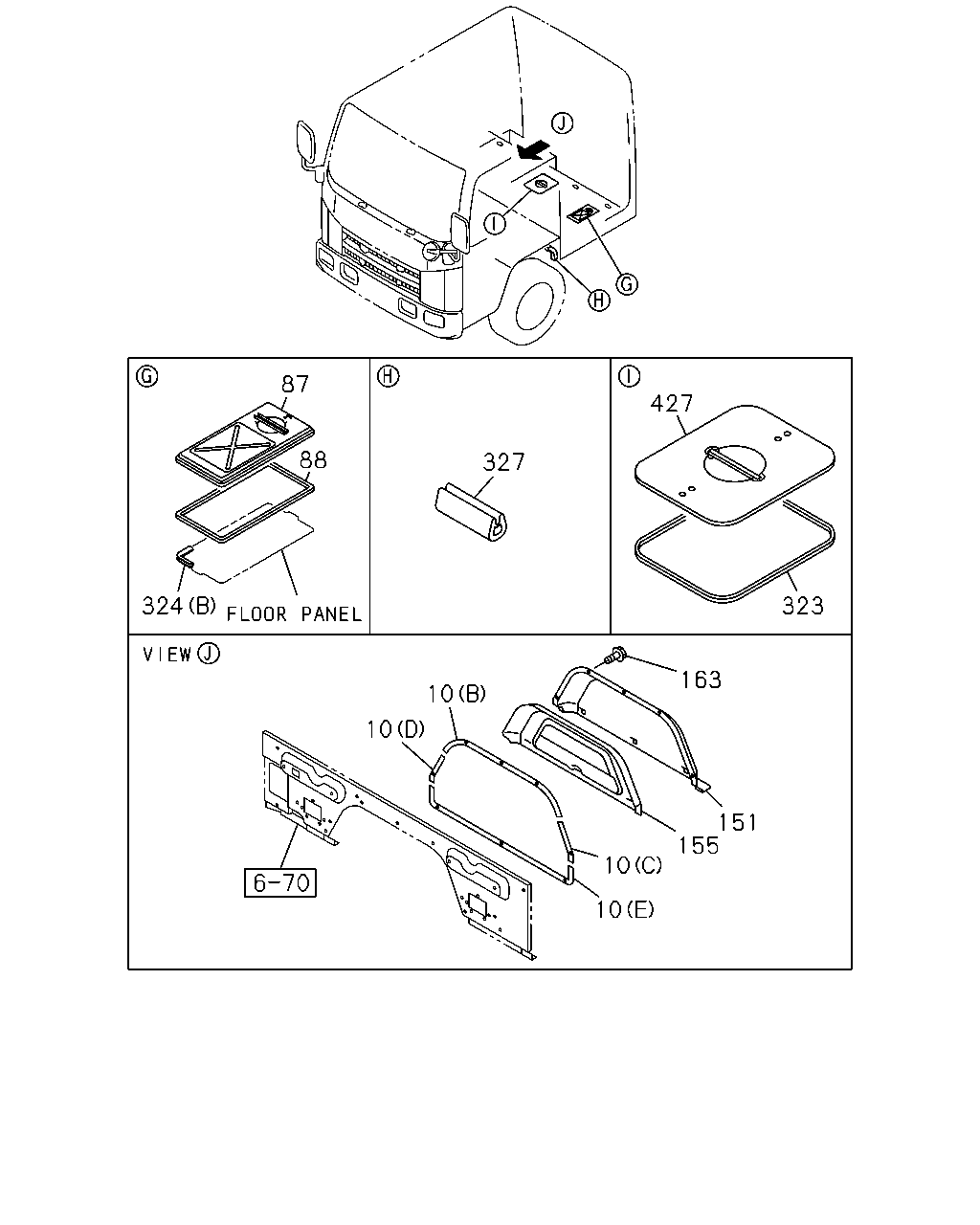

çizim 467403
10 10 155 151 163 10 10 323 427 327 88 87 324
BalonParca AdiParca NoAdetTipApplied Date
10 16.549 SEAL; ENG COVER
(A) 		8-97853-010-4 01 1 1412-
10 16.549 SEAL; ENG COVER
(C) 		8-98033-269-0 01 1 1412-
10 16.549 SEAL; ENG COVER
(B) 		8-98105-865-0 01 1 1412-
10 16.549 SEAL; ENG COVER
(D) 		8-98105-866-0 01 1 1412-
10 16.549 SEAL; ENG COVER
(E) 		8-98105-867-0 01 1 1412-
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 1412-
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 1412-
151 16.549 COVER ASM; ENG 8-98105-859-0 01 1 1412-
155 16.549 INSULATOR; RR,ENG COVER 8-98105-862-0 01 1 1412-
163 16.549 BOLT; RR,ENG COVER,FRT
02.343 M6X16 FLANGE 		0-28650-616-0 09 1 1412-
323 16.549 SEAL; COVER,A/T OIL 8-97853-443-2 01 1 1412-
324 16.545 FINISHER; FLOOR PANEL
03.417 (B) SERVICED BY L=314 		8-94262-845-0 01 1 1412-
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 01 1 1412-
324 16.545 FINISHER; FLOOR PANEL
(C) L=180 		8-98246-926-1 01 1 1412-
327 16.545 FINISHER; CTR PILLAR,LWR 8-97857-257-1 02 1 1412-
427 16.549 COVER; SMOOTHER OIL 8-97853-442-2 01 1 1412-
çizim 467404
326 325 119 120 324
BalonParca AdiParca NoAdetTipApplied Date
119 16.090 LID; P/S OIL TANK 8-98246-924-0 01 1 1412-
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 1412-
324 16.545 FINISHER; FLOOR PANEL
03.417 (B) SERVICED BY L=314 		8-94262-845-0 01 1 1412-
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 01 1 1412-
324 16.545 FINISHER; FLOOR PANEL
(C) L=180 		8-98246-926-1 01 1 1412-
325 16.549 COVER; LLC 8-97856-974-0 01 1 1412-
326 16.549 SEAL; COVER 8-97856-975-1 01 1 1412-

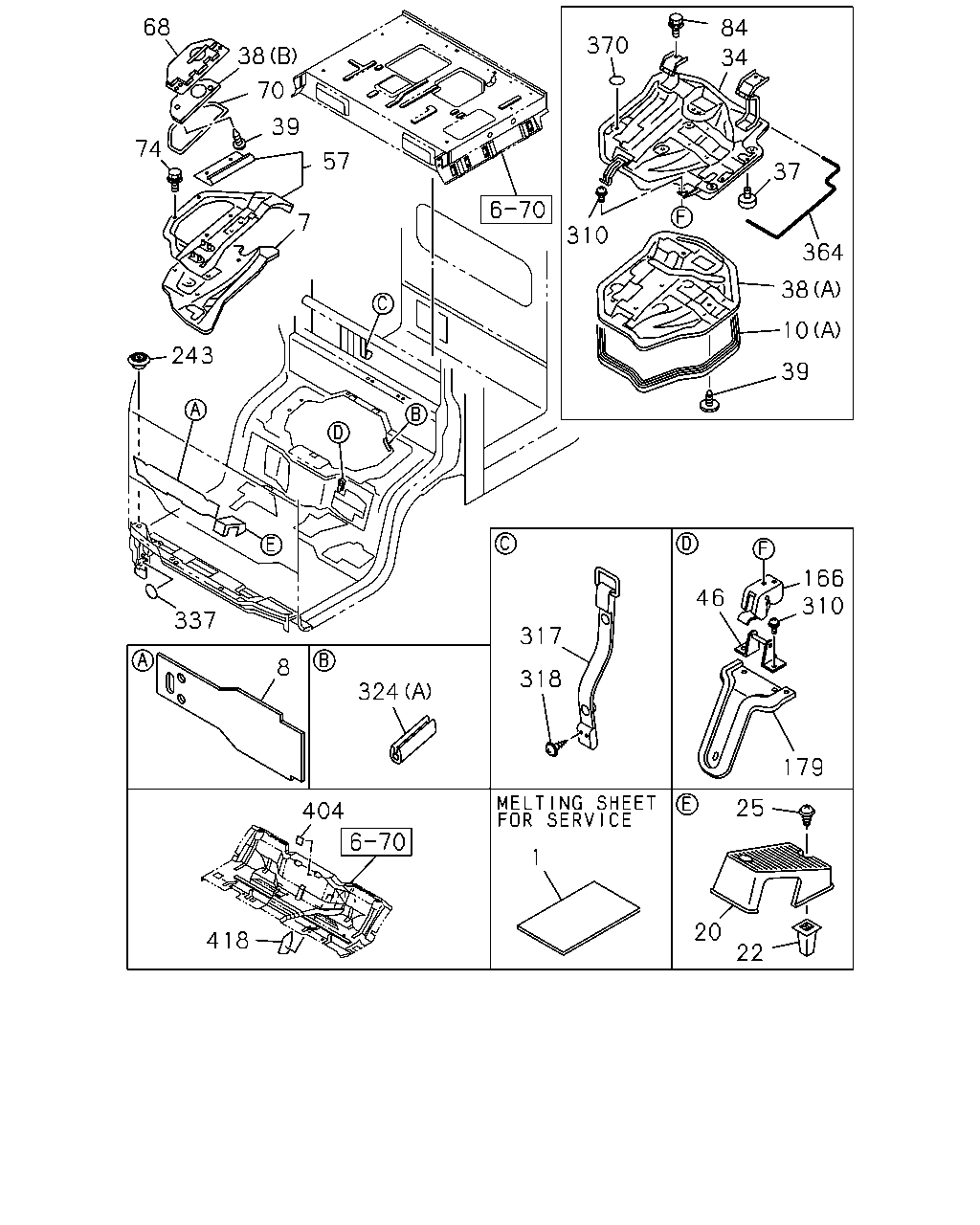

çizim 467413
68 74 38 70 39 57 7 243 337 418 404 324 8 22 20 25 179 310 166 46 317 318 1 39 10 38 364 37 34 84 370 310
BalonParca AdiParca NoAdetTipApplied Date
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 1412-
7 16.545 INSULATOR; SUPPORT COVER 8-97585-717-3 01 1 1412-
8 16.802 MAT; SILENCER,FRT PANEL 8-98019-713-2 02 1 1412-
10 16.549 SEAL; ENG COVER
(A) 		8-97853-010-4 01 1 1412-
10 16.549 SEAL; ENG COVER
(C) 		8-98033-269-0 01 1 1412-
10 16.549 SEAL; ENG COVER
(B) 		8-98105-865-0 01 1 1412-
10 16.549 SEAL; ENG COVER
(D) 		8-98105-866-0 01 1 1412-
10 16.549 SEAL; ENG COVER
(E) 		8-98105-867-0 01 1 1412-
20 16.547 REST; FOOT 8-97853-767-2 01 1 1412-
22 16.547 GROMMET; SCREW,FOOT REST
04.931 H=15 		8-94463-268-1 02 1 1412-
25 16.549 SCREW; FOOT REST
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1412-
34 16.549 COVER ASM; ENG,CAB FLOOR 8-98145-219-1 01 1 1412-
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 1412-
38 16.549 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 1412-
38 16.549 INSULATOR; ENG COVER
(A) 		8-98039-951-0 01 1 1412-
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 11 1 1412-
46 16.549 HOOK ASM; ENG COVER 8-98040-145-0 02 1 1412-
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97585-277-2 01 1 1412-
68 16.549 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 1412-
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 1412-
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1412-
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1412-
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1412-
166 16.549 LOCK; ENG COVER 8-98040-152-0 02 1 1412-
179 16.549 REINFORCEMENT; COVER 8-98048-301-1 01 1 1412-
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 1412-
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1412-
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 05 1 1412-
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 1412-
318 16.549 SCREW; BAND
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1412-
324 16.545 FINISHER; FLOOR PANEL
03.417 (B) SERVICED BY L=314 		8-94262-845-0 01 1 1412-
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 01 1 1412-
324 16.545 FINISHER; FLOOR PANEL
(C) L=180 		8-98246-926-1 01 1 1412-
337 16.545 SEAL; CLIP HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1412-
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 1412-
370 16.549 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1412-
370 16.549 SEAL; LOCATION HOLE
BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1412-
404 16.549 SEAL; FLOOR,HOLE 8-98040-837-0 01 1 1412-
418 16.549 SEAL; PROTECTOR 8-98090-191-1 01 1 1412-
418 16.549 SEAL; PROTECTOR 8-98090-192-1 01 1 1412-
