Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

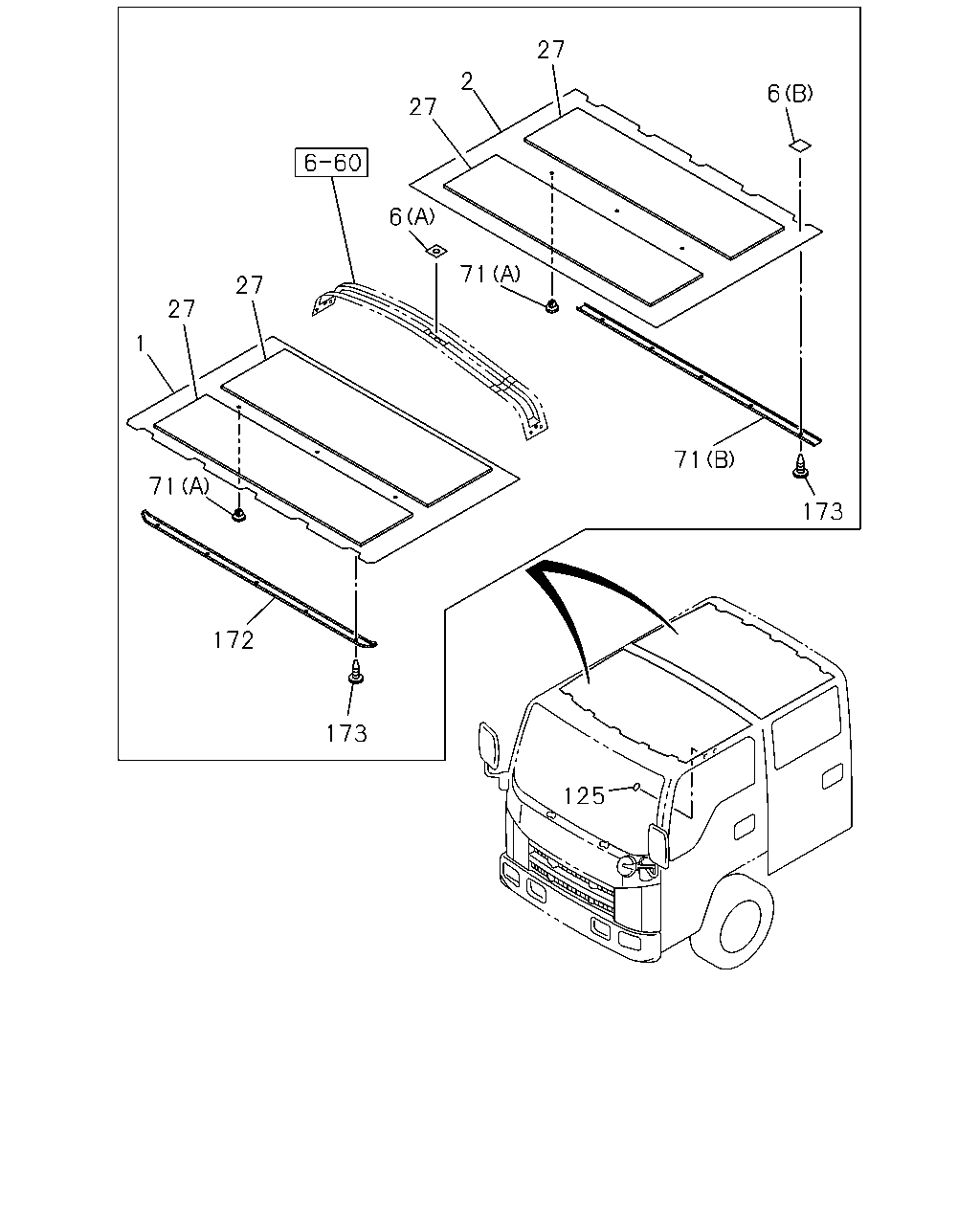

6-66 — HEAD LINING AND TRIM
(#156256) — 12 parça
125
173
172
71
1
27
27
6
71
71
173
6
27
2
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.742 LINING; HD
DARK GRAY
8-97408-919-1
01
1
1412-
2
16.742 LINING; HD,ROOF RR
DARK GRAY
8-97408-920-1
01
1
1412-
6
16.742 SPACER; HD LINING
(A)
8-94353-014-0
06
1
1412-
6
16.742 SPACER; HD LINING
(B)
8-97857-292-0
02
1
1412-
27
16.165 INSULATION; ROOF
16.742
8-97856-485-5
04
1
1412-
71
16.742 FASTENER; HD LINING
(A) DARK GRAY
8-97405-301-2
06
1
1412-
71
16.742 FASTENER; HD LINING
(B) DARK GRAY
8-97406-298-3
01
1
1412-
125
16.570 SEAL; HOLE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE
8-98059-421-0
02
1
1412-
125
16.570 SEAL; HOLE
BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK
5-76777-036-0
02
1
1412-
172
16.742 RETAINER; HEAD LINING
DARK GRAY
8-97406-297-6
01
1
1412-
173
16.742 CLIP; RETAINER,HEAD LINING
DARK GRAY
8-97406-299-0
05
1
1412-
173
16.742 CLIP; RETAINER,HEAD LINING
DARK GRAY
8-97406-299-0
05
1
1412-
