◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NJR ▶ 51610 - NJR RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-52 - REAR DOOR LOCK AND HANDLE ▶
6-52 — REAR DOOR LOCK AND HANDLE (#156253) — 27 parça

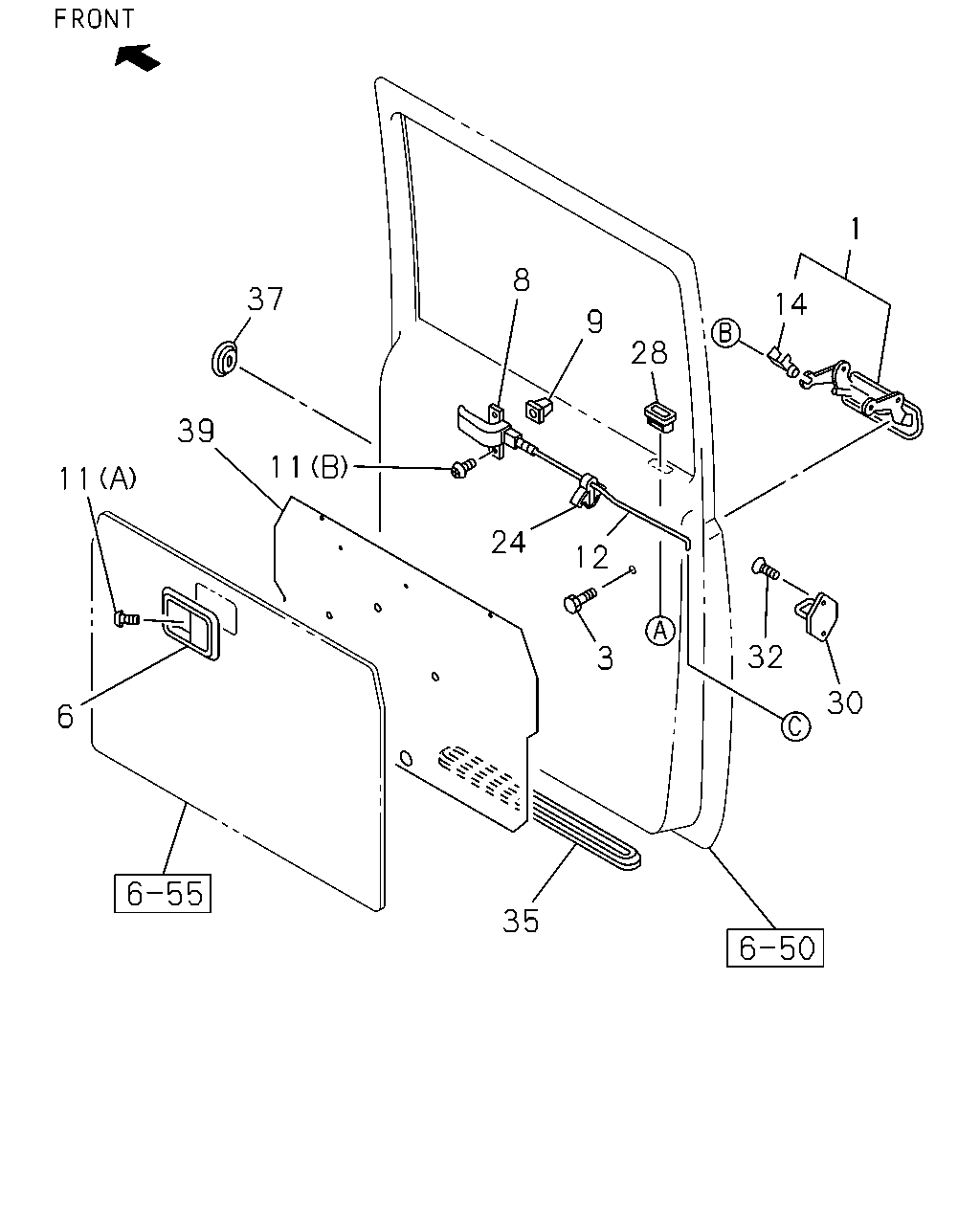

çizim 467346
35 3 32 30 12 24 11 39 37 11 6 8 9 28 14 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.360 HANDLE; OUTSIDE,RR DOOR
16.350 		8-97867-721-1 01 1 1412-
1 16.360 HANDLE; OUTSIDE,RR DOOR
16.350 		8-97867-722-1 01 1 1412-
3 16.350 BOLT; DOOR OUTSIDE HANDLE
M6X8 W/TORQUES 		8-98064-276-1 04 1 1412-
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
GRAY 		8-97406-328-2 01 1 1412-
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
GRAY 		8-97406-329-2 01 1 1412-
8 16.345 HANDLE; INSIDE,RR DOOR
GRAY 		8-97406-326-3 01 1 1412-
8 16.345 HANDLE; INSIDE,RR DOOR
GRAY 		8-97406-327-3 01 1 1412-
9 16.345 GROMMET; SCREW,INSIDE HANDLE
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 1412-
11 16.345 SCREW; INSIDE HANDLE
16.120 (A) M4X10 TAPPING OVAL-HEAD 		0-70640-410-0 02 1 1412-
11 16.345 SCREW; INSIDE HANDLE
16.570 (B) M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1412-
12 16.350 ROD; DOOR LK RR 8-97852-225-1 01 1 1412-
12 16.350 ROD; DOOR LK RR 8-97852-226-1 01 1 1412-
14 16.330 HOLDER; DOOR LK ROD
16.350 		8-97852-651-1 01 1 1412-
14 16.330 HOLDER; DOOR LK ROD
16.350 		8-97852-652-1 01 1 1412-
24 16.345 ANTIRATTLER; DOOR INSIDE HANDLE
16.341 ID=3.8 WHITE 		8-94217-699-0 02 1 1412-
28 16.157 ESCUTCHEON; LK BUTTON,RR DOOR
GRAY 		8-97406-330-1 02 1 1412-
30 16.335 STRIKER; RR DOOR 8-97221-702-1 02 1 1412-
32 16.335 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 1412-
35 16.155 PLUG; RR DOOR LWR HOLE 8-97852-222-1 02 1 1412-
37 16.157 GROMMET; RR DOOR
16.570 		8-94279-724-0 04 1 1412-1412
39 16.350 SEAL; INSIDE HANDLE,RR DOOR
16.345 		8-94271-609-1 02 1 1412-
çizim 467347
20 16 17 29
BalonParca AdiParca NoAdetTipApplied Date
16 16.345 CLIP; DOOR LK LINK 8-97852-643-0 01 1 1412-
16 16.345 CLIP; DOOR LK LINK
16.335 		8-97859-069-0 01 1 1412-
17 16.330 LOCK; DOOR,RR DOOR
GRAY 		8-97406-322-6 01 1 1412-
17 16.330 LOCK; DOOR,RR DOOR
GRAY 		8-97406-323-6 01 1 1412-
20 16.330 SCREW; DOOR LK
M6X14.5 		8-98004-342-0 06 1 1412-
29 16.345 KNOB; LK LINK,RR DOOR
16.157 GRAY 		8-97406-876-0 02 1 1412-
