Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

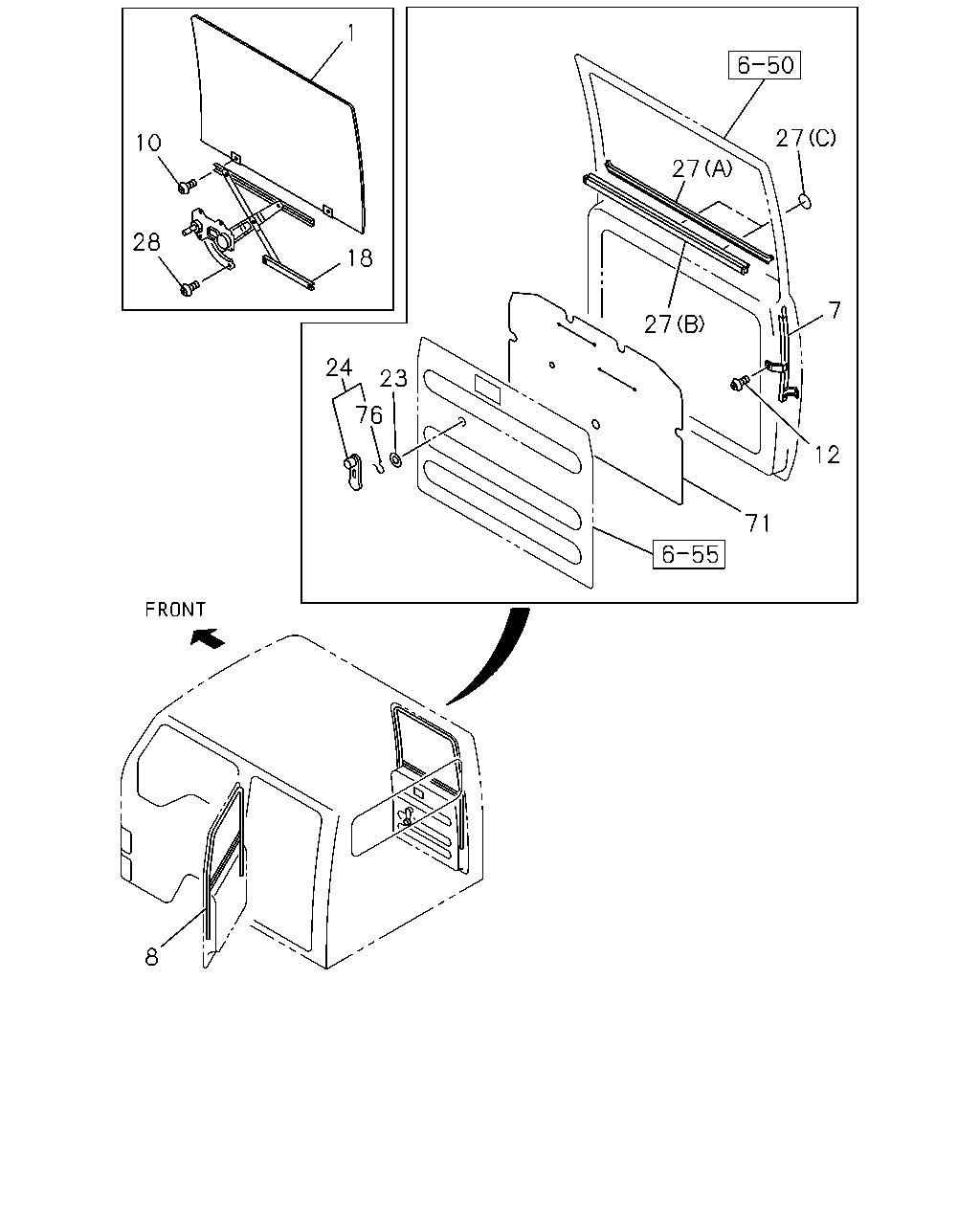

6-51 - REAR DOOR GLASS AND REGULATOR
▶
6-51 — REAR DOOR GLASS AND REGULATOR
(#156252) — 17 parça
8
71
12
27
7
27
27
24
76
23
18
28
10
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.180 GLASS; RR DOOR
8-97867-407-0
01
1
1412-
1
16.180 GLASS; RR DOOR
8-97867-408-0
01
1
1412-
7
16.190 CHANNEL; GLASS RUN,RR DOOR
8-97852-206-6
01
1
1412-
7
16.190 CHANNEL; GLASS RUN,RR DOOR
8-97852-207-6
01
1
1412-
8
16.190 RUN; GLASS,RR DOOR
8-97852-227-5
02
1
1412-
10
16.183 SCREW; GLASS
M4X14.5 TAPPING
8-98020-522-2
04
1
1412-
12
16.181 SCREW; CHANNEL,GLASS RUN
16.650 T25 M6X12 HEXALOBULAR SOCKET
0-38050-612-0
04
1
1412-
18
16.260 REGULATOR; WINDOW,RR DOOR
8-97852-193-4
01
1
1412-
18
16.260 REGULATOR; WINDOW,RR DOOR
8-97852-194-4
01
1
1412-
23
16.270 ESCUTCHEON; HANDLE,WINDOW REG
10.805
8-94220-668-1
02
1
1412-
24
16.270 HANDLE; WINDOW REG,RR DOOR
GRAY
8-97406-317-0
02
1
1412-
27
16.183 SEAL; WAIST,RR DOOR
02.580 (C) OD=36 T=0.05 BLACK
5-76777-035-0
04
1
1412-
27
16.183 SEAL; WAIST,RR DOOR
(A) OUTER
8-97852-230-5
02
1
1412-
27
16.183 SEAL; WAIST,RR DOOR
(B) INNER
8-97852-231-6
02
1
1412-
28
16.181 BOLT; WINDOW REG
16.230 M6X9 LK+W/PL WASHER&TORQUES
8-98108-677-0
10
1
1412-
71
16.183 SEAL; WATER,RR DOOR
8-97852-232-2
02
1
1412-
76
16.260 PIN
16.270
8-94220-591-0
02
1
1412-
