Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

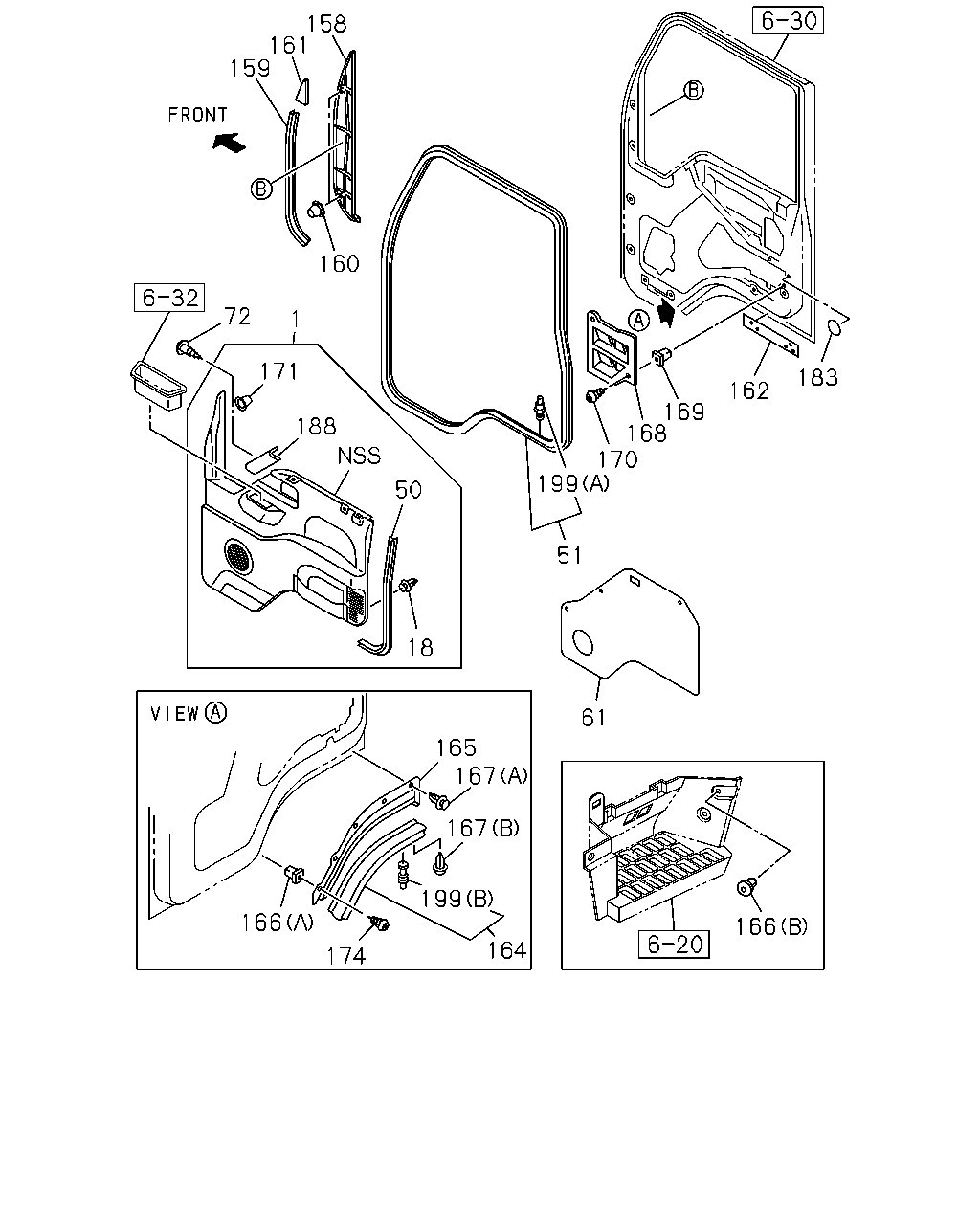

6-35 - FRONT DOOR TRIM
▶
6-35 — FRONT DOOR TRIM
(#156248) — 37 parça
166
61
164
174
166
167
199
167
165
51
199
170
168
169
162
183
50
18
171
188
1
72
160
159
161
158
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.165 PAD; TRIM,FRT DOOR
GRAY
8-97406-301-6
01
1
1412-
1
16.165 PAD; TRIM,FRT DOOR
GRAY
8-97406-304-7
01
1
1412-
18
16.165 CLIP; DOOR PAD
OD=7.9 BLACK
8-94279-974-1
24
1
1412-
50
16.166 FINISHER; DOOR PAD
GRAY
8-97406-829-0
02
1
1412-
51
16.225 WEATHERSTRIP; FRONT DOOR
8-97892-900-3
01
1
1412-
51
16.225 WEATHERSTRIP; FRONT DOOR
8-97892-901-3
01
1
1412-
61
16.165 SEAL; WATER,DOOR PAD
8-97852-328-3
02
1
1412-
72
16.165 SCREW; DOOR TRIM
16.345 M5X12 HEX SOCKET
0-72380-512-0
02
1
1412-
158
16.165 GARNISH; DOOR
8-97852-128-2
01
1
1412-
158
16.165 GARNISH; DOOR
8-97852-129-2
01
1
1412-
159
16.165 FINISHER; GARNISH
8-97852-257-4
02
1
1412-
160
16.165 CLIP; GARNISH
8-97852-058-0
04
1
1412-
161
16.165 FASTENER; GARNISH
8-97134-312-1
01
1
1412-
161
16.165 FASTENER; GARNISH
8-97134-313-1
01
1
1412-
162
16.165 PROTECTOR; DOOR
8-98056-386-0
02
1
1412-
164
16.165 SEAL; SUB,SILL SIDE
8-97852-319-4
01
1
1412-
164
16.165 SEAL; SUB,SILL SIDE
8-97852-320-4
01
1
1412-
165
16.165 LINER; DOOR LWR
8-97581-078-0
01
1
1412-
165
16.165 LINER; DOOR LWR
8-97581-079-0
01
1
1412-
166
16.155 PLUG; HOLE
08.155 (B) OD=8
1-09983-125-0
02
1
1412-
166
16.155 PLUG; HOLE
01.269 (A) D=8.6X7.7 L=7.5
8-94279-078-0
04
1
1412-
167
16.165 CLIP; LINER
08.155 (A) D6X16 PUSH RIVET
1-09983-105-0
06
1
1412-
167
16.165 CLIP; LINER
(B) D6X20 PUSH RIVET
8-97859-673-0
02
1
1412-
168
16.175 VALVE; DOOR OUTLET
8-97855-412-0
01
1
1412-
168
16.175 VALVE; DOOR OUTLET
8-97855-413-0
01
1
1412-
169
16.175 GROMMET; SCREW,VALVE
01.269 D=8.6X7.7 L=7.5
8-94279-078-0
04
1
1412-
170
16.175 SCREW; VALVE
16.570 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1412-
171
16.165 RETAINER; DOOR PAD
01.303
5-09709-049-0
02
1
1412-
174
16.175 SCREW; LINER
04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
04
1
1412-
183
16.165 SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
1412-
188
16.165 CASE; DOOR
GRAY
8-97406-828-3
01
1
1412-
188
16.165 CASE; DOOR
GRAY
8-97406-836-3
01
1
1412-
199
16.165 CLIP; SEAL
(A) FRONT NATURAL
1-09987-253-1
09
1
1412-
199
16.165 CLIP; SEAL
(A) FRONT YELLOW
1-09987-254-1
09
1
1412-
199
16.165 CLIP; SEAL
(A) LOWER & BACK PINK
1-09987-256-0
32
1
1412-
199
16.165 CLIP; SEAL
(B) NATURAL
8-97852-455-0
07
1
1412-
199
16.165 CLIP; SEAL
(B) PINK
8-97852-456-0
07
1
1412-
