6-20 — SIDE PANEL AND STEP (#156244) — 62 parça

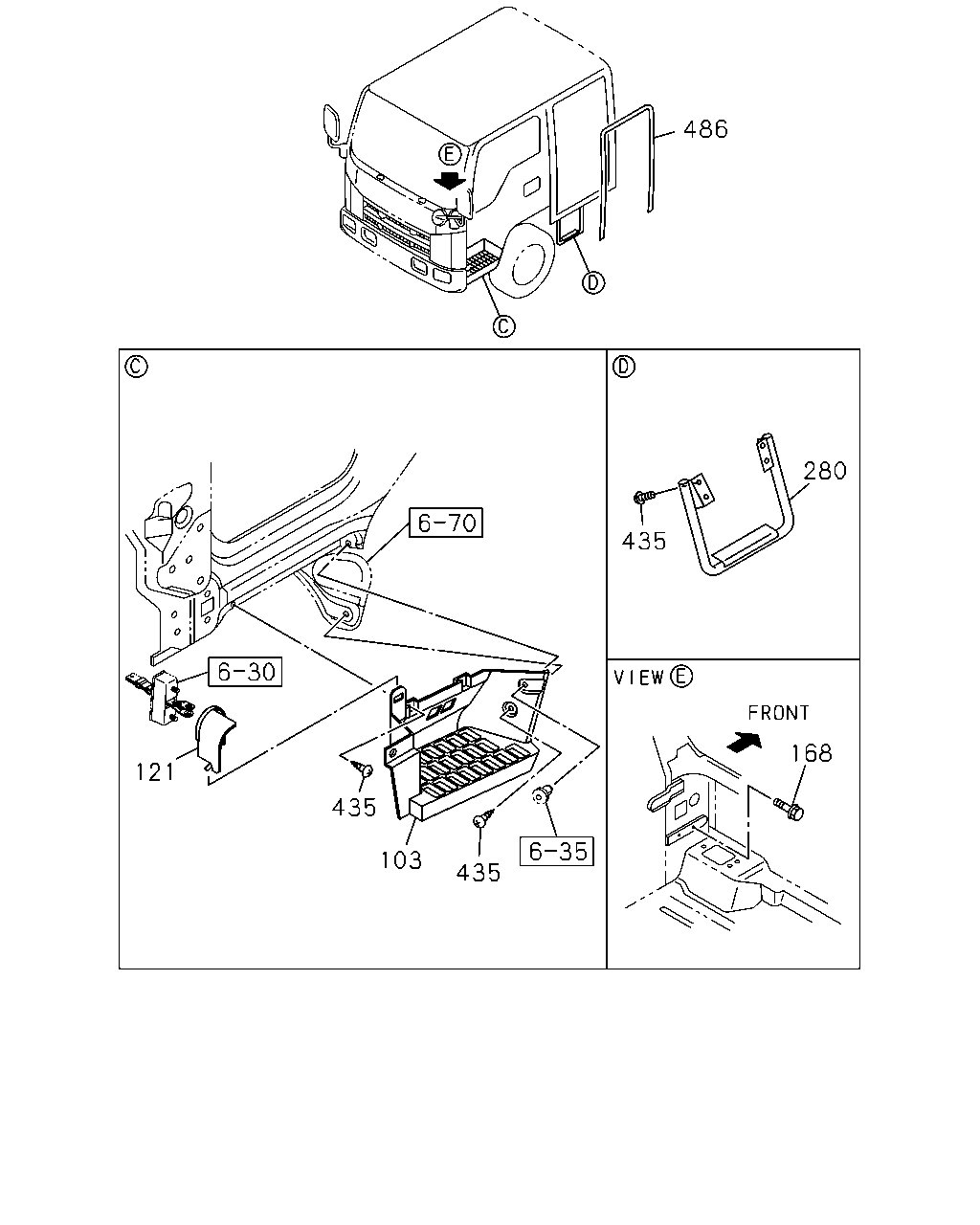

çizim 467233
121 435 103 435 435 280 168 486
BalonParca AdiParca NoAdetTipApplied Date
103 08.228 PLATE; STEP 8-97997-853-0 01 1 1412-
103 08.228 PLATE; STEP 8-98242-608-0 01 1 1412-
121 08.228 COVER; STEP PLATE 8-97997-855-0 01 1 1412-
121 08.228 COVER; STEP PLATE 8-97997-856-0 01 1 1412-
168 16.570 BOLT; BODY SIDE PANEL
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1412-
280 08.225 STEP ASM; RR 8-97853-450-3 02 1 1412-
435 08.225 BOLT; RR STEP
08.143 M6X16 W/LK&PL WASHER 		0-52010-616-0 08 1 1412-
435 08.225 BOLT; RR STEP
M8X18 		8-98004-345-0 10 1 1412-
486 16.570 SEAL; BODY SIDE 8-98158-454-0 02 1 1412-

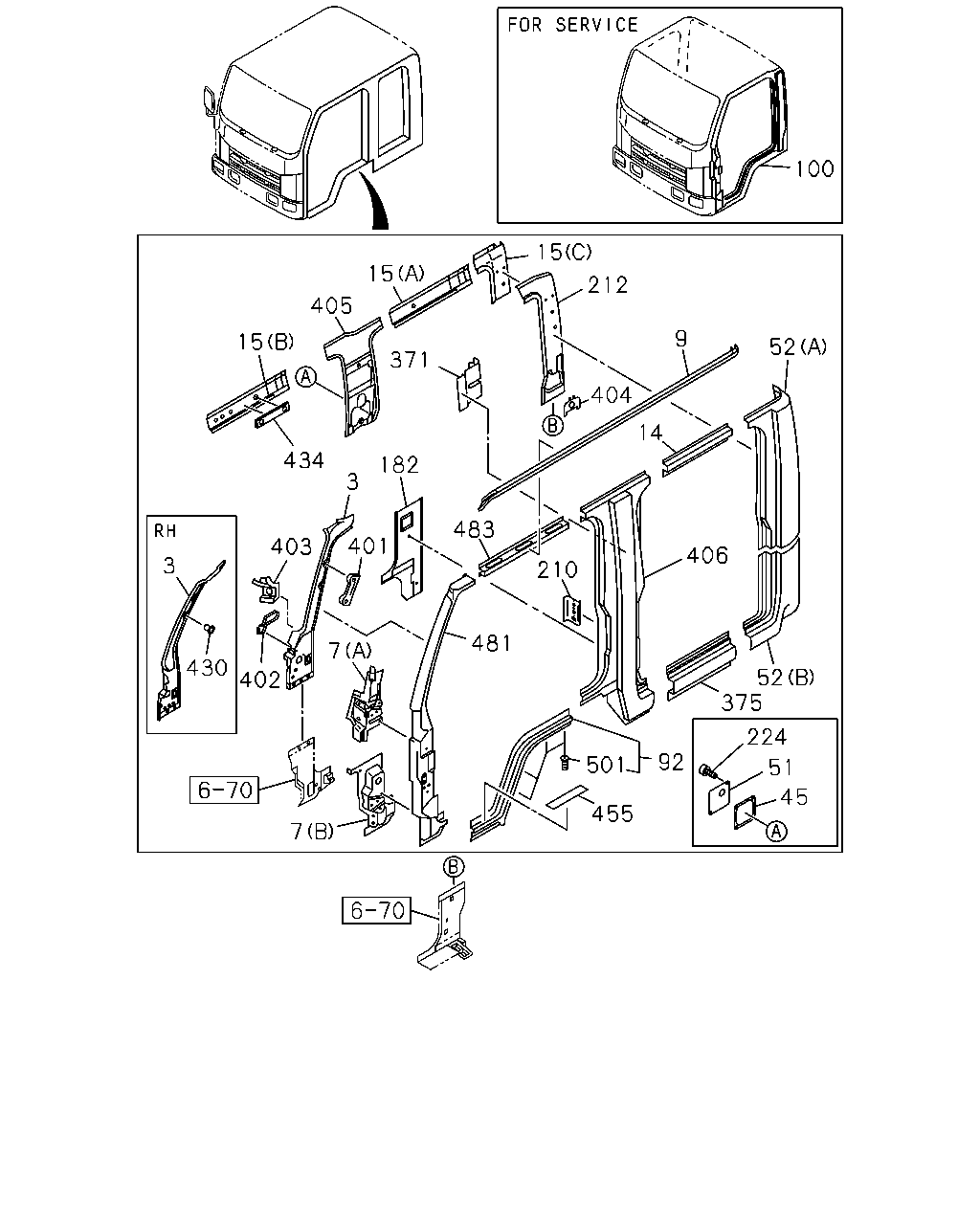

çizim 467462
100 15 212 9 52 404 15 15 405 371 434 3 403 3 430 402 7 501 455 92 224 51 45 375 52 481 7 401 483 210 406 14 182
BalonParca AdiParca NoAdetTipApplied Date
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-021-7 01 1 1412-
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98258-928-1 01 1 1412-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-072-4 01 1 1412-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 1412-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 1412-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-2 01 1 1412-
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-155-8 01 1 1412-
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-156-8 01 1 1412-
14 16.592 PANEL; REINF,SIDE DRIP 8-97851-157-1 01 1 1412-
14 16.592 PANEL; REINF,SIDE DRIP 8-97851-158-1 01 1 1412-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-153-1 02 1 1412-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-184-4 01 1 1412-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-185-4 01 1 1412-
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-408-5 01 1 1412-
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-409-4 01 1 1412-
45 16.570 SEAL; B-C POST 8-97853-731-2 02 1 1412-
51 16.570 COVER; HOLE,B-C POST 8-97411-016-0 02 1 1412-
52 16.588 PANEL; D-POST UPR
(B) 		8-97851-173-8 01 1 1412-
52 16.588 PANEL; D-POST UPR
(B) 		8-97851-174-8 01 1 1412-
52 16.588 PANEL; D-POST UPR
(A) 		8-98171-629-0 01 1 1412-
52 16.588 PANEL; D-POST UPR
(A) 		8-98171-630-0 01 1 1412-
92 16.570 PANEL; SIDE SILL,CAB 8-98191-282-0 01 1 1412-
92 16.570 PANEL; SIDE SILL,CAB 8-98191-283-0 01 1 1412-
100 16.570 PANEL ASM; BODY SIDE 8-98141-844-3 01 1 1412-
100 16.570 PANEL ASM; BODY SIDE 8-98255-970-0 01 1 1412-
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-98119-406-1 01 1 1412-
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-98119-407-1 01 1 1412-
210 16.588 PANEL; DOOR STRIKER REINF 8-97851-445-1 02 1 1412-
210 16.588 PANEL; DOOR STRIKER REINF 8-97851-446-1 02 1 1412-
212 16.588 CLOSING; PILLAR 8-97890-454-3 01 1 1412-
212 16.588 CLOSING; PILLAR 8-97890-459-3 01 1 1412-
224 16.570 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1412-
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 1412-
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 1412-
375 16.507 PANEL; SIDE SILL RR,CAB 8-97851-159-7 02 1 1412-
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 02 1 1412-
402 16.085 BRACKET; SUPPORT 8-97585-381-0 01 1 1412-
402 16.085 BRACKET; SUPPORT 8-97585-382-2 01 1 1412-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 1412-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 1412-
404 16.570 BRACKET 8-97890-317-1 02 1 1412-
405 16.570 PANEL; CLOSING,CTR PILLAR 8-97585-383-0 01 1 1412-
405 16.570 PANEL; CLOSING,CTR PILLAR 8-97585-384-0 01 1 1412-
406 16.570 PILLAR; CENTER 8-97851-196-8 01 1 1412-
406 16.570 PILLAR; CENTER 8-97857-636-3 01 1 1412-
430 16.570 NUT; PANEL
09.647 M5 POP NUT 		8-97249-574-0 02 1 1412-
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 1412-
455 08.228 PROTECTOR; STEP 8-98027-816-0 02 1 1412-
481 16.570 PANEL; SIDE FRT PILLAR 8-98191-267-0 01 1 1412-
481 16.570 PANEL; SIDE FRT PILLAR 8-98191-268-0 01 1 1412-
483 16.570 PANEL; SIDE CANTRAIL 8-98191-284-0 01 1 1412-
483 16.570 PANEL; SIDE CANTRAIL 8-98191-285-0 01 1 1412-
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 08 1 1412-
