◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NJR ▶ 51610 - NJR RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#156240) — 15 parça

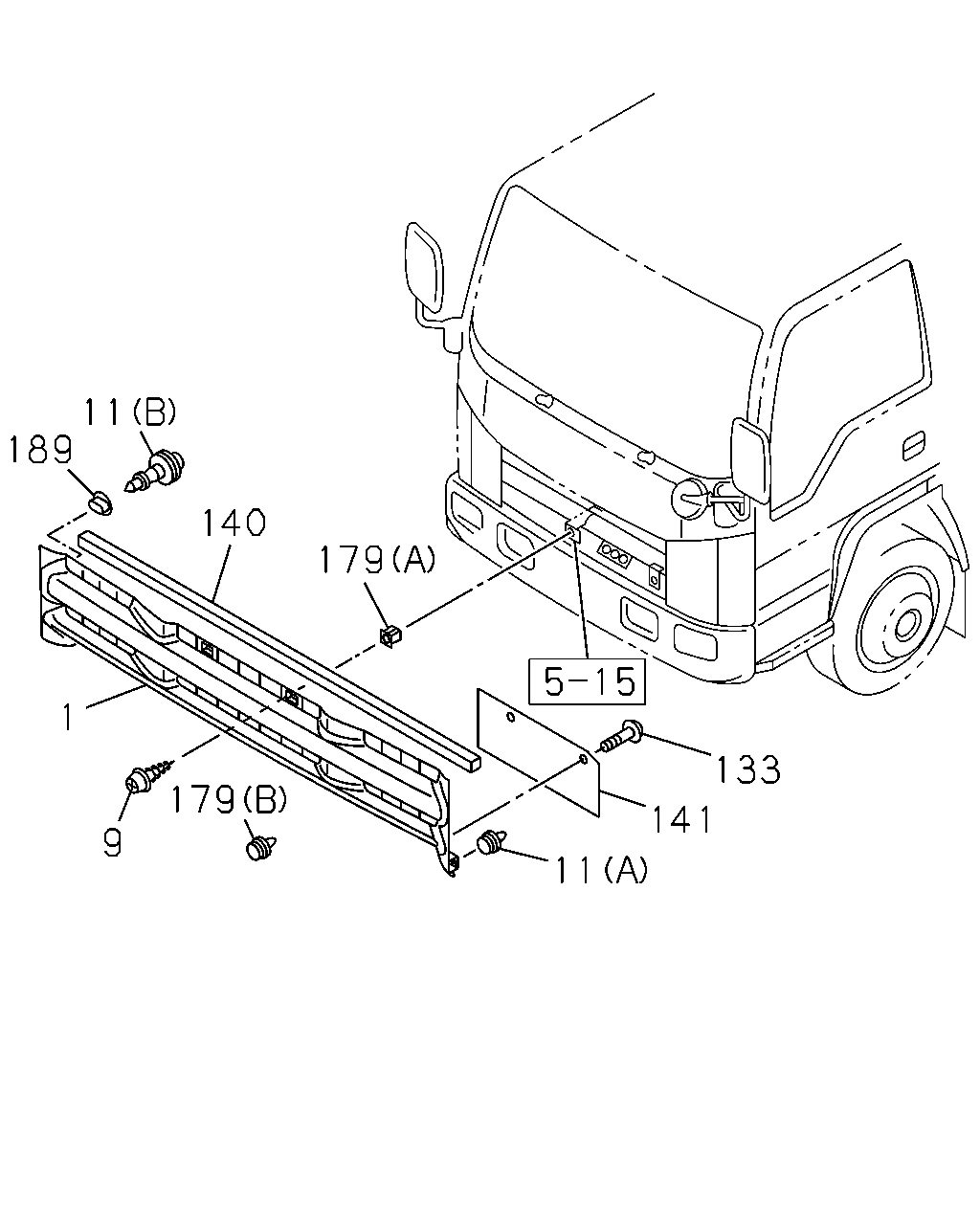

çizim 467422
133 141 11 179 140 11 189 1 9 179
BalonParca AdiParca NoAdetTipApplied Date
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) WHITE 		8-97407-844-0 01 1 1412-
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) BLUE 		8-97407-842-0 01 1 1412-
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 1412-
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1412-
11 01.269 CLIP; RAD GRILLE
(B) 		8-98020-030-1 04 1 1412-
133 01.269 SCREW; COVER
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 02 1 1412-
140 01.266 SEAL; RAD GRILLE 8-98032-321-0 01 1 1412-
141 01.266 COVER; RAD GRILLE 8-98032-324-2 01 1 1412-
179 01.269 RETAINER; GRILLE,RAD
02.726 (A) D=7X7 L=7.5 		8-94291-927-0 01 1 1412-
179 01.269 RETAINER; GRILLE,RAD
(B) 		8-98040-291-0 01 1 1412-
189 01.269 HOLDER; RAD GRILLE 8-98019-458-1 04 1 1412-

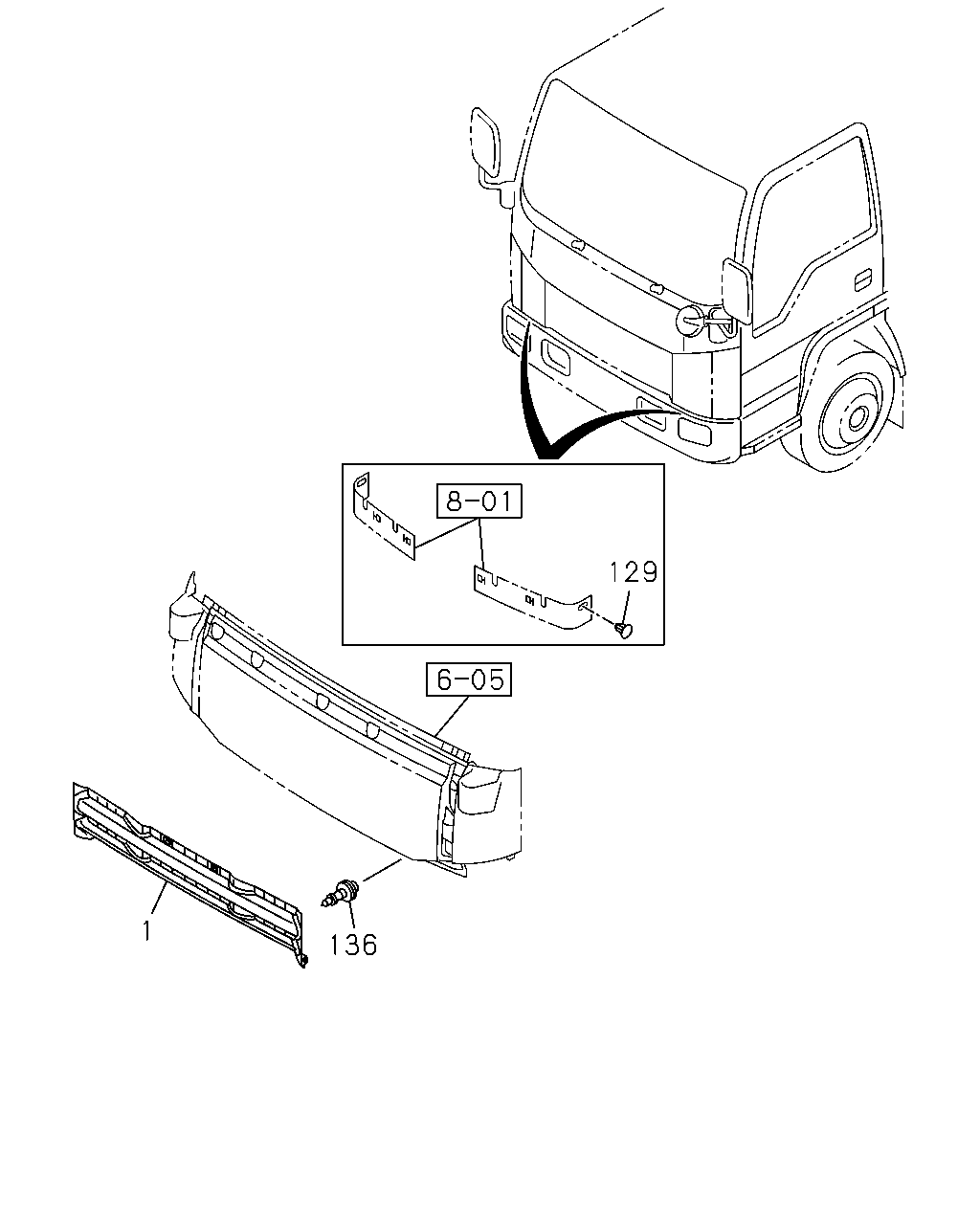

çizim 467551
129 136 1
BalonParca AdiParca NoAdetTipApplied Date
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) WHITE 		8-97407-844-0 01 1 1412-
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) BLUE 		8-97407-842-0 01 1 1412-
129 01.269 CLIP; COVER HEADLAMP GRILLE
D=6.5 		8-97855-279-0 02 1 1412-
136 01.269 PIN; GRILLE 8-98020-030-1 02 1 1412-
