Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
5 - Frame, Cab Mounting
▶

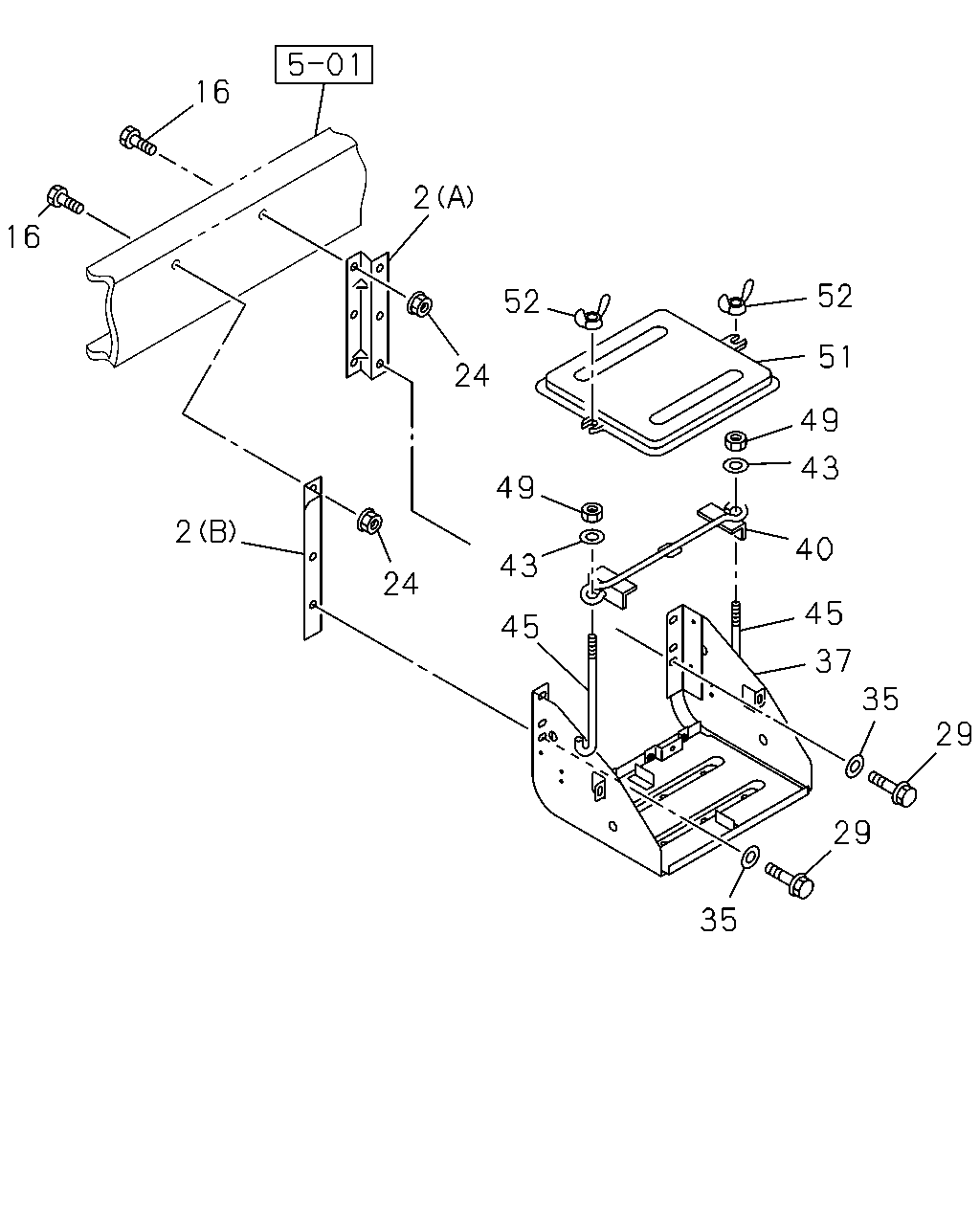

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#156237) — 14 parça
35
29
29
35
37
45
40
43
49
51
52
52
24
49
43
45
24
2
2
16
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
02.333 BRACKET; BATTERY
(A)
8-97384-069-1
01
1
1412-
2
02.333 BRACKET; BATTERY
(B)
8-97384-070-1
01
1
1412-
16
02.334 BOLT; BRKT TO FRAME
02.277 M10X35 FLANGE
0-28651-035-0
04
1
1412-
24
02.334 NUT; BRKT TO FRAME
03.162 M10 FLANGE
0-91180-110-0
03
1
1412-
29
02.334 BOLT; BRKT TO FRAME
03.023 M10X35 FLANGE
0-28661-035-0
04
1
1412-
35
02.334 WASHER; PL,BATTERY CARRIER
04.046 ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
1412-
37
02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1>
8-97384-067-2
01
1
1412-
37
02.333 BRACKET; BATTERY
BATTERY 65D23L<8EJ>
8-97384-068-2
01
1
1412-
40
02.335 CLAMP; BATTERY
5-53615-004-1
01
1
1412-
43
02.334 WASHER; PL,CLAMP
02.277 ID=8.4 OD=22
0-91614-708-0
02
1
1412-
45
02.334 ROD; TENSION,BATTERY
L=120
9-53616-615-0
02
1
1412-
49
02.334 NUT; ROD,BATTERY
01.062 M8 FLANGE
0-91180-108-0
02
1
1412-
51
02.335 COVER; BATTERY
8-97120-747-0
01
1
1412-
52
02.335 NUT; WING,COVER FIX
M8 WING NUT
0-91118-408-0
02
1
1412-
