Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#156235) — 21 parça
◀

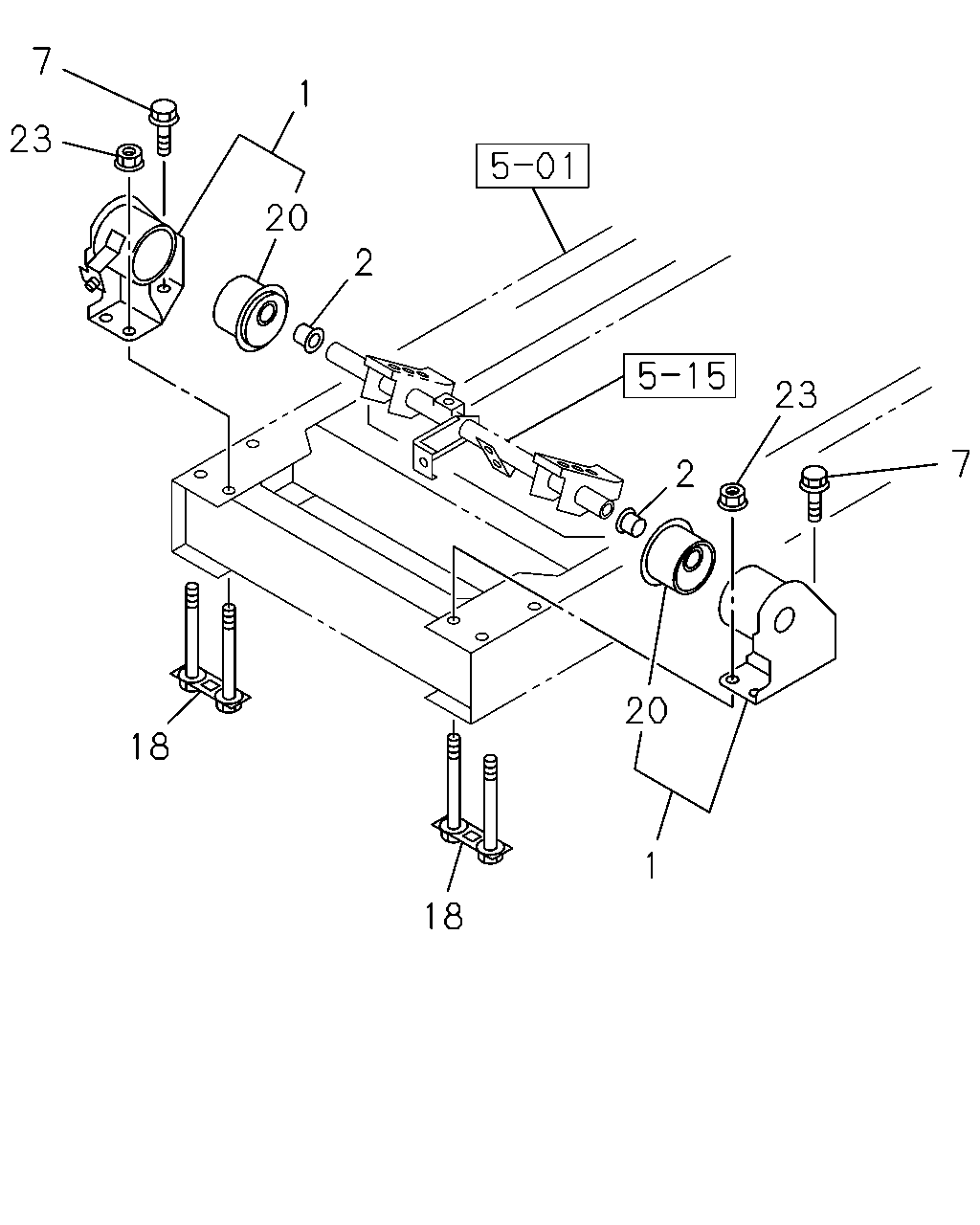

[510A] FRONT (7 parça)
[510A] REAR (14 parça)
▶
7
1
20
23
2
23
7
2
20
1
18
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.003 BRACKET; CAB MTG
16.545
8-97383-783-4
01
1
1412-
1
09.003 BRACKET; CAB MTG
16.545
8-98291-291-0
01
1
1412-
2
09.009 BUSHING; TORSION BAR
8-97061-514-0
02
1
1412-
7
09.003 BOLT; BRKT,CAB TILT
M14X40 FLANGE
0-28661-440-0
02
1
1412-
18
09.003 PLATE; MTG BRKT FIX
8-98029-285-1
02
1
1412-
20
09.003 RUBBER; MTG,CAB BRKT
8-98007-037-1
02
1
1412-
23
09.003 NUT; MTG BRKT
M14
8-98039-989-0
04
1
1412-
150
157
156
151
300
149
149
199
192
191
149
156
156
151
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
149
09.023 RUBBER; MTG,CAB,UPR RR
(C) H=26.5
5-53459-041-0
02
1
1412-
149
09.023 RUBBER; MTG,CAB,UPR RR
(A) H=30.6
8-94128-501-0
02
1
1412-
149
09.023 RUBBER; MTG,CAB,UPR RR
(B) H=94
8-98038-868-0
02
1
1412-
150
09.011 BOLT; CAB MTG RR
M10X105
8-98004-320-0
02
1
1412-
151
09.011 WASHER; CAB MTG,RR UPR
(B) ID=16.5 OD=58
8-97359-040-1
02
1
1412-
151
09.011 WASHER; CAB MTG,RR UPR
(C) OD=33 ID=10.2 T=3.2
8-98004-321-0
02
1
1412-
151
09.011 WASHER; CAB MTG,RR UPR
(A) ID=14 OD=60
8-98004-322-0
02
1
1412-
156
07.529 NUT; CAB MTG RR
00.833 (A) M10
0-91110-510-0
04
1
1412-
156
07.529 NUT; CAB MTG RR
(B) M14 FLANGE
0-91180-114-0
02
1
1412-
157
09.023 RUBBER; MTG,CAB,TOP RR
9-53459-603-0
02
1
1412-
191
09.003 BOLT; BRKT FIX
M12X35 FLANGE
0-28651-235-0
08
1
1412-
192
09.003 NUT; BRKT FIX
02.042 M12 FLANGE
0-91180-112-0
04
1
1412-
199
09.003 BRACKET; CAB RR MTG
8-98260-902-0
02
1
1412-
300
09.003 BOLT; MTG RUBBER
02.343 M10X20 FLANGE
0-28651-020-0
08
1
1412-
