Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#156234) — 31 parça
◀
[501A] CROSS MEMBER AND BRACKET(NO.1) (5 parça)
[501A] CROSS MEMBER AND BRACKET(NO.3) (5 parça)
[501A] RIVET,BOLT AND NUT (8 parça)

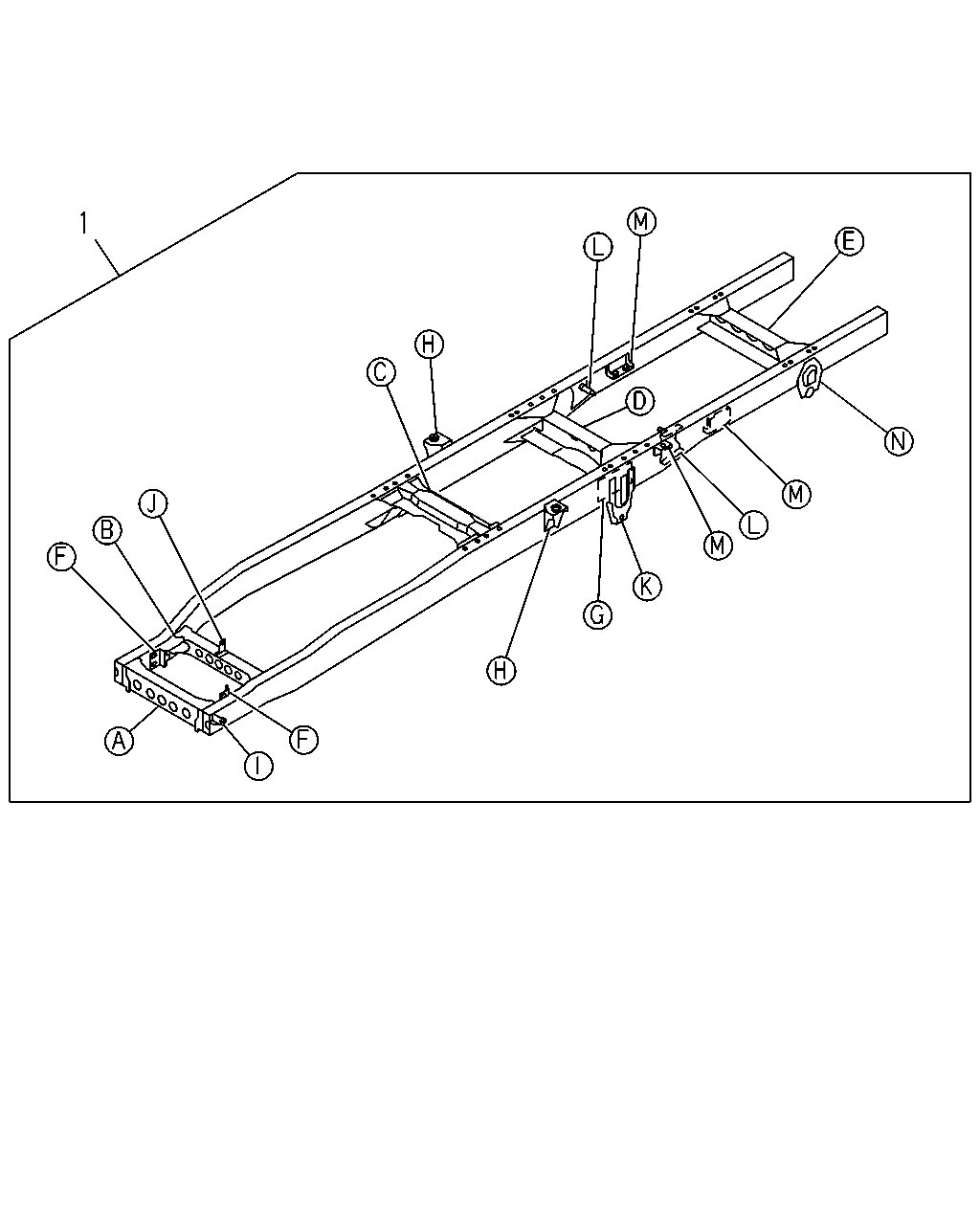

[501A] FRAME ASM (1 parça)
[501A] CROSS MEMBER AND BRACKET(NO.2) (12 parça)
▶
2
20
34
75
75
345
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
07.010 MEMBER; CROSS,1ST
8-97384-741-5
01
1
1412-
20
07.012 MEMBER; CROSS,2ND
8-98038-419-2
01
1
1412-
34
07.012 MEMBER; CROSS,3RD
8-97384-743-1
01
1
1412-
75
07.039 GUSSET; 5TH C/MBR
8-98011-863-0
04
1
1412-
345
07.012 MEMBER; CROSS,5TH
8-97384-744-2
01
1
1412-
140
140
217
105
215
215
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
105
07.112 BRACKET; RR SPR,RR
8-97166-684-2
02
1
1412-
140
07.112 BRACKET; S/ABS,RR
(B)
8-98006-176-0
01
1
1412-
140
07.112 BRACKET; S/ABS,RR
(A)
8-98006-178-0
01
1
1412-
215
07.524 BUSHING; BRKT,RR SPRING
8-97184-699-1
04
1
1412-
217
07.535 BRACKET; HELPER RUBBER,RR SPRING
8-97202-417-0
02
1
1412-
376
376
376
376
376
376
296
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
67
07.011 NUT; C/MBR
04.085 M10 FLANGE
0-91180-210-0
04
1
1412-
296
07.039 BOLT; 3RD C/MBR
M10X30
0-20851-030-0
04
1
1412-
376
07.039 RIVET; FRAME
07.011 (A) D8X22 TAPER END
9-06750-822-0
AR
1
1412-
376
07.039 RIVET; FRAME
(B) D10X24 TAPER END
9-06751-024-0
AR
1
1412-
376
07.039 RIVET; FRAME
(C) D10X26 TAPER END
9-06751-026-0
AR
1
1412-
376
07.039 RIVET; FRAME
(D) D10X30 TAPER END
9-06751-030-0
AR
1
1412-
376
07.039 RIVET; FRAME
07.105 (E) D12X30 TAPER END
9-06751-230-0
AR
1
1412-
376
07.039 RIVET; FRAME
07.535 (F) D12X34 TAPER END
9-06751-234-0
AR
1
1412-
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.003 FRAME ASM
8-98300-664-0
01
1
1412-
198
198
139
533
533
173
43
358
165
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
43
09.003 BRACKET; CAB MTG,RR
8-98012-023-2
01
1
1412-
43
09.003 BRACKET; CAB MTG,RR
8-98012-024-2
01
1
1412-
101
07.112 BRACKET; RR SPR,FRT
8-98028-305-0
01
1
1412-
101
07.112 BRACKET; RR SPR,FRT
8-98028-306-0
01
1
1412-
139
07.012 MEMBER; CROSS,6TH
8-97384-745-0
01
1
1412-
165
01.270 BRACKET; RAD STAY
8-98000-886-0
01
1
1412-
173
07.112 STIFFENER; RR SPRING
8-97386-634-0
02
1
1412-
198
07.039 GUSSET; 6TH C/MBR
RH-LOWER,LH-UPPER
8-94258-068-1
02
1
1412-
198
07.039 GUSSET; 6TH C/MBR
RH-UPPER,LH-LOWER
8-94258-069-1
02
1
1412-
358
07.039 BRACKET; CAB EARTH
8-97232-590-0
01
1
1412-
533
07.010 STIFFENER; REINFORCEMENT
8-98006-680-1
01
1
1412-
533
07.010 STIFFENER; REINFORCEMENT
8-98254-755-0
01
1
1412-
