Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#156233) — 14 parça
◀

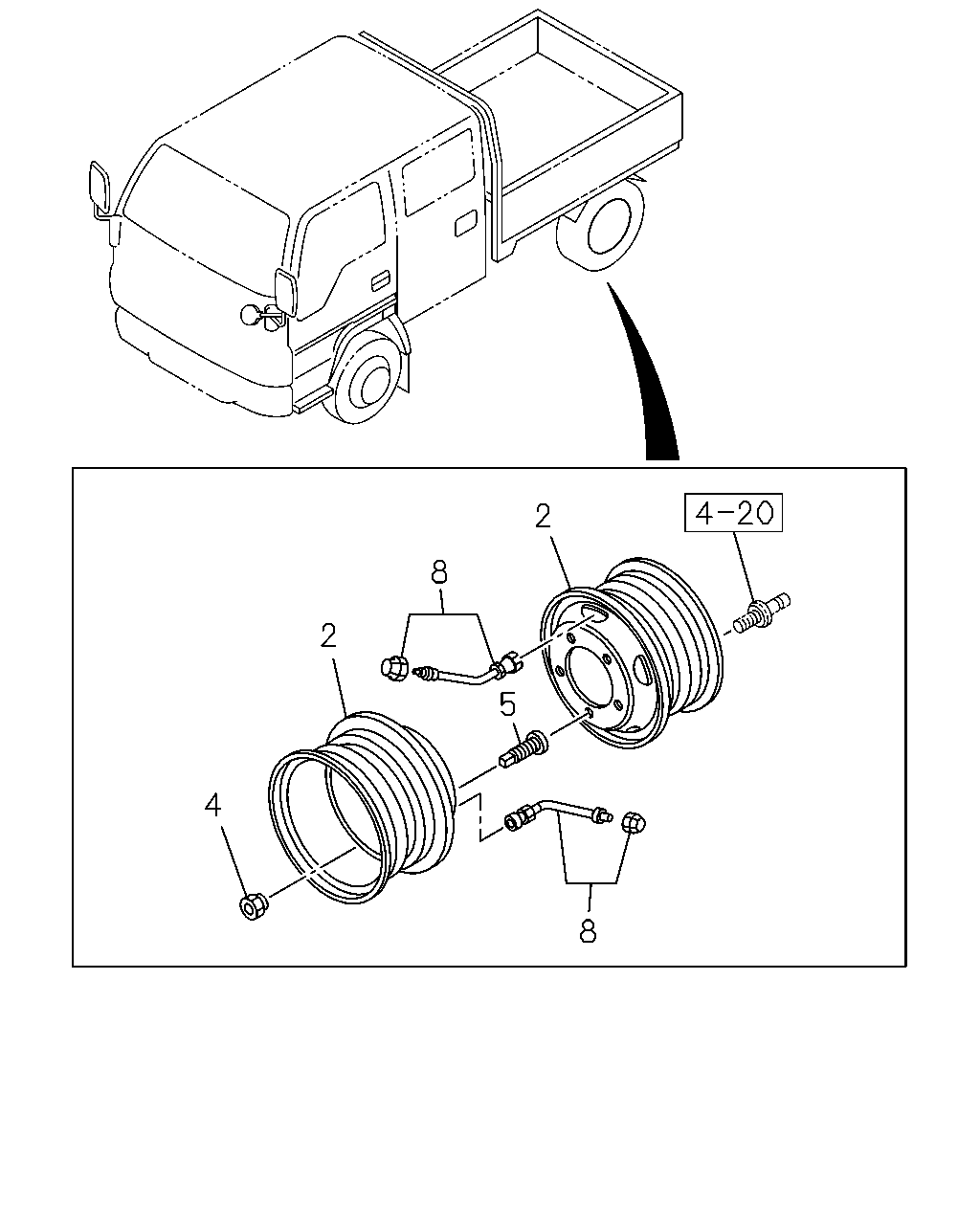

[480A] REAR (8 parça)

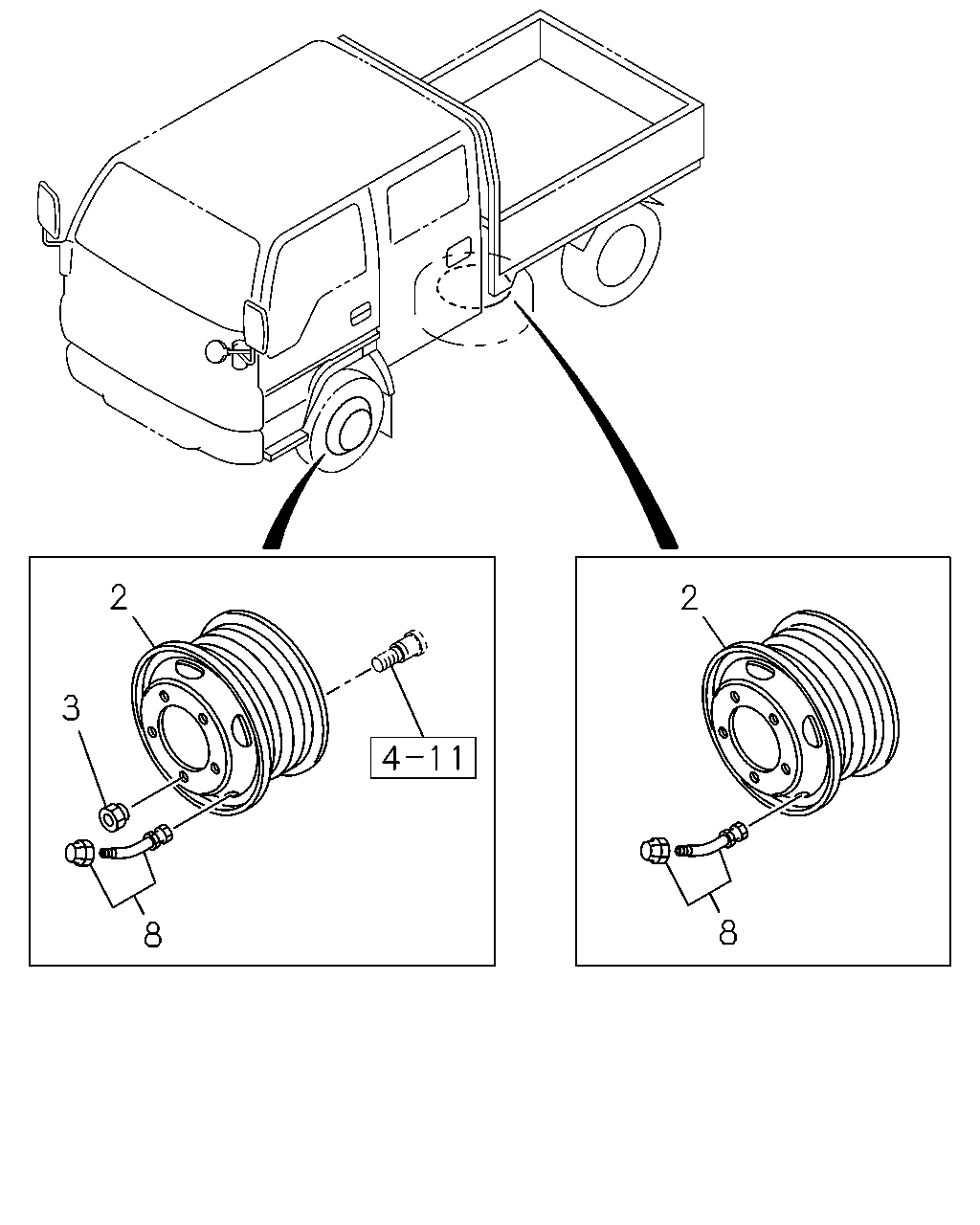

[480A] FRONT AND SPARE (6 parça)
▶
8
4
2
5
8
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
SPARE 15X5J OFFSET=116.5 PLATINUM SILVER
8-98002-072-0
01
1
1412-
2
05.803 WHEEL; DISC
FRONT,REAR 15X5J OFFSET=116.5 PLATINUM SILVER
8-98002-072-0
06
1
1412-
4
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
8-98007-824-0
05
1
1412-
4
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
8-98007-825-0
05
1
1412-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
8-98007-810-0
05
1
1412-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
8-98007-811-0
05
1
1412-
8
05.875 VALVE; TIRE
SPARE
8-98221-106-0
01
1
1412-
8
05.875 VALVE; TIRE
FRONT,REAR
8-98221-106-0
06
1
1412-
8
2
2
3
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
SPARE 15X5J OFFSET=116.5 PLATINUM SILVER
8-98002-072-0
01
1
1412-
2
05.803 WHEEL; DISC
FRONT,REAR 15X5J OFFSET=116.5 PLATINUM SILVER
8-98002-072-0
06
1
1412-
3
05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD
8-98007-907-0
05
1
1412-
3
05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD
8-98007-908-0
05
1
1412-
8
05.875 VALVE; TIRE
SPARE
8-98221-106-0
01
1
1412-
8
05.875 VALVE; TIRE
FRONT,REAR
8-98221-106-0
06
1
1412-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
