4-65 — REAR LEAF SPRING (#156232) — 13 parça

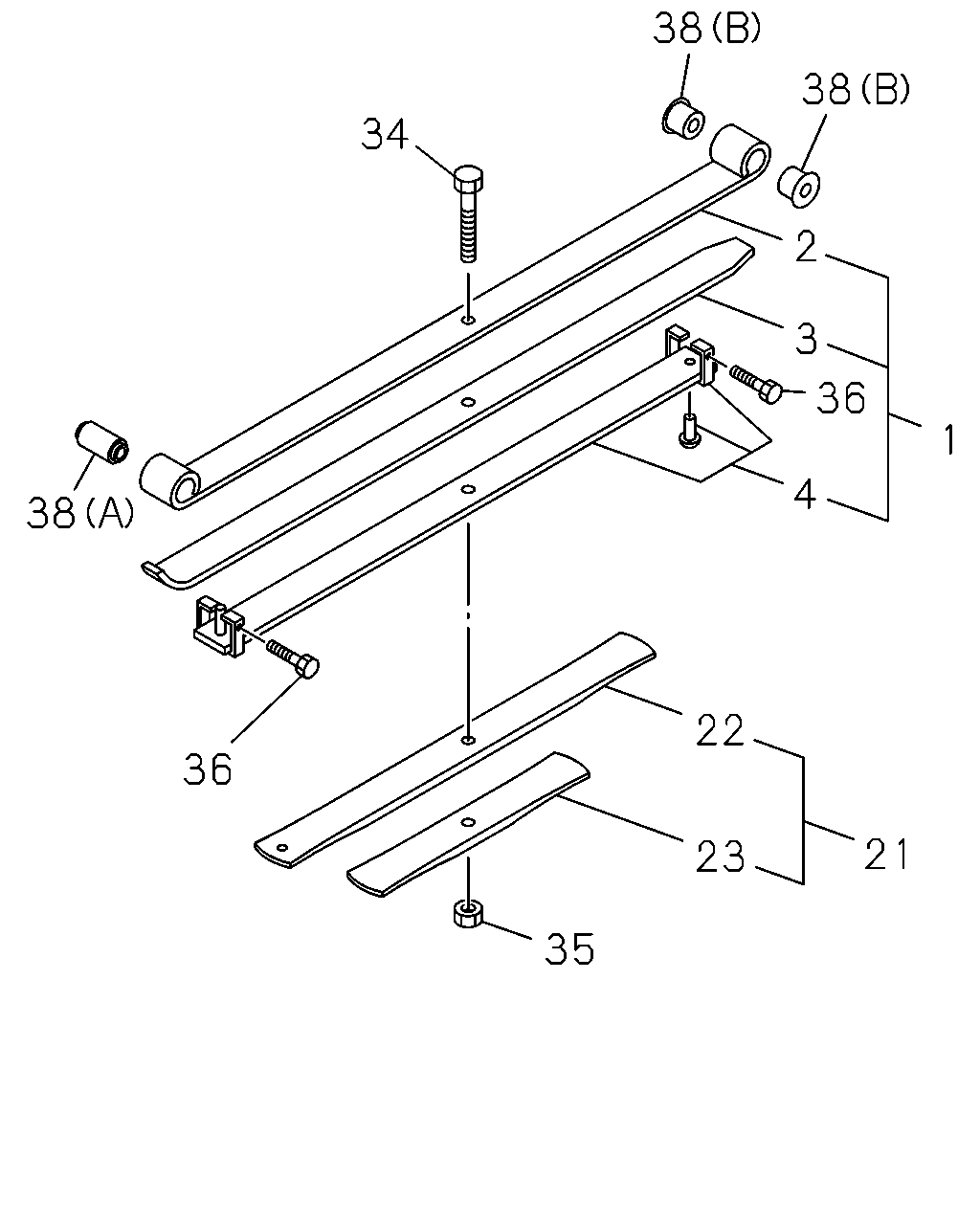

çizim 467227
21 23 22 35 36 38 4 1 36 3 2 38 38 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98001-565-0, 98001565 		8-98040-861-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98001-565-0, 98001565 		8-98040-862-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98001-565-0, 98001565 		8-98040-863-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98001-565-0, 98001565 		8-98040-864-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98001-565-0, 98001565 		8-98040-865-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98001-565-0, 98001565 		8-98040-866-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98001-565-0, 98001565 		8-98040-867-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=85 ASM PART: A = 8-98001-565-0, 98001565 		8-98037-590-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98001-565-0, 98001565 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X91 ASM PART: A = 8-98001-565-0, 98001565 		8-98040-331-0 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98001-565-0, 98001565 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98001-565-0, 98001565 		8-97074-826-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=40 L=41 ASM PART: A = 8-98001-565-0, 98001565 		8-97374-410-0 02 1 -
