◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NJR ▶ 51610 - NJR RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#156228) — 8 parça

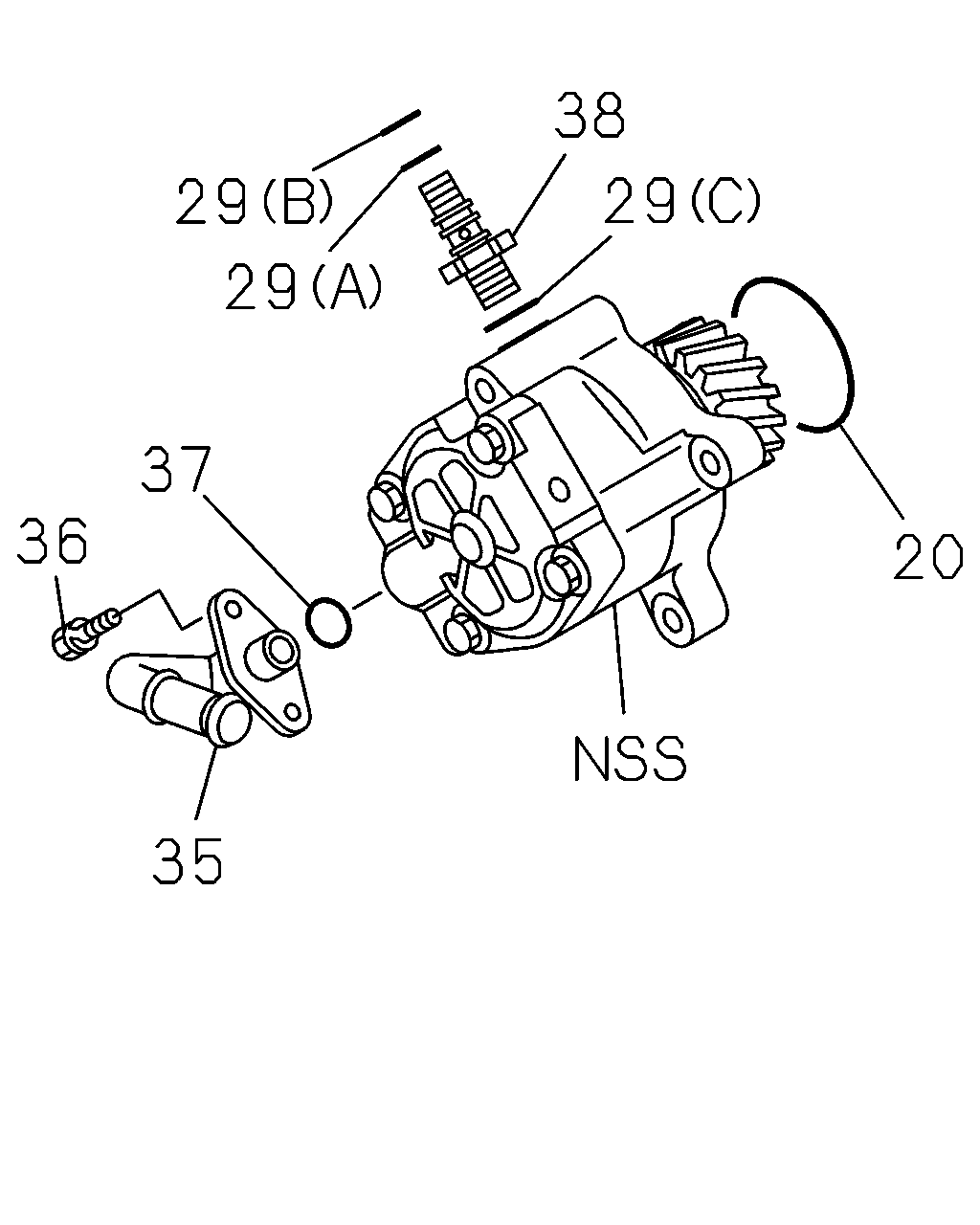

çizim 467375
29 38 20 35 37 29 36 29
BalonParca AdiParca NoAdetTipApplied Date
20 06.635 GASKET; FRT,OIL PUMP
ASM PART: A = 8-98247-263-1, 98247263 		8-98165-868-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98247-263-1, 98247263 		8-98061-421-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98247-263-1, 98247263 		8-98061-422-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(C) ASM PART: A = 8-98247-263-1, 98247263 		8-98271-429-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 8-98247-263-1, 98247263 		8-98271-427-0 01 1 -
36 06.602 BOLT; CONN,PIPE
ASM PART: A = 8-98247-263-1, 98247263 		8-98166-386-0 02 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-98247-263-1, 98247263 		8-98166-384-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
ASM PART: A = 8-98247-263-1, 98247263 		8-98271-426-0 01 1 -
