Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#156212) — 21 parça
◀

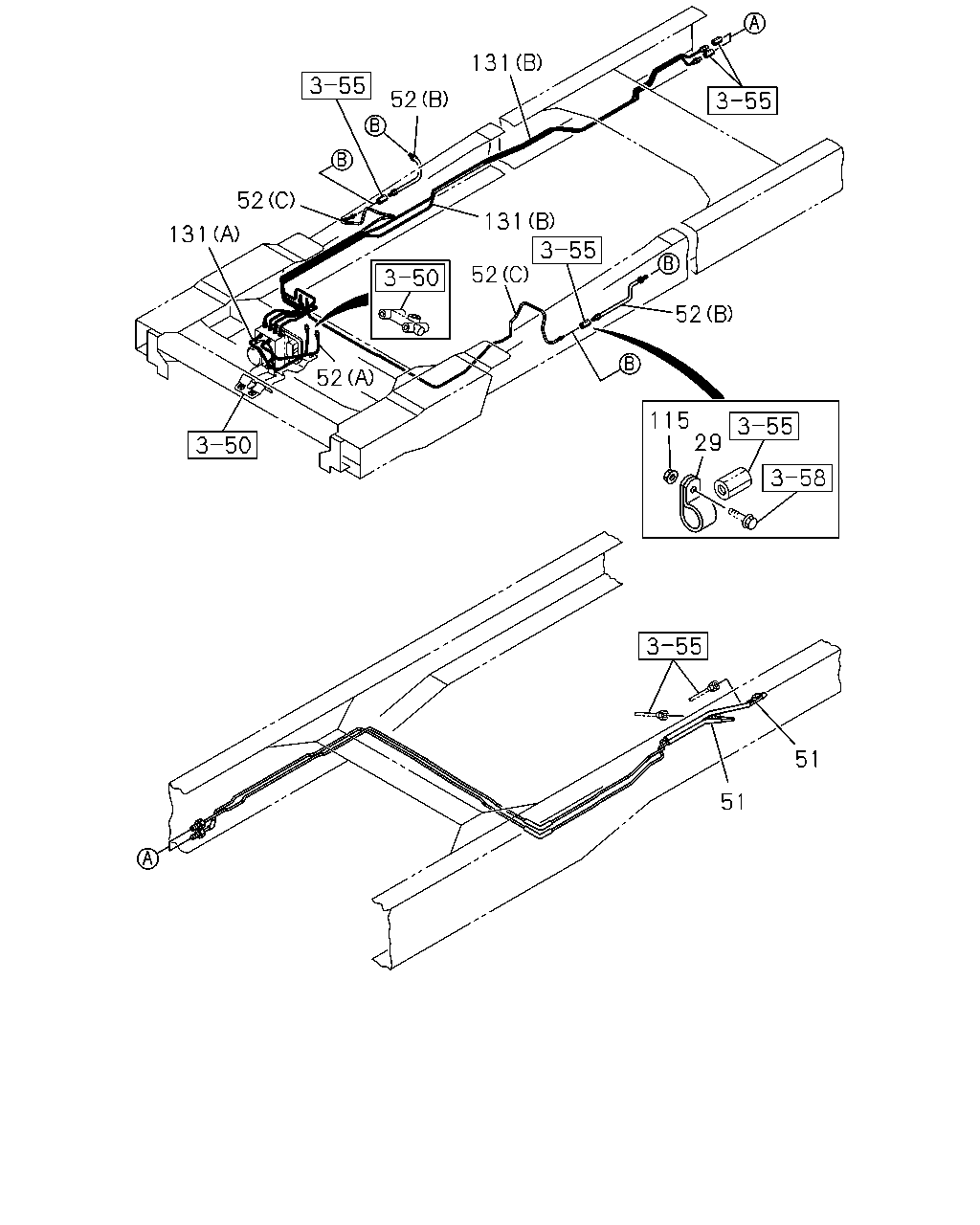

[352A] PIPING (12 parça)
[352A] FLEX HOSE (9 parça)
▶
131
52
52
131
52
52
131
52
115
29
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
04.686 CLIP; UNION
ID=16 L=20
0-95235-532-0
02
1
1412-
51
04.685 PIPE; BRK
BRAKE SYSTEM,RR RH 2WAY TO REAR
8-98012-844-1
01
1
1412-
51
04.685 PIPE; BRK
BRAKE SYSTEM,RR LH 2WAY TO REAR
8-98012-845-1
01
1
1412-
52
04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE
8-98026-082-1
01
1
1412-
52
04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE
8-98026-083-0
01
1
1412-
52
04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT
8-98240-087-1
01
1
1412-
52
04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT
8-98240-088-0
01
1
1412-
52
04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT
8-98285-301-0
01
1
1412-
115
04.680 NUT; CLIP
01.062 M6 FLANGE
0-91180-106-0
02
1
1412-
131
04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR
8-98240-101-0
01
1
1412-
131
04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR
8-98240-102-0
01
1
1412-
131
04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR
8-98240-103-0
01
1
1412-
5
1
8
5
8
6
9
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.680 HOSE; FLEX,FRT BRK
8-97358-770-3
01
1
1412-
1
04.680 HOSE; FLEX,FRT BRK
8-97358-771-3
01
1
1412-
2
04.681 BRACKET; FLEX HOSE,FRT BRK
04.686
8-97369-635-1
01
1
1412-
2
04.681 BRACKET; FLEX HOSE,FRT BRK
04.686
8-97369-636-1
01
1
1412-
5
04.681 BOLT; EYE,FLEX HOSE,FRT BRK
02.343 (B) M8X12 FLANGE
0-28050-812-0
02
1
1412-
5
04.681 BOLT; EYE,FLEX HOSE,FRT BRK
(A) M10X22
8-98014-005-0
02
1
1412-
6
04.686 NUT; FLEX HOSE,FRT BRK
01.062 M8 FLANGE
0-91180-108-0
02
1
1412-
8
04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0
9-09571-410-0
04
1
1412-
9
04.686 CLIP; FLEX HOSE,FRT BRK
8-97360-054-0
02
1
1412-
