Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#156211) — 25 parça
◀
[350A] BRACKET;SPEED SENSOR (4 parça)

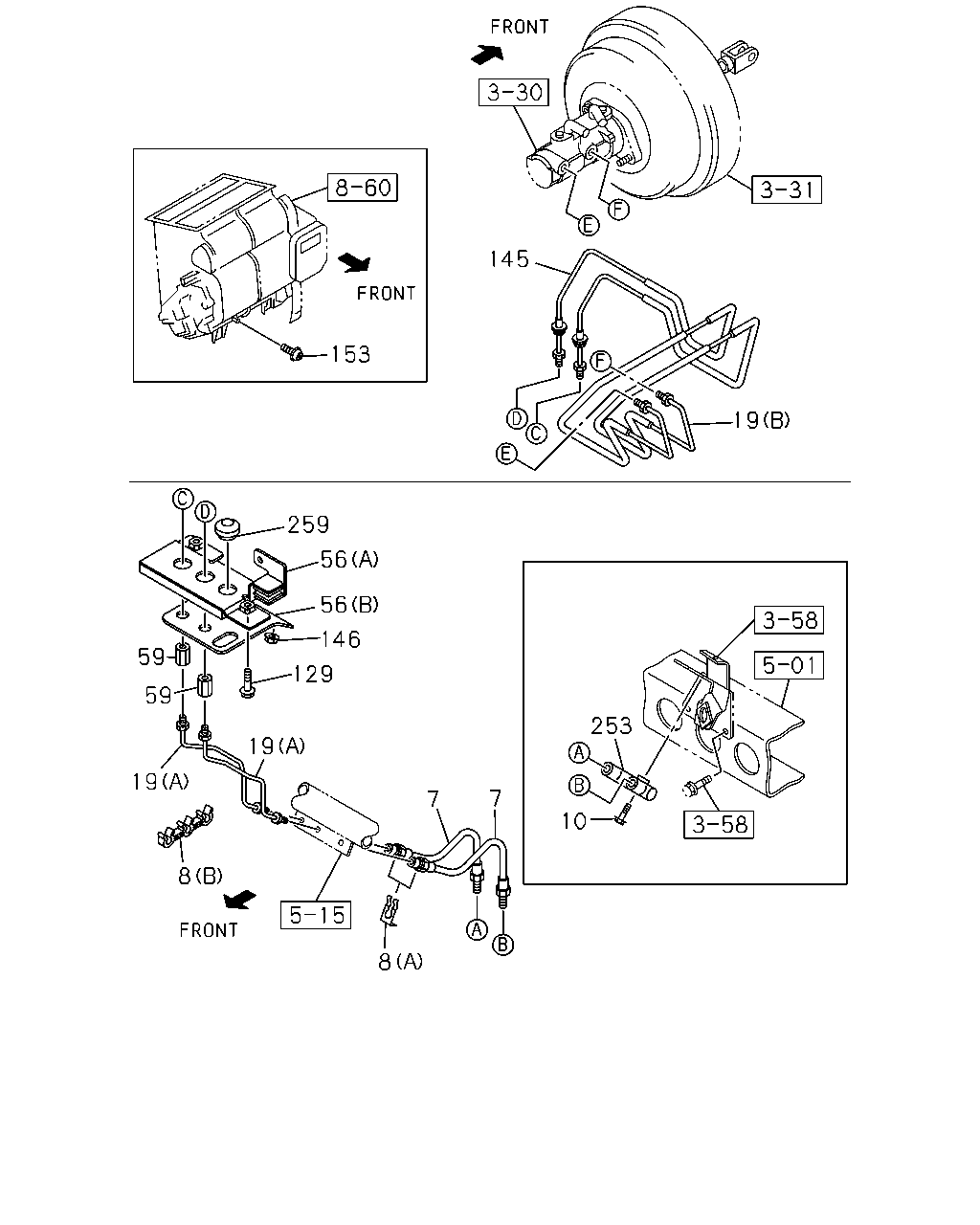

[350A] CAB SIDE (15 parça)
[350A] HYDRAULIC UNIT (6 parça)
▶
131
130
130
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
130
04.686 BRACKET; SPEED SENSOR
(A)
8-97080-060-2
02
1
1412-
130
04.686 BRACKET; SPEED SENSOR
(B)
8-98260-013-2
01
1
1412-1504
130
04.686 BRACKET; SPEED SENSOR
(B)
8-98306-464-0
01
1
1505-
131
04.710 BOLT; BRKT
02.343 M8X12 FLANGE
0-28050-812-0
02
1
1412-
145
19
153
259
59
59
19
19
129
56
56
146
7
7
253
10
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
8-98029-865-0
02
1
1412-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
1412-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
(B)
8-98056-614-0
01
1
1412-
10
04.686 BOLT; JOINT
00.685 M6X40 FLANGE
0-28650-640-0
01
1
1412-
19
04.685 PIPE; BRK,M/CYL TO UNION
(A) L=202
8-97389-365-0
02
1
1412-
19
04.685 PIPE; BRK,M/CYL TO UNION
(B) L=1144
8-98115-278-2
01
1
1412-
56
04.686 BRACKET; UNION,BRK
(A)
8-98002-151-0
01
1
1412-
56
04.686 BRACKET; UNION,BRK
(B)
8-98018-253-0
01
1
1412-
59
04.686 UNION; BRK PIPE
M10 STRAIGHT
0-92107-005-0
02
1
1412-
129
04.710 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1412-
145
04.685 PIPE; BRK,METERING VLV TO UNION
L=1205
8-98115-268-1
01
1
1412-
146
04.685 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
02
1
1412-
153
04.730 SCREW; BRKT FIX
04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
01
1
1412-
253
04.840 JOINT
8-97038-940-1
01
1
1412-
259
04.840 PLUG; BRKT
03.483
8-94294-358-0
01
1
1412-
89
179
94
197
184
72
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
72
04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE
0-28650-825-0
04
1
1412-
89
04.730 HYDRAULIC UNIT; ANTI LOCK BRK
8-98277-171-0
01
1
1412-
94
04.730 BRACKET; ABS CONT UNIT
8-98247-104-1
01
1
1412-
179
04.685 SPACER; BRKT
8-98130-134-0
03
1
1412-
184
04.681 BOLT; CLIP
M6X27 W/PL WASHER
8-98131-461-0
03
1
1412-
197
04.730 RUBBER; DAMPER
8-98130-133-0
03
1
1412-
