Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

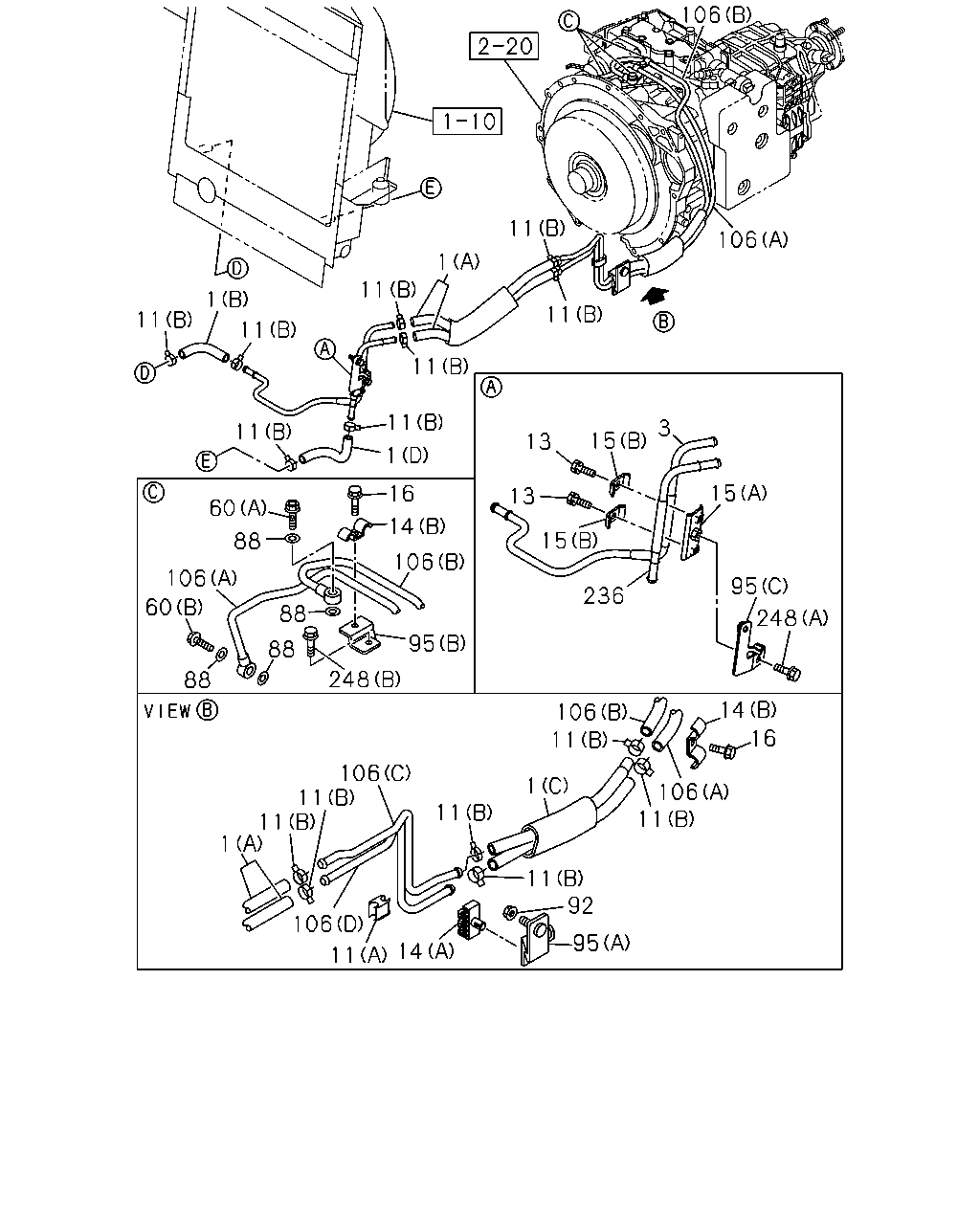

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#156200) — 27 parça
106
106
11
11
1
11
11
11
1
11
11
11
1
60
88
106
60
88
88
88
16
14
106
95
248
106
11
11
1
106
11
14
11
11
1
11
95
92
11
106
106
16
14
248
95
236
15
13
13
15
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.128 HOSE; ATF
(C)
8-98084-161-0
01
1
1412-
1
04.128 HOSE; ATF
(B)
8-98086-380-0
01
1
1412-
1
04.128 HOSE; ATF
(A)
8-98172-352-0
01
1
1412-
1
04.128 HOSE; ATF
(D)
8-98242-408-0
01
1
1412-
3
04.128 PIPE; OIL,A/T TO OIL COOLER
8-98242-369-0
01
1
1412-
11
04.128 CLIP; PIPE
06.672 (A) ID=10X2 H=22
8-94252-455-2
01
1
1412-
11
04.128 CLIP; PIPE
01.097 (B) ID=16
8-97329-628-0
12
1
1412-
13
04.128 BOLT; BRKT
M6X25 W/LK WASHER
0-50540-625-0
02
1
1412-
14
04.128 CLIP; PIPE TO ENG SIDE
00.854 (B) ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
02
1
1412-
14
04.128 CLIP; PIPE TO ENG SIDE
(A) ID=10 OR 12X2 & 4.76
8-98058-323-0
01
1
1412-
15
04.128 BRACKET; ATF PIPE
(A)
8-98035-763-0
01
1
1412-
15
04.128 BRACKET; ATF PIPE
(B)
8-98035-764-0
02
1
1412-
16
04.128 BOLT; CLIP,ENG SIDE
01.531 M8X20 FLANGE
0-28650-820-0
02
1
1412-
60
04.128 BOLT; EYE,ATF PIPE
(B) M14X30 EYE-BOLT
8-98037-827-0
01
1
1412-
60
04.128 BOLT; EYE,ATF PIPE
(A) M14X35.5 EYE-BOLT
8-98060-382-0
01
1
1412-
88
04.128 GASKET; EYE BOLT
08.955 ID=14.2 OD=20.0
9-09571-414-0
04
1
1412-
92
04.128 NUT; CLIP
03.162 M10 FLANGE
0-91180-110-0
01
1
1412-
95
04.128 BRACKET; CLIP
(B)
8-97349-876-0
01
1
1412-
95
04.128 BRACKET; CLIP
(A)
8-97389-858-2
01
1
1412-
95
04.128 BRACKET; CLIP
(C)
8-98035-762-0
01
1
1412-
106
04.128 PIPE ASM; OIL,COOLER TO UNION
(B)
8-98035-638-0
01
1
1412-
106
04.128 PIPE ASM; OIL,COOLER TO UNION
(C)
8-98084-140-0
01
1
1412-
106
04.128 PIPE ASM; OIL,COOLER TO UNION
(D)
8-98084-141-0
01
1
1412-
106
04.128 PIPE ASM; OIL,COOLER TO UNION
(A)
8-98094-577-0
01
1
1412-
236
04.128 PIPE; OIL,OIL COOLER TO A/T
8-98242-370-0
01
1
1412-
248
04.128 BOLT; RETAINER
01.531 (B) M8X20 FLANGE
0-28650-820-0
01
1
1412-
248
04.128 BOLT; RETAINER
06.216 (A) M8X25 FLANGE
0-28650-825-0
02
1
1412-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
