◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NJR ▶ 51610 - NJR RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#156195) — 121 parça

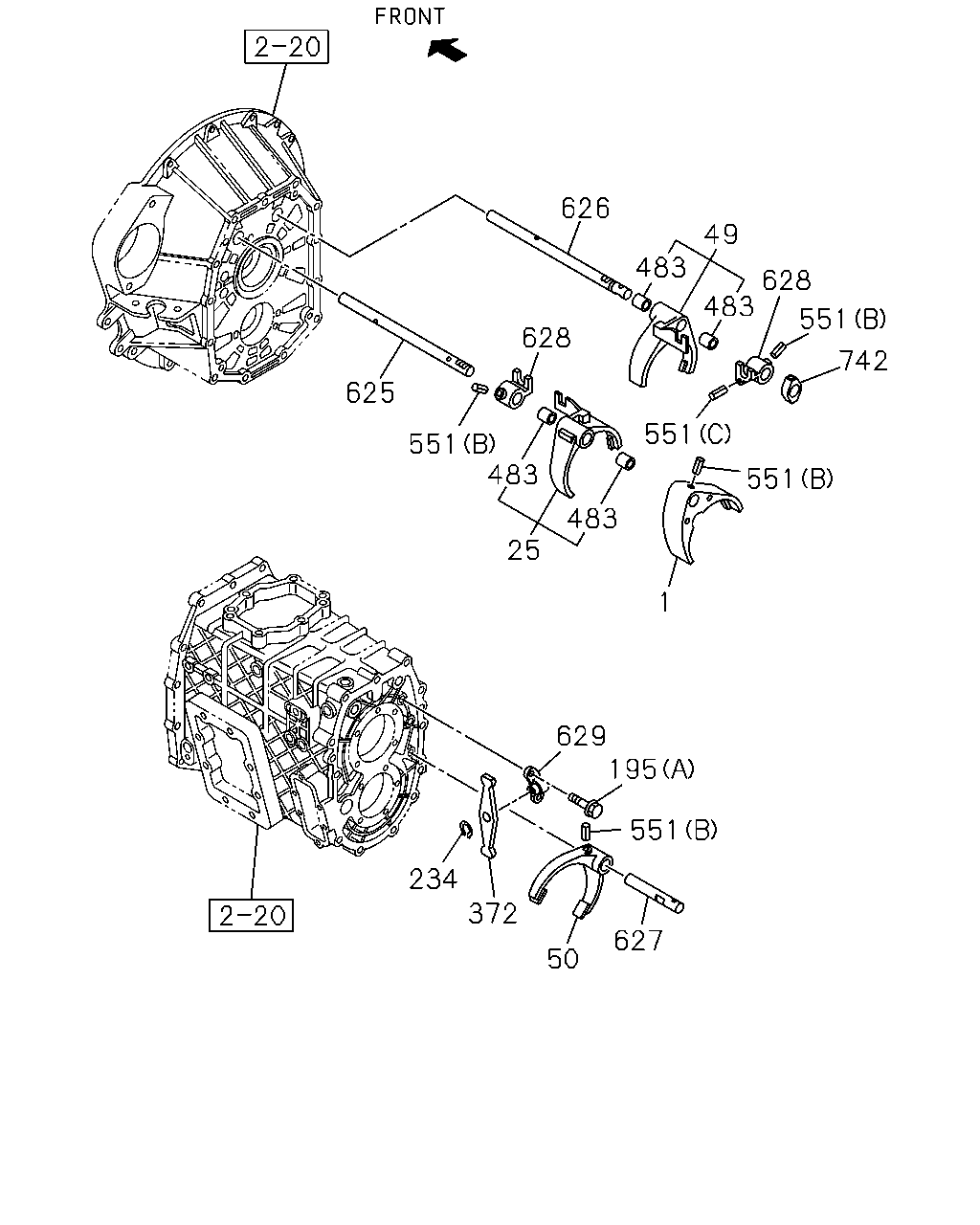

çizim 467130
626 483 49 483 628 628 551 625 483 25 483 551 551 1 629 195 551 627 50 372 234 742 551
BalonParca AdiParca NoAdetTipApplied Date
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1412-
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1412-
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1412-
50 04.302 ARM; SHIFT,6TH 8-97241-325-1 01 1 1412-
195 04.105 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1412-
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1412-
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1412-
372 04.302 LEVER; RELAY,6TH 8-97241-343-0 01 1 1412-
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1412-
551 04.303 PIN; SPRING
04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1412-
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1412-
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1412-
551 04.303 PIN; SPRING
04.302 (F) OD=5 		8-97184-905-0 03 1 1412-
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1412-
551 04.303 PIN; SPRING
(E) 		8-97379-991-0 01 1 1412-
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1412-
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 1412-1509
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-98331-689-0 01 1 1510-
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1412-
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1412-
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1412-
742 04.162 COLLAR; ROD 8-98331-722-0 01 1 1510-

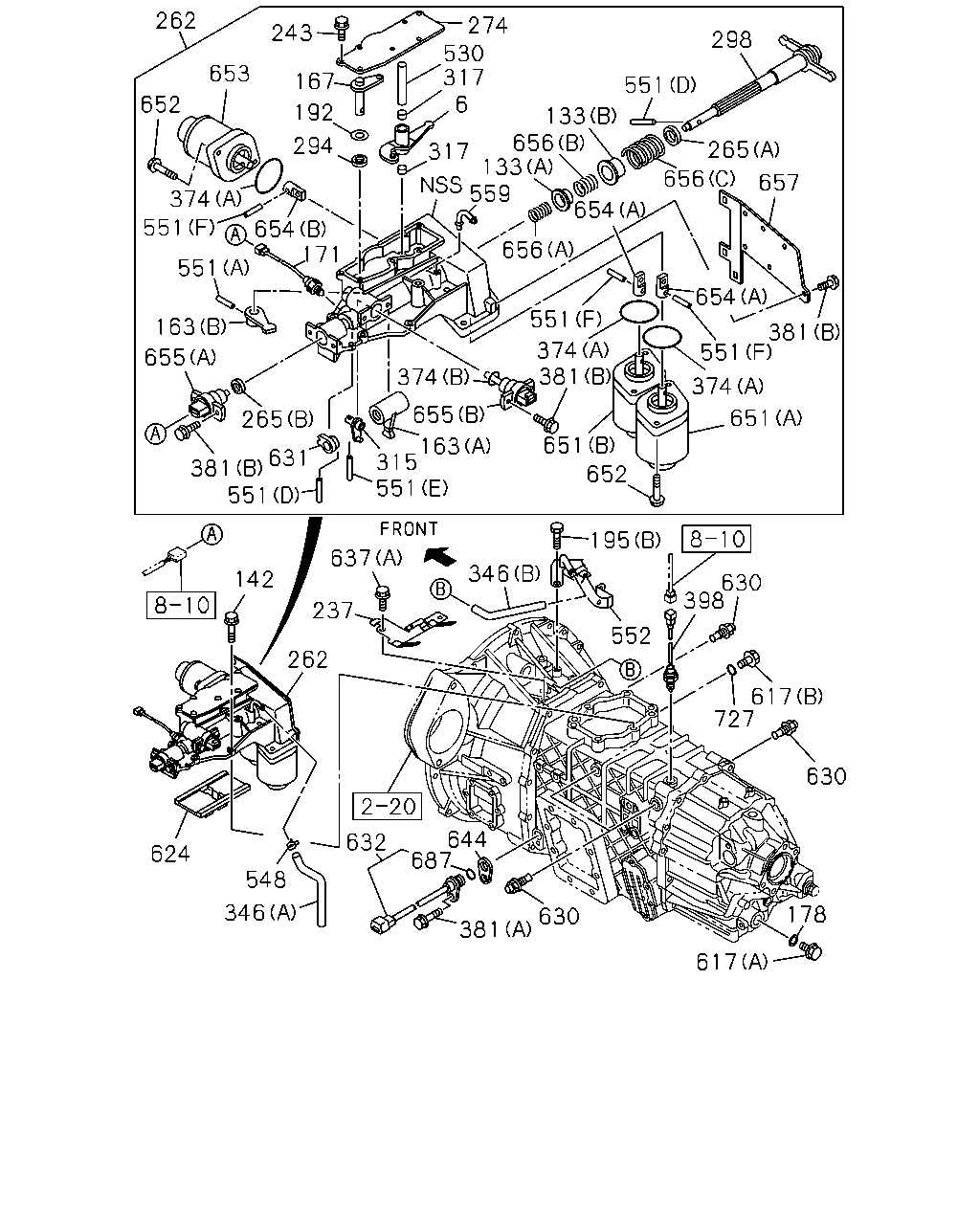

çizim 467440
262 653 652 374 551 551 654 163 655 265 631 381 551 171 294 192 167 243 274 530 317 6 317 133 656 133 551 298 265 656 657 654 551 381 374 651 652 651 381 374 551 656 654 559 374 655 163 315 551 142 237 637 262 624 548 346 632 687 644 630 381 346 195 630 398 617 630 727 552 178 617
BalonParca AdiParca NoAdetTipApplied Date
6 04.302 LEVER; RELAY 8-97379-995-0 01 1 1412-
133 04.027 SEAT; SPR
(A) 		8-97379-988-0 01 1 1412-
133 04.027 SEAT; SPR
(B) 		8-97379-989-0 01 1 1412-
142 04.012 BOLT; QUAD BOX
M8X35 FLANGE 		8-98020-384-0 03 1 1412-
142 04.012 BOLT; QUAD BOX
M8X75 FLANGE 		8-98020-385-0 03 1 1412-
163 04.302 LEVER; SELECT,INTERNAL
(A) 		8-97379-979-0 01 1 1412-
163 04.302 LEVER; SELECT,INTERNAL
(B) 		8-97379-990-0 01 1 1412-
167 04.302 LEVER; SELECT,EXTERNAL 8-97379-994-0 01 1 1412-
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1412-1508
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1509-
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 03.680 ID=22.5 		9-09571-422-0 01 1 1412-
192 04.309 WASHER; PL
04.302 		1-09503-280-0 01 1 1412-
195 04.105 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1412-
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1412-
237 04.057 BRACKET; CABLE,TRANS 8-98018-905-1 01 1 1412-
243 04.105 BOLT; COVER
04.010 M6X12 FLANGE 		1-33739-842-0 11 1 1412-
262 04.105 BOX ASM; SHIFT CONT 8-98241-121-1 01 1 1412-1412
262 04.105 BOX ASM; SHIFT CONT 8-98296-529-0 01 1 1412-1508
262 04.105 BOX ASM; SHIFT CONT 8-98331-685-0 01 1 1509-
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1412-
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97379-981-0 01 1 1412-
274 04.105 COVER; SHAFT,QUAD BOX 8-98020-711-0 01 1 1412-
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-600-0 01 1 1412-
298 04.309 SHAFT; SHIFT LEVER 8-97379-978-0 01 1 1412-
315 04.302 LEVER; SELECT 8-97379-998-0 01 1 1412-1412
315 04.302 LEVER; SELECT 8-98296-526-0 01 1 1412-
317 04.302 BUSHING; LEVER 8-97379-997-0 02 1 1412-
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 1412-
346 04.545 HOSE; AIR
(B) 		8-97373-381-0 01 1 1412-
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97349-571-0 03 1 1412-
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97349-573-0 01 1 1412-
381 04.105 BOLT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 1412-
381 04.105 BOLT
04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 1412-
398 02.698 SWITCH; REV LAMP 8-98242-173-1 01 1 1412-
530 04.302 SHAFT; SELECT 8-97379-996-0 01 1 1412-
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1412-
551 04.303 PIN; SPRING
04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1412-
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1412-
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1412-
551 04.303 PIN; SPRING
04.302 (F) OD=5 		8-97184-905-0 03 1 1412-
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1412-
551 04.303 PIN; SPRING
(E) 		8-97379-991-0 01 1 1412-
552 04.105 BRACKET 8-97349-914-1 01 1 1412-
559 04.302 PIPE; BREATHER 8-98020-710-0 01 1 1412-
617 04.008 PLUG
(A) M22X12 		1-09604-035-0 01 1 1412-
617 04.008 PLUG
04.105 (B) 		8-97365-373-0 01 1 1412-
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1412-
630 04.307 DETENT ASM 8-98019-536-0 04 1 1412-
631 04.105 STOPPER; SPRING 8-97379-984-0 01 1 1412-
632 04.054 SENSOR; TRANS,REV 8-97315-604-1 01 1 1412-
637 04.105 BOLT; BRACKET
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 1412-
637 04.105 BOLT; BRACKET
02.500 (B) M6X16 FLANGE 		8-97329-599-0 02 1 1412-
644 04.302 SPACER; SENSOR 8-97255-489-1 01 1 1412-
651 04.309 SOLENOID ASM; SHIFT
(A) 		8-98002-759-0 01 1 1412-
651 04.309 SOLENOID ASM; SHIFT
(B) 		8-98002-760-0 01 1 1412-
652 04.309 BOLT; SORENOID
02.042 M10X25 FLANGE 		0-28151-025-0 06 1 1412-
653 04.309 SOLENOID ASM; SELECT 8-98002-761-0 01 1 1412-
654 04.309 JOINT; SOLENOID,CASE
(A) 		8-97349-473-0 02 1 1412-
654 04.309 JOINT; SOLENOID,CASE
(B) 		8-97380-419-0 01 1 1412-
655 04.309 SENSOR; STROKE
(A) 		8-98107-823-0 01 1 1412-
655 04.309 SENSOR; STROKE
(B) 		8-98107-824-0 01 1 1412-
656 04.307 SPRING; SHAFT
(A) 		8-97379-985-0 01 1 1412-
656 04.307 SPRING; SHAFT
(B) 		8-97379-986-0 01 1 1412-
656 04.307 SPRING; SHAFT
(C) 		8-97379-987-0 01 1 1412-
657 04.105 PLATE; SIDE 8-98020-712-0 01 1 1412-
687 04.075 GASKET; SENSOR
04.307 		9-09567-113-0 01 1 1412-
727 04.303 GASKET
04.105 ID=17 		8-97115-712-0 01 1 1412-

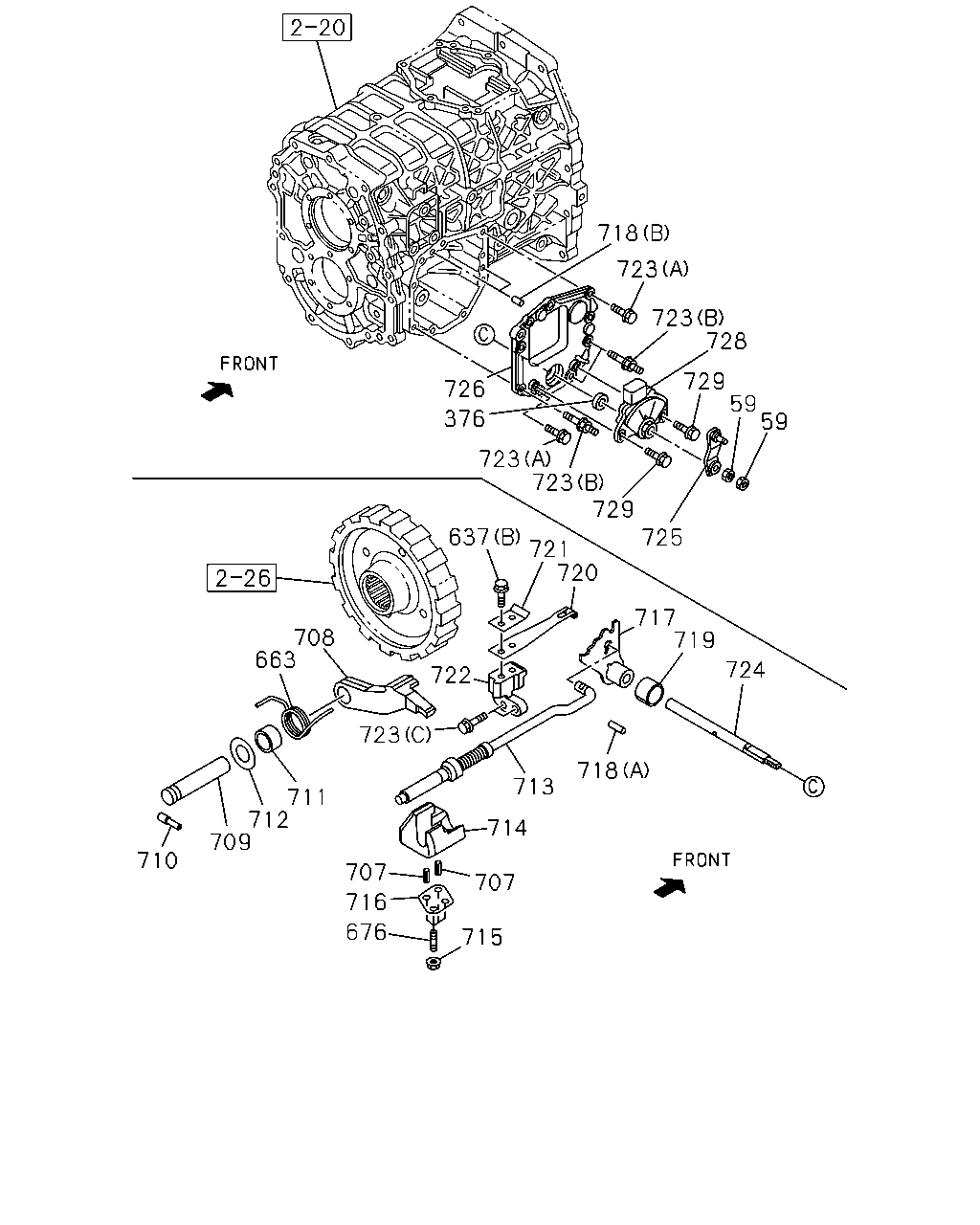

çizim 467461
718 723 723 728 729 59 59 725 729 723 723 376 726 637 721 720 717 719 724 718 713 714 707 715 707 716 676 723 722 708 663 711 712 709 710
BalonParca AdiParca NoAdetTipApplied Date
59 04.105 NUT
02.334 M8 		0-91110-508-0 02 1 1412-
376 04.318 SEAL; OIL 8-98205-128-0 01 1 1412-
637 04.105 BOLT; BRACKET
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 1412-
637 04.105 BOLT; BRACKET
02.500 (B) M6X16 FLANGE 		8-97329-599-0 02 1 1412-
663 04.311 SPRING 8-98205-107-0 01 1 1412-
676 04.105 STUD
01.073 M8X22 L=34 		0-41010-822-0 04 1 1412-
707 04.105 PIN 8-98205-348-0 02 1 1412-
708 04.294 PAWL; PARKING,M/T 8-98205-106-0 01 1 1412-
709 04.294 SHAFT; PARKING PAWL,M/T 8-98205-138-0 01 1 1412-
710 04.557 SCREW; PIN
M6X18 		8-94448-812-2 01 1 1412-1501
710 04.557 SCREW; PIN
M8X18 		8-98303-845-0 01 1 1502-
711 04.303 SPACER; PARK PAWL 8-98205-114-0 01 1 1412-
712 04.290 WASHER; PARKING BRK LK,M/T 8-98205-115-0 01 1 1412-
713 04.290 ROD ASM; PARKING PAWL 8-98205-133-0 01 1 1412-
714 04.290 BLOCK; SHIFT,T/M,PARKING 8-98205-135-0 01 1 1412-
715 04.294 NUT; PARK PAWL
01.540 M8 FLANGE 		0-91180-208-0 04 1 1412-
716 04.303 COVER; KNOCK 8-98205-119-0 01 1 1412-
717 04.290 PLATE; CAM,PARKING BRK LK,M/T 8-98205-140-1 01 1 1412-
718 04.290 PIN; PARKING BRK LK,M/T
04.303 (A) L=20 		8-97241-340-0 01 1 1412-
718 04.290 PIN; PARKING BRK LK,M/T
00.862 (B) ID=6 L=12 		9-08160-612-0 02 1 1412-
719 04.303 SPACER; PARK LK 8-98205-123-0 01 1 1412-
720 04.295 SPRING; PAWL RETURN,M/T 8-98205-111-0 01 1 1412-
721 04.303 COVER; DETENT SPRING 8-98205-126-0 01 1 1412-
722 04.303 BLOCK; SHIFT,T/M,SPRING PLATE 8-98205-136-0 01 1 1412-
723 04.290 BOLT; PARKING BRK LK,M/T
04.356 (A) M8X22 FLANGE 		8-97365-376-0 06 1 1412-
723 04.290 BOLT; PARKING BRK LK,M/T
04.302 (B) M8X15,M8X25 L=49 		8-97365-378-0 03 1 1412-
723 04.290 BOLT; PARKING BRK LK,M/T
04.105 (C) M8X30 FLANGE 		8-98034-764-0 02 1 1412-
724 04.303 SHAFT; CONTROL 8-98205-112-0 01 1 1412-
725 04.290 LEVER; PARKING ROD,M/T 8-98205-127-1 01 1 1412-
726 04.303 COVER; CONTROL PARKING 8-98205-113-0 01 1 1412-
728 04.054 SWITCH; INHIBITOR,M/T 8-98218-186-1 01 1 1412-
729 02.559 BOLT; INHIBITOR SW
00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1412-
