◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NJR ▶ 51610 - NJR RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#156194) — 78 parça

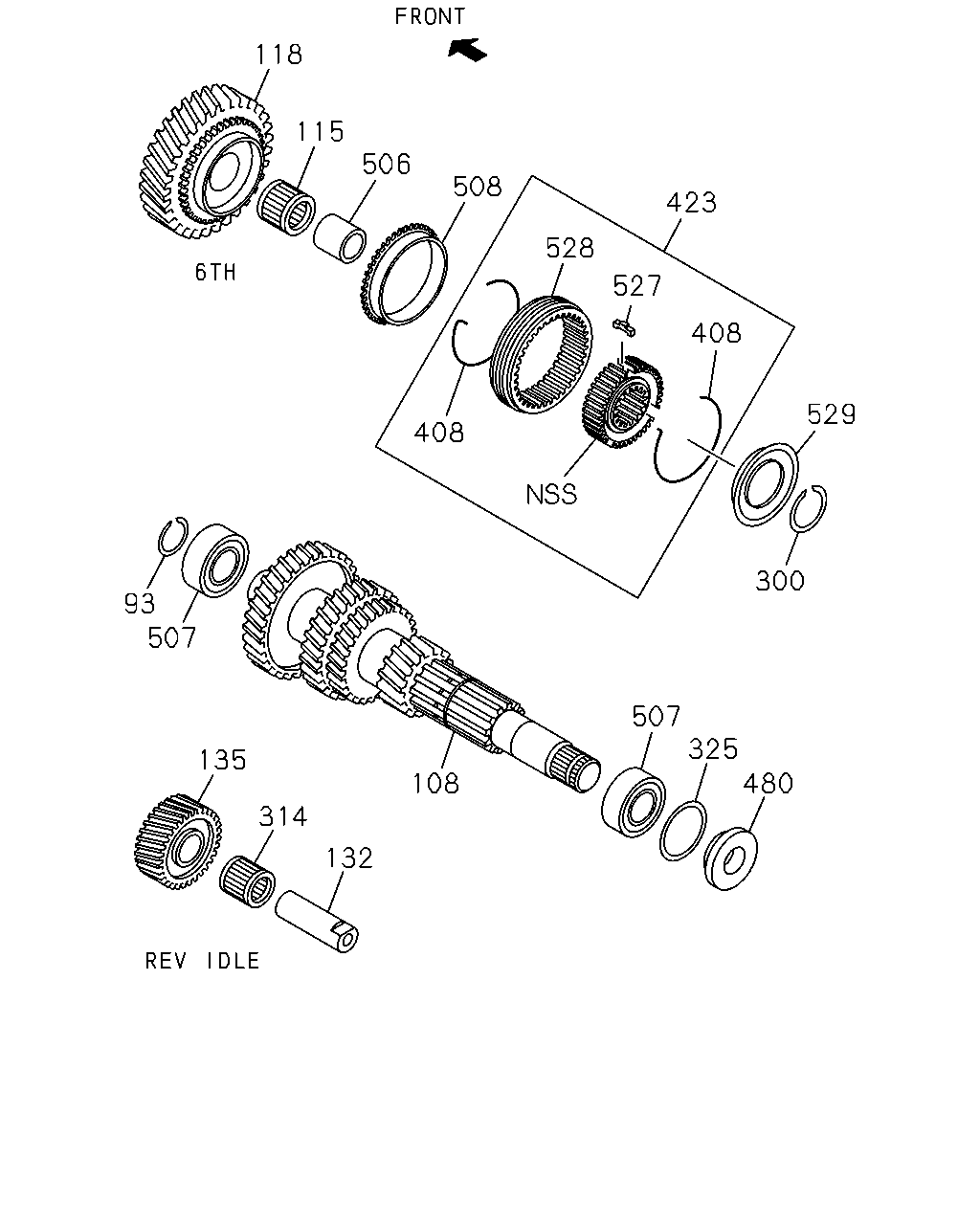

çizim 467133
118 115 508 506 528 423 527 408 529 408 300 93 507 135 314 132 108 507 325 480
BalonParca AdiParca NoAdetTipApplied Date
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 1412-
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 1412-
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 1412-
108 04.428 SHAFT; COUNTER
Z=47-38-31-20 		8-98256-126-0 01 1 1412-
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 1412-
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1412-
118 04.421 GEAR; 6TH,COUNTER
Z=50 		8-97386-580-0 01 1 1412-
132 04.433 SHAFT; REV 8-97252-655-0 01 1 1412-
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 1412-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.7 		8-97254-727-0 01 1 1412-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
04.384 ID=30.7 T=1.8 		8-97254-728-0 01 1 1412-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.9 		8-97254-734-0 01 1 1412-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.6 		8-97365-617-0 01 1 1412-
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1412-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 1412-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 1412-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 1412-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 1412-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 1412-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 1412-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 1412-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 1412-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 1412-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 1412-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 1412-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 1412-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 1412-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 1412-
408 04.384 SPRING 8-97366-040-1 04 1 1412-
423 04.384 SLEEVE & HUB ASM; 6TH 8-97367-022-0 01 1 1412-
480 04.419 WASHER; THRUST,6TH 8-97253-123-1 01 1 1412-
506 04.419 COLLAR; 6TH,COUNTER 8-97253-121-1 01 1 1412-
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 1412-
508 04.383 RING; BLOCK,6TH
04.395 Z=45 		8-97309-532-0 01 1 1412-
527 04.384 INSERT; 6TH 8-94448-202-2 03 1 1412-
528 04.384 SLEEVE; 6TH
04.535 Z=45 		8-94421-871-1 01 1 1412-
529 04.384 PLATE; STOPPER,6TH 8-97248-952-0 01 1 1412-

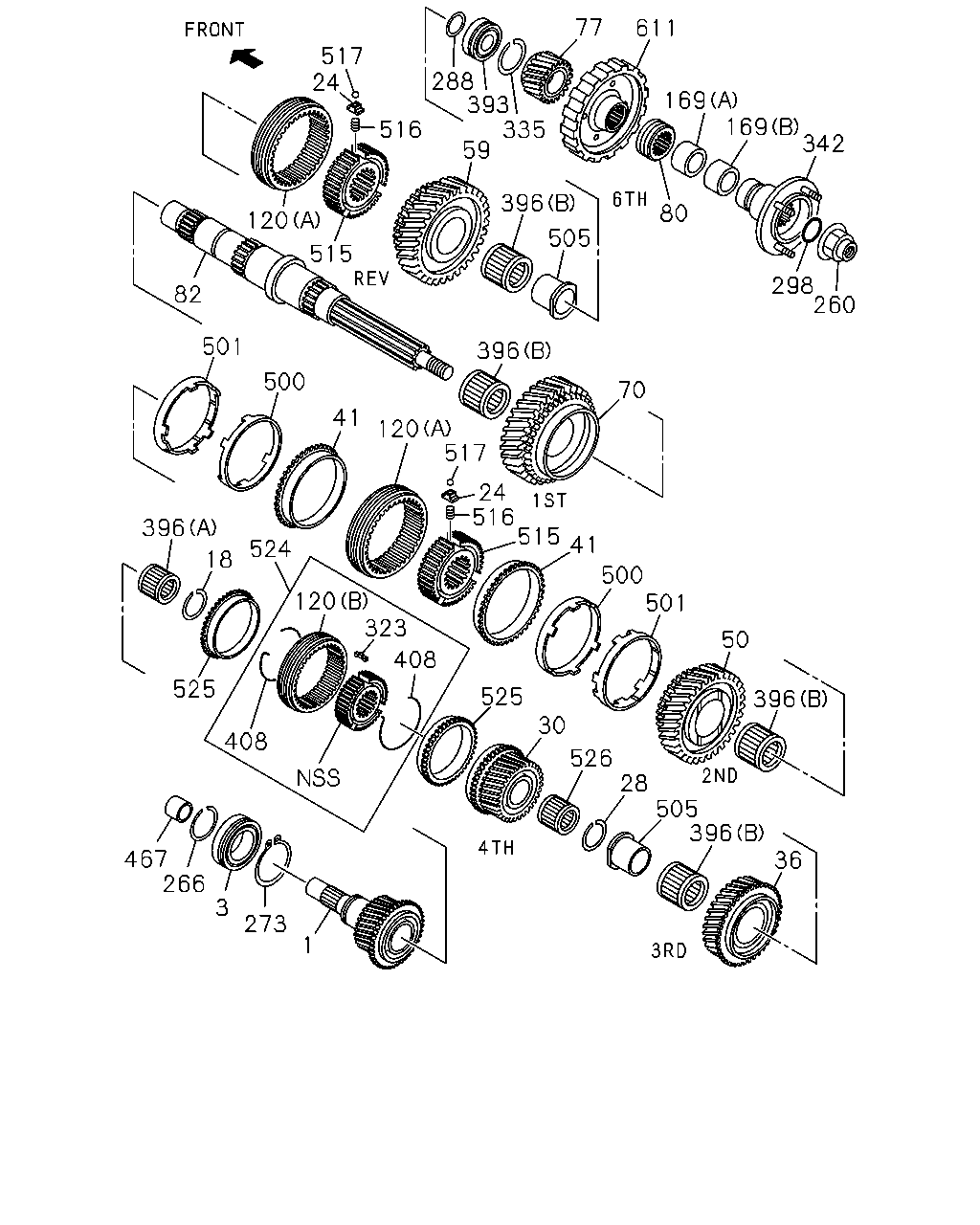

çizim 467529
77 611 169 342 169 80 298 260 517 288 24 393 59 516 335 396 505 120 515 396 82 501 500 41 517 120 24 516 41 515 500 501 50 396 505 396 36 28 526 30 525 120 323 408 396 524 18 525 408 467 266 3 273 1 70
BalonParca AdiParca NoAdetTipApplied Date
1 04.351 SHAFT; TOP GEAR,TRANS
Z=26 		8-98021-267-0 01 1 1412-
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 1412-
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 1412-
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 1412-
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1412-
30 04.415 GEAR; 4TH,MAINSHAFT
Z=29 		8-98256-122-0 01 1 1412-
36 04.415 GEAR; 3RD,MAINSHAFT
Z=35 		8-98256-123-0 01 1 1412-
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 1412-
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 1412-
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1412-
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97352-815-0 01 1 1412-
77 04.421 GEAR; 6TH,MAINSHAFT
Z=21 		8-97386-582-0 01 1 1412-
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 1412-
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-98205-132-0 01 1 1412-
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 1412-
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1412-
169 04.419 COLLAR; MAINSHAFT
(A) 		8-98205-129-0 01 1 1412-
169 04.419 COLLAR; MAINSHAFT
(B) 		8-98205-131-0 01 1 1412-
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 1412-
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 1412-
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 1412-
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 1412-
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 1412-
323 04.384 INSERT 8-94448-202-2 03 1 1412-
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 1412-
342 05.545 FLANGE; OUTPUT 8-98031-640-0 01 1 1412-
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 1412-
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 1412-
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1412-
408 04.384 SPRING 8-97366-040-1 04 1 1412-
467 04.317 COLLAR; SHAFT 8-97255-183-1 01 1 1412-
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 1412-
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 1412-
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 1412-
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 1412-
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 1412-
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 1412-
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 1412-
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 1412-
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 1412-
611 04.162 GEAR; PARKING LK,M/T 8-98205-091-0 01 1 1412-
