Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#156187) — 107 parça

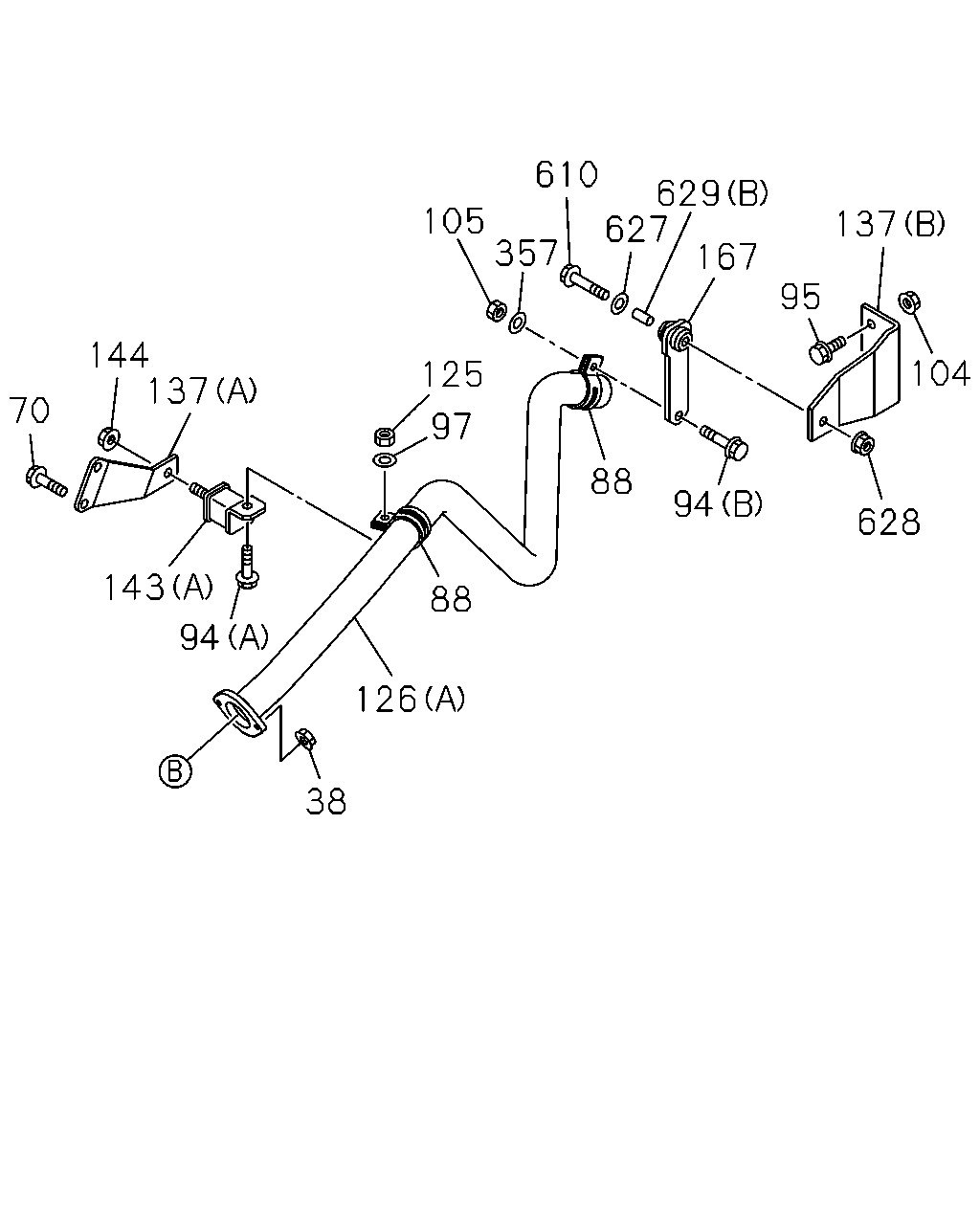

38 126 88 88 628 94 104 137 95 167 629 627 610 357 125 97 137 144 70 143 94 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	00.002 NUT; SILENCER EXHAUST SYSTEM REAR EXIT<N12> 03.162 M10 FLANGE	0-91180-110-0	02	1	1412-
70	03.706 BOLT; BRKT EXHAUST SYSTEM REAR EXIT<N12> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1412-
88	03.708 CLAMP; EXH PIPE EXHAUST SYSTEM REAR EXIT<N12>	8-97373-158-0	02	1	1412-
94	03.704 BOLT; CLAMP EXHAUST SYSTEM REAR EXIT<N12> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1412-
94	03.704 BOLT; CLAMP EXHAUST SYSTEM REAR EXIT<N12> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1412-
95	03.708 BOLT; BRKT EXHAUST SYSTEM REAR EXIT<N12> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1412-
97	03.708 WASHER; PL,CLAMP EXHAUST SYSTEM REAR EXIT<N12> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1412-
104	03.704 NUT; BRKT EXHAUST SYSTEM REAR EXIT<N12> 03.162 M10 FLANGE	0-91180-110-0	02	1	1412-
105	03.704 NUT; CLAMP EXHAUST SYSTEM REAR EXIT<N12> 00.833 M10	0-91110-510-0	01	1	1412-
125	03.708 NUT; CLAMP EXHAUST SYSTEM REAR EXIT<N12> 00.833 M10	0-91110-510-0	01	1	1412-
126	03.705 PIPE; EXH,RR EXHAUST SYSTEM REAR EXIT<N12> (A)	8-98247-818-0	01	1	1412-
126	03.705 PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98247-812-1	01	1	1412-
137	03.706 BRACKET; TAIL PIPE EXHAUST SYSTEM REAR EXIT<N12> (A)	8-98001-896-1	01	1	1412-
137	03.706 BRACKET; TAIL PIPE EXHAUST SYSTEM REAR EXIT<N12> (B)	8-98038-762-1	01	1	1412-
143	03.704 RUBBER; SUPPORT EXHAUST SYSTEM REAR EXIT<N12> (C)	8-94457-277-1	02	1	1412-
143	03.704 RUBBER; SUPPORT EXHAUST SYSTEM REAR EXIT<N12> (B)	8-94457-278-1	02	1	1412-
143	03.704 RUBBER; SUPPORT EXHAUST SYSTEM REAR EXIT<N12> (A)	8-98034-767-0	01	1	1412-
143	03.704 RUBBER; SUPPORT TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-94457-277-1	03	1	1412-
143	03.704 RUBBER; SUPPORT TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-94457-278-1	03	1	1412-
144	03.613 NUT; MTG RUBBER EXHAUST SYSTEM REAR EXIT<N12> 01.062 M8 FLANGE	0-91180-108-0	01	1	1412-
167	03.706 HANGER; EXH PIPE EXHAUST SYSTEM REAR EXIT<N12>	8-98255-816-0	01	1	1412-
357	03.708 WASHER; PL,CLAMP EXHAUST SYSTEM REAR EXIT<N12> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1412-
610	03.704 BOLT; HANGER EXHAUST SYSTEM REAR EXIT<N12> 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1412-
627	03.706 WASHER; HANGER EXHAUST SYSTEM REAR EXIT<N12> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1412-
628	03.275 NUT; HANGER EXHAUST SYSTEM REAR EXIT<N12> 03.162 M10 FLANGE	0-91180-110-0	01	1	1412-
629	03.706 SPACER; HANGER EXHAUST SYSTEM REAR EXIT<N12> (B) L=23	8-98006-011-0	01	1	1412-
629	03.706 SPACER; HANGER EXHAUST SYSTEM REAR EXIT<N12> (A) L=37.5	9-22151-217-0	02	1	1412-
629	03.706 SPACER; HANGER TAILPIPE SINGLE SHORT TYPE<8JJ> (A) L=37.5	9-22151-217-0	03	1	1412-

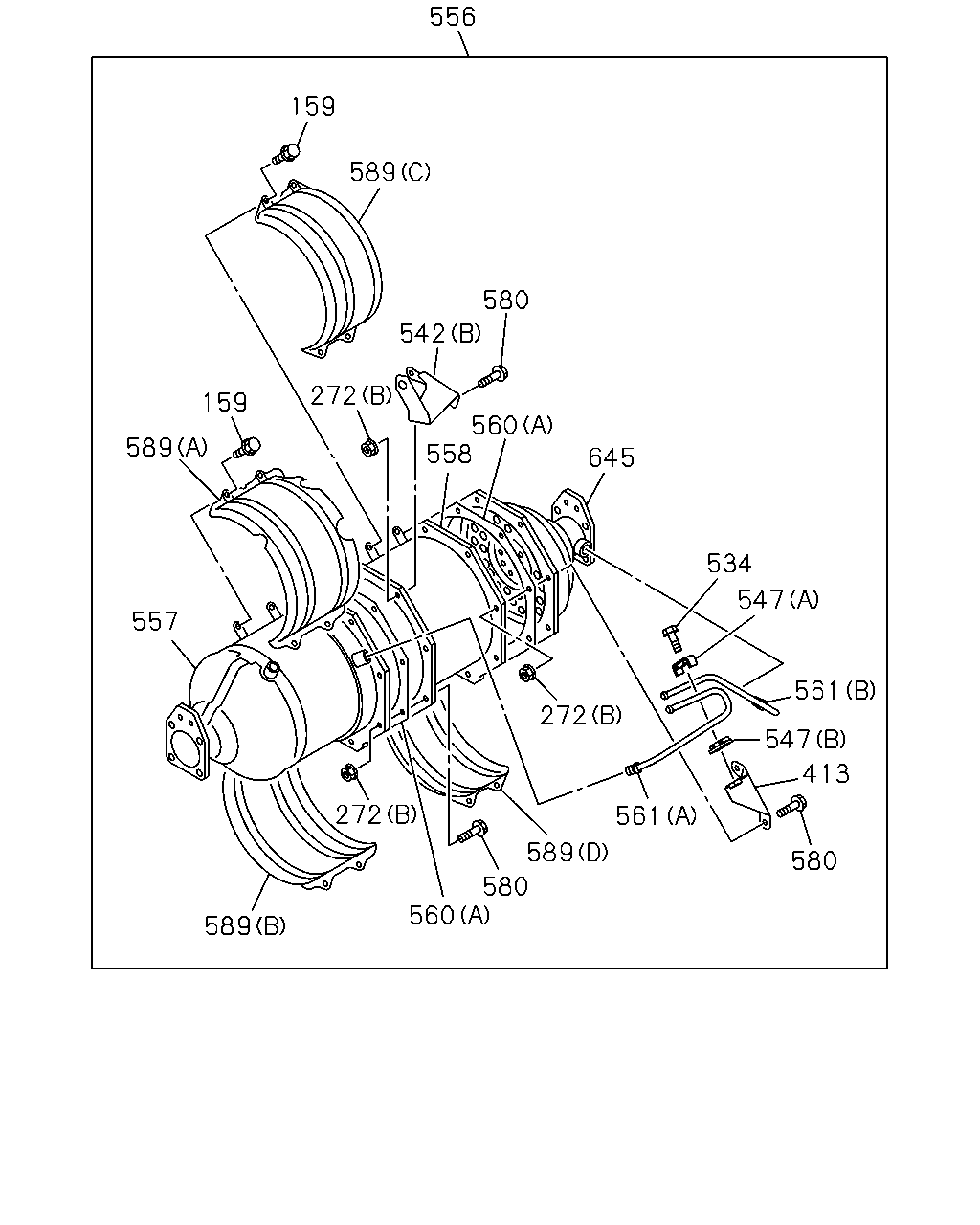

589 560 589 580 561 272 413 547 561 547 534 645 558 560 272 557 589 159 272 542 580 589 556 159 580

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
159	03.690 BOLT; HEAT PROTECTOR 03.685 M6X16	8-98019-179-0	08	1	1412-
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1412-
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1412-
413	03.613 BRACKET; EXH PIPE,CONN 03.706	8-98032-920-0	01	1	1412-
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	01	1	1412-
542	03.704 BRACKET (A)	8-98073-059-0	01	1	1412-
542	03.704 BRACKET (B)	8-98256-888-1	01	1	1412-
547	03.682 CLIP; PIPE (A)	8-97381-635-0	01	1	1412-
547	03.682 CLIP; PIPE (B)	8-97381-636-0	01	1	1412-
556	03.701 DPD ASM	8-98256-873-1	01	1	1412-
557	03.701 CATALYST ASM	8-98256-874-0	01	1	1412-
558	03.634 FILTER ASM	8-98256-876-0	01	1	1412-
560	03.611 GASKET; DPD EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=64	8-97373-108-0	01	1	1412-
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	1412-
561	03.609 PIPE; DPD (A)	8-98256-884-0	01	1	1412-
561	03.609 PIPE; DPD (B)	8-98256-885-1	01	1	1412-
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	1412-
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97383-660-0	01	1	1412-
589	03.609 PROTECTOR; HEAT,DPD (D)	8-98032-924-0	01	1	1412-
589	03.609 PROTECTOR; HEAT,DPD (A)	8-98256-880-0	01	1	1412-
589	03.609 PROTECTOR; HEAT,DPD (B)	8-98256-881-0	01	1	1412-
645	03.701 SILENCER SUB ASM; DPD RR	8-98256-878-1	01	1	1412-

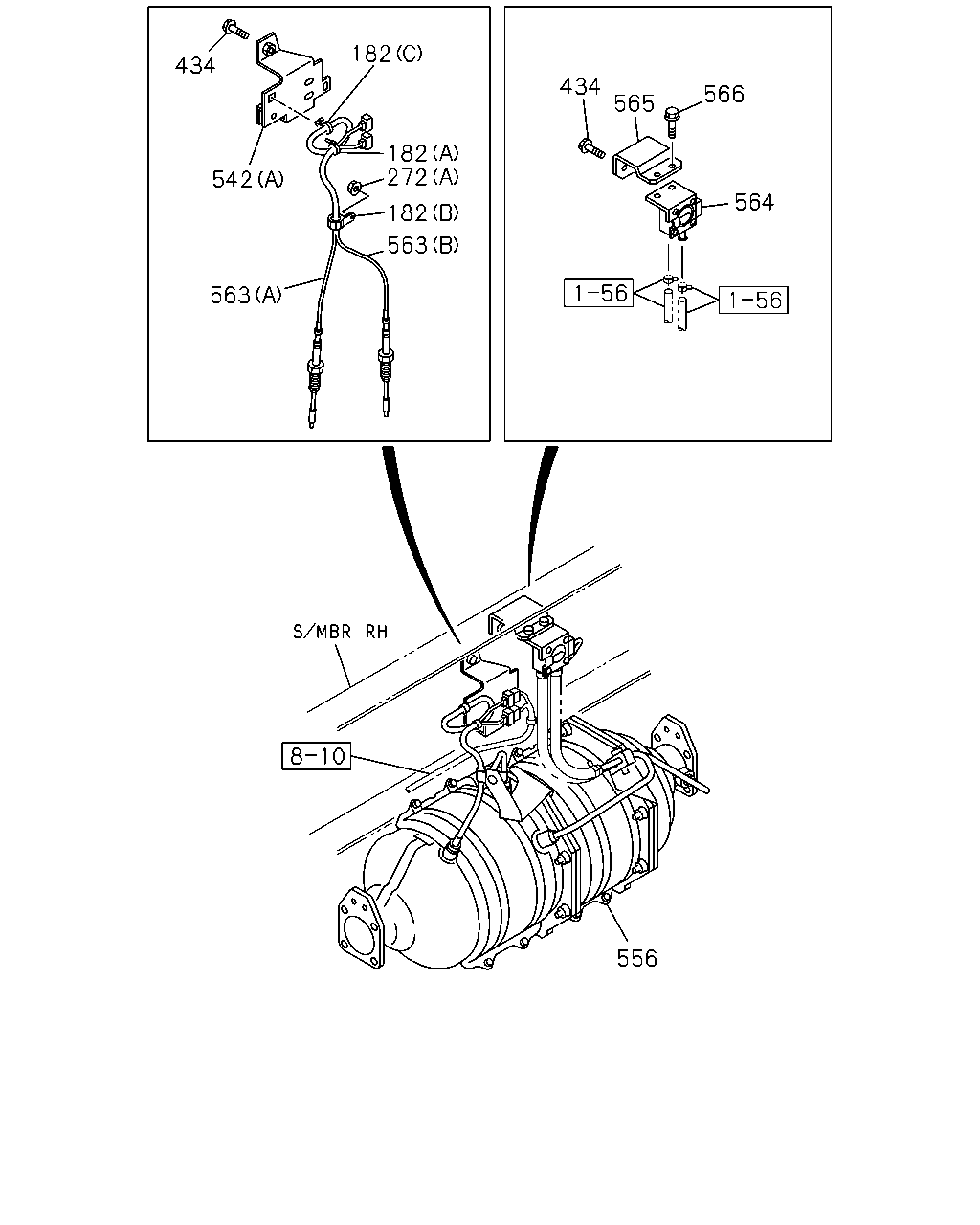

556 563 542 563 182 272 182 434 566 564 182 434 565

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	01	1	1412-
182	03.682 CLIP; HARNESS (C) ID=7 L=7.5	8-97369-561-0	01	1	1412-
182	03.682 CLIP; HARNESS (B) ID=7	8-98002-767-0	01	1	1412-
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1412-
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1412-
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1412-
542	03.704 BRACKET (A)	8-98073-059-0	01	1	1412-
542	03.704 BRACKET (B)	8-98256-888-1	01	1	1412-
556	03.701 DPD ASM	8-98256-873-1	01	1	1412-
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	1412-
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	1412-
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	1412-
565	03.706 BRACKET; SENSOR,PRESSURE	8-98029-347-0	01	1	1412-
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1412-

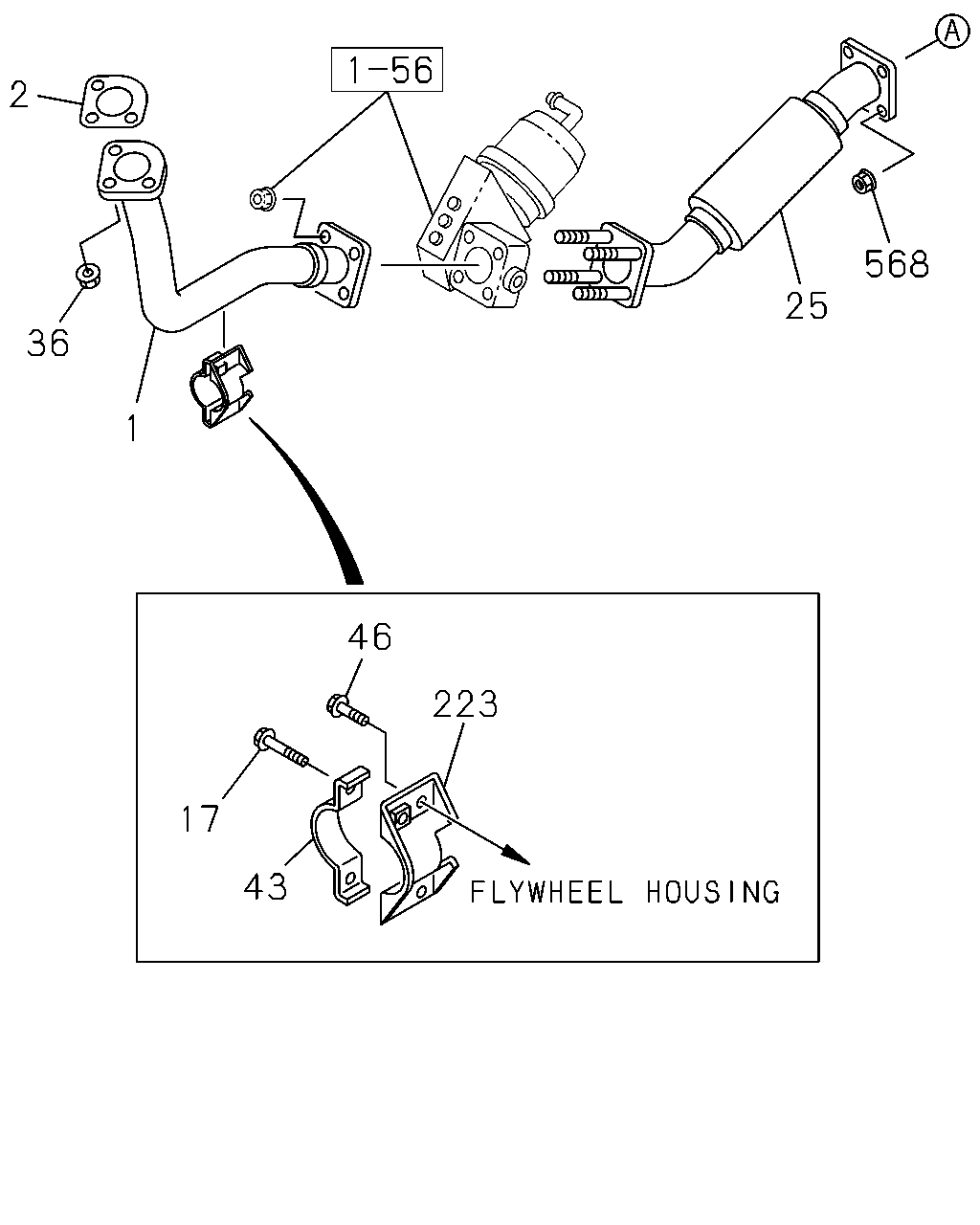

2 36 1 46 223 17 43 25 568

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98162-036-0	01	1	1412-
2	03.611 GASKET; PIPE TO MANIF EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98165-414-0	01	1	1412-
17	03.613 BOLT; EXH PIPE EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1412-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98246-963-1	01	1	1412-
36	03.613 NUT; EXH PIPE EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	8-97096-192-1	03	1	1412-
43	03.611 CLAMP; EXH PIPE EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97351-200-1	01	1	1412-
46	03.704 BOLT; BRKT,EXH PIPE EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> 02.042 M10X25 FLANGE	0-28151-025-0	02	1	1412-
223	03.706 BRACKET; EXH PIPE EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> 03.613	8-98026-063-0	01	1	1412-
568	03.704 NUT; DPD EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1412-

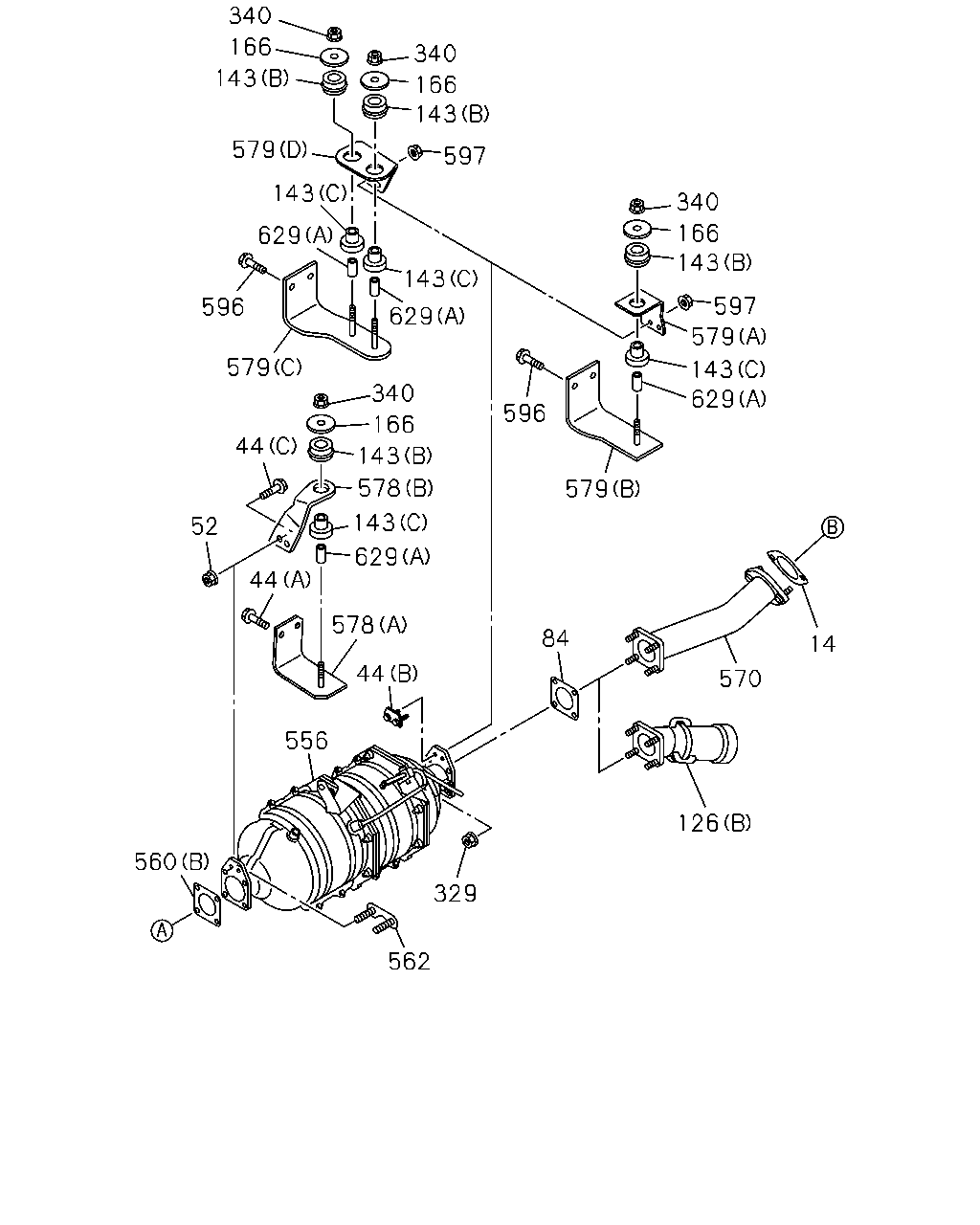

562 329 126 570 14 579 629 143 579 597 143 166 340 143 629 596 44 578 556 560 44 629 143 578 84 597 143 166 340 143 166 579 143 629 596 579 44 52 340 143 166 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.704 GASKET; SILENCER TO EXH PIPE EXHAUST SYSTEM REAR EXIT<N12> 03.611 ID=65	8-97148-757-1	01	1	1412-
44	03.613 BOLT; BRKT EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1412-
44	03.613 BOLT; BRKT EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	1412-
44	03.613 BOLT; BRKT EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> 03.690 (B)	8-98005-985-0	01	1	1412-
52	03.613 NUT; BRKT EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1412-
84	03.611 GASKET; EXH PIPE EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> ID=64	8-97373-108-0	01	1	1412-
126	03.705 PIPE; EXH,RR EXHAUST SYSTEM REAR EXIT<N12> (A)	8-98247-818-0	01	1	1412-
126	03.705 PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98247-812-1	01	1	1412-
143	03.704 RUBBER; SUPPORT EXHAUST SYSTEM REAR EXIT<N12> (C)	8-94457-277-1	02	1	1412-
143	03.704 RUBBER; SUPPORT EXHAUST SYSTEM REAR EXIT<N12> (B)	8-94457-278-1	02	1	1412-
143	03.704 RUBBER; SUPPORT EXHAUST SYSTEM REAR EXIT<N12> (A)	8-98034-767-0	01	1	1412-
143	03.704 RUBBER; SUPPORT TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-94457-277-1	03	1	1412-
143	03.704 RUBBER; SUPPORT TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-94457-278-1	03	1	1412-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXHAUST SYSTEM REAR EXIT<N12> 03.704 OD=55	9-09852-169-0	02	1	1412-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 OD=55	9-09852-169-0	03	1	1412-
329	03.613 NUT; EXH PIPE TO PIPE EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1412-
340	03.706 NUT; RUBBER,SUPPORT EXHAUST SYSTEM REAR EXIT<N12> 07.874 M10 FLANGE	5-09440-006-0	02	1	1412-
340	03.706 NUT; RUBBER,SUPPORT TAILPIPE SINGLE SHORT TYPE<8JJ> 07.874 M10 FLANGE	5-09440-006-0	03	1	1412-
556	03.701 DPD ASM	8-98256-873-1	01	1	1412-
560	03.611 GASKET; DPD EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=64	8-97373-108-0	01	1	1412-
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	1412-
562	03.690 PLATE; STUD,BOLT EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-966-0	02	1	1412-
570	03.704 ADAPTER; EXH PIPE EXHAUST SYSTEM REAR EXIT<N12>	8-98247-809-0	01	1	1412-
578	03.706 BRACKET; DPD FRT EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98246-969-0	01	1	1412-
578	03.706 BRACKET; DPD FRT EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98246-982-1	01	1	1412-
579	03.704 BRACKET; DPD RR EXHAUST SYSTEM REAR EXIT<N12> (B)	8-98246-995-0	01	1	1412-
579	03.704 BRACKET; DPD RR EXHAUST SYSTEM REAR EXIT<N12> (A)	8-98247-005-0	01	1	1412-
579	03.704 BRACKET; DPD RR TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98261-662-0	01	1	1412-
579	03.704 BRACKET; DPD RR TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98261-663-1	01	1	1412-
596	03.704 BOLT; BRKT,DPD EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1412-
597	03.704 NUT; BRKT,DPD EXHAUST SYSTEM REAR EXIT<N12>,TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1412-
629	03.706 SPACER; HANGER EXHAUST SYSTEM REAR EXIT<N12> (B) L=23	8-98006-011-0	01	1	1412-
629	03.706 SPACER; HANGER EXHAUST SYSTEM REAR EXIT<N12> (A) L=37.5	9-22151-217-0	02	1	1412-
629	03.706 SPACER; HANGER TAILPIPE SINGLE SHORT TYPE<8JJ> (A) L=37.5	9-22151-217-0	03	1	1412-
