Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#156183) — 50 parça
◀

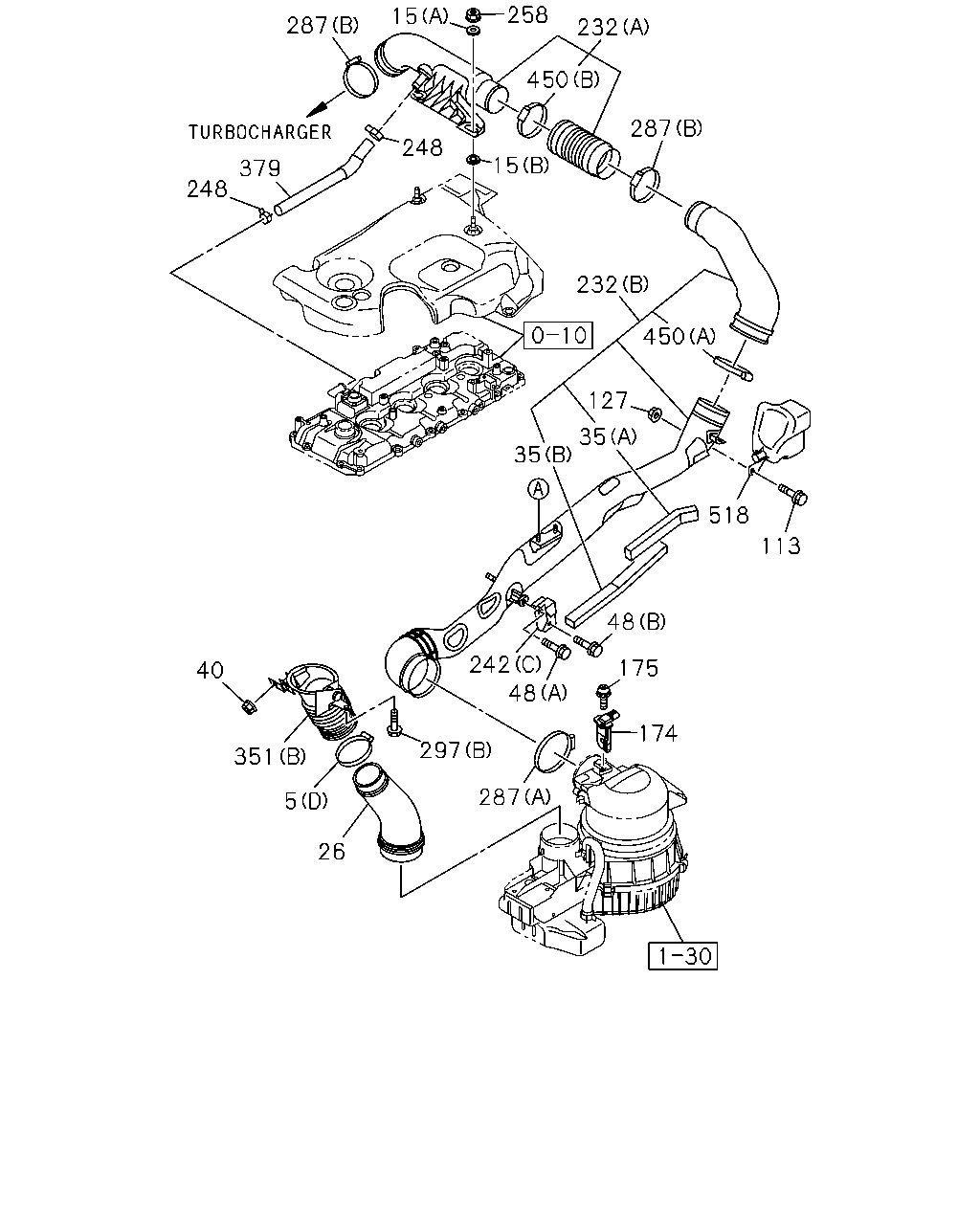

[131A] AIR INTAKE HOSE (33 parça)

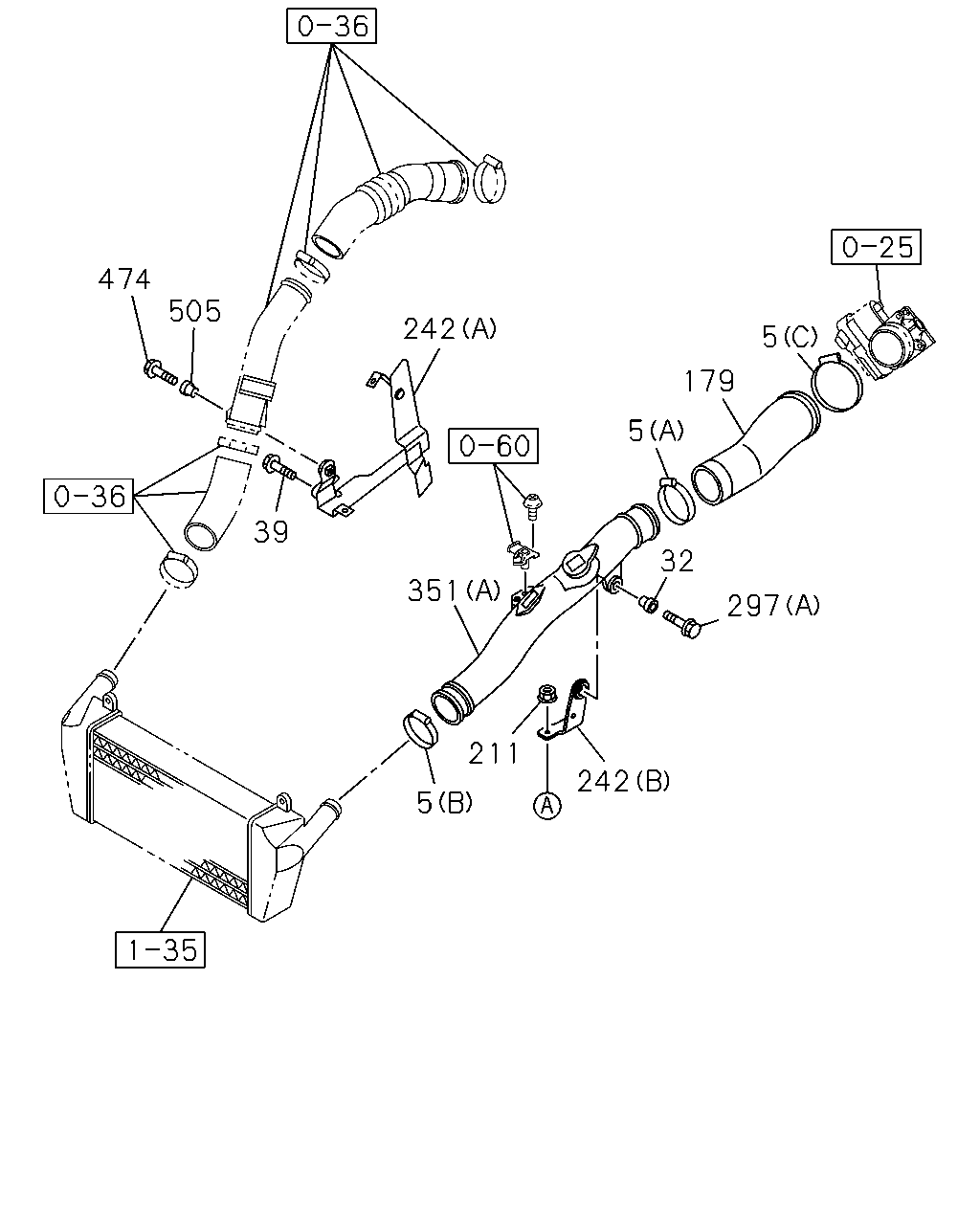

[131A] CHARGE AIR COOLER HOSE (17 parça)
▶
232
258
15
287
248
450
15
287
232
450
127
518
35
113
48
35
175
174
242
48
297
287
26
5
351
40
248
379
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
03.407 CLIP; AIR DUCT
(A) ID=58-79
1-09707-136-0
01
1
1412-
5
03.407 CLIP; AIR DUCT
(B) ID=60-65
8-98096-418-0
01
1
1412-
5
03.407 CLIP; AIR DUCT
(C) ID=70-90
8-98122-372-0
01
1
1412-
5
03.407 CLIP; AIR DUCT
(D) ID=75-95
8-98133-357-0
01
1
1412-
15
03.417 INSULATOR
(A)
8-98054-213-0
02
1
1412-
15
03.417 INSULATOR
(B)
8-98054-214-0
02
1
1412-
26
03.417 DUCT; AIR INT
8-98285-986-0
01
1
1412-
35
03.406 SEAL; DUCT,INT
(A)
8-98291-409-0
01
1
1412-
35
03.406 SEAL; DUCT,INT
(B)
8-98291-410-0
01
1
1412-
40
03.417 NUT; AIR INT DUCT
01.062 M8 FLANGE
0-91180-108-0
01
1
1412-
48
03.417 BOLT; AIR DUCT
03.403 (B) M8X30 FLANGE
0-28650-830-0
01
1
1412-
48
03.417 BOLT; AIR DUCT
03.403 (A) M6X25 W/LK&PL WASHER
8-94156-244-0
01
1
1412-
113
03.402 BOLT; RESONATOR
03.162 M6X20 FLANGE
0-28650-620-0
01
1
1412-
127
03.417 NUT; RESONATOR
01.062 M6 FLANGE
0-91180-106-0
01
1
1412-
174
03.682 SENSOR; AIR FLOW CONT
8-98113-202-1
01
1
1412-
175
03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1412-
232
03.417 HOSE; CONN
(A)
8-98246-945-2
01
1
1412-
232
03.417 HOSE; CONN
(B)
8-98282-497-4
01
1
1412-
242
03.417 BRACKET; AIR DUCT
(A)
8-98246-947-1
01
1
1412-
242
03.417 BRACKET; AIR DUCT
(B)
8-98246-948-2
01
1
1412-
242
03.417 BRACKET; AIR DUCT
(C)
8-98257-080-3
01
1
1412-
248
03.417 CLIP; RUBBER HOSE
08.846 ID=21.7
8-97203-074-0
02
1
1412-
258
03.417 NUT; AIR DUCT
01.062 M8 FLANGE
0-91180-108-0
02
1
1412-
287
03.417 CLIP; AIR DUCT
03.407 (A) ID=77-99
1-09707-141-0
01
1
1412-
287
03.417 CLIP; AIR DUCT
03.407 (B) ID=70-90
8-98122-372-0
02
1
1412-
297
03.417 BOLT; DUCT
01.060 (A) M8X35 FLANGE
0-28650-835-0
01
1
1412-
297
03.417 BOLT; DUCT
16.550 (B) M8X16 W/LK&PL WASHER
8-94310-730-0
01
1
1412-
351
03.407 DUCT; AIR
03.417 (A)
8-98067-267-0
01
1
1412-
351
03.407 DUCT; AIR
(B)
8-98246-939-0
01
1
1412-
379
03.675 HOSE; RUBBER
8-98246-955-1
01
1
1412-
450
03.417 CLAMP; HOSE
03.407 (A) ID=77-99
1-09707-141-0
01
1
1412-
450
03.417 CLAMP; HOSE
03.407 (B) ID=70-90
8-98122-372-0
01
1
1412-
518
03.417 RESONATOR; AIR INT
8-98260-100-1
01
1
1412-
5
179
5
32
242
297
211
5
39
351
505
242
474
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
03.407 CLIP; AIR DUCT
(A) ID=58-79
1-09707-136-0
01
1
1412-
5
03.407 CLIP; AIR DUCT
(B) ID=60-65
8-98096-418-0
01
1
1412-
5
03.407 CLIP; AIR DUCT
(C) ID=70-90
8-98122-372-0
01
1
1412-
5
03.407 CLIP; AIR DUCT
(D) ID=75-95
8-98133-357-0
01
1
1412-
32
03.417 RUBBER; AIR DUCT MTG
03.265 OD=23
8-97105-689-6
01
1
1412-
39
03.417 BOLT; BRKT
03.403 M8X30 FLANGE
0-28650-830-0
01
1
1412-
179
03.417 HOSE; AIR INT
8-98111-374-1
01
1
1412-
211
03.405 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
02
1
1412-
242
03.417 BRACKET; AIR DUCT
(A)
8-98246-947-1
01
1
1412-
242
03.417 BRACKET; AIR DUCT
(B)
8-98246-948-2
01
1
1412-
242
03.417 BRACKET; AIR DUCT
(C)
8-98257-080-3
01
1
1412-
297
03.417 BOLT; DUCT
01.060 (A) M8X35 FLANGE
0-28650-835-0
01
1
1412-
297
03.417 BOLT; DUCT
16.550 (B) M8X16 W/LK&PL WASHER
8-94310-730-0
01
1
1412-
351
03.407 DUCT; AIR
03.417 (A)
8-98067-267-0
01
1
1412-
351
03.407 DUCT; AIR
(B)
8-98246-939-0
01
1
1412-
474
03.417 BOLT; PIPE
01.060 M8X35 FLANGE
0-28650-835-0
01
1
1412-
505
03.406 RUBBER; MTG
03.265 OD=23
8-97105-689-6
01
1
1412-
