1-30 — AIR CLEANER (#156182) — 14 parça

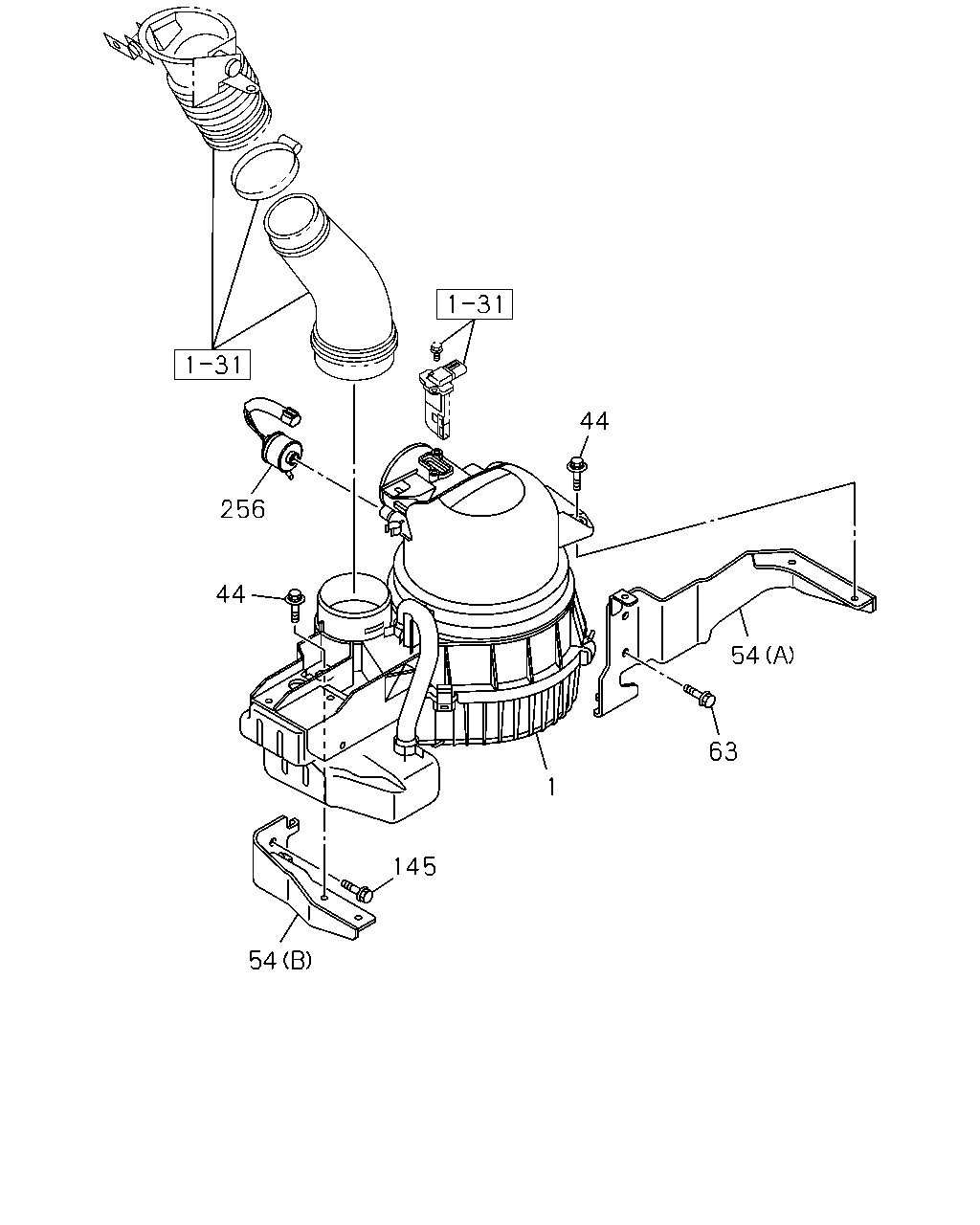

çizim 467083
256 44 54 63 1 145 54 44
BalonParca AdiParca NoAdetTipApplied Date
1 03.402 CLEANER ASM; AIR 8-98252-512-2 01 1 1412-
44 03.403 BOLT; ACL
08.155 M8X35 W/LK&PL WASHER 		1-09030-094-0 04 1 1412-
54 03.405 BRACKET; ACL
(A) 		8-98246-946-2 01 1 1412-
54 03.405 BRACKET; ACL
(B) 		8-98249-865-0 01 1 1412-
63 03.405 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1412-
145 03.405 BOLT; BRKT TO FRAME
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1412-
256 03.405 SENSOR; AIRFLOW 8-98152-741-1 01 1 1412-

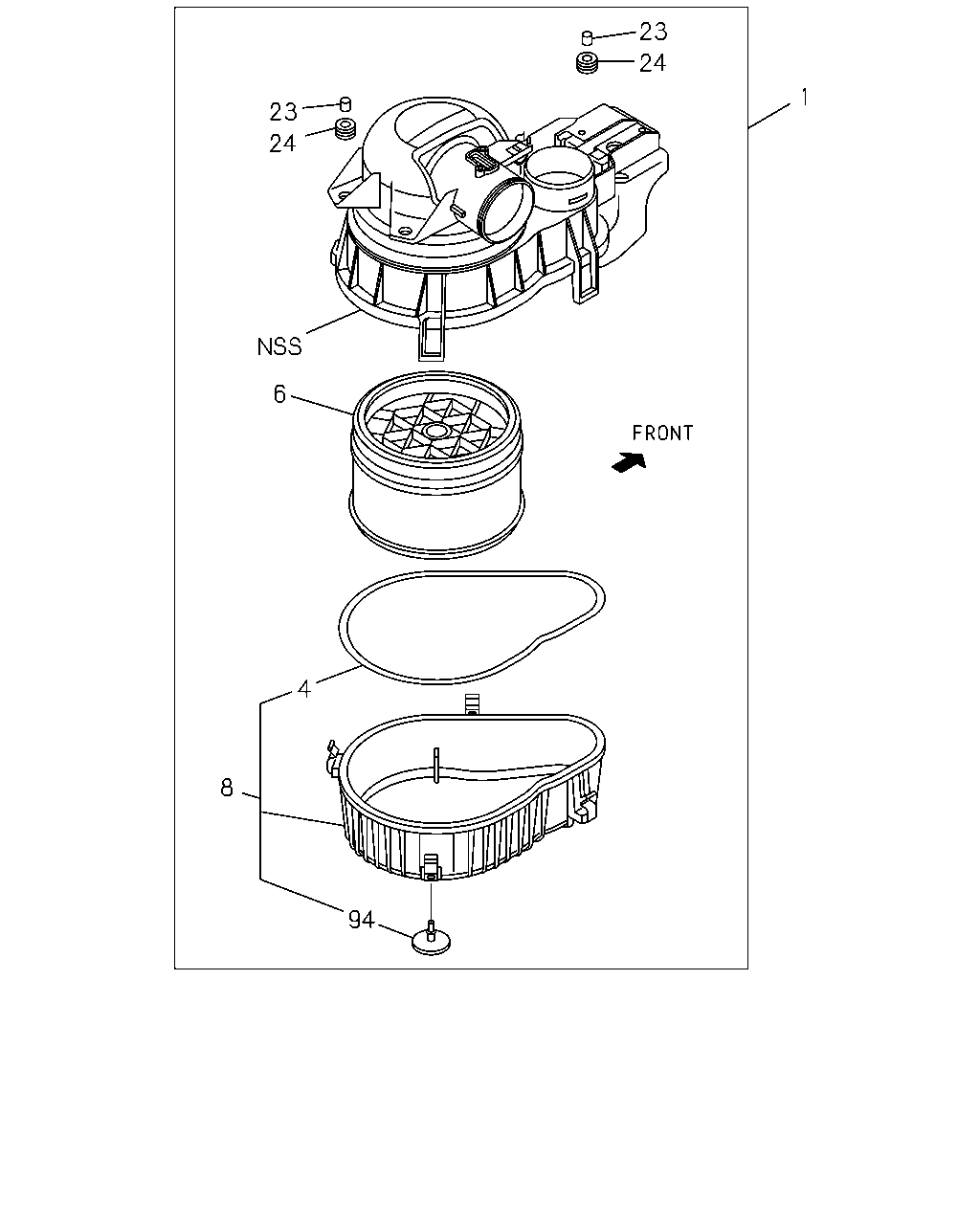

çizim 467084
23 24 1 23 24 6 4 8 94
BalonParca AdiParca NoAdetTipApplied Date
1 03.402 CLEANER ASM; AIR 8-98252-512-2 01 1 1412-
4 03.403 GASKET; COVER TO BODY 8-98260-837-0 01 1 1412-
6 03.410 FILTER; ACL 8-98260-834-0 01 1 1412-
8 03.410 COVER ASM; ACL 8-98260-835-0 01 1 1412-
23 03.405 COLLAR; ACL STAY 8-98113-963-0 04 1 1412-
24 03.406 GROMMET; ACL STAY 8-98038-461-0 04 1 1412-
94 03.415 VALVE; VACUATOR 8-98257-847-0 01 1 1412-
