1-11 — RADIATOR HOSE AND SUB TANK (#156181) — 16 parça

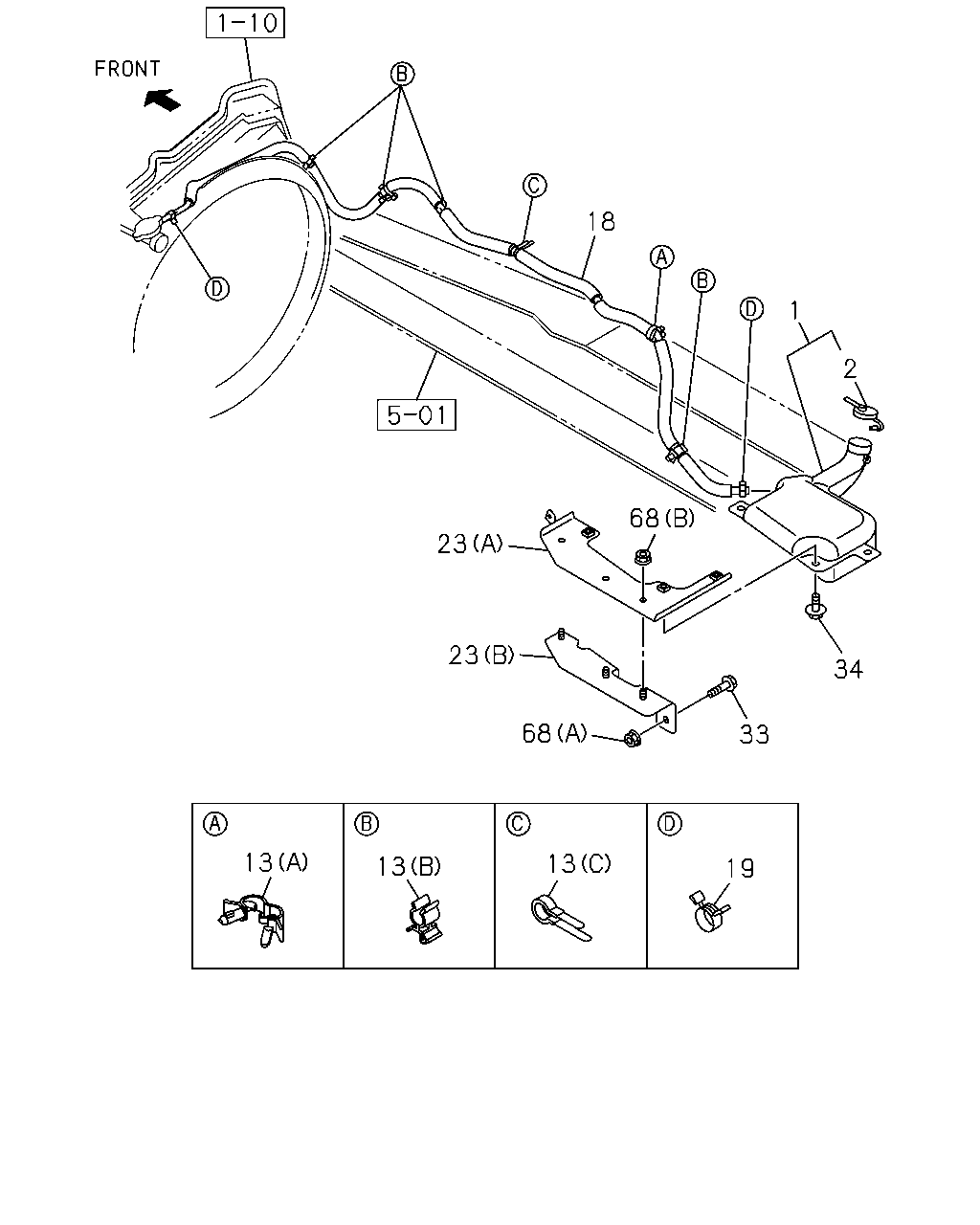

çizim 467085
18 1 2 34 33 68 23 23 13 13 13 19 68
BalonParca AdiParca NoAdetTipApplied Date
1 01.219 TANK; SURGE,RAD 8-98158-923-1 01 1 1412-
2 01.203 CAP; SURGE TANK 8-97130-964-0 01 1 1412-
13 01.240 CLIP; HOSE,SURGE TANK
03.162 (A) ID=13-18 L=14.5 		1-09709-290-0 01 1 1412-
13 01.240 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 		5-09700-319-0 01 1 1412-
13 01.240 CLIP; HOSE,SURGE TANK
(B) ID=12 		8-98029-256-0 04 1 1412-
18 01.240 HOSE; RAD TO SURGE TANK 8-98247-173-0 01 1 1412-
19 01.240 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 1412-
23 01.219 BRACKET; RESERVE TANK
(B) 		8-98111-418-0 01 1 1412-
23 01.219 BRACKET; RESERVE TANK
(A) 		8-98247-220-0 01 1 1412-
33 01.277 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1412-
34 01.203 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 1412-
68 01.219 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 03 1 1412-
68 01.219 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1412-
çizim 467088
56 128 56 56 55 56
BalonParca AdiParca NoAdetTipApplied Date
55 01.173 HOSE; WATER,RAD OUTLET 8-98246-898-0 01 1 1412-
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 04 1 1412-
128 01.159 HOSE; WATER,RAD INL 8-97383-812-1 01 1 1412-
