Sayfa 1-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NJR ▶ 51610 - NJR RHD EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶

1-10 — RADIATOR (#156180) — 30 parça

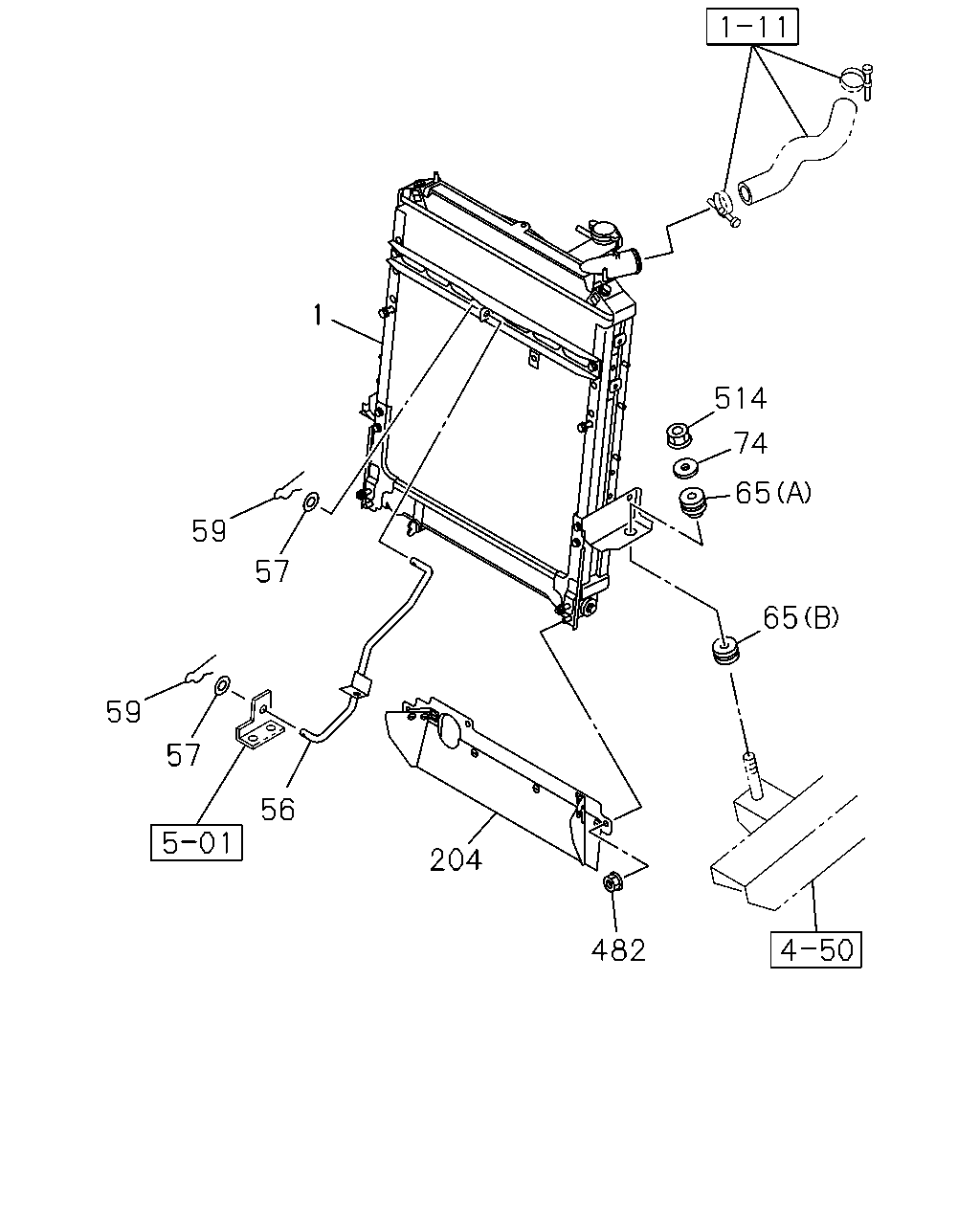

1 514 65 74 65 482 204 56 57 59 57 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM	8-98248-202-1	01	1	1412-
56	01.270 STAY; RAD	8-98246-883-0	01	1	1412-
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1412-
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1412-
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1412-
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1412-
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1412-
204	01.267 GUIDE ASM; AIR	8-98165-475-1	01	1	1412-
482	01.277 NUT; AIR GUIDE 01.062 M8 FLANGE	0-91180-108-0	02	1	1412-
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1412-

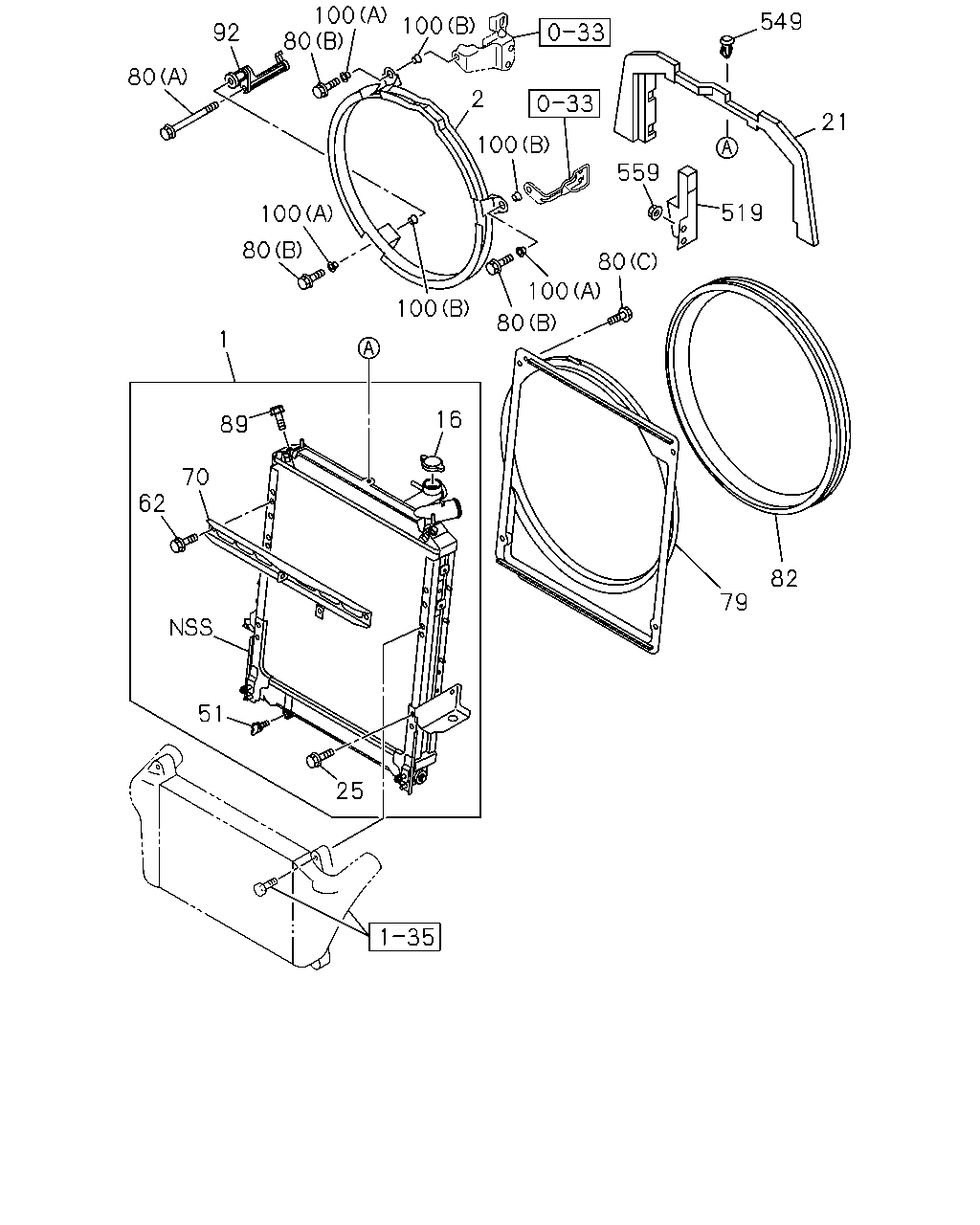

549 21 519 559 80 100 80 100 80 100 80 92 80 100 100 2 89 1 70 62 16 51 25 79 82 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM	8-98248-202-1	01	1	1412-
2	01.277 GUIDE; FAN	8-98256-846-1	01	1	1412-
16	01.203 CAP; RAD	8-98212-541-0	01	1	1412-
21	01.276 SEAL; RAD	8-98246-874-1	01	1	1412-
25	01.271 BOLT; BRKT 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1412-
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1412-
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1412-
70	01.271 STAY; RAD	8-98114-297-0	01	1	1412-
79	01.277 GUIDE; FAN,RAD	8-98248-208-0	01	1	1412-
80	01.277 BOLT; FAN GUIDE 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	1412-
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1412-
80	01.277 BOLT; FAN GUIDE (C) M6X12	8-98039-672-0	04	1	1412-
82	01.277 COVER; FAN,RAD	8-97387-085-1	01	1	1412-
89	01.277 BOLT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1412-
92	01.277 BRACKET; FAN GUIDE	8-98237-770-0	01	1	1412-
100	01.277 RUBBER; MTG (B) OD=32	8-94395-766-0	03	1	1412-
100	01.277 RUBBER; MTG (A) OD=32	8-98058-502-1	03	1	1412-
519	01.276 SEAL; RAD SIDE	8-98258-886-1	01	1	1412-
549	03.438 CLIP; SEAL,RAD 01.276	8-97228-568-0	05	1	1412-
559	01.276 NUT; RAD SIDE 01.062 M6 FLANGE	0-91180-106-0	02	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
