Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

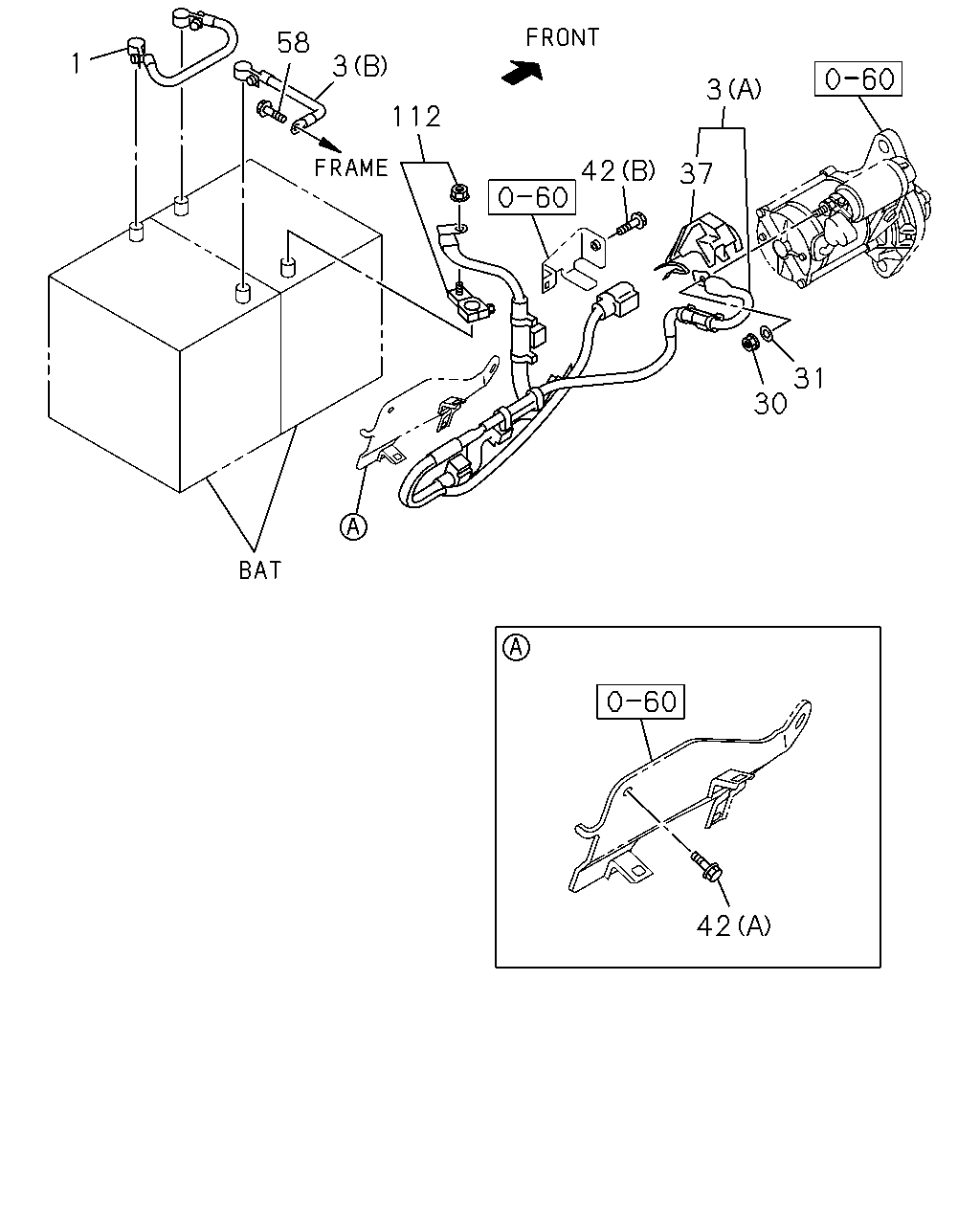

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#156176) — 10 parça
1
58
3
112
42
3
37
31
30
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.341 CABLE; BATTERY
L=280
8-98025-412-3
01
1
1412-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=230
8-98220-520-0
01
1
1412-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
(A)
8-98278-740-1
01
1
1412-
30
02.334 NUT; CABLE,STARTER TO BATTERY
M8
0-91110-508-0
01
1
1412-
31
02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2
0-91510-808-0
01
1
1412-
37
02.343 CAP; TERMINAL,BATTERY CABLE
8-98042-507-0
01
1
1412-
42
02.343 BOLT; BRKT,BATTERY CABLE
00.685 (B) M6X25 FLANGE
0-28650-625-0
01
1
1412-
42
02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE
8-97329-599-0
01
1
1412-
58
02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER
8-98141-256-1
01
1
1412-
112
02.343 TERMINAL; BATTERY
<+>
8-97365-771-0
01
1
1412-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
