Sayfa 0-52 - Isuzu EPC

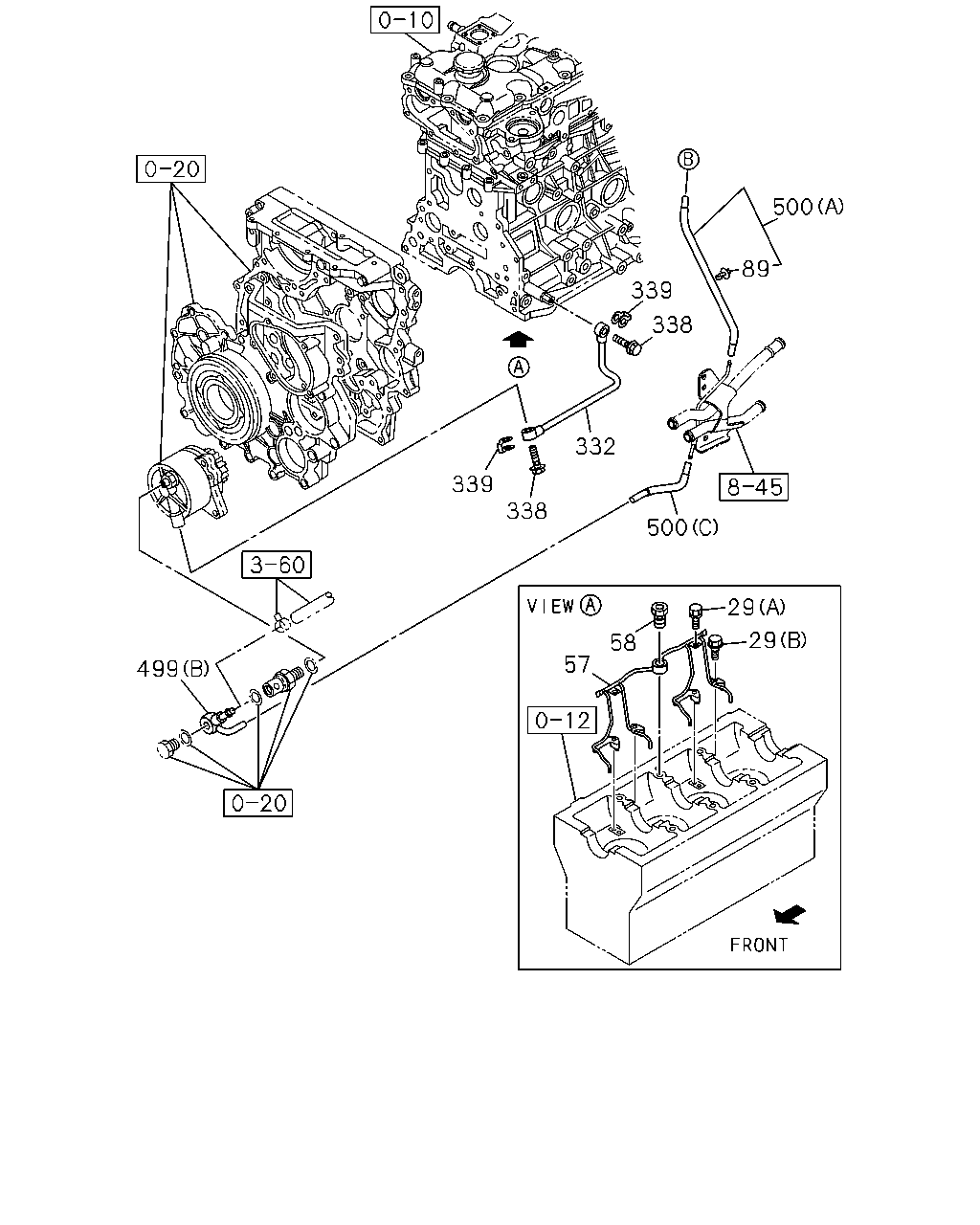

0-52 — OIL AND VACUUM PIPING; ENGINE (#156172) — 47 parça

500 89 339 332 500 29 29 338 58 57 339 499 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	02	1	1412-
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	1412-
57	01.519 PIPE; OIL,OIL JET	8-98273-182-0	01	1	1412-
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1412-
89	04.681 CLIP; VAC HOSE 04.342 ID=7	5-09707-053-0	01	1	1412-
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98201-785-0	01	1	1412-
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	1412-
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 ID=8.3 OD=15.0	8-98065-992-0	02	1	1412-
499	04.681 PIPE; VACUUM (B)	8-97381-661-3	01	1	1412-
499	04.681 PIPE; VACUUM (A)	8-98253-339-1	01	1	1412-
500	04.681 HOSE; VACUUM (C)	8-98135-007-0	01	1	1412-
500	04.681 HOSE; VACUUM (B)	8-98228-398-1	01	1	1412-
500	04.681 HOSE; VACUUM (A)	8-98253-342-1	01	1	1412-

147 149 414 147 149 325 252 325 414 28 414 2 147 63 40 40 40 2 2 63 147 2 147 147 2 63 147 150 100 110 31 2 586 48 28 28 586 100 28 480 472 2 48

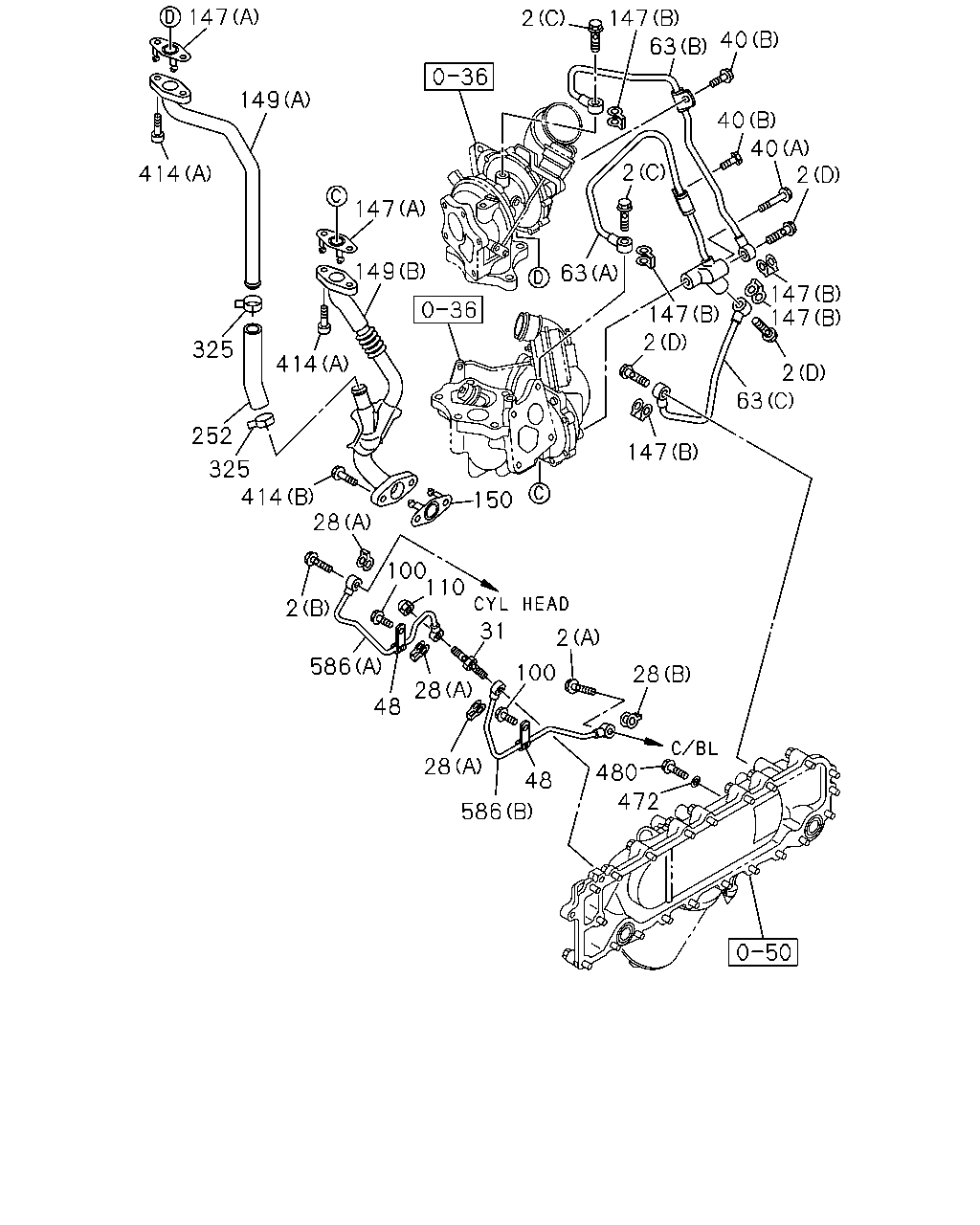

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	1412-
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	02	1	1412-
2	01.531 BOLT; EYE,OIL PIPE (B) M8X23 FLANGE	8-98108-689-0	01	1	1412-
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	03	1	1412-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	03	1	1412-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1412-
31	01.540 NIPPLE; OIL PIPE	8-98130-410-1	01	1	1412-
40	01.531 BOLT; OIL PIPE 02.277 (A) M8X40 FLANGE	0-28050-840-0	01	1	1412-
40	01.531 BOLT; OIL PIPE (B)	8-98171-355-0	02	1	1412-
48	01.531 CLIP; OIL PIPE ID=7 L=28	8-98121-233-0	02	1	1412-
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98074-736-2	01	1	1412-
63	01.519 PIPE; OIL,TURBOCHARGER FEED (C)	8-98124-772-1	01	1	1412-
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-98241-263-0	01	1	1412-
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1412-
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1412-
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16	8-98029-475-0	02	1	1412-
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2	8-98136-142-0	05	1	1412-
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-98228-312-0	01	1	1412-
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (A)	8-98245-788-0	01	1	1412-
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98201-788-1	01	1	1412-
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN	8-98248-880-0	01	1	1412-
325	01.519 CLIP; RUBBER HOSE,OIL RETURN 01.540 ID=18.9	8-94478-875-0	02	1	1412-
414	01.531 BOLT; OIL PIPE 04.338 (B) M8X20 FLANGE	0-28050-820-0	02	1	1412-
414	01.531 BOLT; OIL PIPE 00.724 (A) M6X16 HEX SOCKET	0-58330-616-0	04	1	1412-
472	01.519 GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	1412-
480	01.519 PLUG; OIL FILTER M10X10	1-09604-074-0	01	1	1412-
586	01.519 PIPE; OIL,TENSIONER (A)	8-98074-743-1	01	1	1412-
586	01.519 PIPE; OIL,TENSIONER (B)	8-98130-165-0	01	1	1412-

500 499 344

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
344	01.531 JOINT; RUBBER HOSE 03.680 3WAY	8-98045-385-0	01	1	1412-
499	04.681 PIPE; VACUUM (B)	8-97381-661-3	01	1	1412-
499	04.681 PIPE; VACUUM (A)	8-98253-339-1	01	1	1412-
500	04.681 HOSE; VACUUM (C)	8-98135-007-0	01	1	1412-
500	04.681 HOSE; VACUUM (B)	8-98228-398-1	01	1	1412-
500	04.681 HOSE; VACUUM (A)	8-98253-342-1	01	1	1412-
