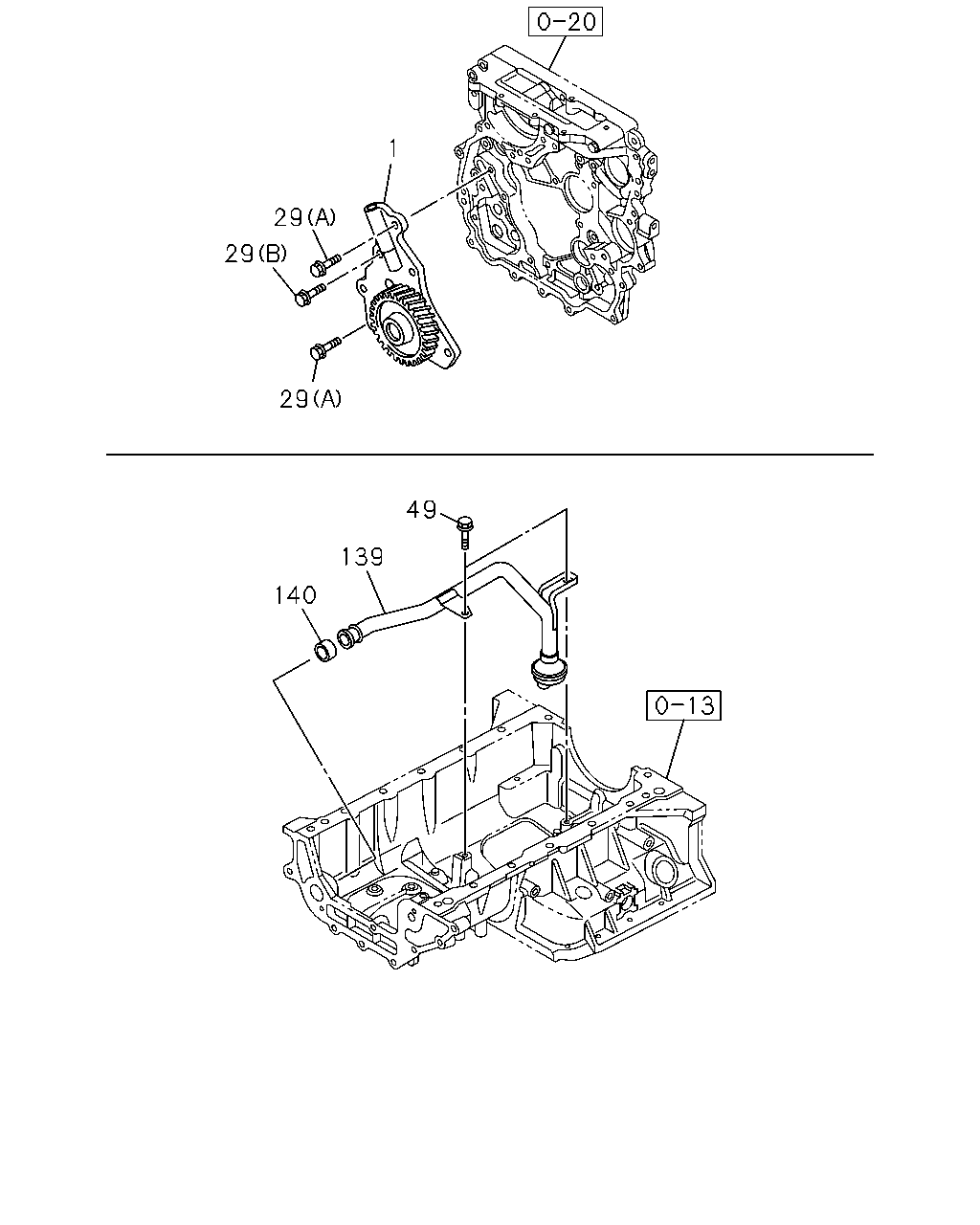

0-51 — OIL PUMP AND OIL STRAINER (#156171) — 6 parça

1 29 29 29 49 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.652 PUMP ASM; OIL	8-98274-346-0	01	1	1412-
29	01.652 BOLT; OIL PUMP 00.206 (B) M8X30 FLANGE	0-28050-830-0	04	1	1412-
29	01.652 BOLT; OIL PUMP 09.173 (A) M8X45 FLANGE	0-28050-845-0	02	1	1412-
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1412-
139	01.639 PIPE; OIL STRAINER	8-98149-035-0	01	1	1412-
140	01.639 GASKET; OIL STRAINER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97356-150-0	01	1	1412-
