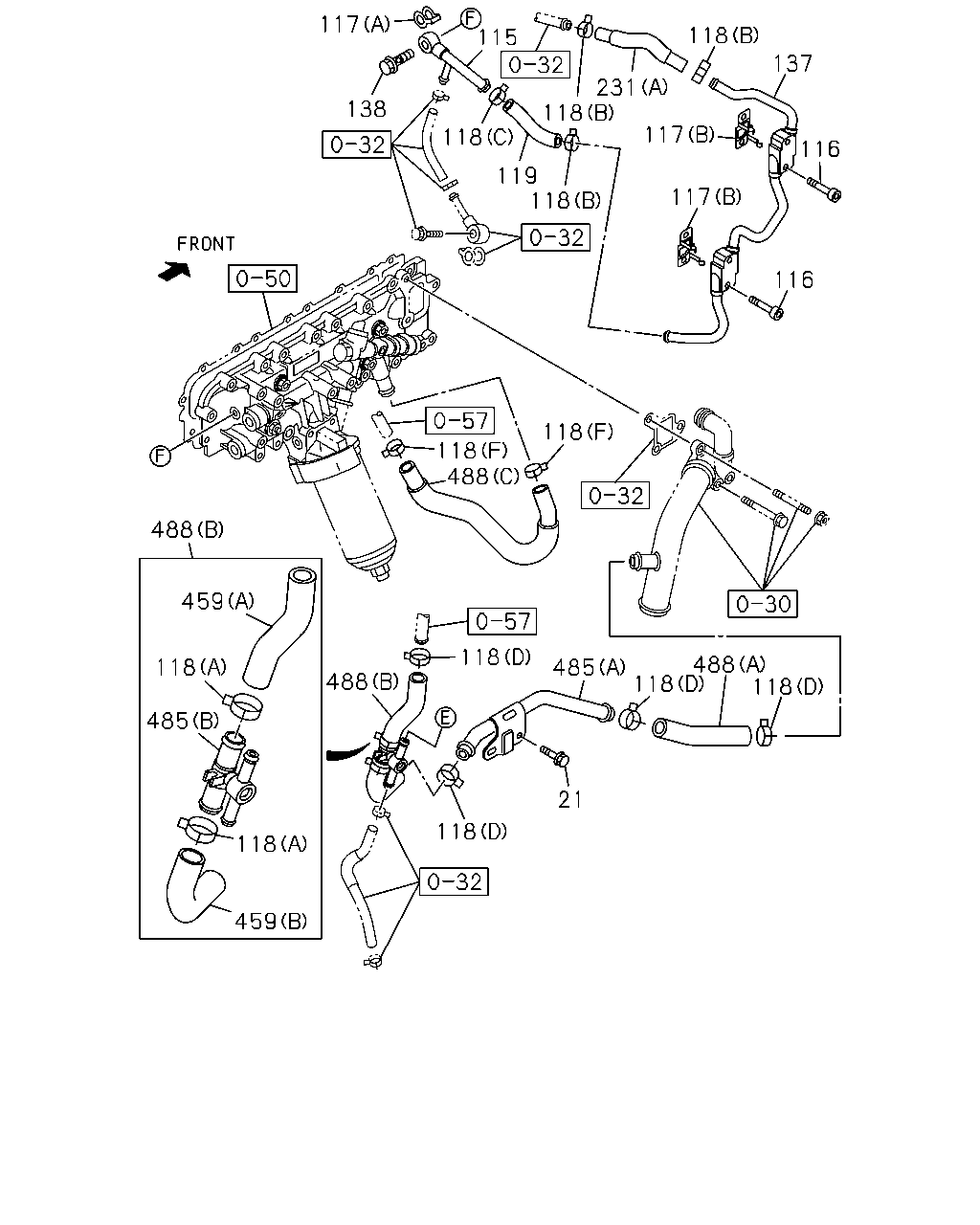

0-36 — TURBOCHARGER SYSTEM (#156166) — 97 parça

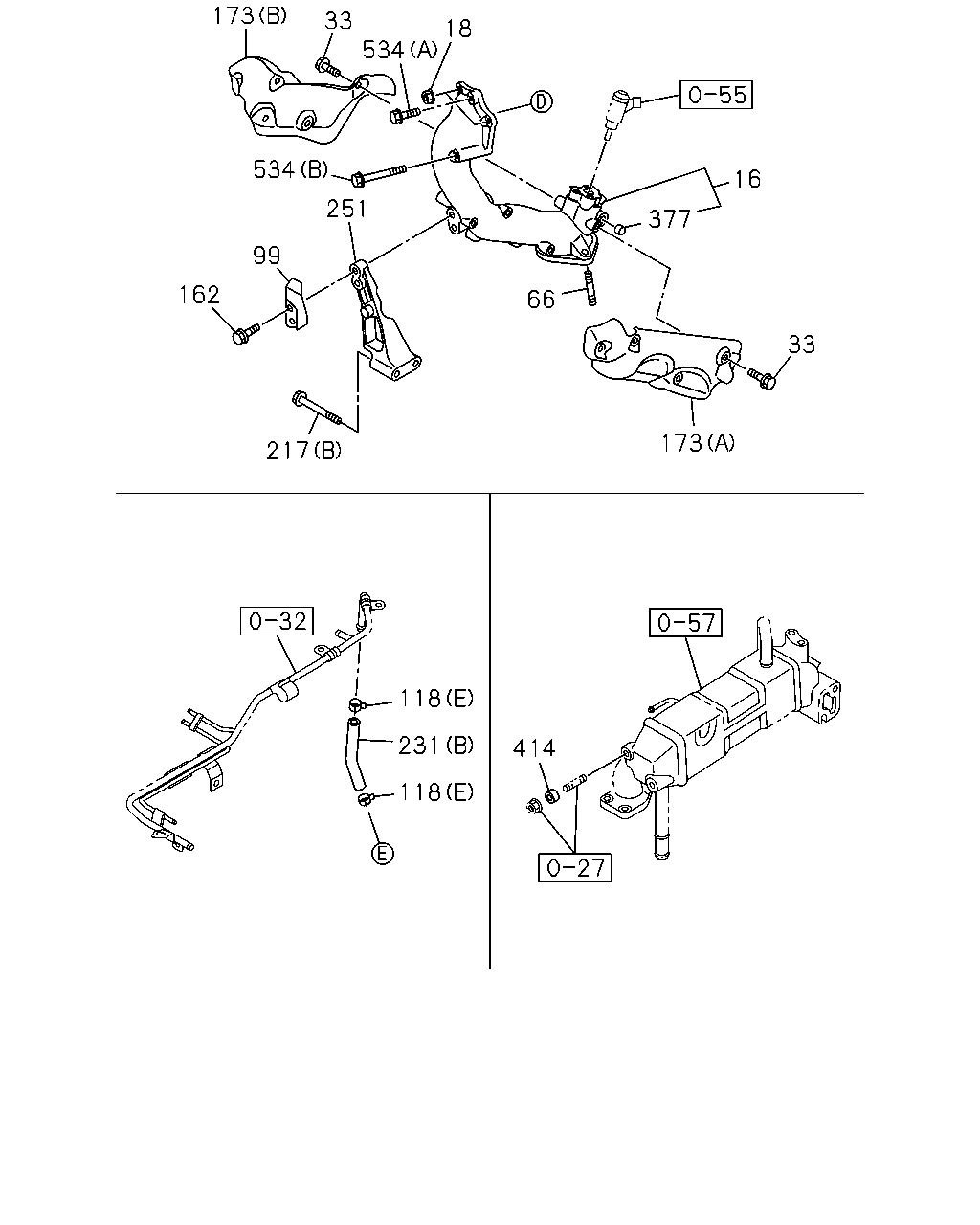

414 118 231 118 173 33 217 99 162 251 534 66 377 16 534 18 33 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	03.609 ADAPTER; EXH PIPE	8-98074-916-2	01	1	1412-
18	03.613 NUT; EXH PIPE 03.342 M10 FLANGE	8-97309-942-0	02	1	1412-
33	03.342 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	18	1	1412-
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1412-
99	03.602 PROTECTOR; HEAT	8-98164-718-1	01	1	1412-
118	03.342 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	1412-
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	03	1	1412-
118	03.342 CLIP; WATER HOSE 01.240 (C) ID=16	8-94392-924-0	01	1	1412-
118	03.342 CLIP; WATER HOSE 03.278 (F) ID=22	8-97359-141-0	02	1	1412-
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=14.2	8-97375-636-0	02	1	1412-
118	03.342 CLIP; WATER HOSE (D) ID=22	8-98192-446-0	04	1	1412-
162	03.613 BOLT; ADAPTER M10X40	8-98052-668-0	02	1	1412-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98074-920-1	01	1	1412-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98257-314-0	01	1	1412-
217	03.417 BOLT; BRKT 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	1412-
217	03.417 BOLT; BRKT 03.706 (B) M10X70 FLANGE	0-28051-070-0	02	1	1412-
217	03.417 BOLT; BRKT 03.670 (C) M8X18 FLANGE	8-97378-076-0	01	1	1412-
217	03.417 BOLT; BRKT (D) M8X28 FLANGE	8-98043-528-0	01	1	1412-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (A)	8-98110-604-2	01	1	1412-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-98170-128-0	01	1	1412-
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	1412-
377	03.342 PLUG; TAPER 00.253 OD=18	5-11219-008-0	02	1	1412-
414	03.602 SPACER	8-98143-884-0	01	1	1412-
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.604 (A) M10X30 FLANGE	8-98032-158-0	02	1	1412-
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE (B) M10X80 FLANGE	8-98112-905-0	01	1	1412-

117 115 118 137 138 118 118 231 117 116 117 116 119 118 118 118 488 488 459 118 485 118 459 118 21 118 488 118 485 118 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	03.358 BOLT; PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1412-
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98074-760-1	01	1	1412-
116	03.342 BOLT; WATER PIPE 01.428 M6X25 HEX SOCKET	0-58330-625-0	04	1	1412-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=20.0	8-98113-762-0	01	1	1412-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98125-891-2	02	1	1412-
118	03.342 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	1412-
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	03	1	1412-
118	03.342 CLIP; WATER HOSE 01.240 (C) ID=16	8-94392-924-0	01	1	1412-
118	03.342 CLIP; WATER HOSE 03.278 (F) ID=22	8-97359-141-0	02	1	1412-
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=14.2	8-97375-636-0	02	1	1412-
118	03.342 CLIP; WATER HOSE (D) ID=22	8-98192-446-0	04	1	1412-
119	03.342 HOSE; WATER,TURBOCHARGER	8-98133-089-0	01	1	1412-
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98089-694-2	01	1	1412-
138	03.342 BOLT; EYE,WATER PIPE 01.531 M14X33 FLANGE	1-09675-088-0	01	1	1412-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (A)	8-98110-604-2	01	1	1412-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-98170-128-0	01	1	1412-
459	03.341 HOSE; WATER (A)	8-98134-711-3	01	1	1412-
459	03.341 HOSE; WATER (B)	8-98134-712-2	01	1	1412-
485	01.097 PIPE; WATER EGR (A)	8-98082-424-1	01	1	1412-
485	01.097 PIPE; WATER EGR (B)	8-98108-815-1	01	1	1412-
488	03.163 HOSE; RUBBER (B)	8-98108-814-4	01	1	1412-
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1412-
488	03.163 HOSE; RUBBER (A)	8-98192-304-0	01	1	1412-

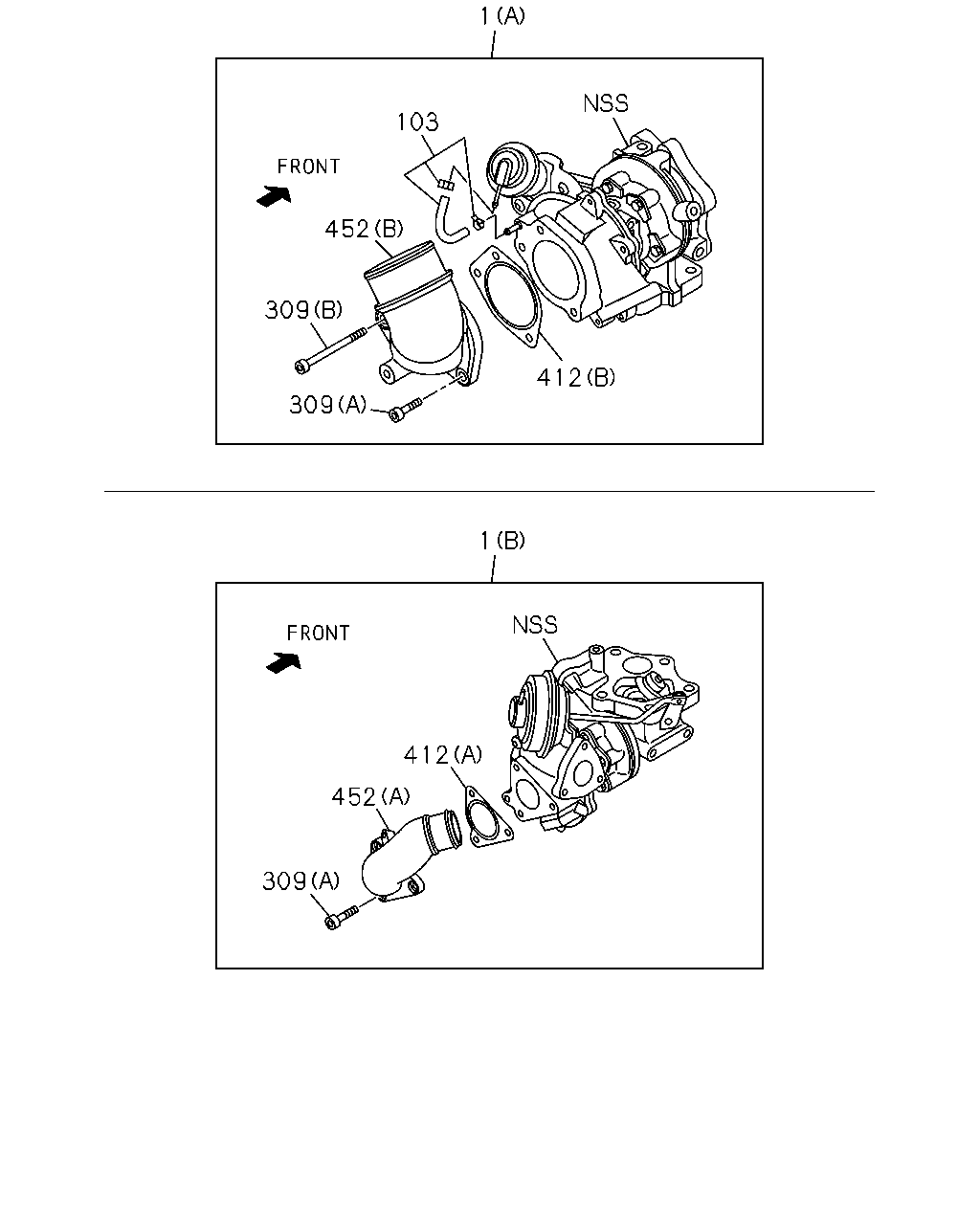

1 103 452 309 309 412 1 452 309 412

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.342 TURBOCHARGER ASM (A)	8-98253-769-1	01	1	1412-
1	03.342 TURBOCHARGER ASM (B)	8-98253-770-0	01	1	1412-
103	03.374 HOSE; TURBOCHARGER	8-98177-794-0	01	1	1412-
309	03.342 BOLT; TURBOCHARGER 00.349 (A) M8X25 HEX SOCKET	0-58330-825-0	05	1	1412-
309	03.342 BOLT; TURBOCHARGER 03.604 (C) M10X30 FLANGE	8-98032-158-0	03	1	1412-
309	03.342 BOLT; TURBOCHARGER (D) M10X80 FLANGE	8-98112-905-0	02	1	1412-
309	03.342 BOLT; TURBOCHARGER (B)	8-98283-882-0	01	1	1412-
412	03.342 GASKET; TURBOCHAGER (A)	8-98106-170-1	01	1	1412-
412	03.342 GASKET; TURBOCHAGER (B)	8-98106-880-1	01	1	1412-
452	03.342 DUCT; AIR (A)	8-98106-169-0	01	1	1412-
452	03.342 DUCT; AIR (B)	8-98256-898-1	01	1	1412-

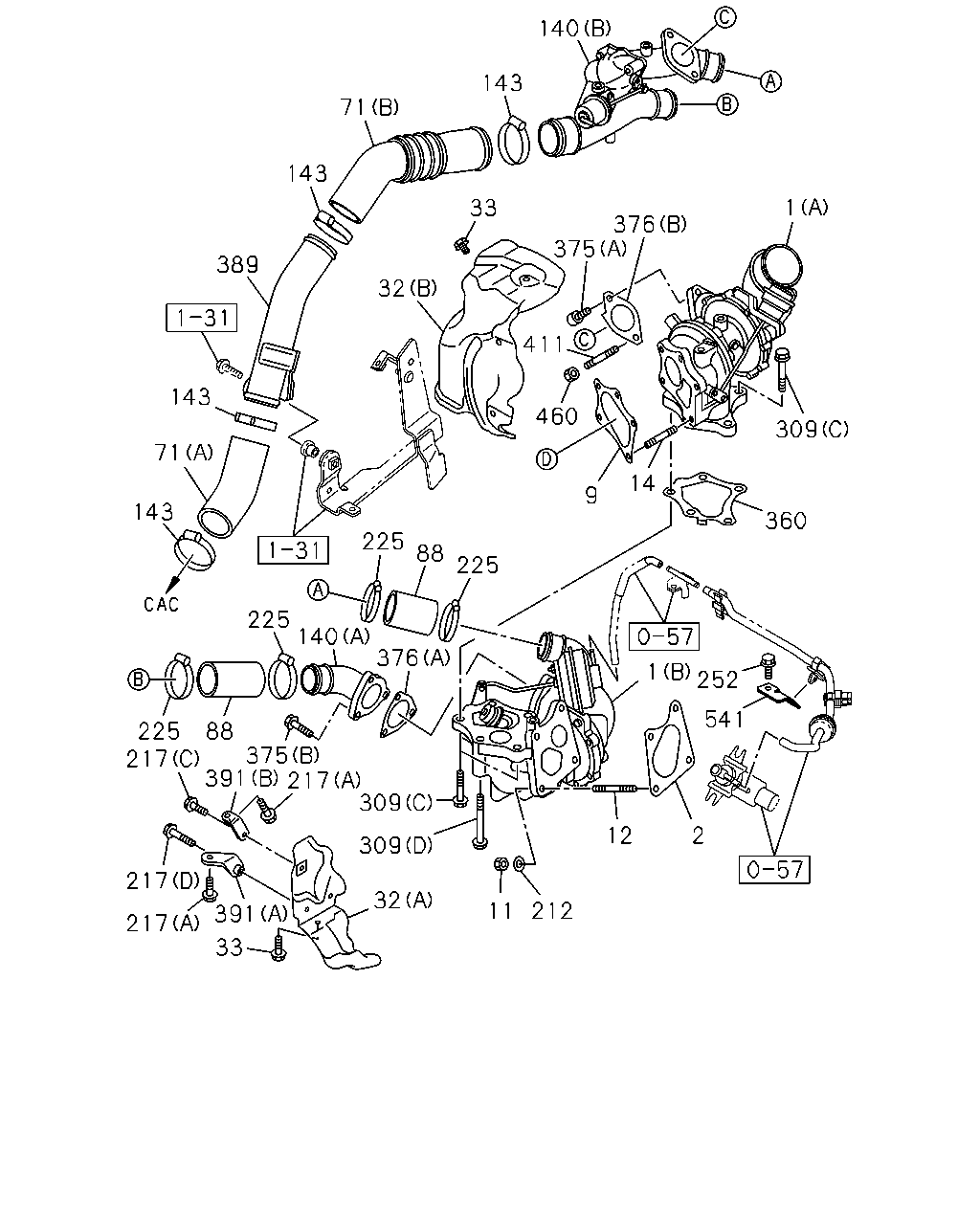

2 12 212 11 32 309 391 33 217 391 217 217 309 375 88 225 217 140 376 225 541 1 252 225 88 225 360 309 14 9 460 411 375 376 1 140 143 33 32 71 143 389 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.342 TURBOCHARGER ASM (A)	8-98253-769-1	01	1	1412-
1	03.342 TURBOCHARGER ASM (B)	8-98253-770-0	01	1	1412-
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98261-574-0	01	1	1412-
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98090-010-0	01	1	1412-
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	1412-
12	03.342 STUD; TURBOCHARGER M10X28.5 L=41.5	8-97378-063-0	04	1	1412-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M10X28.5 L=41.5	8-97378-063-0	02	1	1412-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98074-919-1	01	1	1412-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98257-312-0	01	1	1412-
33	03.342 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	18	1	1412-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98188-385-3	01	1	1412-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98188-388-2	01	1	1412-
88	03.417 HOSE; CONN,INL PIPE	8-98257-711-0	02	1	1412-
140	03.417 PIPE; AIR PIPE (B)	8-98111-808-4	01	1	1412-
140	03.417 PIPE; AIR PIPE (A)	8-98237-772-0	01	1	1412-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=60-65	8-98096-418-0	04	1	1412-
212	03.613 WASHER; PL,TURBOCHARGER ID=10.5	5-09500-013-0	04	1	1412-
217	03.417 BOLT; BRKT 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	1412-
217	03.417 BOLT; BRKT 03.706 (B) M10X70 FLANGE	0-28051-070-0	02	1	1412-
217	03.417 BOLT; BRKT 03.670 (C) M8X18 FLANGE	8-97378-076-0	01	1	1412-
217	03.417 BOLT; BRKT (D) M8X28 FLANGE	8-98043-528-0	01	1	1412-
225	03.616 CLIP; CONN HOSE 01.166 ID=44-60	8-94175-940-0	04	1	1412-
252	03.417 BOLT; BRKT 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1412-
309	03.342 BOLT; TURBOCHARGER 00.349 (A) M8X25 HEX SOCKET	0-58330-825-0	05	1	1412-
309	03.342 BOLT; TURBOCHARGER 03.604 (C) M10X30 FLANGE	8-98032-158-0	03	1	1412-
309	03.342 BOLT; TURBOCHARGER (D) M10X80 FLANGE	8-98112-905-0	02	1	1412-
309	03.342 BOLT; TURBOCHARGER (B)	8-98283-882-0	01	1	1412-
360	03.342 GASKET; ADAPTER TO TURBOCHARGER	8-98261-576-0	01	1	1412-
375	03.342 BOLT; FLANGE 03.275 (A) M8X25 FLANGE	0-28050-825-0	01	1	1412-
375	03.342 BOLT; FLANGE 01.428 (B) M6X25 HEX SOCKET	0-58330-625-0	03	1	1412-
376	03.342 GASKET; FLANGE CONNECTOR (A)	8-98089-661-0	01	1	1412-
376	03.342 GASKET; FLANGE CONNECTOR (B)	8-98124-947-1	01	1	1412-
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98111-209-0	01	1	1412-
391	03.342 BRACKET; WATER PIPE (A)	8-98074-922-2	01	1	1412-
391	03.342 BRACKET; WATER PIPE (B)	8-98162-908-2	01	1	1412-
411	03.342 STUD; TURBOCHAGER 03.275 M8X25 L=41	0-40210-825-0	01	1	1412-
460	03.374 NUT; PIPE 06.164 M8 FLANGE	5-09440-010-0	01	1	1412-
541	03.616 BRACKET; HOSE	8-98228-322-0	01	1	1412-
