0-32 — WATER PIPING; ENGINE (#156164) — 22 parça

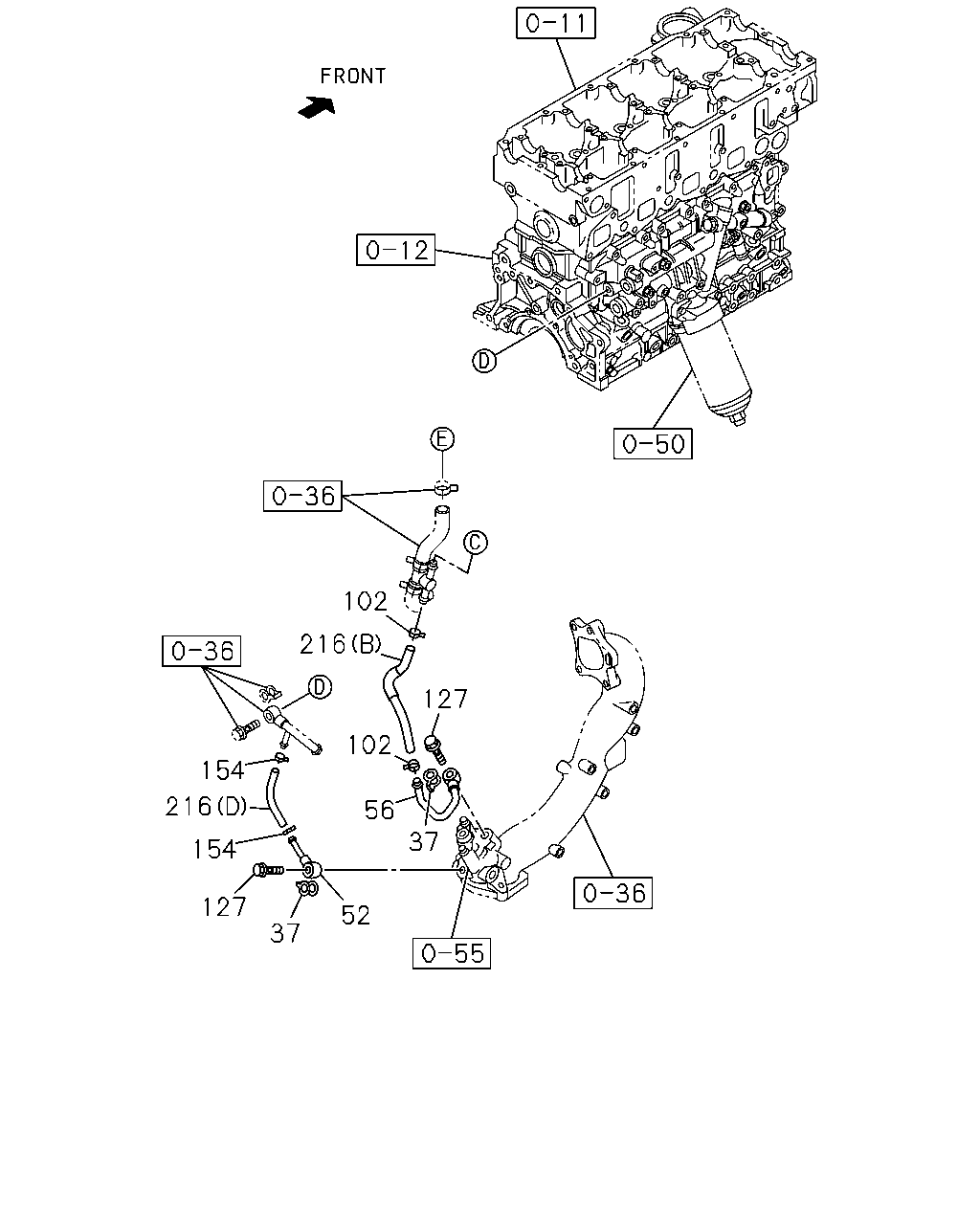

102 216 154 102 56 127 37 52 37 127 154 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=20.0	8-98113-762-0	02	1	1412-
52	01.159 PIPE; WATER FEED	8-98074-765-0	01	1	1412-
56	01.242 PIPE; WATER OUTLET	8-98133-067-1	01	1	1412-
102	01.252 CLIP; WATER HOSE 03.278 ID=14.2	8-97375-636-0	02	1	1412-
127	03.162 BOLT; EYE M14X27 FLANGE	1-09675-086-0	02	1	1412-
154	01.153 CLIP; WATER HOSE ID=11.5	8-97375-638-0	02	1	1412-
216	01.240 HOSE; WATER 03.341 (D) L=100 SERVICED BY L=3000	0-03657-300-0	01	1	1412-
216	01.240 HOSE; WATER (A)	8-98074-982-0	01	1	1412-
216	01.240 HOSE; WATER (B)	8-98074-984-2	01	1	1412-
216	01.240 HOSE; WATER 03.342 (C)	8-98113-336-0	01	1	1412-

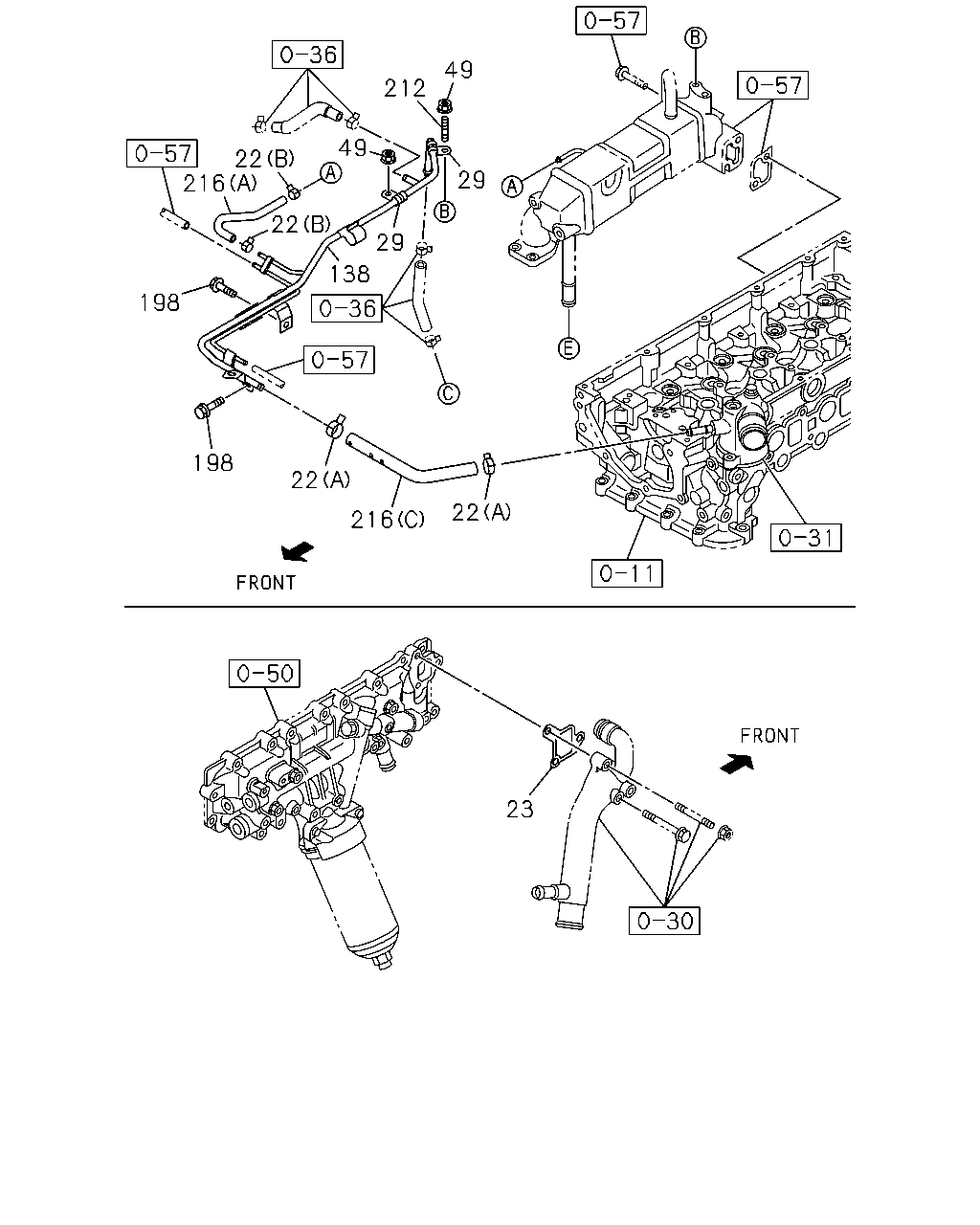

49 212 49 22 216 22 29 29 138 198 198 22 216 22 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	01.153 CLIP; WATER HOSE (A) ID=12.8	8-94367-943-0	02	1	1412-
22	01.153 CLIP; WATER HOSE (B) ID=11	8-97375-639-0	02	1	1412-
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-98075-127-0	01	1	1412-
29	01.166 CLIP; PIPE 01.251	8-98120-917-0	02	1	1412-
49	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	02	1	1412-
138	01.251 PIPE; WATER	8-98228-321-0	01	1	1412-
198	01.242 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1412-
212	01.153 STUD; PIPE 00.206 M6X16 L=25	0-41010-616-0	01	1	1412-
216	01.240 HOSE; WATER 03.341 (D) L=100 SERVICED BY L=3000	0-03657-300-0	01	1	1412-
216	01.240 HOSE; WATER (A)	8-98074-982-0	01	1	1412-
216	01.240 HOSE; WATER (B)	8-98074-984-2	01	1	1412-
216	01.240 HOSE; WATER 03.342 (C)	8-98113-336-0	01	1	1412-
