Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

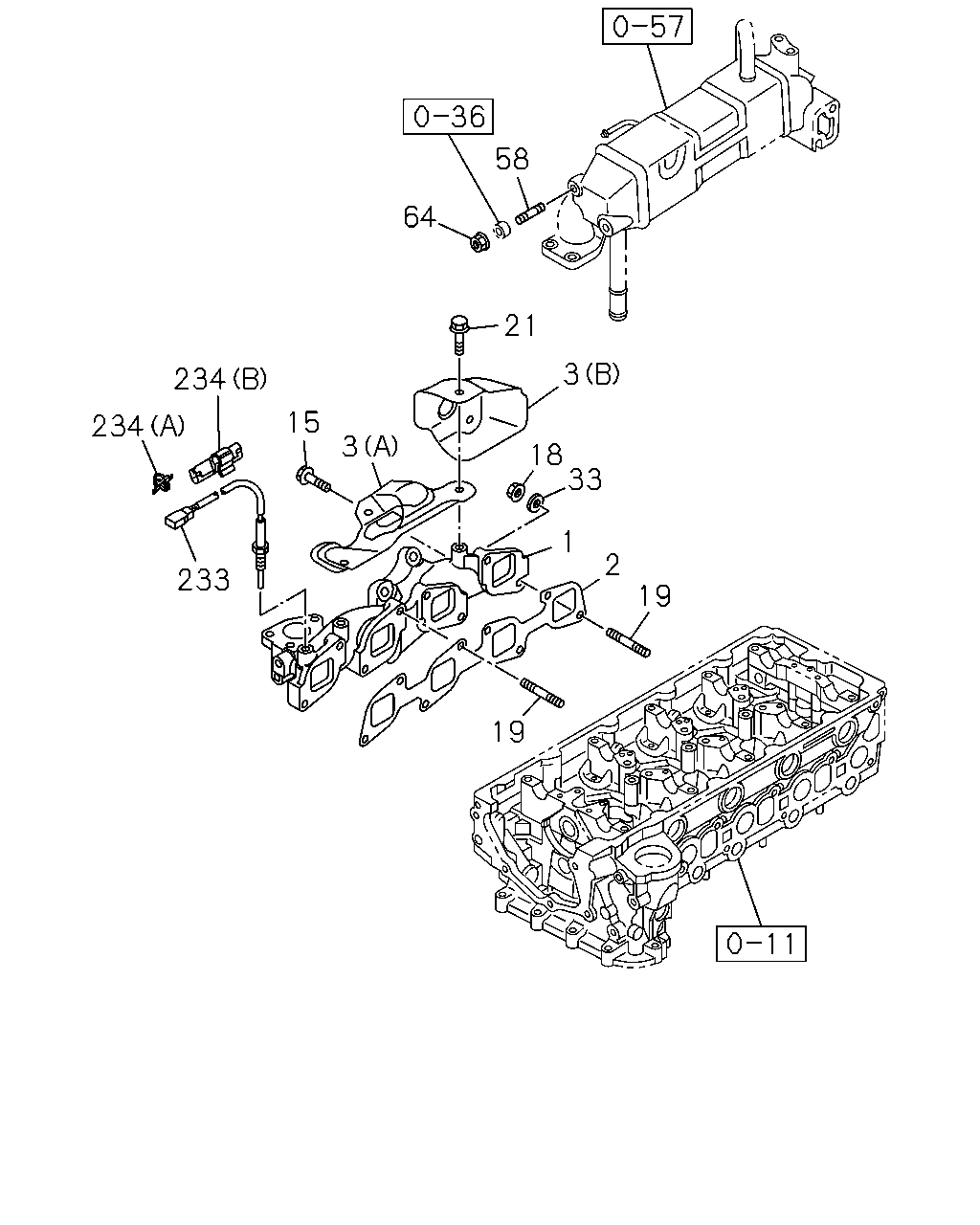

0-27 — EXHAUST MANIFOLD
(#156161) — 14 parça
234
234
233
15
3
64
58
21
3
18
33
1
2
19
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.601 MANIFOLD; EXHAUST
8-98063-282-2
01
1
1412-
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98229-782-0
01
1
1412-
3
03.602 PROTECTOR; HEAT,EXH MANIF
(A)
8-98083-037-0
01
1
1412-
3
03.602 PROTECTOR; HEAT,EXH MANIF
(B)
8-98089-552-0
01
1
1412-
15
03.604 BOLT; EXH MANIF
M10X30 FLANGE
8-98032-158-0
06
1
1412-
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
02
1
1412-
19
03.604 STUD; MANIF TO CYL HD
03.275 M10X33 L=48
8-97307-075-2
02
1
1412-
21
03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE
0-28050-812-0
04
1
1412-
33
03.604 WASHER; EXH MANIF
03.613 ID=10.5
5-09500-013-0
08
1
1412-
58
03.403 STUD; HEAT PROTECTOR
03.601 M8X25 L=36
8-97378-062-0
01
1
1412-
64
03.604 NUT; HEAT PROTECTOR
03.613 M8 FLANGE
8-97161-607-0
01
1
1412-
233
01.150 SENSOR; EXH
03.670
8-98030-955-0
01
1
1412-
234
00.413 CLIP; HARNESS
03.682 (A) ID=7 L=7.5
8-97369-561-0
01
1
1412-
234
00.413 CLIP; HARNESS
02.559 (B) ID=10.2 & 5.2
8-98117-177-0
01
1
1412-
