0-14 — CAMSHAFT AND VALVE (#156156) — 44 parça

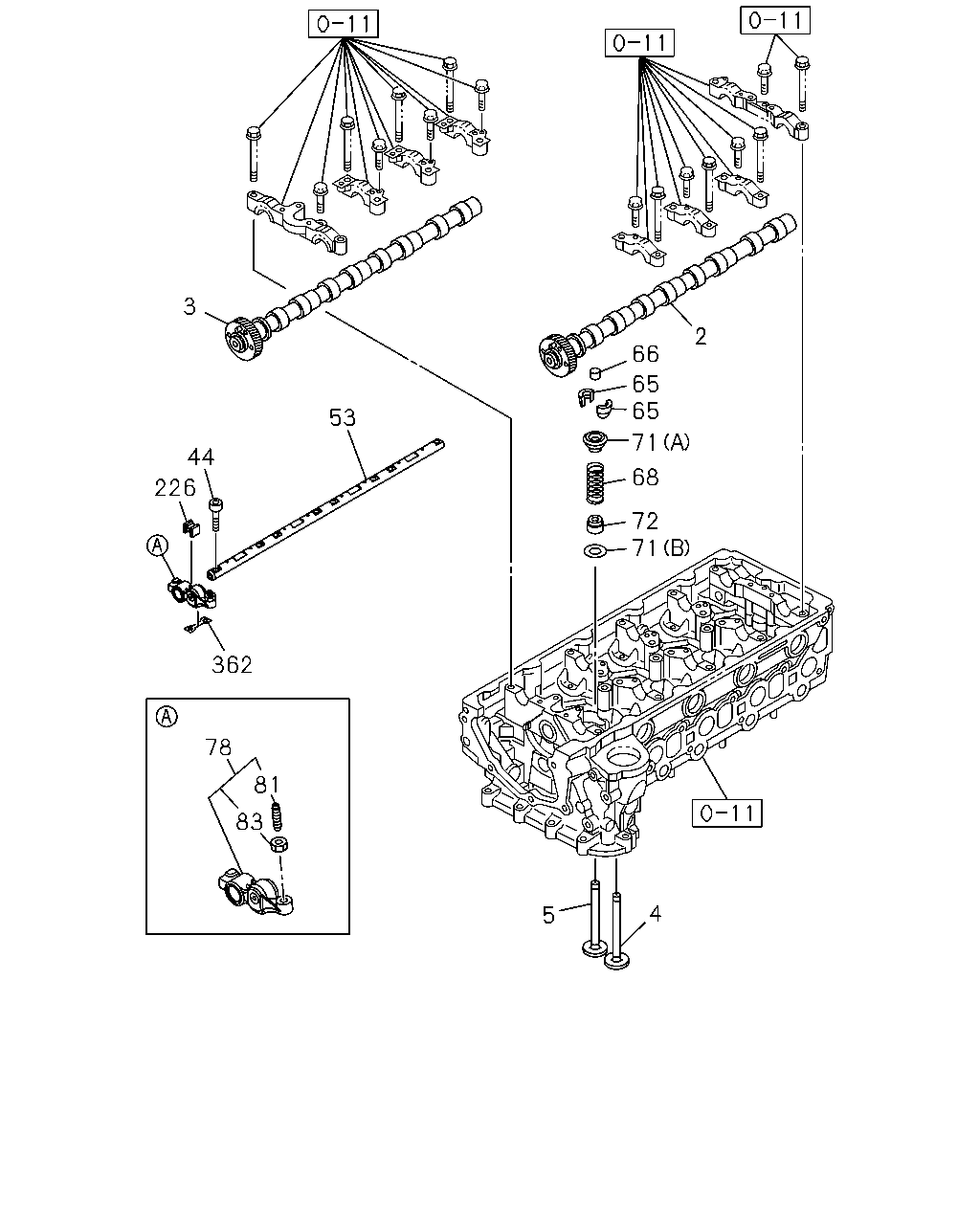

çizim 467015
2 66 65 65 71 68 72 71 53 3 44 226 362 78 81 83 4 5
BalonParca AdiParca NoAdetTipApplied Date
2 00.519 CAMSHAFT; INL 8-98205-037-1 01 1 1412-
3 00.519 CAMSHAFT; EXH 8-98205-041-1 01 1 1412-
4 00.296 VALVE; INL 8-98016-973-0 08 1 1412-
5 00.297 VALVE; EXH 8-98016-974-1 08 1 1412-
44 00.738 BOLT
M6X25 HEX SOCKET 		8-98224-626-0 14 1 1412-
53 00.353 SHAFT; ROCKER ARM 8-98271-105-0 02 1 1412-
65 00.310 COLLAR; SPLIT 8-94239-501-0 32 1 1412-
66 00.303 CAP; VLV STEM END 8-98147-945-0 16 1 1412-
68 00.303 SPRING; VLV
INLET H=49 NATURAL 		8-97311-669-0 08 1 1412-
68 00.303 SPRING; VLV
EXHAUST H=57.5 MARK YELLOW 		8-97311-675-1 08 1 1412-
71 00.309 SEAT; SPR
(B) OD=31 		8-97144-584-0 16 1 1412-
71 00.309 SEAT; SPR
(A) 		8-98017-067-0 16 1 1412-
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97328-647-0 16 1 1412-
78 00.333 ARM; ROCKER 8-98236-198-0 16 1 1412-
81 00.429 SCREW; ADJ,ROCKER ARM
M8 L=22 		8-98025-497-0 16 1 1412-
83 00.787 NUT; ADJ SCREW,LK
00.429 M8 FLANGE 		9-09844-574-0 16 1 1412-
226 00.303 SPRING; CMPR,ROCKER ARM 8-98204-889-0 08 1 1412-
362 00.662 PLATE 8-98225-381-1 06 1 1412-

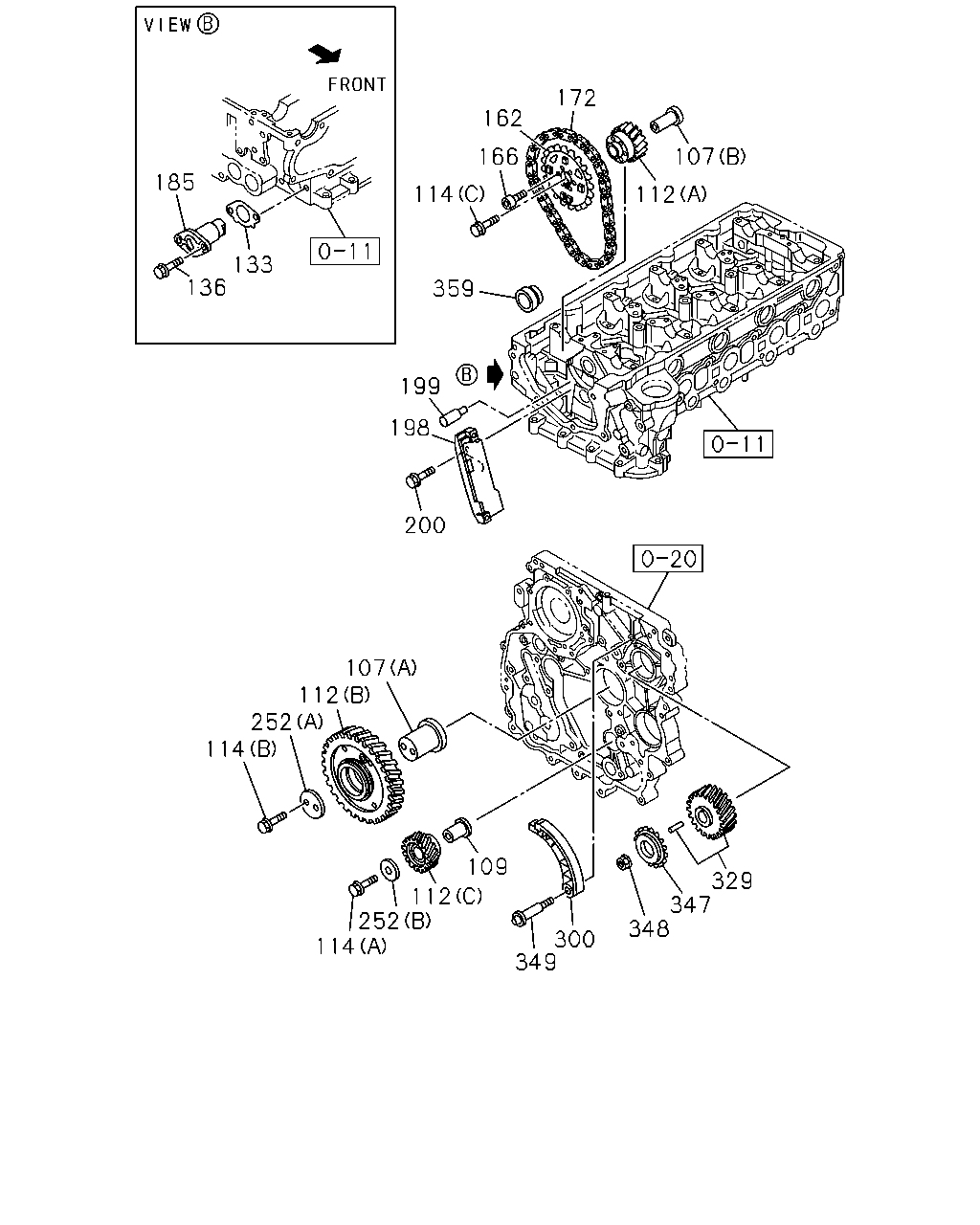

çizim 467016
185 133 136 172 162 166 114 359 199 198 200 107 112 107 112 252 114 109 112 252 114 349 329 347 348 300
BalonParca AdiParca NoAdetTipApplied Date
107 00.724 SHAFT; IDLE GEAR
(A) 		8-97312-315-2 01 1 1412-
107 00.724 SHAFT; IDLE GEAR
(B) 		8-98201-549-0 01 1 1412-
109 00.724 SHAFT; IDLE GEAR 8-97312-319-1 01 1 1412-
112 00.724 GEAR; IDLE
(C) Z=34 		8-97381-518-0 01 1 1412-
112 00.724 GEAR; IDLE
(A) Z=35 		8-97381-520-3 01 1 1412-
112 00.724 GEAR; IDLE
(B) Z=80 		8-98232-105-1 01 1 1412-
114 00.724 BOLT; IDLE GEAR
(B) M10X60 FLANGE 		0-28061-060-0 02 1 1412-
114 00.724 BOLT; IDLE GEAR
(A) M12X60 FLANGE 		0-28161-260-0 01 1 1412-
114 00.724 BOLT; IDLE GEAR
05.506 (C) M12X75 FLANGE 		8-98176-233-0 01 1 1412-
133 00.356 GASKET; CHAIN TENSIONER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97312-336-0 01 1 1412-
136 00.724 BOLT; TENSIONER
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1412-
162 00.736 SPROCKET; IDLE 8-98193-179-0 01 1 1412-
166 00.724 BOLT; SPROCKET TO LAYSHAFT
M6X16 HEX SOCKET 		0-58330-616-0 06 1 1412-
172 00.724 CHAIN; TIMING,CM/SHF 8-97945-067-0 01 1 1412-
185 00.724 TENSIONER; CHAIN 8-98039-754-1 01 1 1412-
198 00.724 GUIDE; TIMING CHAIN 8-97945-069-0 01 1 1412-
199 00.724 JET; OIL,TIMING CHAIN 8-97356-061-1 01 1 1412-
200 00.724 BOLT; CHAIN GUIDE,LWR
01.064 M8X20 		1-09070-120-1 02 1 1412-
252 00.724 FLANGE; IDLE SHAFT
(A) 		8-98016-892-0 01 1 1412-
252 00.724 FLANGE; IDLE SHAFT
(B) 		8-98016-893-0 01 1 1412-
300 00.724 LEVER; TENSION,TIMING CHAIN 8-97945-070-0 01 1 1412-
329 00.724 GEAR; INJ PUMP
Z=44 		8-98017-539-1 01 1 1412-
347 00.429 SPROCKET; I/PUMP 8-98210-266-0 01 1 1412-
348 00.429 NUT; SPROCKET
M14 FLANGE 		8-97312-423-2 01 1 1412-
349 00.429 PIVOT; CHAIN LEVER 8-97312-328-0 01 1 1412-
359 02.530 SLEEVE; GEAR 8-98201-554-0 01 1 1412-
