Isuzu WW
▶
TRUCKS
▶
NJR
▶
51610 - NJR RHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

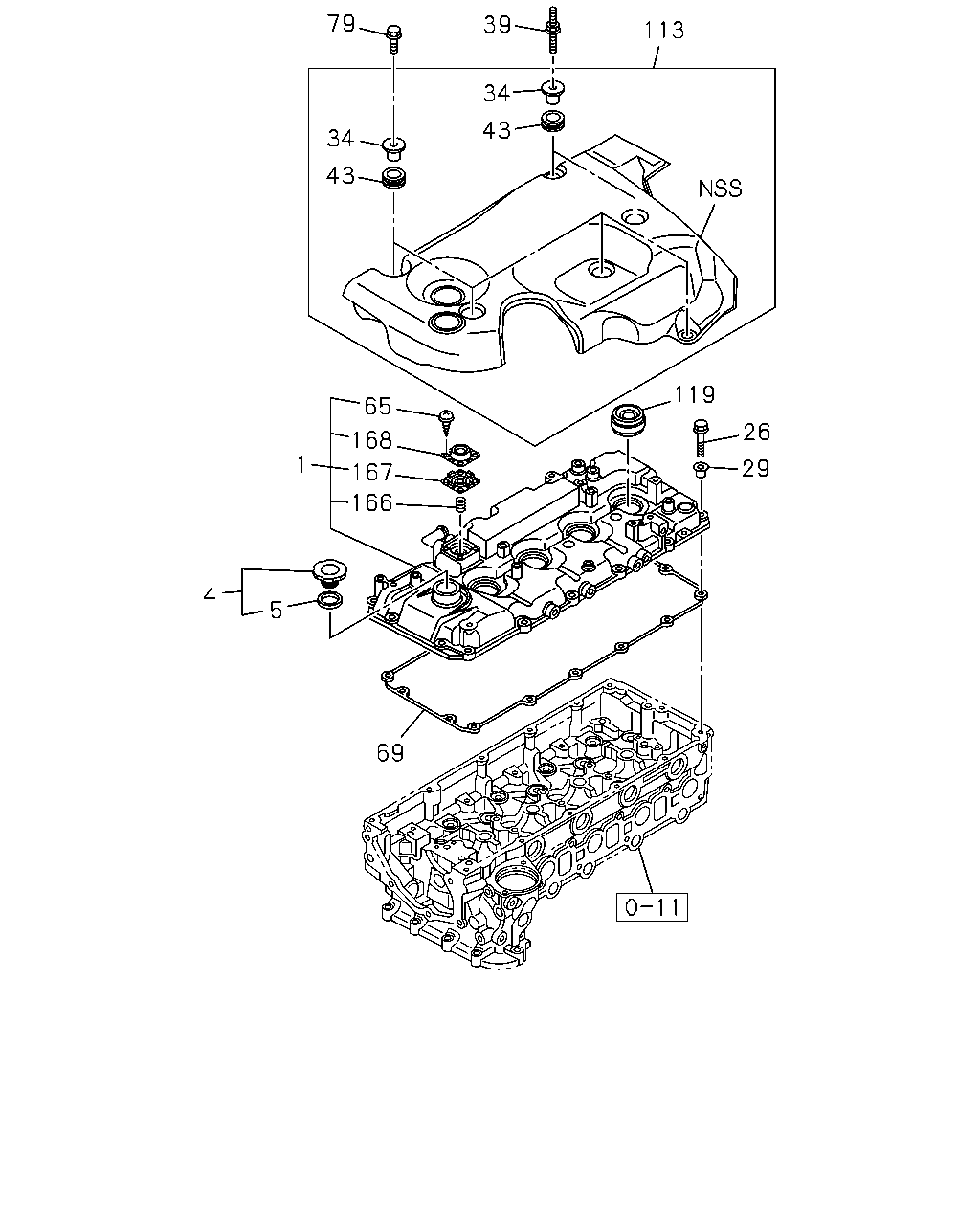

0-10 — CYLINDER HEAD COVER
(#156152) — 16 parça
113
39
79
34
43
34
43
119
26
29
69
5
4
1
65
168
167
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.386 COVER; CYL HD
8-98275-043-2
01
1
1412-
4
01.758 CAP; OIL FILLER
8-94133-207-5
01
1
1412-
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40
8-94123-623-1
01
1
1412-
26
08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE
0-28650-630-0
15
1
1412-
29
00.413 RUBBER; MTG,HD COVER
00.206
8-97168-200-1
15
1
1412-
34
00.413 BUSHING; MTG RUBBER,CYL HD COVER
8-98036-120-0
06
1
1412-
39
00.413 STUD; COVER,HD
M8X28,M8X28 L=63
8-98056-160-0
02
1
1412-
43
00.413 RUBBER; MTG,HD COVER,OUTER
8-98036-119-0
06
1
1412-
65
00.413 SCREW; ADAPTER
02.361 M5X10 W/LK WASHER
0-36220-510-0
04
1
1412-
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98181-200-0
01
1
1412-
79
00.293 BOLT; COVER
04.338 M8X20 FLANGE
0-28050-820-0
04
1
1412-
113
00.386 COVER; CYL HEAD COVER
8-98257-602-1
01
1
1412-
119
00.386 COVER; SEAL,NOZZLE
8-98037-543-0
04
1
1412-
166
00.283 SPRING; VENTILATOR
00.423
8-97365-998-0
01
1
1412-
167
00.283 DIAPHRAGM; VENTILATOR
8-98003-164-0
01
1
1412-
168
00.283 COVER; VENTILATOR
00.269
8-97365-992-0
01
1
1412-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
