◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51609 - NHR RHD EURO5 WB 2500MM ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#156149) — 21 parça
çizim 467212
1 1 226 7 6 6 226 7
BalonParca AdiParca NoAdetTipApplied Date
1 09.650 RADIO 8-98270-738-0 01 1 1502-
6 09.645 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 1502-
7 09.650 SCREW; RADIO
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1502-
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1502-
çizim 467420
222 222 116 171 5 48 49 117 221 221 222
BalonParca AdiParca NoAdetTipApplied Date
5 09.647 HARNESS; EXT 8-97131-327-0 02 1 1502-
48 09.650 SPEAKER; AUDIO 8-97317-001-1 02 1 1502-
49 09.655 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1502-
116 16.165 PANEL; SPEAKER,FRT DOOR 8-97852-324-3 01 1 1502-
116 16.165 PANEL; SPEAKER,FRT DOOR 8-97852-325-3 01 1 1502-
117 16.165 SCREW; SPEAKER PANEL
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 1502-
171 09.650 COVER; SPEAKER 8-97852-331-4 02 1 1502-
221 16.165 SEAL; SPEAKER PANEL
(A) 		8-97852-327-5 02 1 1502-
221 16.165 SEAL; SPEAKER PANEL
(B) 		8-97852-601-2 02 1 1502-
222 16.165 GROMMET; SCREW,SPEAKER PANEL
09.264 (A) 		1-09987-144-0 02 1 1502-
222 16.165 GROMMET; SCREW,SPEAKER PANEL
01.269 (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1502-

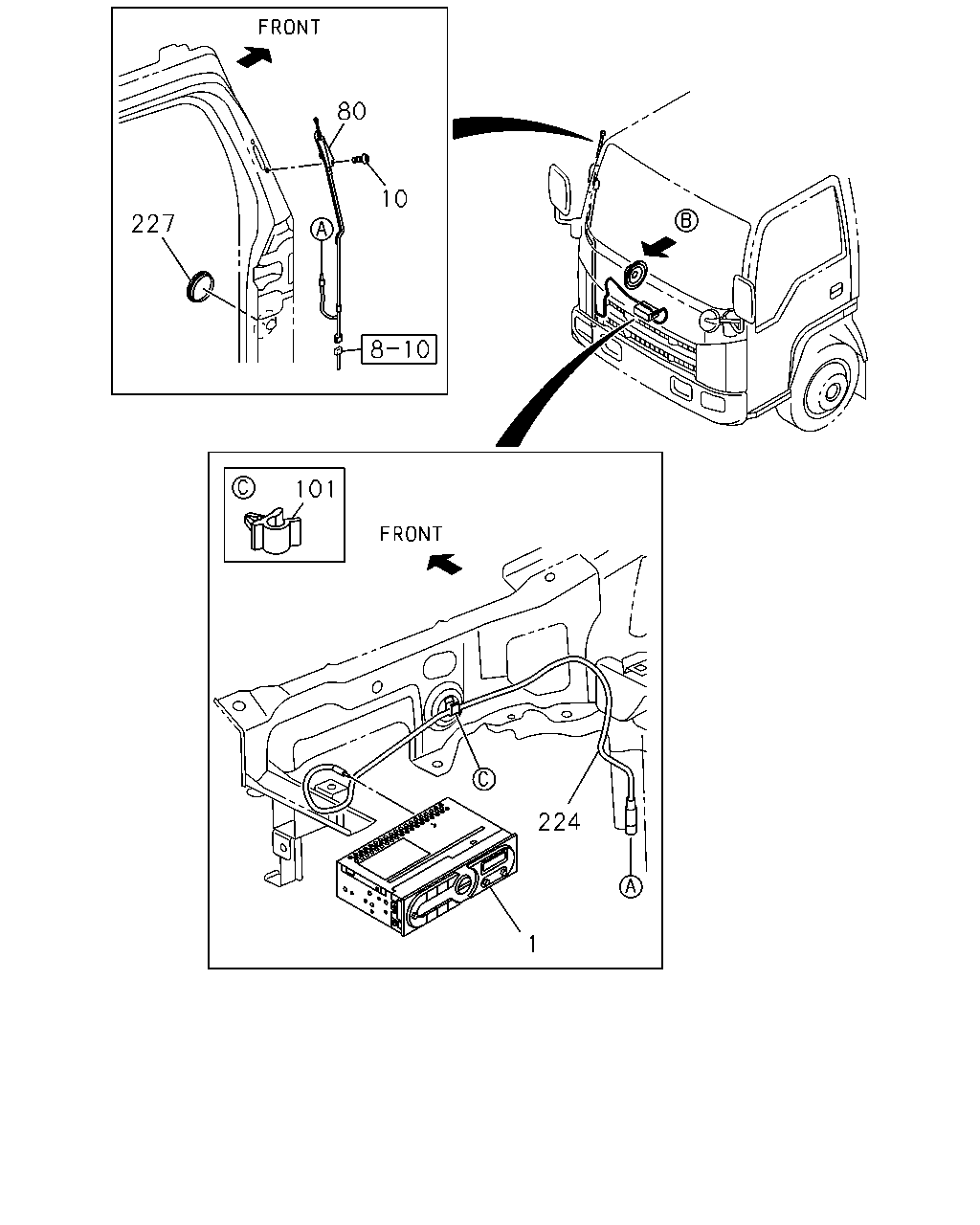

çizim 467524
80 10 227 101 1 224
BalonParca AdiParca NoAdetTipApplied Date
1 09.650 RADIO 8-98270-738-0 01 1 1502-
10 09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 1502-
80 09.645 ANTENNA 8-98210-873-1 01 1 1502-
101 09.649 CLIP; FEEDER TO BRKT
09.647 ID=4.8 		8-94128-483-0 01 1 1502-
224 09.647 CABLE; EXT,FEEDER 8-98072-505-0 01 1 1502-
227 09.647 PROTECTOR; EDGE
02.559 ID=47 		8-94279-735-0 01 1 1502-
