Isuzu WW
▶
TRUCKS
▶
NHR
▶
51609 - NHR RHD EURO5 WB 2500MM
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶

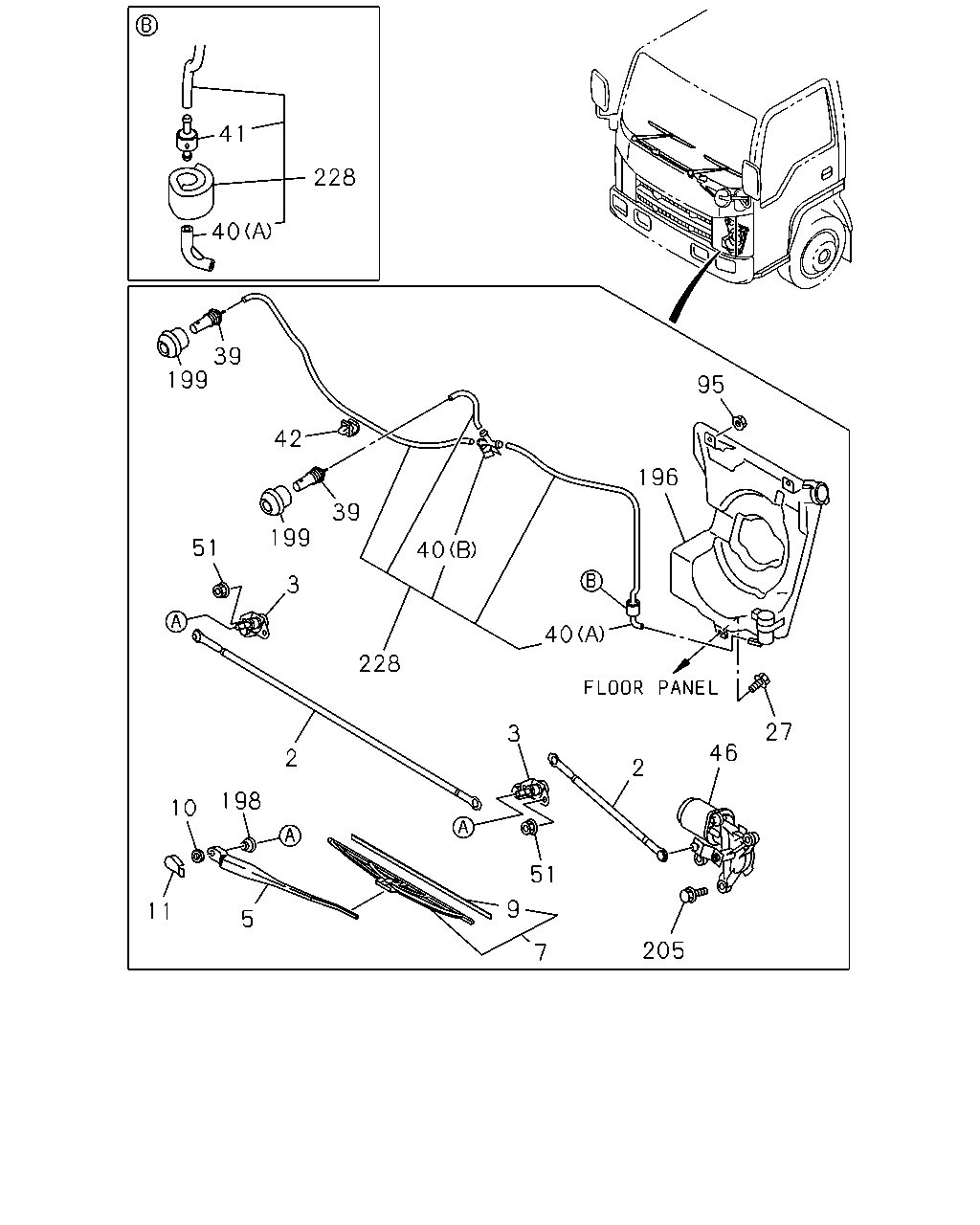

8-80 — WINDSHIELD WIPER AND WASHER
(#156148) — 34 parça
◀
[880A] NO.1 (24 parça)
[880A] NO.2 (10 parça)
▶
41
40
228
39
199
42
39
199
51
3
228
2
3
2
51
9
7
198
10
11
5
205
46
40
27
196
95
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
16.063 LINK; FRT WIPER
L=424 W/CAP
8-97855-149-0
01
1
1502-
2
16.063 LINK; FRT WIPER
L=580 W/CAP
8-97855-153-0
01
1
1502-
3
16.063 PIVOT ASM; FRT WIPER
PASSENGER SIDE
8-98053-773-0
01
1
1502-
3
16.063 PIVOT ASM; FRT WIPER
DRIVER SIDE
8-98053-774-0
01
1
1502-
5
16.063 ARM; WIPER
DRIVER SIDE
8-97223-296-0
01
1
1502-
5
16.063 ARM; WIPER
PASSENGER SIDE
8-97223-297-0
01
1
1502-
7
16.062 BLADE; WIPER
8-97137-468-2
02
1
1502-
9
16.062 RUBBER; FRT WIPER BLADE
L=475
8-97142-093-1
02
1
1502-
10
16.063 NUT; WIPER ARM TO WIPER PIVOT
02.334 M8
0-91110-508-0
02
1
1502-
11
16.063 COVER; WIPER ARM
BLACK
8-94282-851-0
02
1
1502-
27
16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER
8-94310-730-0
01
1
1502-
39
16.065 NOZZLE; WINDSHIELD WASHER
8-98029-139-1
02
1
1502-
40
16.065 JOINT; WASHER HOSE
(A)
8-97138-443-0
01
1
1502-
40
16.065 JOINT; WASHER HOSE
(B)
8-97215-337-0
01
1
1502-
41
16.065 VALVE; CHECK,WASHER TANK
8-97061-374-0
01
1
1502-
42
16.065 CLIP; WASHER HOSE
8-94144-956-0
07
1
1502-
46
16.064 MOTOR ASM; FRT WINDSHIELD WIPER
8-98050-445-0
01
1
1502-
51
16.063 NUT; WIPER MOTOR LINK
04.634 M8 FLANGE
8-97581-233-0
04
1
1502-
95
16.065 NUT; WASHER TANK
01.062 M8 FLANGE
0-91180-108-0
02
1
1502-
196
16.065 TANK; WASHER
8-98032-684-0
01
1
1502-
198
16.063 COVER; PIVOT,WIPER
8-98032-683-0
02
1
1502-
199
16.063 COVER; NOZZLE,WIPER
8-98079-030-0
02
1
1502-
205
16.064 BOLT; WIPER MOTOR
10.152 M6X28 W/PL WASHER
8-94148-420-0
03
1
1502-
228
16.065 HOSE ASM; WASHER
8-98032-706-1
01
1
1502-
34
43
30
200
135
200
135
46
196
200
135
48
74
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
16.065 MOTOR ASM; FRT WASHER TANK
8-97855-139-0
01
1
1502-
33
16.064 NUT; MOTOR TO ARM
M8
8-97855-157-0
01
1
1502-
34
16.065 CAP; WASHER TANK
8-98053-761-0
01
1
1502-
43
16.065 RUBBER; GASKET,TANK
10.154
8-94352-050-0
01
1
1502-
46
16.064 MOTOR ASM; FRT WINDSHIELD WIPER
8-98050-445-0
01
1
1502-
48
16.063 ARM; WIPER MOTOR
8-97218-924-0
01
1
1502-
74
16.063 WASHER; ARM TO MOTOR
ID=8
8-97855-158-0
01
1
1502-
135
16.250 RUBBER; CUSHION,WIPER MOTOR
8-97855-159-0
03
1
1502-
196
16.065 TANK; WASHER
8-98032-684-0
01
1
1502-
200
16.064 COLLAR; WIPER MOTOR
8-97855-160-0
03
1
1502-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
