Isuzu WW
▶
TRUCKS
▶
NHR
▶
51609 - NHR RHD EURO5 WB 2500MM
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶
8-75 — CONDENSER
(#156147) — 16 parça
◀

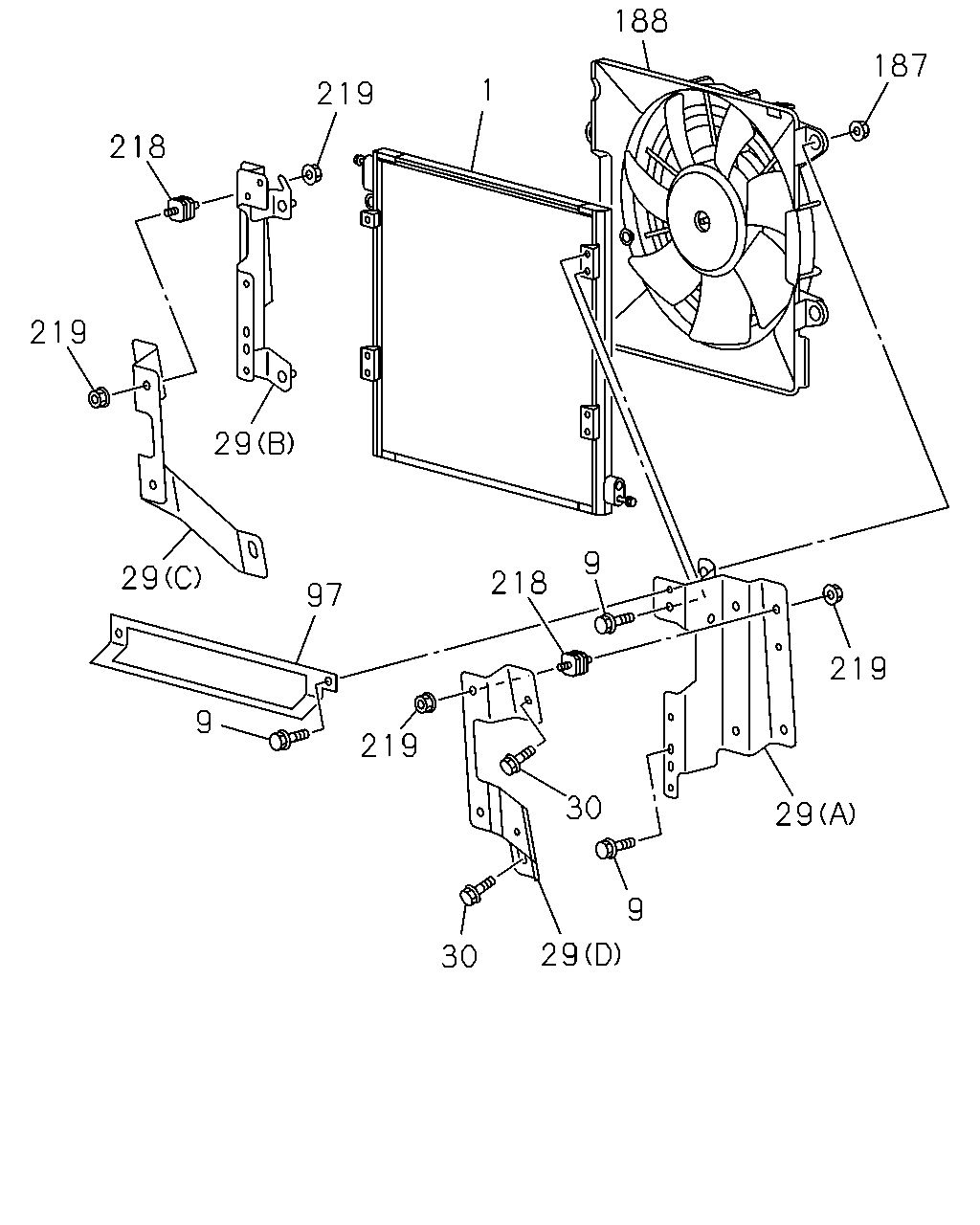

[875A] CONDENSER;AIR CONDITIONER (12 parça)

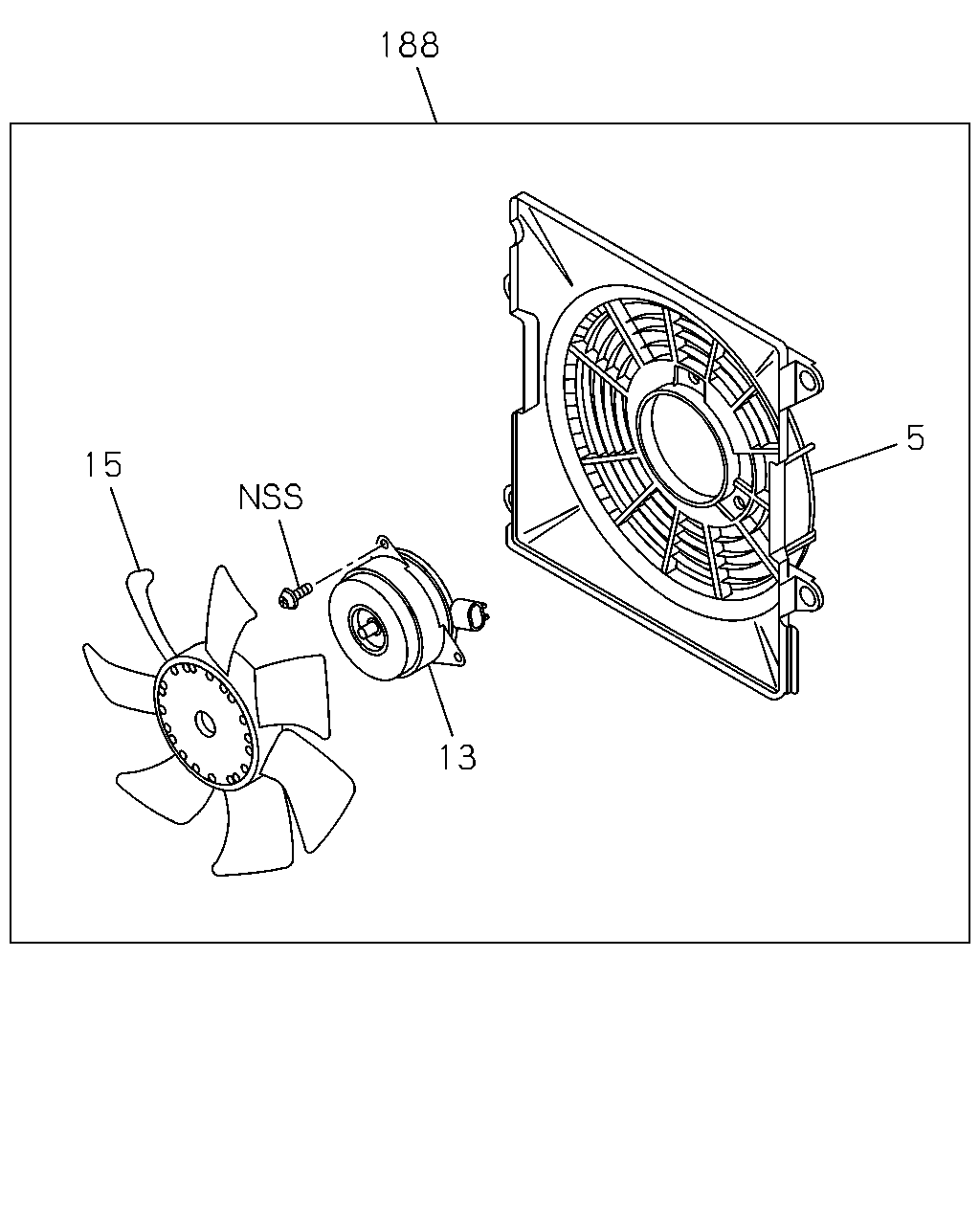

[875A] COMPONENT;BLOWER (4 parça)
▶
187
188
219
218
219
29
97
29
9
219
218
30
30
9
29
29
219
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.190 CONDENSER; A/C
MANUAL TILT CAB<RWZ>
8-98041-884-0
01
1
1502-
9
09.190 BOLT; BRKT
MANUAL TILT CAB<RWZ> M6X14
1-83539-382-0
08
1
1502-
29
09.190 BRACKET; SIDE
MANUAL TILT CAB<RWZ> (A)
8-98041-893-0
01
1
1502-
29
09.190 BRACKET; SIDE
MANUAL TILT CAB<RWZ> (B)
8-98041-895-0
01
1
1502-
29
09.190 BRACKET; SIDE
MANUAL TILT CAB<RWZ> (D)
8-98269-808-0
01
1
1502-
29
09.190 BRACKET; SIDE
MANUAL TILT CAB<RWZ> (C)
8-98276-116-0
01
1
1502-
30
09.190 BOLT; CONDENSER,A/C
MANUAL TILT CAB<RWZ> 01.060 M8X35 FLANGE
0-28650-835-0
04
1
1502-
97
09.190 NET; CONDENSER UNIT
MANUAL TILT CAB<RWZ>
8-98041-900-0
01
1
1502-
187
09.190 NUT; SHROUD
MANUAL TILT CAB<RWZ> M6
1-83539-354-0
04
1
1502-
188
09.215 BLOWER ASM; SHROUD
MANUAL TILT CAB<RWZ>
8-98269-263-1
01
1
1502-
218
09.215 CUSHION; CONDENSER
MANUAL TILT CAB<RWZ>
8-98041-898-0
04
1
1502-
219
09.190 NUT; CUSHION
MANUAL TILT CAB<RWZ> M8
1-83539-319-0
08
1
1502-
13
5
188
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
09.216 SHROUD; FAN MOTOR
MANUAL TILT CAB<RWZ>
8-98152-865-0
01
1
1502-
13
09.215 MOTOR; FAN
MANUAL TILT CAB<RWZ>
8-98269-262-1
01
1
1502-
15
09.216 FAN; MOTOR
MANUAL TILT CAB<RWZ>
8-98152-860-0
01
1
1502-
188
09.215 BLOWER ASM; SHROUD
MANUAL TILT CAB<RWZ>
8-98269-263-1
01
1
1502-
