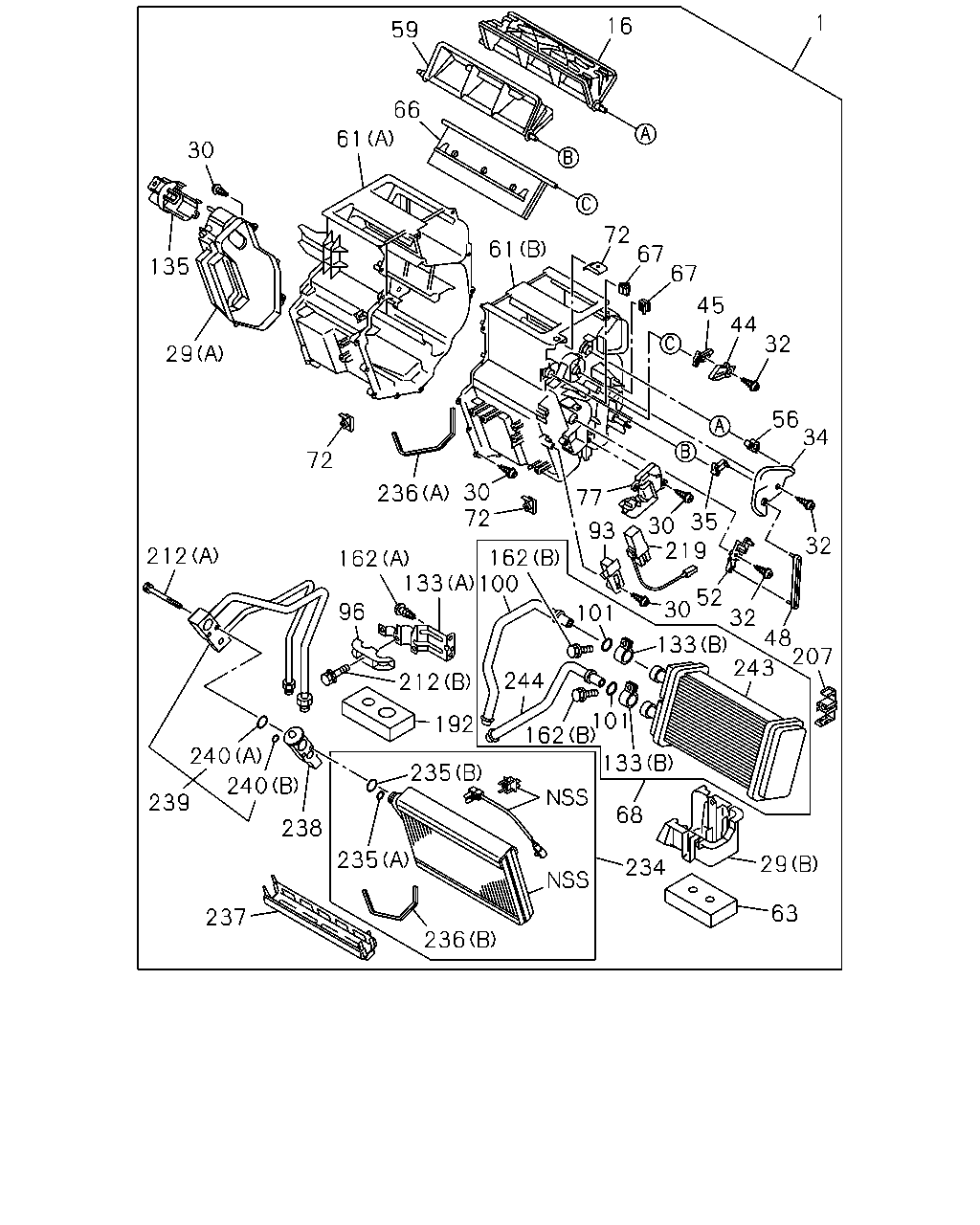

1 |
08.845 HEATER UNIT
|
8-98031-088-4 |
01 |
1 |
1502- |
| |
16 |
09.786 SHUTTER; HTR UNIT,CENTER UPR
|
8-98047-387-0 |
01 |
1 |
1502- |
| |
29 |
08.857 COVER; HTR UNIT
(B)
|
8-98047-714-0 |
01 |
1 |
1502- |
| |
29 |
08.857 COVER; HTR UNIT
(A)
|
8-98074-119-0 |
01 |
1 |
1502- |
| |
30 |
08.845 SCREW; HTR UNIT
08.852
M4X16 TAPPING
|
8-97957-708-0 |
24 |
1 |
1502- |
| |
32 |
08.852 SCREW; HTR UNIT
M4X16
|
8-98047-416-0 |
03 |
1 |
1502- |
| |
34 |
09.786 LEVER; SHUTTER,HTR UNIT
|
8-98047-389-0 |
01 |
1 |
1502- |
| |
35 |
08.852 LEVER; SHUTTER,HTR UNIT
|
8-98047-392-0 |
01 |
1 |
1502- |
| |
44 |
08.852 LEVER; SHUTTER,HTR UNIT
|
8-98047-394-0 |
01 |
1 |
1502- |
| |
45 |
09.786 LEVER; SHUTTER,HTR UNIT
|
8-98047-395-0 |
01 |
1 |
1502- |
| |
48 |
09.786 LEVER; HTR UNIT
|
8-98047-391-0 |
01 |
1 |
1502- |
| |
52 |
08.852 LEVER; SHUTTER,HTR UNIT
|
8-98047-390-0 |
01 |
1 |
1502- |
| |
56 |
09.786 LEVER; SHUTTER,HTR UNIT
|
8-98047-393-0 |
01 |
1 |
1502- |
| |
59 |
08.845 SHUTTER; HTR UNIT,SIDE
|
8-98047-386-0 |
01 |
1 |
1502- |
| |
61 |
08.854 CASE; HTR UNIT
(B)
|
8-98047-375-0 |
01 |
1 |
1502- |
| |
61 |
08.854 CASE; HTR UNIT
(A)
|
8-98047-710-0 |
01 |
1 |
1502- |
| |
63 |
08.856 LINING; HTR UNIT
|
8-98047-721-0 |
01 |
1 |
1502- |
| |
66 |
09.786 SHUTTER; HTR UNIT,CENTER LWR
|
8-98047-385-0 |
01 |
1 |
1502- |
| |
67 |
08.854 CLIP; HTR UNIT
|
8-98047-417-0 |
02 |
1 |
1502- |
| |
68 |
08.854 CORE; HTR UNIT
|
8-98047-717-0 |
01 |
1 |
1502- |
| |
72 |
08.845 NUT; CASE,HTR UNIT
M6
|
8-98047-428-0 |
03 |
1 |
1502- |
| |
77 |
08.857 COVER; HTR CASE
|
8-98047-414-0 |
01 |
1 |
1502- |
| |
93 |
08.845 PLATE; HTR UNIT
|
8-98047-427-0 |
01 |
1 |
1502- |
| |
96 |
08.845 PLATE; HTR UNIT
|
8-98047-719-0 |
01 |
1 |
1502- |
| |
100 |
08.854 PIPE; CORE,HTR UNIT
|
8-98072-533-0 |
01 |
1 |
1502- |
| |
101 |
08.845 GASKET; CORE,HTR UNIT
|
8-98072-531-0 |
02 |
1 |
1502- |
| |
133 |
08.845 CLIP; PIPE
(A)
|
8-98047-720-0 |
01 |
1 |
1502- |
| |
133 |
08.845 CLIP; PIPE
(B)
|
8-98072-530-0 |
02 |
1 |
1502- |
| |
135 |
08.854 COVER; HTR
|
8-98047-384-0 |
01 |
1 |
1502- |
| |
162 |
08.845 SCREW; CLIP FIX
08.852
(A)
M4X16 TAPPING
|
8-97957-708-0 |
02 |
1 |
1502- |
| |
162 |
08.845 SCREW; CLIP FIX
(B)
|
8-98072-529-0 |
02 |
1 |
1502- |
| |
192 |
08.856 LINING; PIPE,EVAP
|
8-98047-722-0 |
01 |
1 |
1502- |
| |
207 |
08.845 CLAMP; HTR UNIT
|
8-98047-716-0 |
01 |
1 |
1502- |
| |
212 |
09.262 BOLT; HTR UNIT
(A)
M5X61
|
8-98047-415-0 |
02 |
1 |
1502- |
| |
212 |
09.262 BOLT; HTR UNIT
(B)
|
8-98047-725-0 |
01 |
1 |
1502- |
| |
219 |
08.854 AMPLIFIER; HEATER UNIT
|
8-98047-429-0 |
01 |
1 |
1502- |
| |
234 |
08.854 EVAPORATOR ASM; HEATER
|
8-98074-116-1 |
01 |
1 |
1502- |
| |
235 |
08.845 GASKET; EVAPORATOR
09.260
(A)
ID=11.7
|
8-97095-907-0 |
01 |
1 |
1502- |
| |
235 |
08.845 GASKET; EVAPORATOR
09.225
(B)
ID=14.5
|
8-97095-908-0 |
01 |
1 |
1502- |
| |
236 |
08.855 GASKET; HEATER
(A)
|
8-98047-420-0 |
01 |
1 |
1502- |
| |
236 |
08.855 GASKET; HEATER
(B)
|
8-98047-421-0 |
01 |
1 |
1502- |
| |
237 |
08.855 INSULATOR; EVAPORATOR
|
8-98047-382-0 |
01 |
1 |
1502- |
| |
238 |
08.845 VALVE; EXPANSION
|
8-98047-383-0 |
01 |
1 |
1502- |
| |
239 |
08.846 TUBE ASM; HEATER
|
8-98047-718-0 |
01 |
1 |
1502- |
| |
240 |
08.845 GASKET; HEATER
09.225
(B)
ID=7.4
|
8-97095-906-0 |
01 |
1 |
1502- |
| |
240 |
08.845 GASKET; HEATER
09.225
(A)
ID=14.5
|
8-97095-908-0 |
01 |
1 |
1502- |
| |
243 |
08.854 CORE
01.656
|
8-98048-508-0 |
01 |
1 |
1502- |
| |
244 |
08.854 PIPE; INLET
|
8-98048-509-0 |
01 |
1 |
1502- |
